Page 3777 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 489: Installing RH And LH Drain Unions Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 3778 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 1: Exploded View Of Exhaust Pipe Assy Components And Replacements (USA And Canada)

Page 3779 of 4500

LEXUS LS430 2003 Factory Repair Manual Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. Fig. 2: Exploded View Of Exhaust Pipe Assy Components And Replacements (Korea) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 3780 of 4500

LEXUS LS430 2003 Factory Repair Manual 1.REMOVE FRONT FLOOR BRACE CENTER a. Remove the 4 bolts and floor brace. 2.Bank 1, 2 sensor 2: REMOVE HEATED OXYGEN SENSOR a. Remove the 2 sensors. 3.REMOVE EXHAUST PIPE ASSY FRONT a. Loosen

Page 3781 of 4500

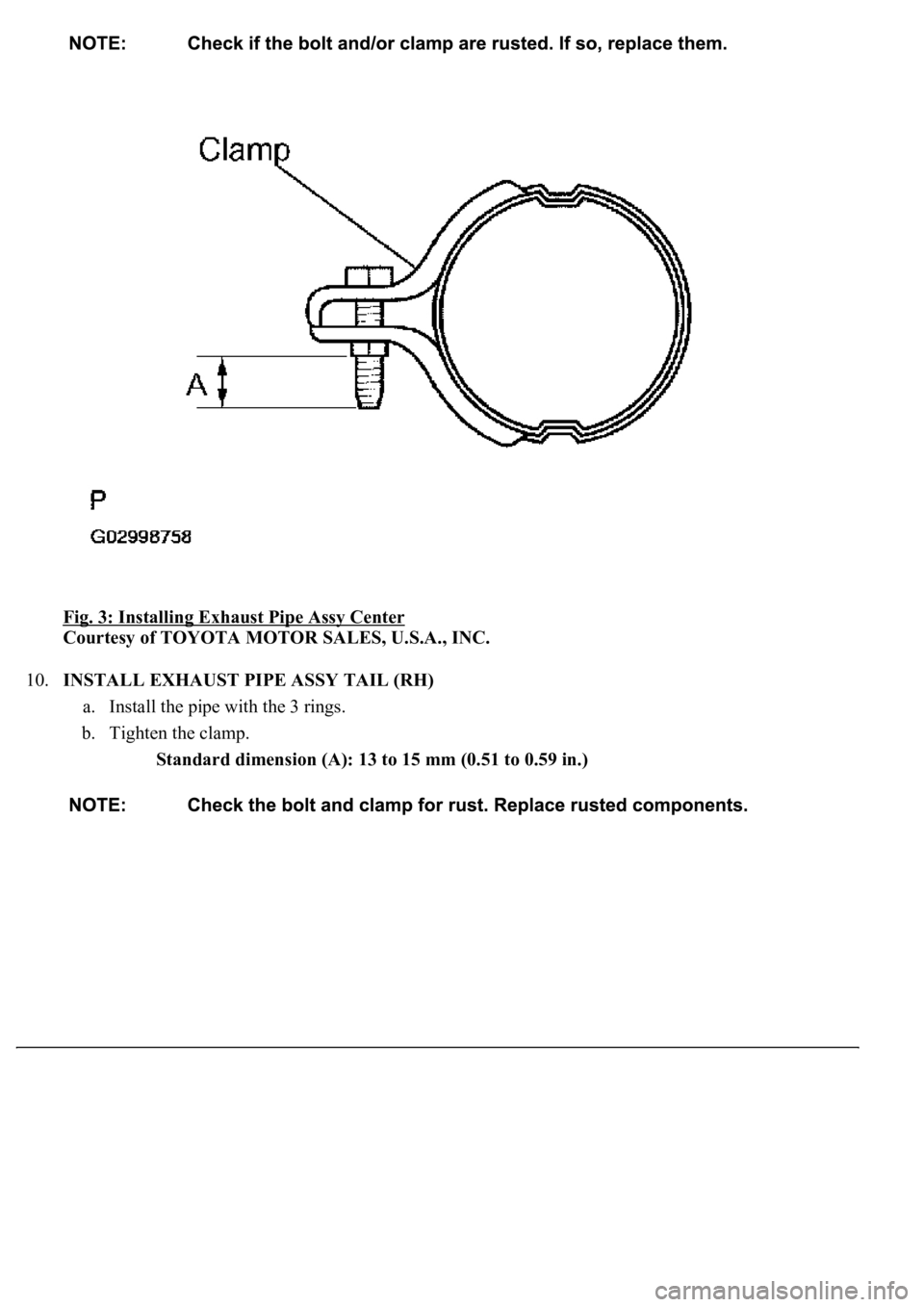

LEXUS LS430 2003 Factory Repair Manual Fig. 3: Installing Exhaust Pipe Assy Center Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 10.INSTALL EXHAUST PIPE ASSY TAIL (RH) a. Install the pipe with the 3 rings. b. Tighten the clamp. Standa

Page 3782 of 4500

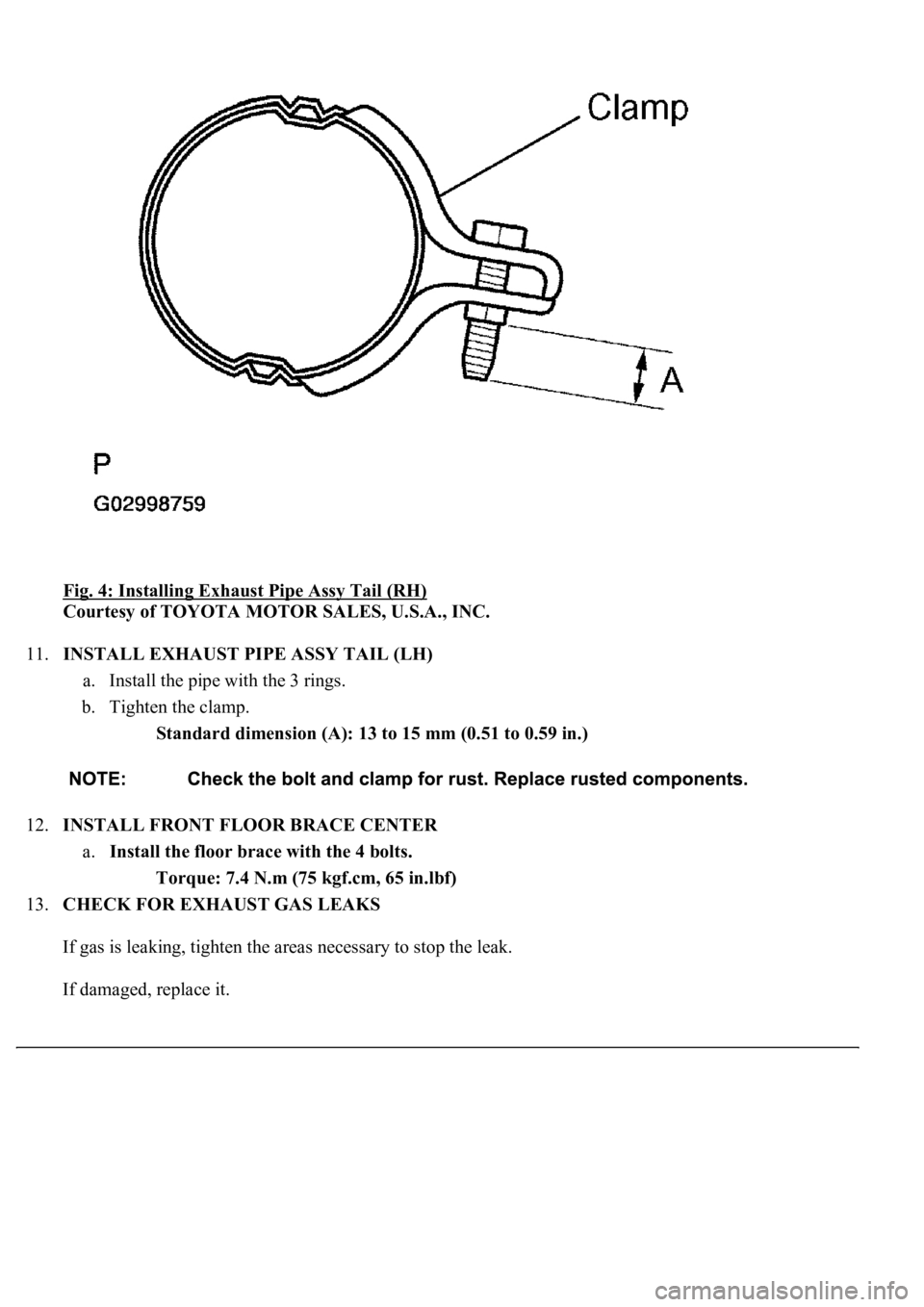

LEXUS LS430 2003 Factory Repair Manual Fig. 4: Installing Exhaust Pipe Assy Tail (RH) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 11.INSTALL EXHAUST PIPE ASSY TAIL (LH) a. Install the pipe with the 3 rings. b. Tighten the clamp. Sta

Page 3783 of 4500

LEXUS LS430 2003 Factory Repair Manual COMPONENTS

Page 3784 of 4500

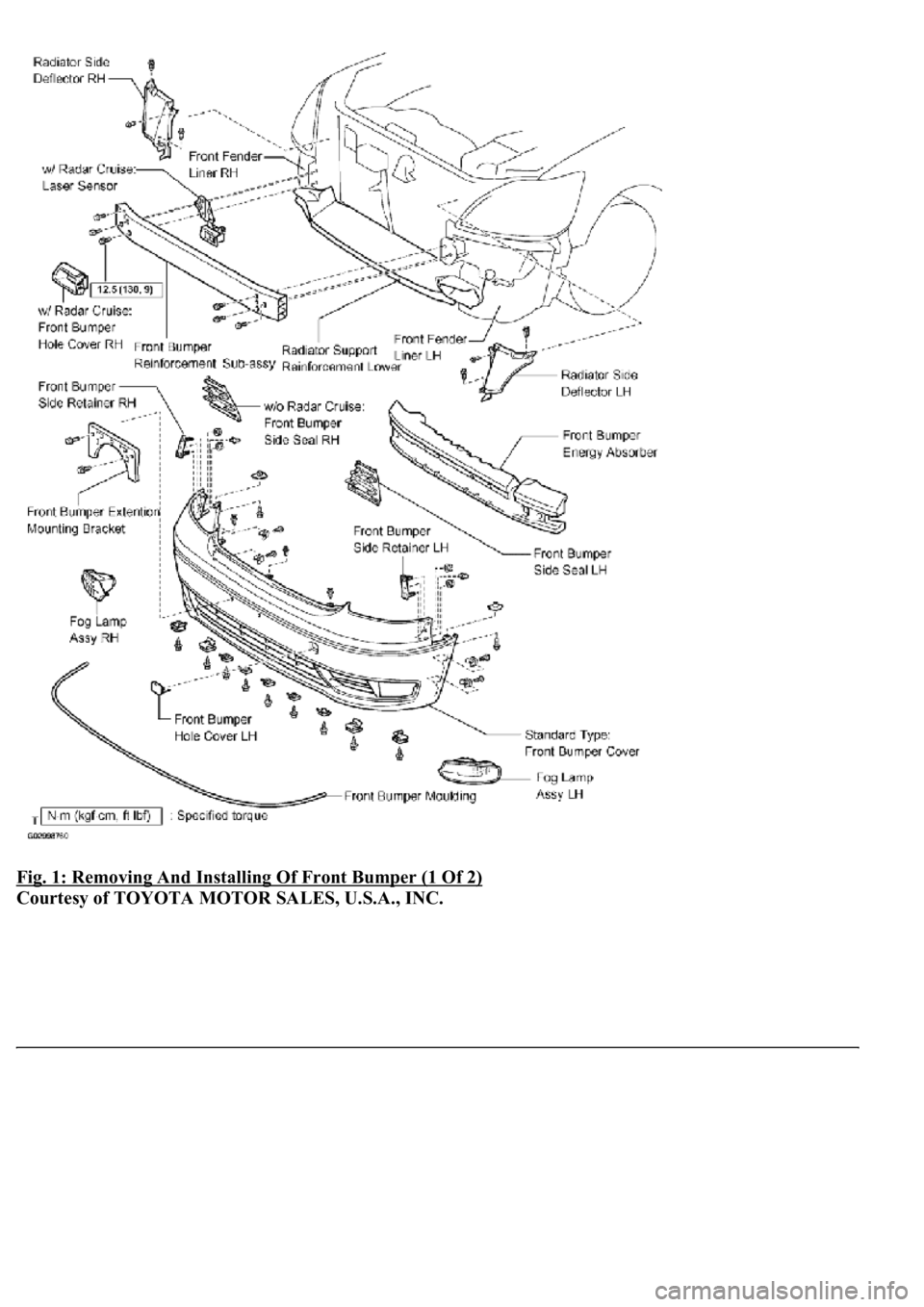

LEXUS LS430 2003 Factory Repair Manual Fig. 1: Removing And Installing Of Front Bumper (1 Of 2) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
