Page 1105 of 4500

LEXUS LS430 2003 Factory Repair Manual 7.REMOVE SPIRAL CABLE SUB-ASSY (SEE REPLACEMENT ) 8.REMOVE STEERING SENSOR a. Release 6 claw fittings and remove the steering sensor from the spiral cable. Fig. 134: Removing Steering Sensor From

Page 1106 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 135: Installing Steering Sensor To Spiral Cable Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 10.ADJUST CENTER FRONT WHEEL 11.INSTALL SPIRAL CABLE SUB-ASSY (SEE REPLACEMENT ) 12.CENTER SPIR

Page 1107 of 4500

LEXUS LS430 2003 Factory Repair Manual SYSTEM INDEX PROBLEM SYMPTOMS TABLE <00380056004800030057004b00480003005700440045004f0048000300450048004f0052005a0003005700520003004b0048004f005300030049004c0051004700030057004b004800030046004400580

Page 1108 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 137: Identifying Parking Brake Adjusting Nut Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. h. Depress the parking brake pedal 5 notches to make room for the procedure, and loosen the lock nut.

Page 1109 of 4500

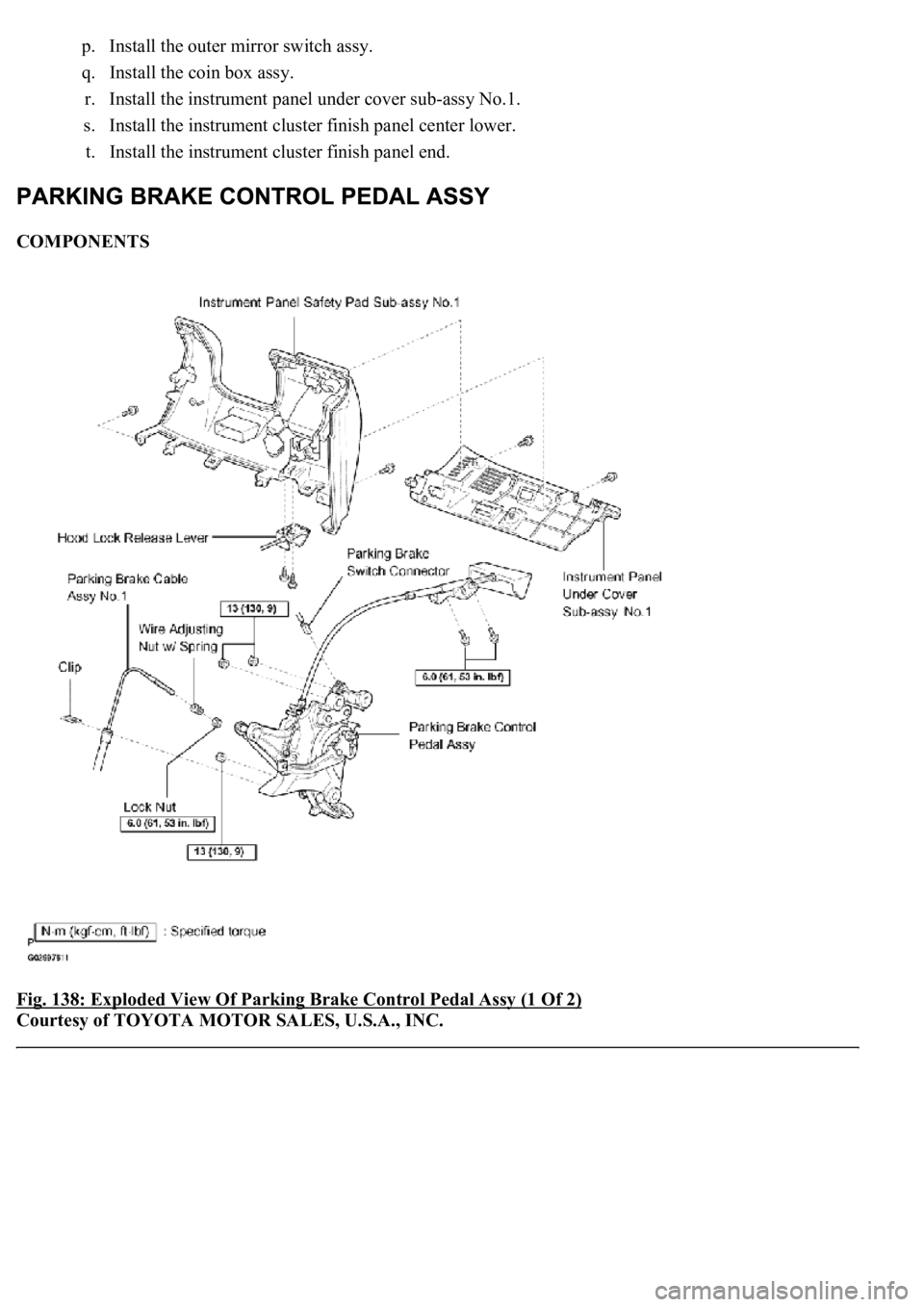

LEXUS LS430 2003 Factory Repair Manual p. Install the outer mirror switch assy. q. Install the coin box assy. r. Install the instrument panel under cover sub-assy No.1. s. Install the instrument cluster finish panel center lower. t

Page 1110 of 4500

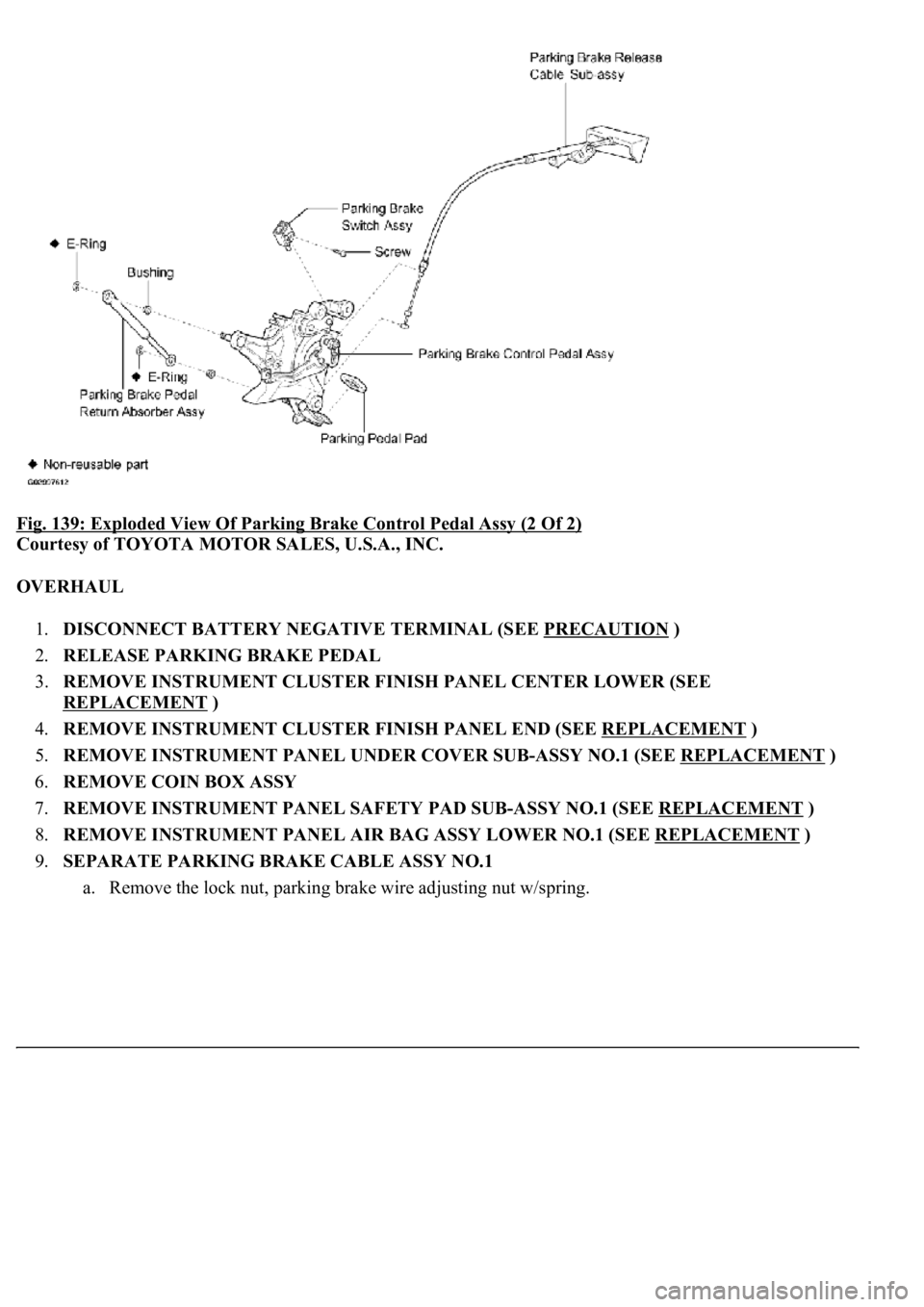

LEXUS LS430 2003 Factory Repair Manual Fig. 139: Exploded View Of Parking Brake Control Pedal Assy (2 Of 2) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. OVERHAUL 1.DISCONNECT BATTERY NEGATIVE TERMINAL (SEE PRECAUTION ) 2.RELEASE PARK

Page 1111 of 4500

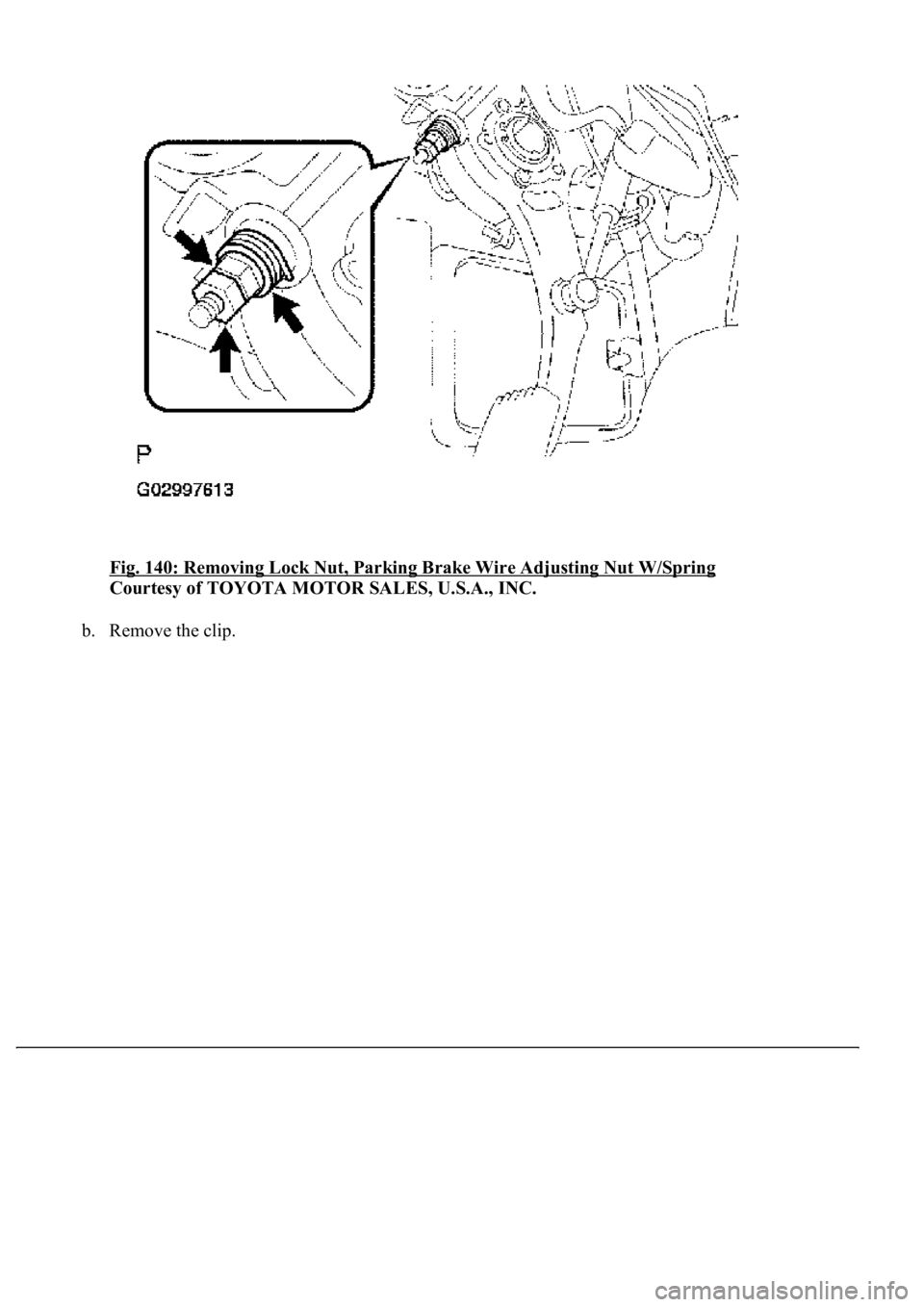

LEXUS LS430 2003 Factory Repair Manual Fig. 140: Removing Lock Nut, Parking Brake Wire Adjusting Nut W/Spring Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Remove the clip.

Page 1112 of 4500

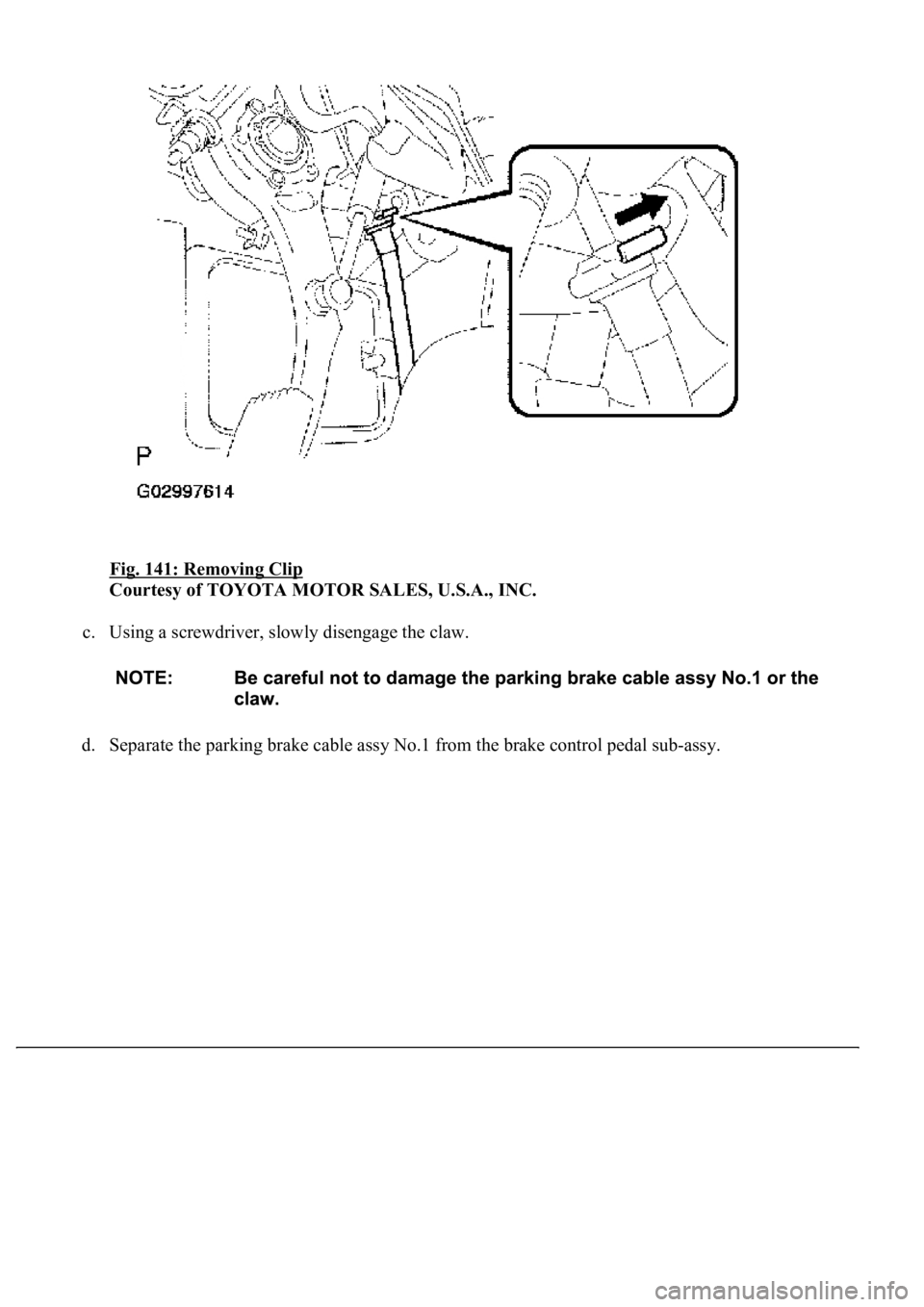

LEXUS LS430 2003 Factory Repair Manual Fig. 141: Removing Clip Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Using a screwdriver, slowly disengage the claw. d. Separate the parkin g brake cable assy No.1 from the brake control pedal s
