Page 1609 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 18: Climate Control Does Not Operate (Blinking Pattern 1) Wiring Diagram (2 Of 3) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 1610 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 19: Climate Control Does Not Operate (Blinking Pattern 1) Wiring Diagram (3 Of 3) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. INSPECTION PROCEDURE 1.CHECK CLIMATE CONTROL SWITCH (INDICATOR)

Page 1611 of 4500

LEXUS LS430 2003 Factory Repair Manual Result: RESULT REFERENCE B: Go to step 5 A: Go to next step 2.CHECK SEAT CLIMATE CONTROL CONTROLLER (SEATBACK) HINT: When the driver side indicator is blinking, check the driver side connecto

Page 1612 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 20: Checking Seat Climate Control Controller (Seatback) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. B: REPLACE SEAT CLIMATE CONTROL CONTROLLER (SEATBACK) A: Go to next step 3.CHECK WIRE HA

Page 1613 of 4500

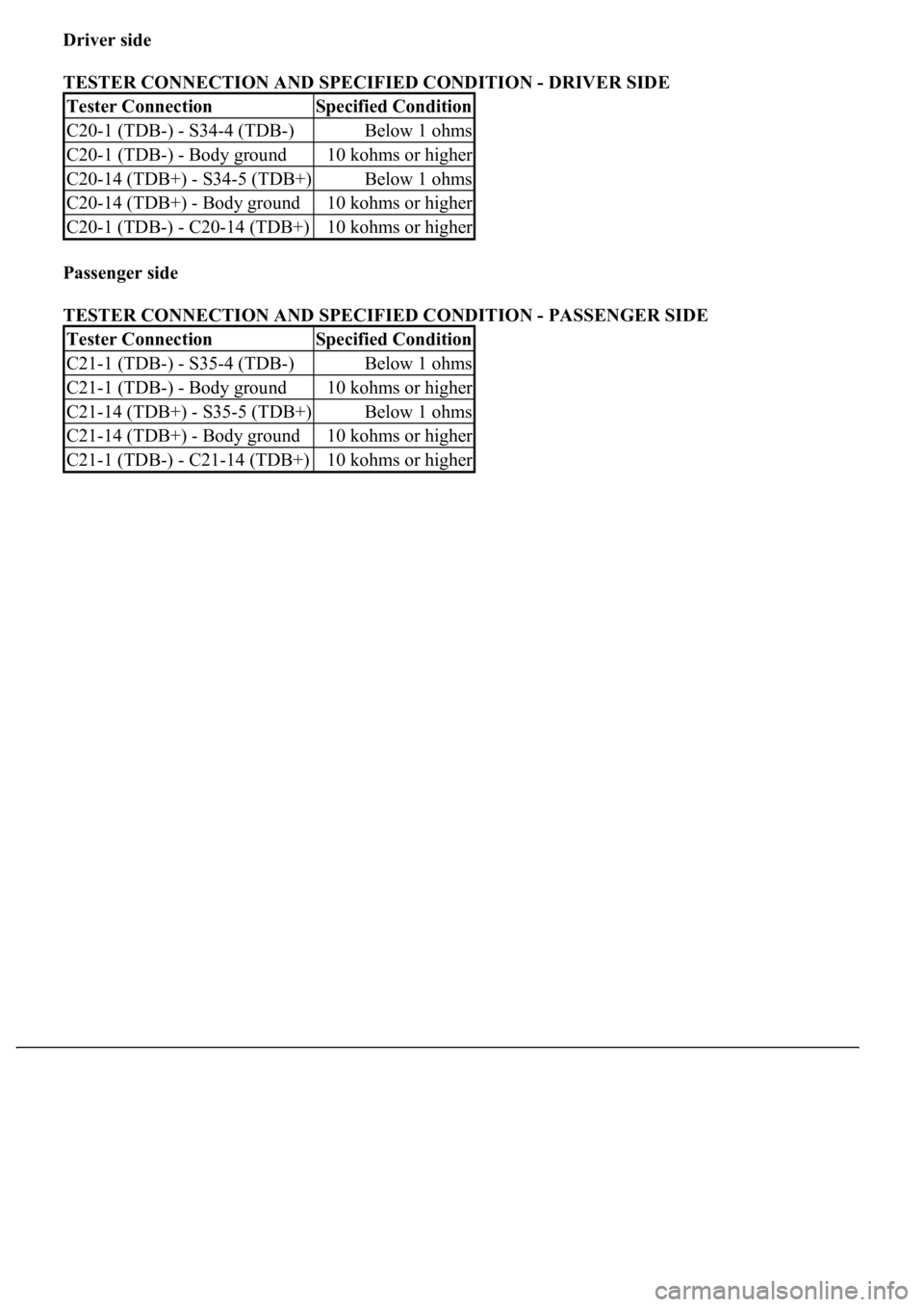

LEXUS LS430 2003 Factory Repair Manual Driver side TESTER CONNECTION AND SPECIFIED CONDITION - DRIVER SIDE Passenger side TESTER CONNECTION AND SPECIFIED CONDITION - PASSENGER SIDE Tester ConnectionSpecified Condition C20-1 (TDB-) -

Page 1614 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 21: Identifying Seat Climate Control Blower Connector And Seat Climate Controller

Page 1615 of 4500

LEXUS LS430 2003 Factory Repair Manual Connector Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR OK: Go to next step 4.CHECK SEAT CLIMATE CONTROL CONTROLLER (SEAT CUSHION) HINT: When the dri

Page 1616 of 4500

LEXUS LS430 2003 Factory Repair Manual <0029004c004a0011000300150015001d00030026004b00480046004e004c0051004a0003003600480044005700030026004f004c00500044005700480003002600520051005700550052004f0003002600520051005700550052004f004f00480055000
