Page 1057 of 4500

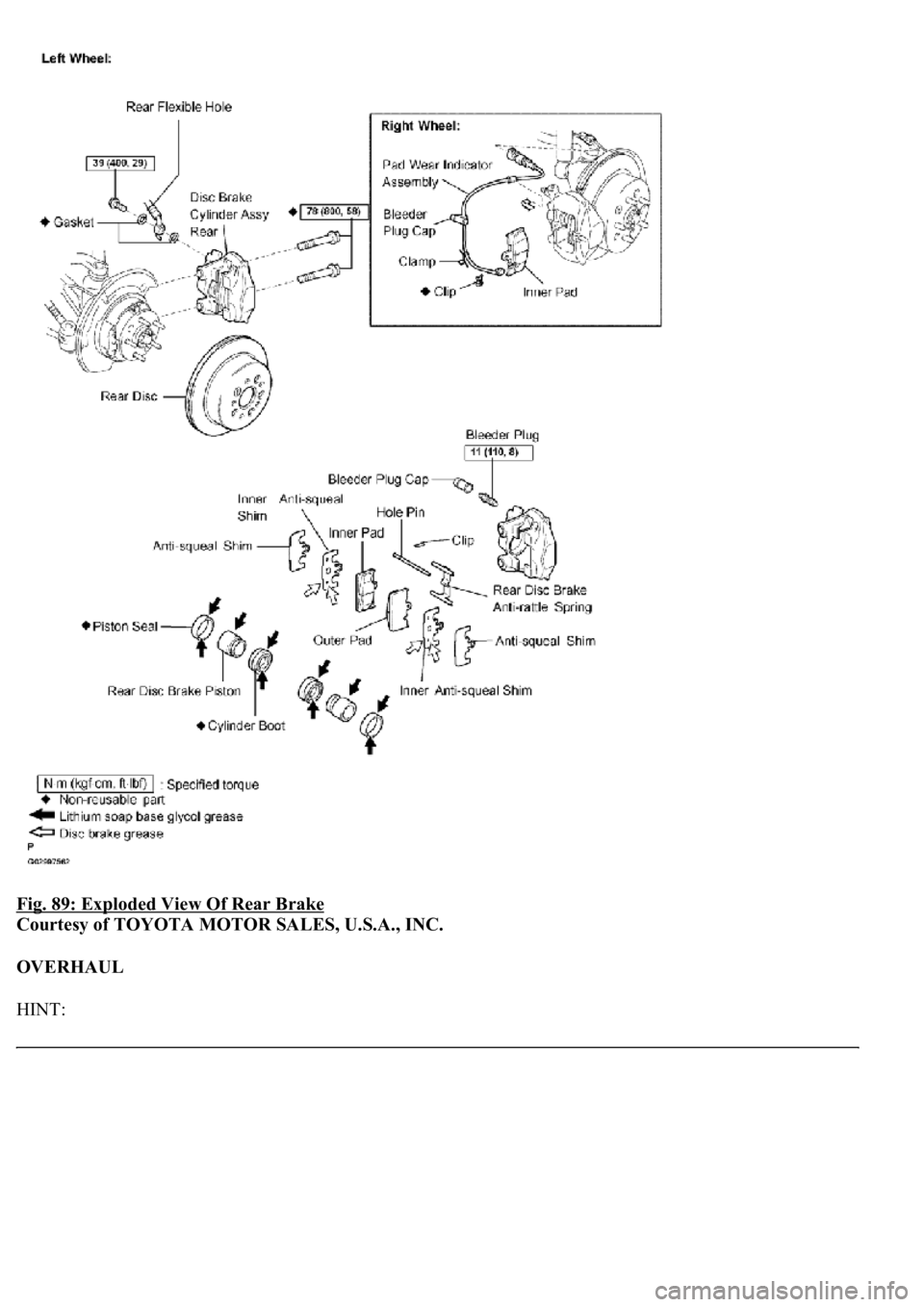

LEXUS LS430 2003 Factory Repair Manual Fig. 89: Exploded View Of Rear Brake Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. OVERHAUL HINT:

Page 1058 of 4500

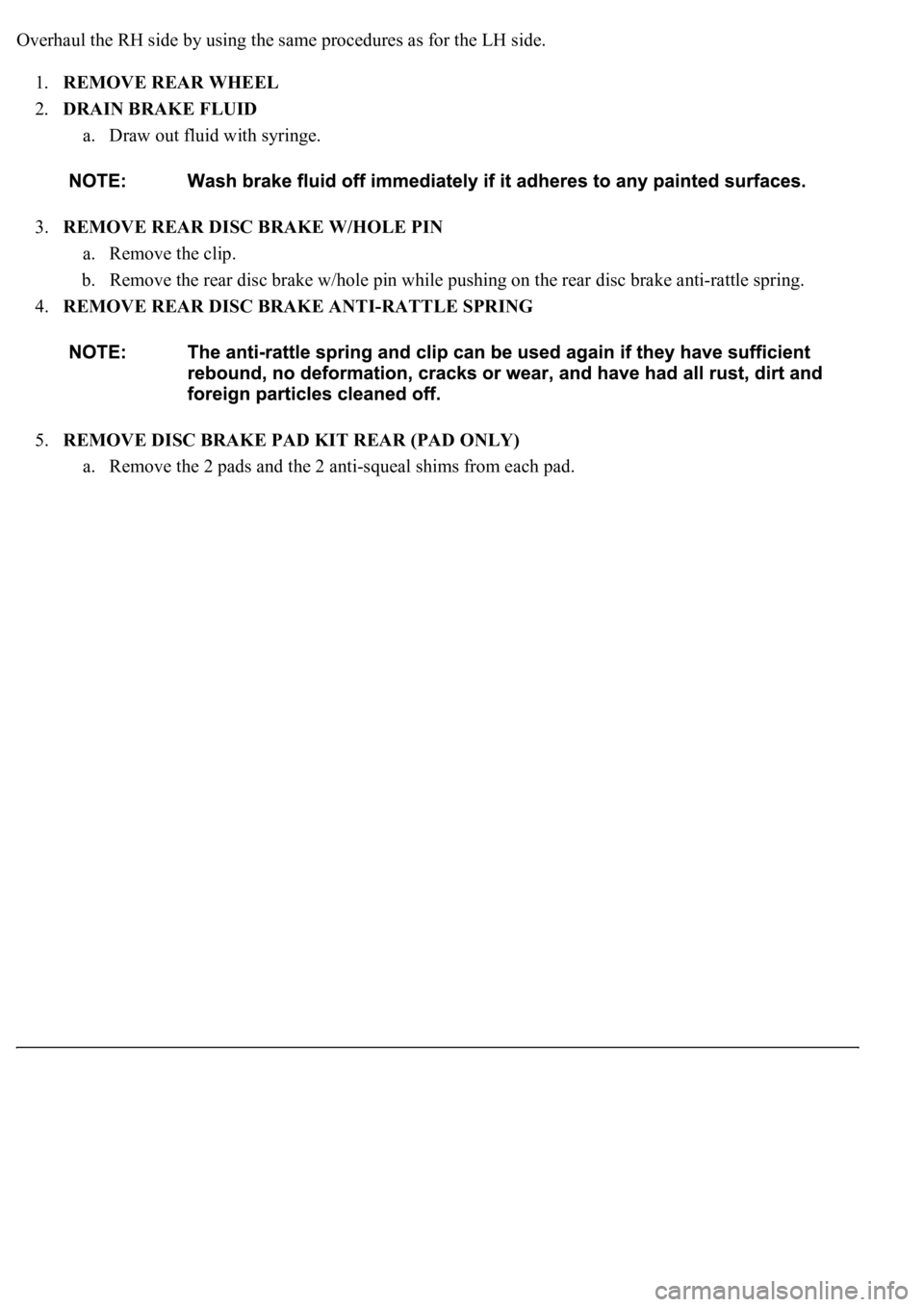

LEXUS LS430 2003 Factory Repair Manual Overhaul the RH side by using the same procedures as for the LH side. 1.REMOVE REAR WHEEL 2.DRAIN BRAKE FLUID a. Draw out fluid with syringe. 3.REMOVE REAR DISC BRAKE W/HOLE PIN a. Remove the cl

Page 1059 of 4500

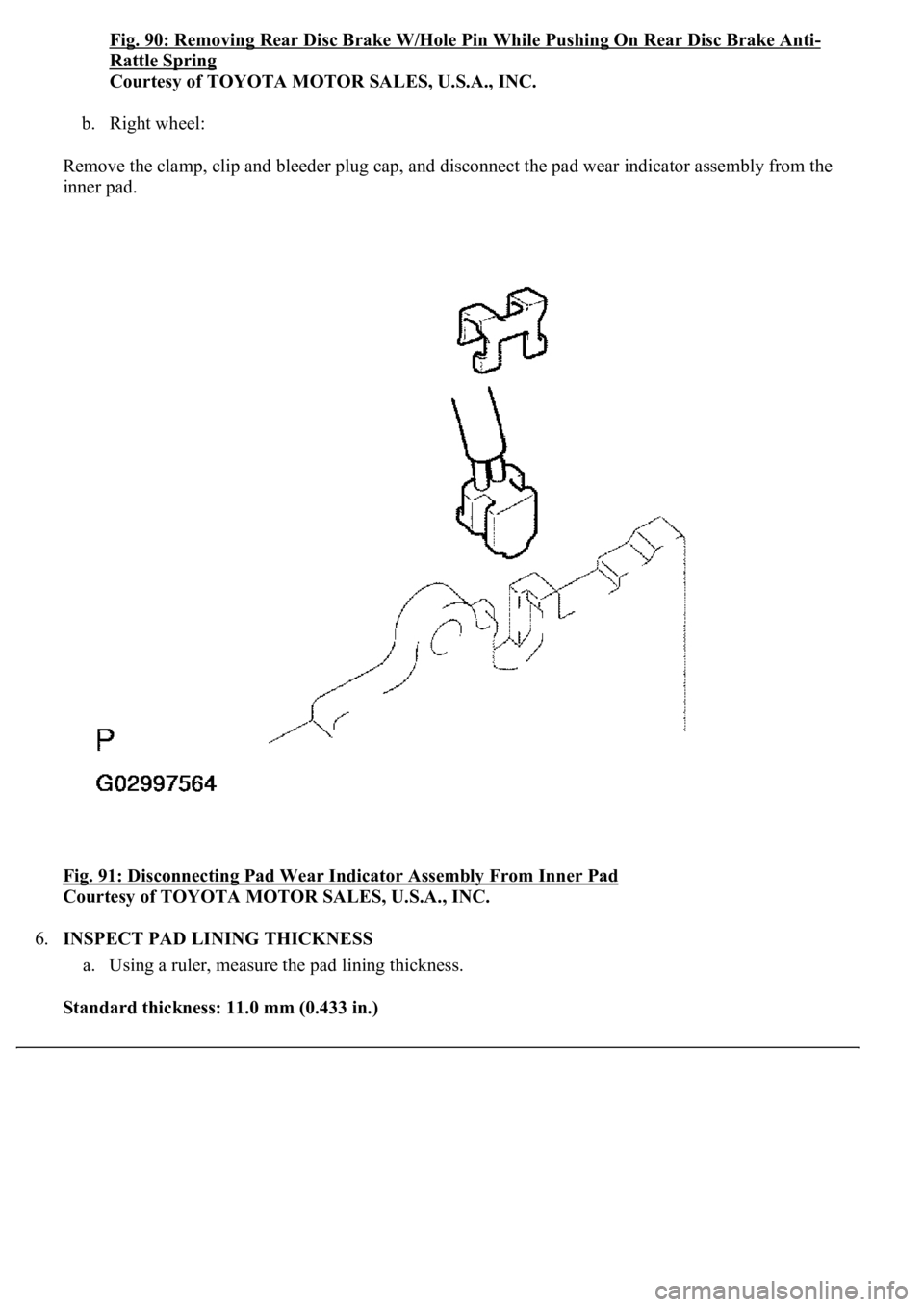

LEXUS LS430 2003 Factory Repair Manual Fig. 90: Removing Rear Disc Brake W/Hole Pin While Pushing On Rear Disc Brake Anti- Rattle Spring Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Right wheel: Remove the clamp, clip and bleeder pl

Page 1060 of 4500

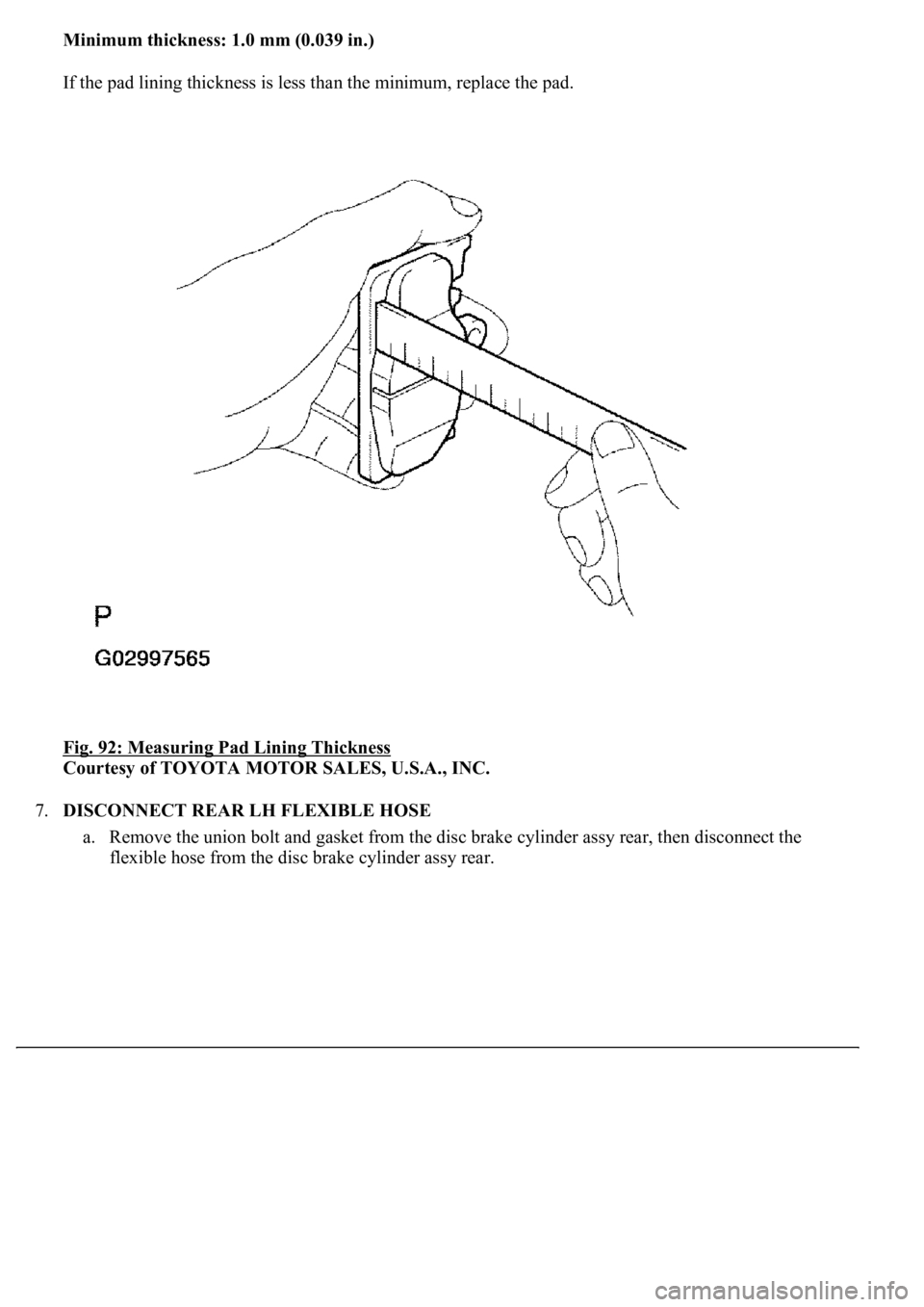

LEXUS LS430 2003 Factory Repair Manual Minimum thickness: 1.0 mm (0.039 in.) If the pad lining thickness is less than the minimum, replace the pad. Fig. 92: Measuring Pad Lining Thickness Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 7.

Page 1061 of 4500

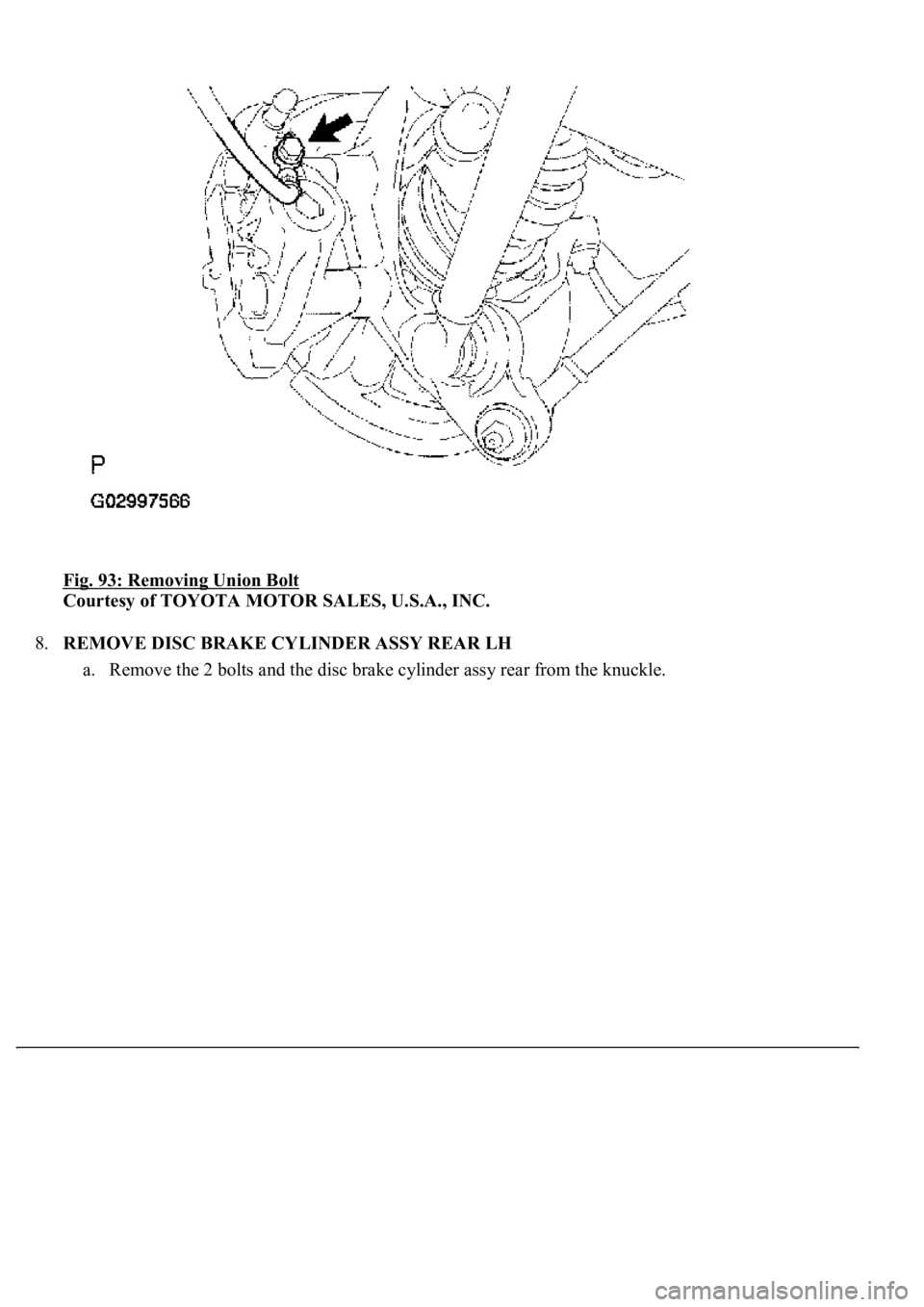

LEXUS LS430 2003 Factory Repair Manual Fig. 93: Removing Union Bolt Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 8.REMOVE DISC BRAKE CYLINDER ASSY REAR LH a. Remove the 2 bolts and the disc brake c ylinder assy rear from the knuckle.

Page 1062 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 94: Removing Bolts And Disc Brake Cylinder Assy Rear From Knuckle Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 9.REMOVE CYLINDER BOOT a. Usin g a screwdriver, remove the cylinder boot from the

Page 1063 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 95: Removing Cylinder Boot From Disc Brake Cylinder Assy Rear Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 10.REMOVE REAR DISC BRAKE PISTON a. Prepare a wooden plate to hold the pistons.

Page 1064 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 96: Preparing Wooden Plate To Hold Pistons Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Place the plate between the pistons and insert a pad into one side. c. Use compressed air to remove
