Page 2321 of 4500

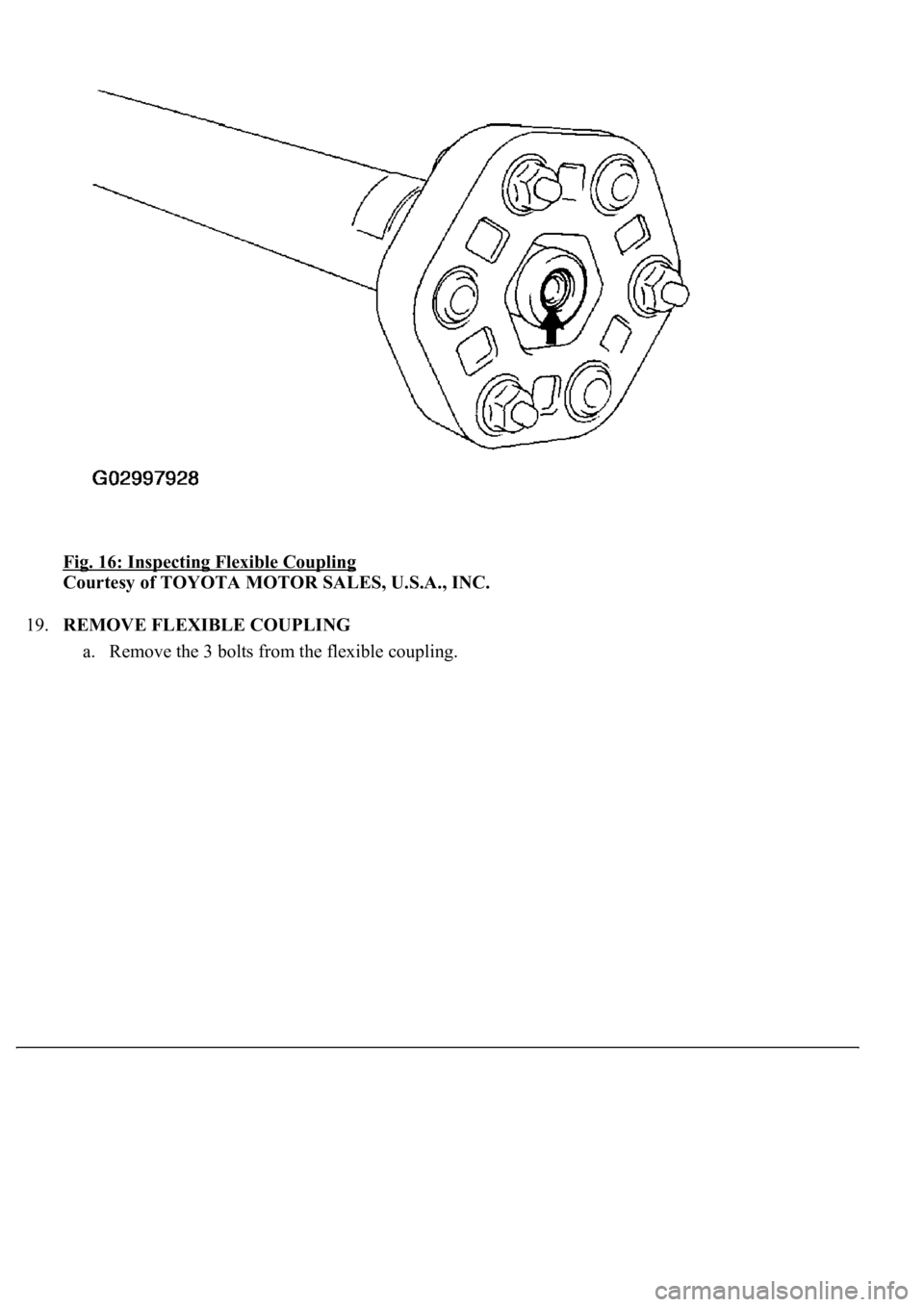

LEXUS LS430 2003 Factory Repair Manual Fig. 16: Inspecting Flexible Coupling Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 19.REMOVE FLEXIBLE COUPLING a. Remove the 3 bolts from the flexible couplin g.

Page 2322 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 17: Removing Flexible Coupling Bolts Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 20.REMOVE PROPELLER INTERMEDIATE SHAFT ASSY a. Place matchmarks on the intermediate shaft and propeller shaft.

Page 2323 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 18: Identifying Matchmarks On Intermediate Shaft And Propeller Shaft Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Remove the dust boot from the propeller shaft. HINT: If the dust boot is

Page 2324 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 19: Wrapping Vinyl Tape Around Spline Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 21.REMOVE CENTER SUPPORT BEARING ASSY NO. 1 a. Usin g a snap ring expander, remove the snap ring.

Page 2325 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 20: Removing Snap Ring Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Using SST and a press, remove the center support bearing assy No. 1. SST 09950-00020

Page 2326 of 4500

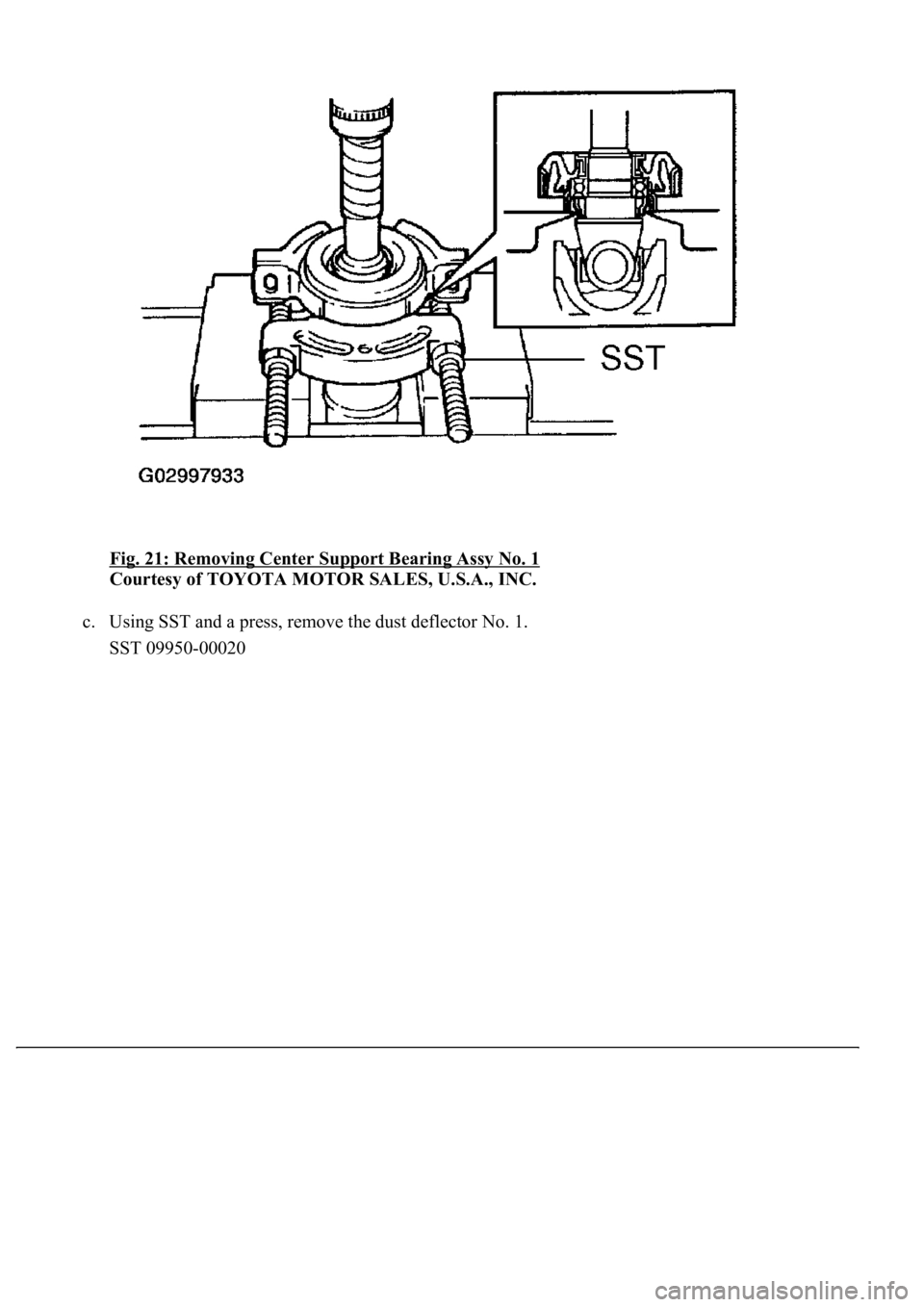

LEXUS LS430 2003 Factory Repair Manual Fig. 21: Removing Center Support Bearing Assy No. 1 Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Using SST and a press, remove the dust deflector No. 1. SST 09950-00020

Page 2327 of 4500

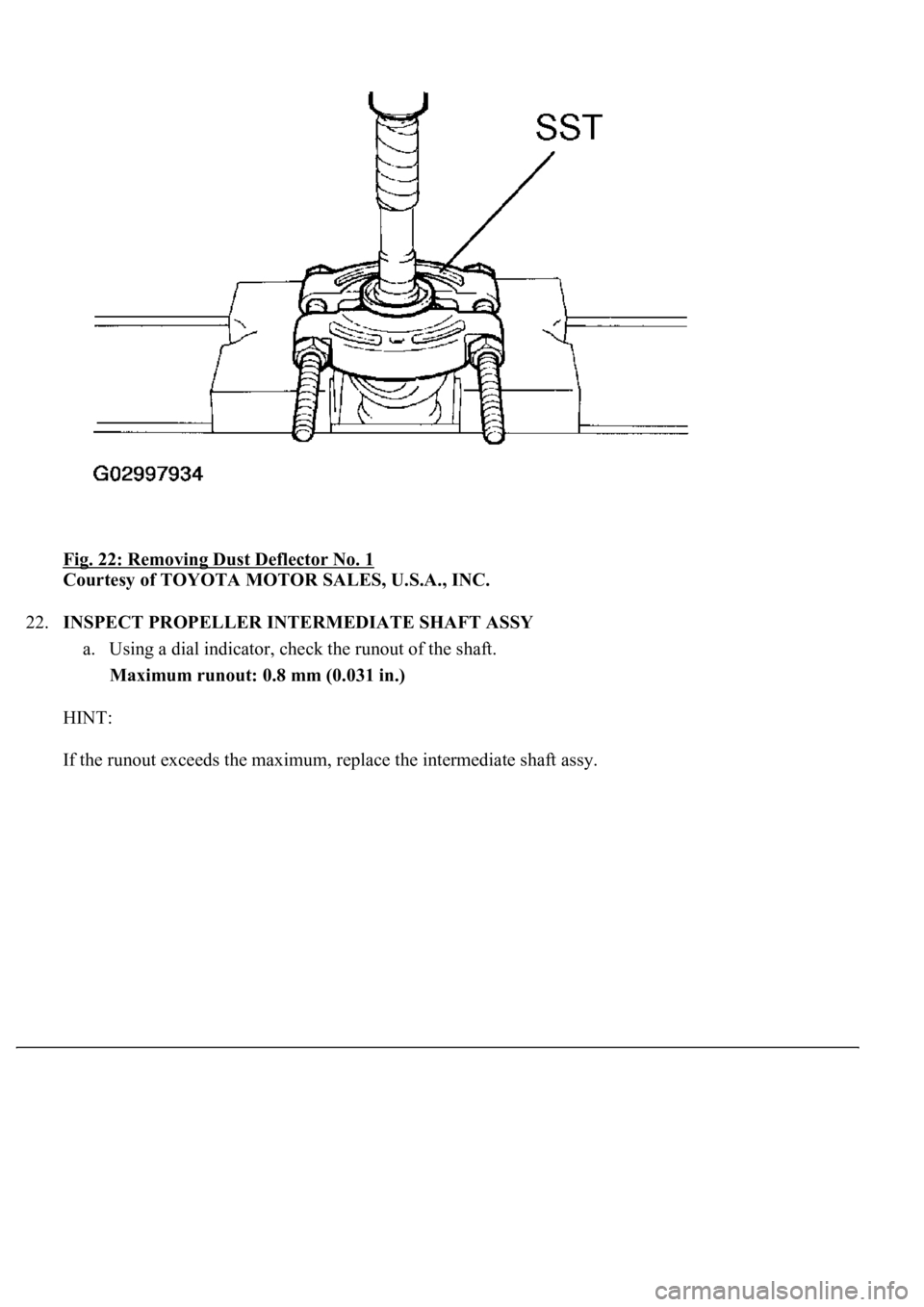

LEXUS LS430 2003 Factory Repair Manual Fig. 22: Removing Dust Deflector No. 1 Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 22.INSPECT PROPELLER INTERMEDIATE SHAFT ASSY a. Using a dial indicator, check the runout of the shaft. Maximum

Page 2328 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 23: Checking Propeller Intermediate Shaft Assy Runout Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 23.INSPECT PROPELLER SHAFT ASSY a. Using a dial indicator, check the runout of the shaft. M
