Page 665 of 4500

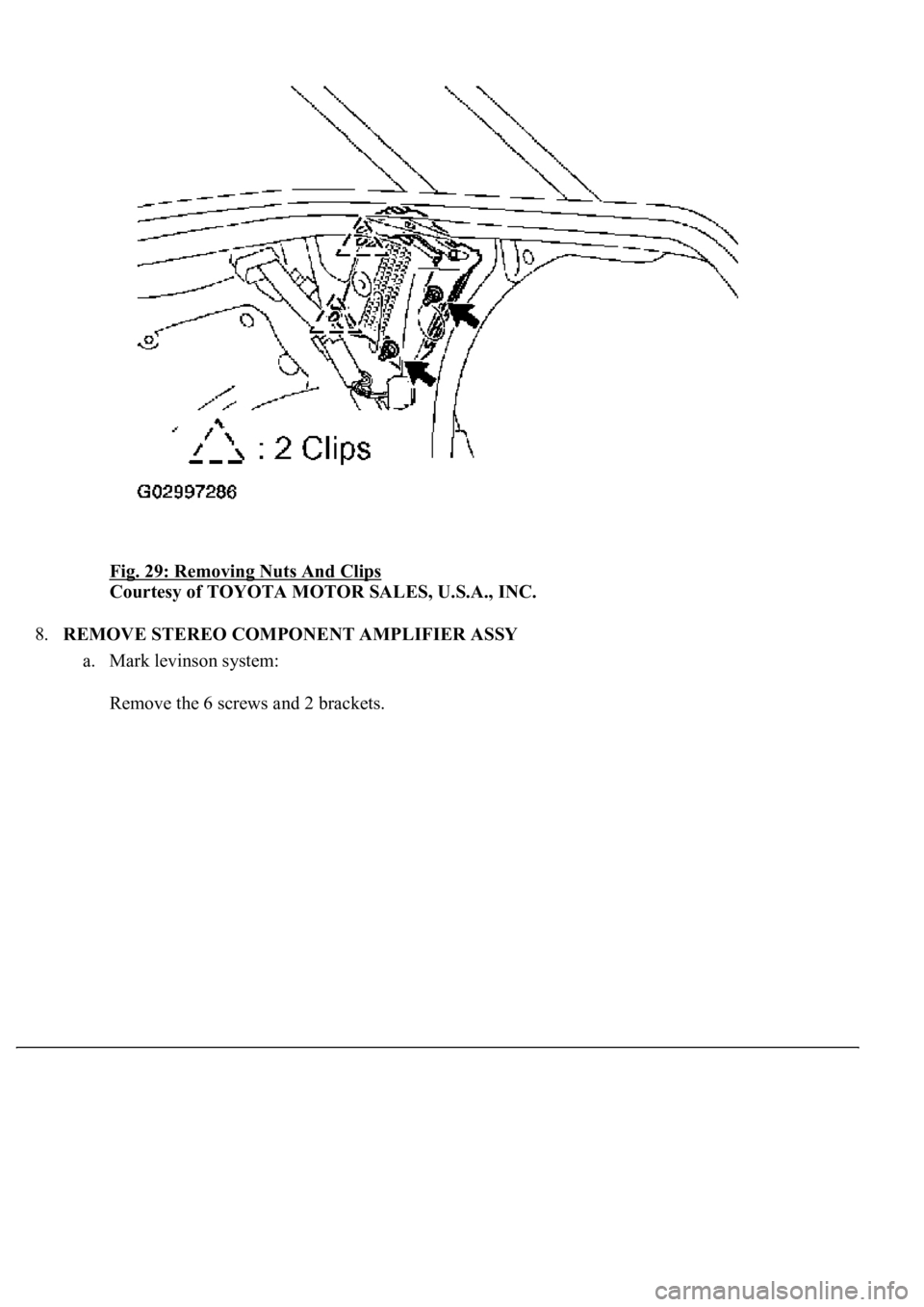

LEXUS LS430 2003 Factory Repair Manual Fig. 29: Removing Nuts And Clips Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 8.REMOVE STEREO COMPONENT AMPLIFIER ASSY a. Mark levinson system: Remove the 6 screws and 2 brackets.

Page 666 of 4500

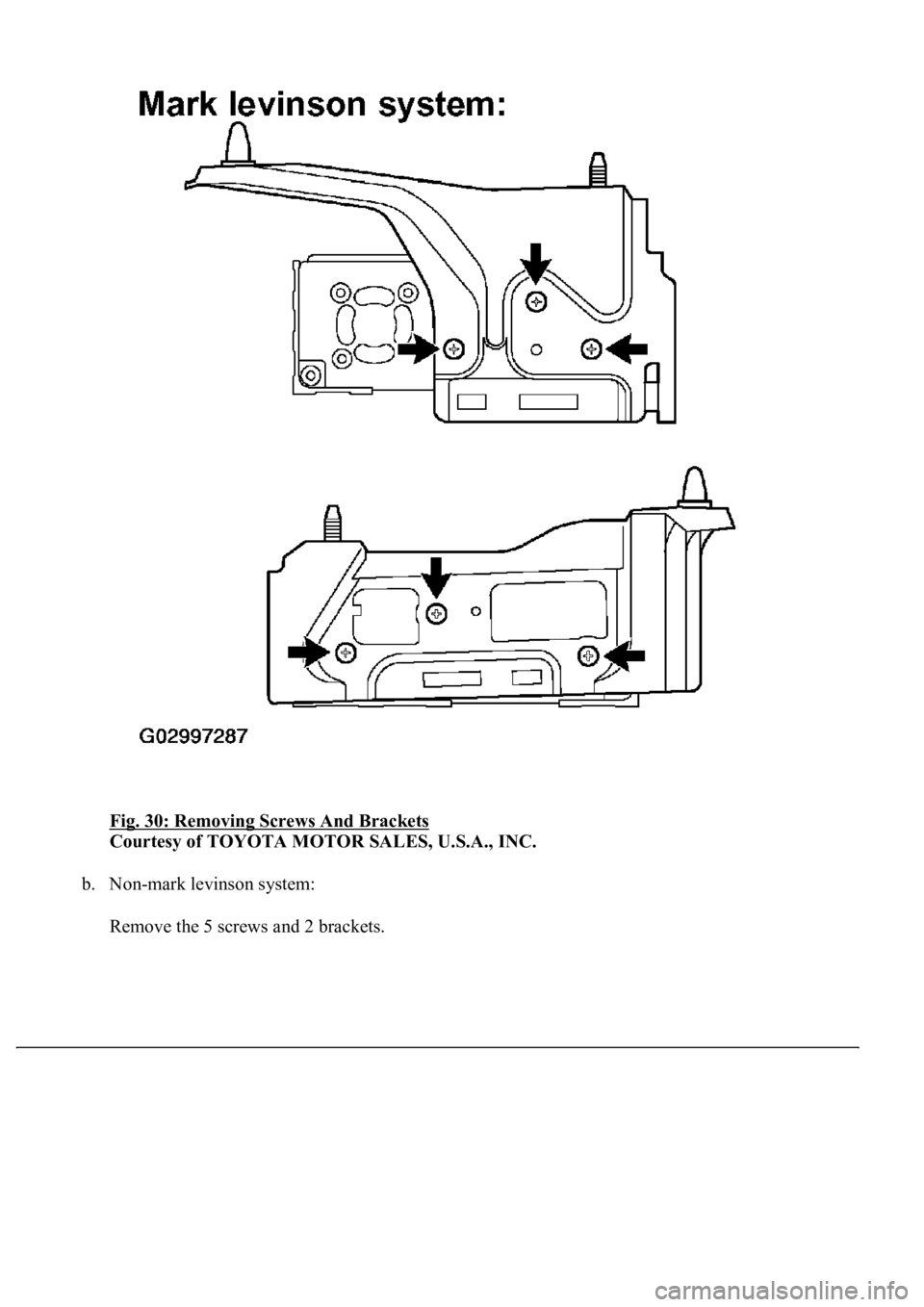

LEXUS LS430 2003 Factory Repair Manual Fig. 30: Removing Screws And Brackets Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Non-mark levinson system: Remove the 5 screws and 2 brackets.

Page 667 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 31: Removing Screws And Brackets Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. REPLACEMENT HINT:

Page 668 of 4500

LEXUS LS430 2003 Factory Repair Manual See COMPONENTS . See LOCATION . Installation is in the reverse order of removal. The procedure for the left side is the same as that for the right side. The procedure for right side is shown be

Page 669 of 4500

LEXUS LS430 2003 Factory Repair Manual REPLACEMENT HINT: See COMPONENTS See LOCATION Installation is in the reverse order of removal. The procedure for the left side is the same as that for the right side. The procedure for right s

Page 670 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 33: Removing Rear Speaker Assy Screws Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. REPLACEMENT HINT: See COMPONENTS - FIXED , COMPONENTS - POWER ADJUSTER , COMPONENTS -BACK WINDOW GLASS Se

Page 671 of 4500

LEXUS LS430 2003 Factory Repair Manual OVERHAUL - FIXED) 5.REMOVE REAR DOOR SCUFF PLATE RH (See REPLACEMENT ) 6.REMOVE REAR DOOR SCUFF PLATE LH (See REPLACEMENT ) 7.REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH (See REPLACEMENT )

Page 672 of 4500

LEXUS LS430 2003 Factory Repair Manual REPLACEMENT HINT: See LOCATION Installation is in the reverse order of removal. 1.REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY (See step 19 on REPLACEMENT ) 2.REMOVE FRONT NO. 2 SPEAKER ASSY
