Page 1161 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 186: Installing Parking Brake Shoe Assy LH No.1 Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. d.INSTALL PARKING BRAKE SHOE ASSY LH NO.2 a. Apply high temperature grease to the shoe adjuster.

Page 1162 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 187: Installing Parking Brake Shoe Assy LH No.2 And Shoe Adjuster Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. e.INSTALL PARKING BRAKE SHOE RETURN TENSION SPRING a. Using SST, install the brak

Page 1163 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 188: Installing Brake Shoe Return Tension Spring Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. f.CHECK PARKING BRAKE INSTALLATION a. Make sure that all the parts are installed properly If not

Page 1164 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 189: Checking Parking Brake Installation Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. g.INSTALL REAR DISC a. Ali gn the matchmarks on the disc and rear axle hub.

Page 1165 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 190: Aligning Matchmarks On Disc And Rear Axle Hub Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. h.ADJUST PARKING BRAKE SHOE CLEARANCE a. Remove the hole plug. b. Turn the shoe adjuster and e

Page 1166 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 191: Installing Hole Plug Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. i.INSTALL REAR DISC BRAKE CALIPER ASSY LH a. Temporarily tighten the brake caliper with the 2 new bolts. b. Pulling the

Page 1167 of 4500

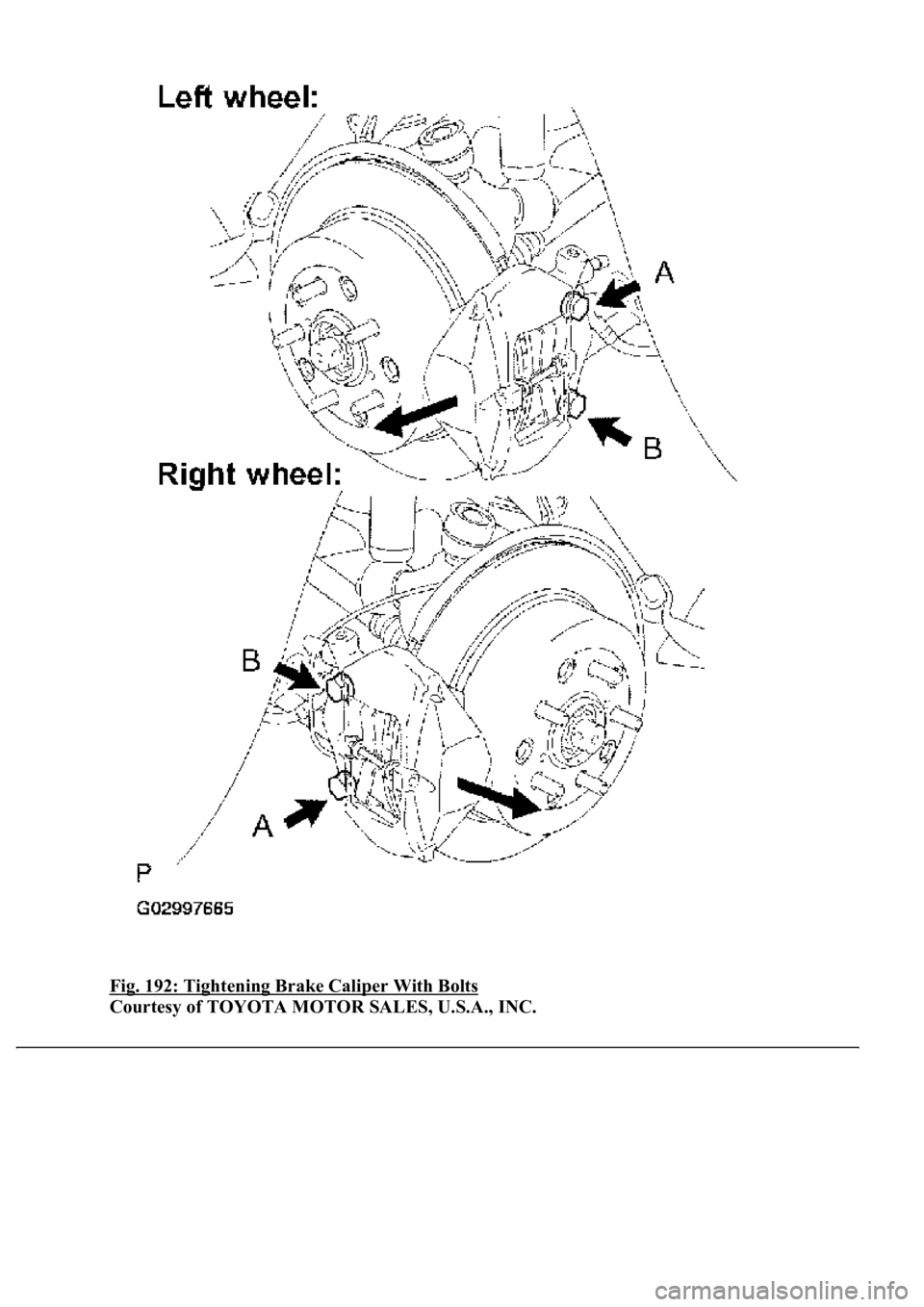

LEXUS LS430 2003 Factory Repair Manual Fig. 192: Tightening Brake Caliper With Bolts Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 1168 of 4500

LEXUS LS430 2003 Factory Repair Manual j.INSTALL REAR WHEEL Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf) k.INSTALL FRONT FLOOR HEAT INSULATOR NO.1 (SEE REPLACEMENT ) l.INSTALL EXHAUST PIPE ASSY (SEE REPLACEMENT ) m.INSTALL OXYGEN SEN
