Page 3729 of 4500

LEXUS LS430 2003 Factory Repair Manual 3. Subtract the piston diameter measurement from the cylinder bore diameter measurement. Standard oil clearance: 0.060 to 0.104 mm (0.0023 to 0.0041 in.) Maximum oil clearance: 0.124 mm (0.0049

Page 3730 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 442: Measuring Piston Diameter At Right Angles Using Micrometer Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 3731 of 4500

LEXUS LS430 2003 Factory Repair Manual HINT: Use a new cylinder block: Use a piston with the same number mark as the cylinder diameter marked on the cylinder block. The shape of the piston varies for the LH and RH banks. The LH piston

Page 3732 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 443: Identifying Cylinder Block Diameter Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Inspect the piston pin fit.

Page 3733 of 4500

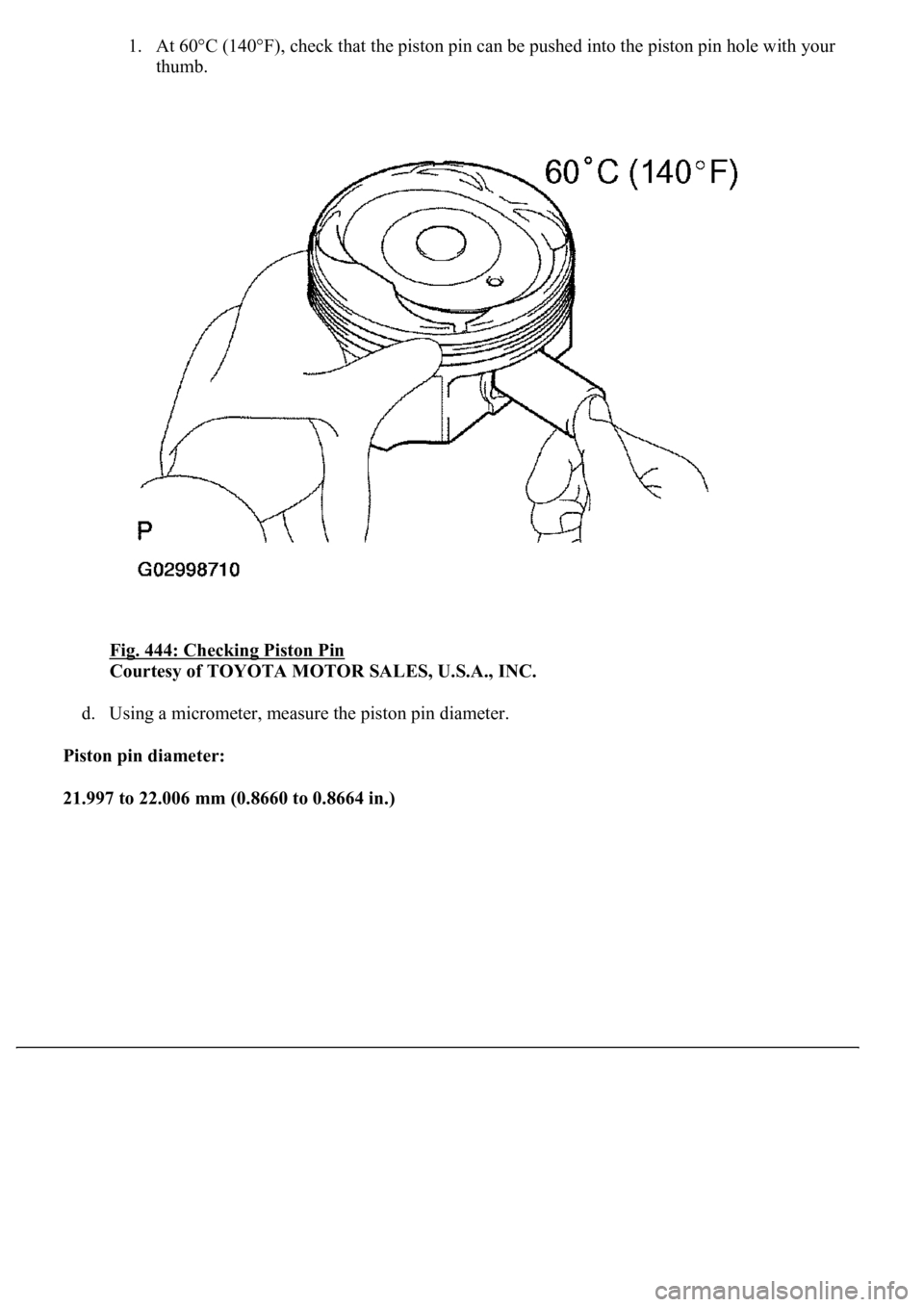

LEXUS LS430 2003 Factory Repair Manual 1. At 60°C (140°F), check that the piston pin can be pushed into the piston pin hole with your thumb. Fig. 444: Checking Piston Pin Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. d. Using a micr

Page 3734 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 445: Measuring Piston Pin Diameter Using Micrometer Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 10.INSPECT PISTON RING SET a. Inspect the piston ring groove clearance. 1. Using a feeler gaug

Page 3735 of 4500

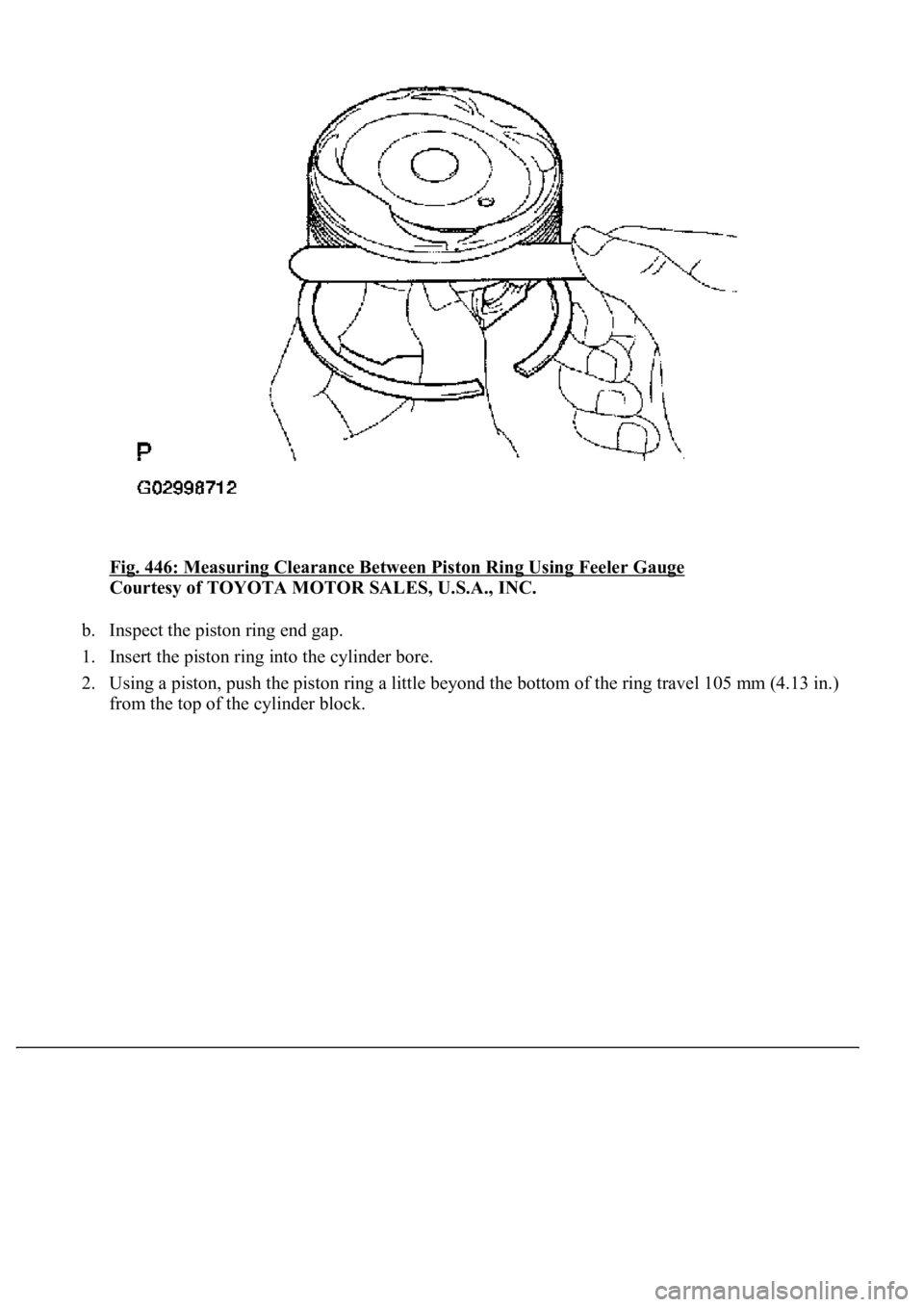

LEXUS LS430 2003 Factory Repair Manual Fig. 446: Measuring Clearance Between Piston Ring Using Feeler Gauge Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Inspect the piston ring end gap. 1. Insert the piston ring into the cylinder bo

Page 3736 of 4500

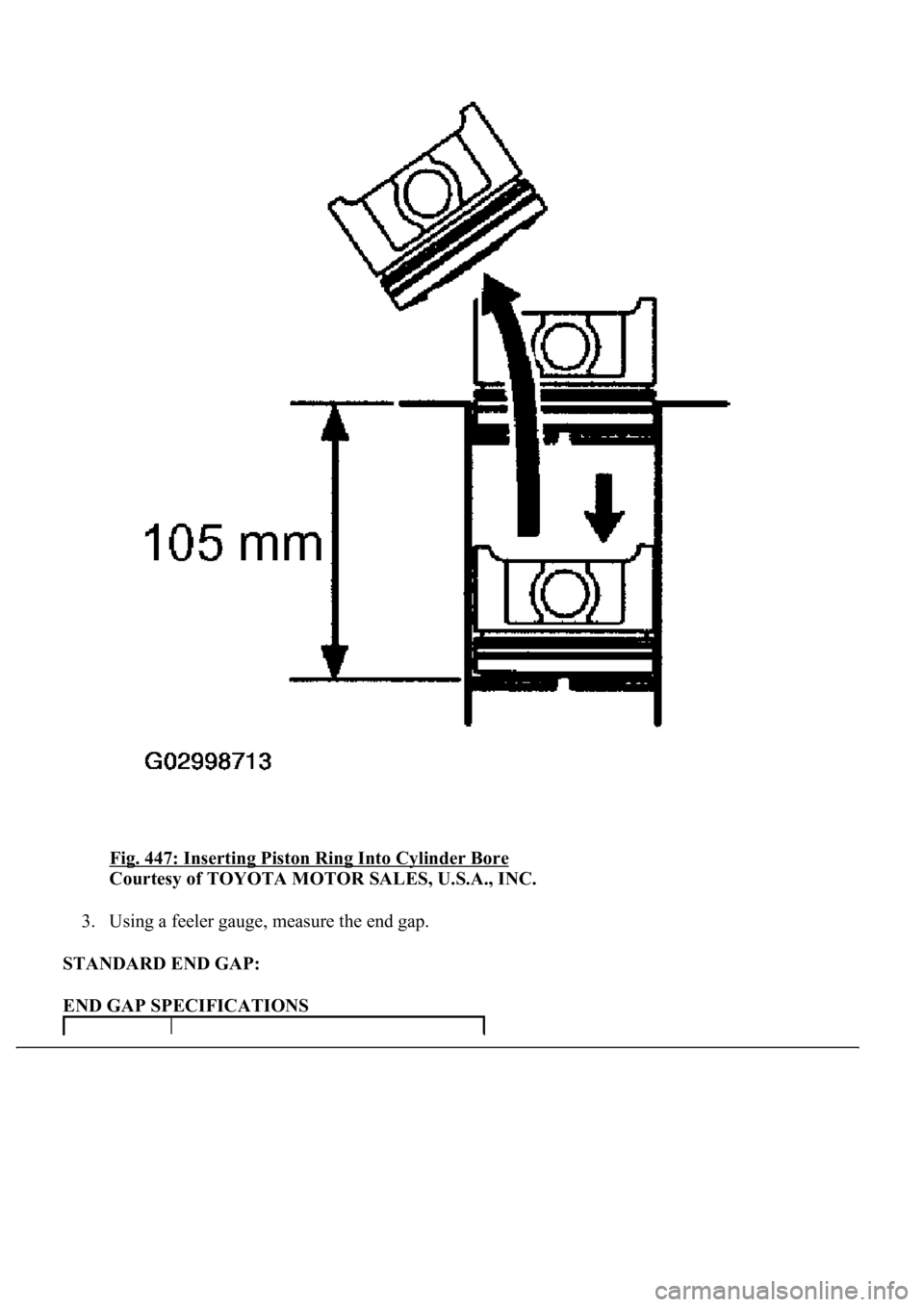

LEXUS LS430 2003 Factory Repair Manual Fig. 447: Inserting Piston Ring Into Cylinder Bore Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 3. Using a feeler gauge, measure the end gap. STANDARD END GAP: END GAP SPECIFICATIONS
