Page 441 of 4500

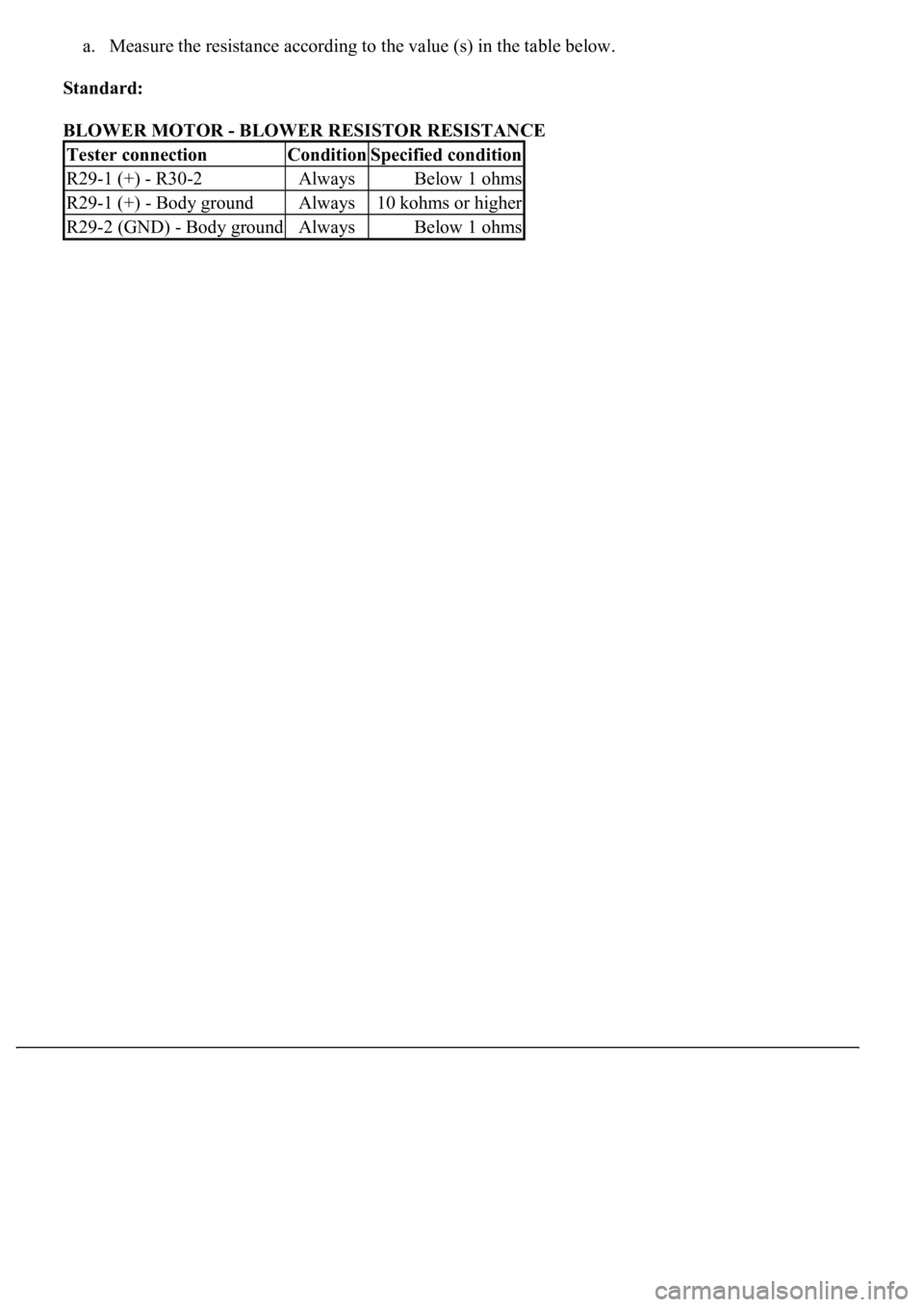

LEXUS LS430 2003 Factory Repair Manual a. Measure the resistance according to the value (s) in the table below. Standard: BLOWER MOTOR - BLOWER RESISTOR RESISTANCE Tester connectionConditionSpecified condition R29-1 (+) - R30-2AlwaysB

Page 442 of 4500

LEXUS LS430 2003 Factory Repair Manual

Page 443 of 4500

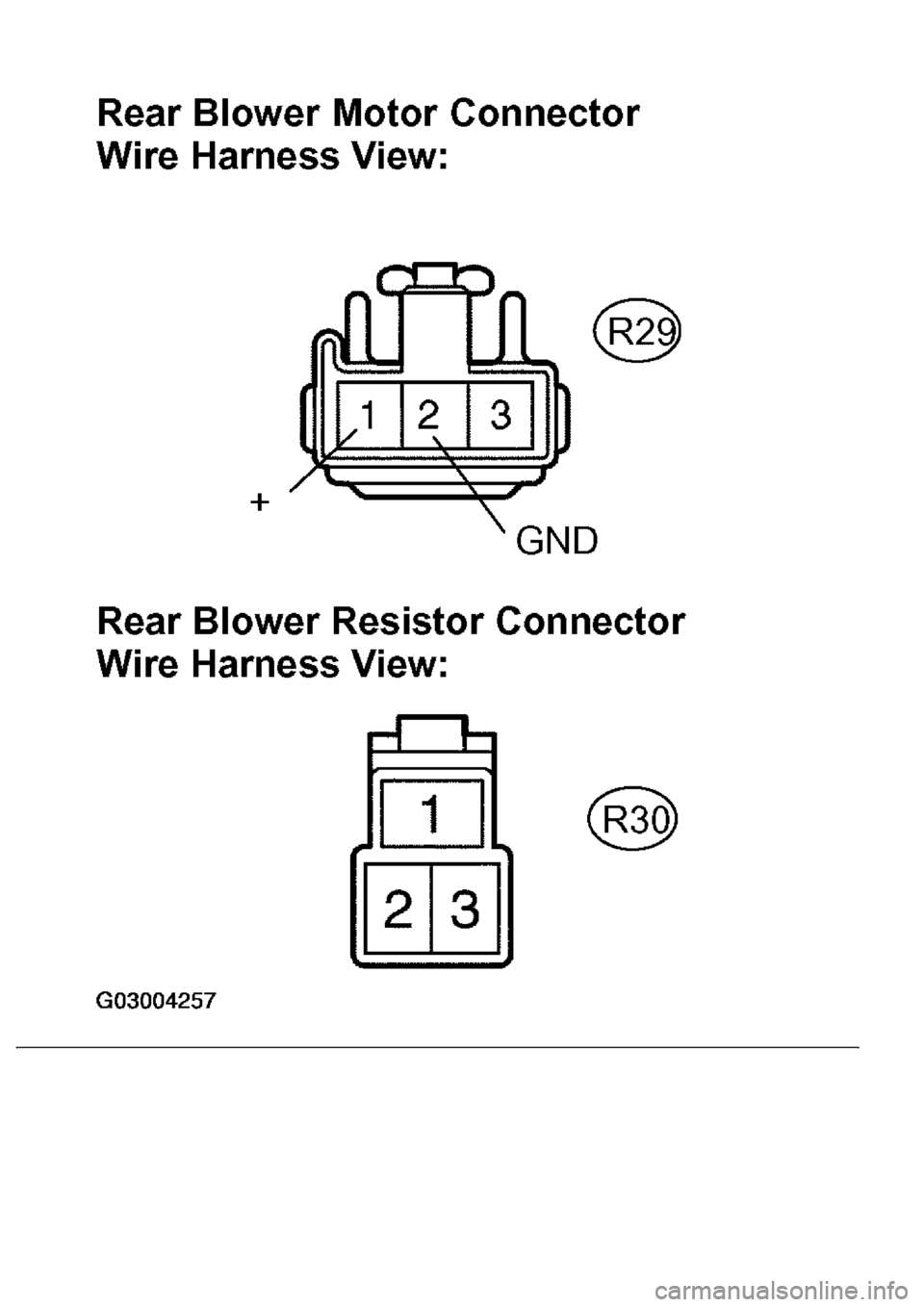

LEXUS LS430 2003 Factory Repair Manual Fig. 180: Checking Harness And Connector (Blower Motor -Blower Resistor) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPLACE OR REPLACE HARNESS OR CONNECTOR REPLACE REAR AIR CONDITIONING AMPL

Page 444 of 4500

LEXUS LS430 2003 Factory Repair Manual Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. INSPECTION PROCEDURE a. PERFORM ACTUATOR CHECK a. Warm up the engine. b. Set the actuator check mode (see ACTUATOR CHECK ). c. Press the driver tem

Page 445 of 4500

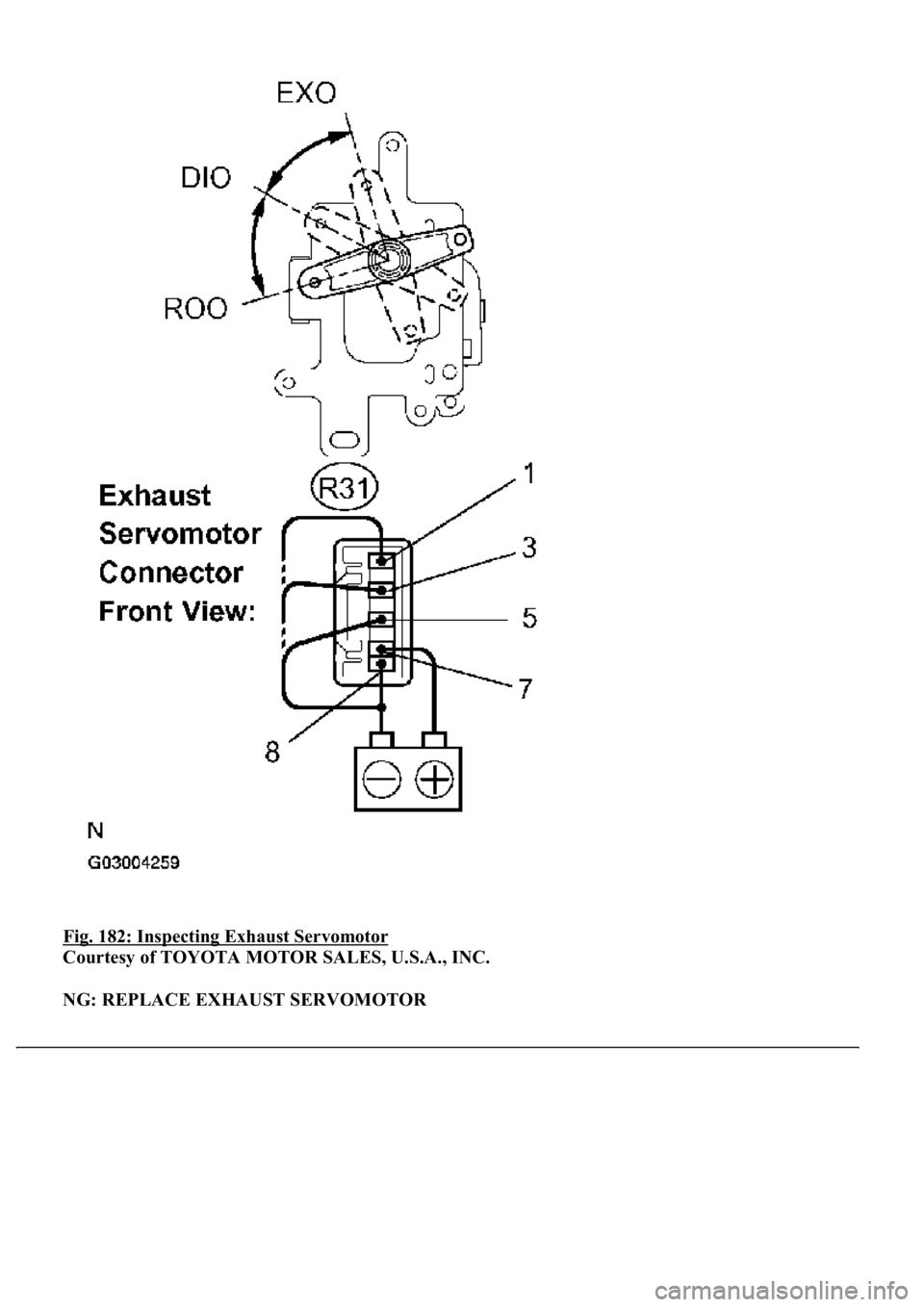

LEXUS LS430 2003 Factory Repair Manual Fig. 182: Inspecting Exhaust Servomotor Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPLACE EXHAUST SERVOMOTOR

Page 446 of 4500

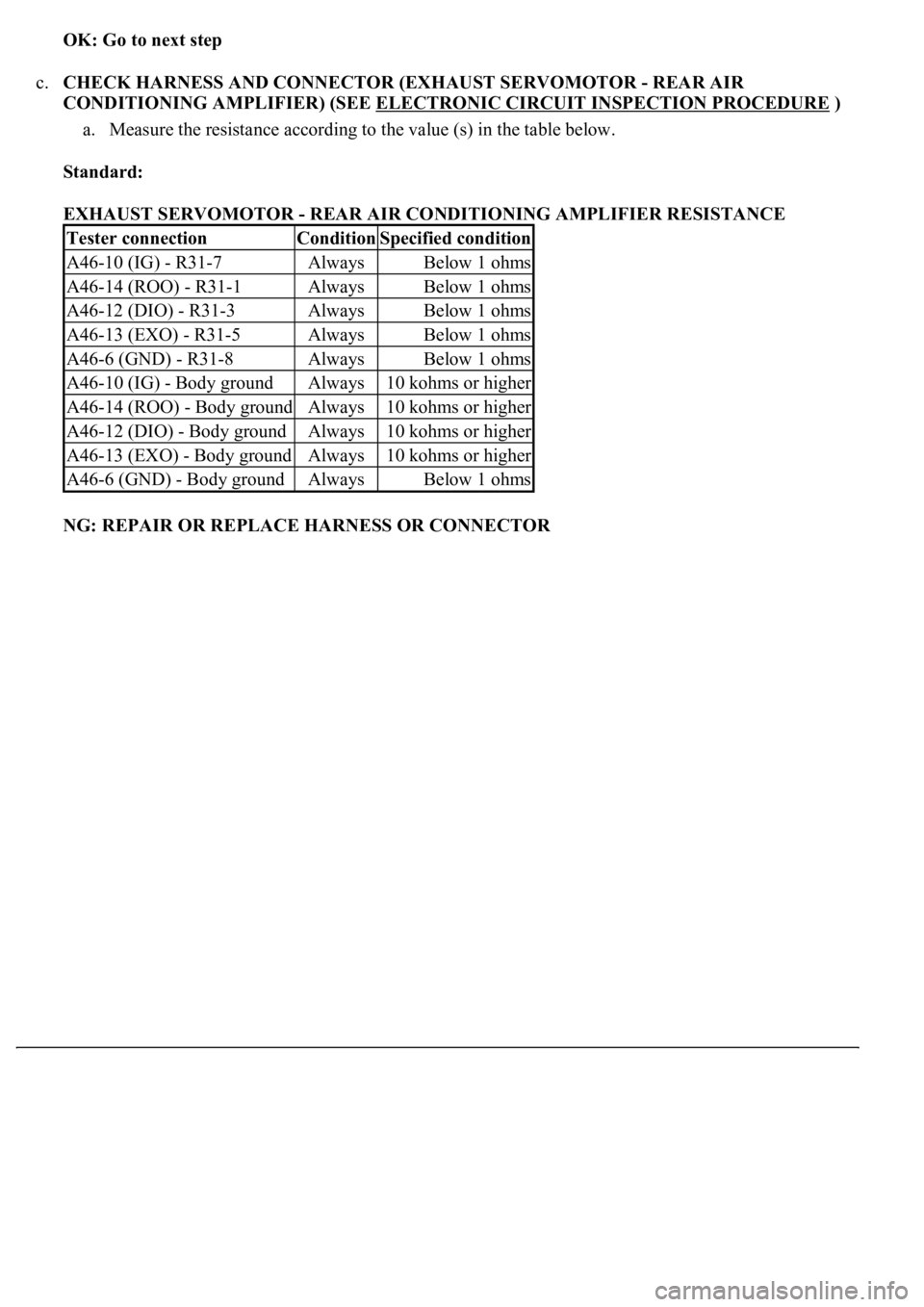

LEXUS LS430 2003 Factory Repair Manual OK: Go to next step c.CHECK HARNESS AND CONNECTOR (EXHAUST SERVOMOTOR - REAR AIR CONDITIONING AMPLIFIER) (SEE ELECTRONIC CIRCUIT INSPECTION PROCEDURE ) a. Measure the resistance according to the

Page 447 of 4500

LEXUS LS430 2003 Factory Repair Manual

Page 448 of 4500

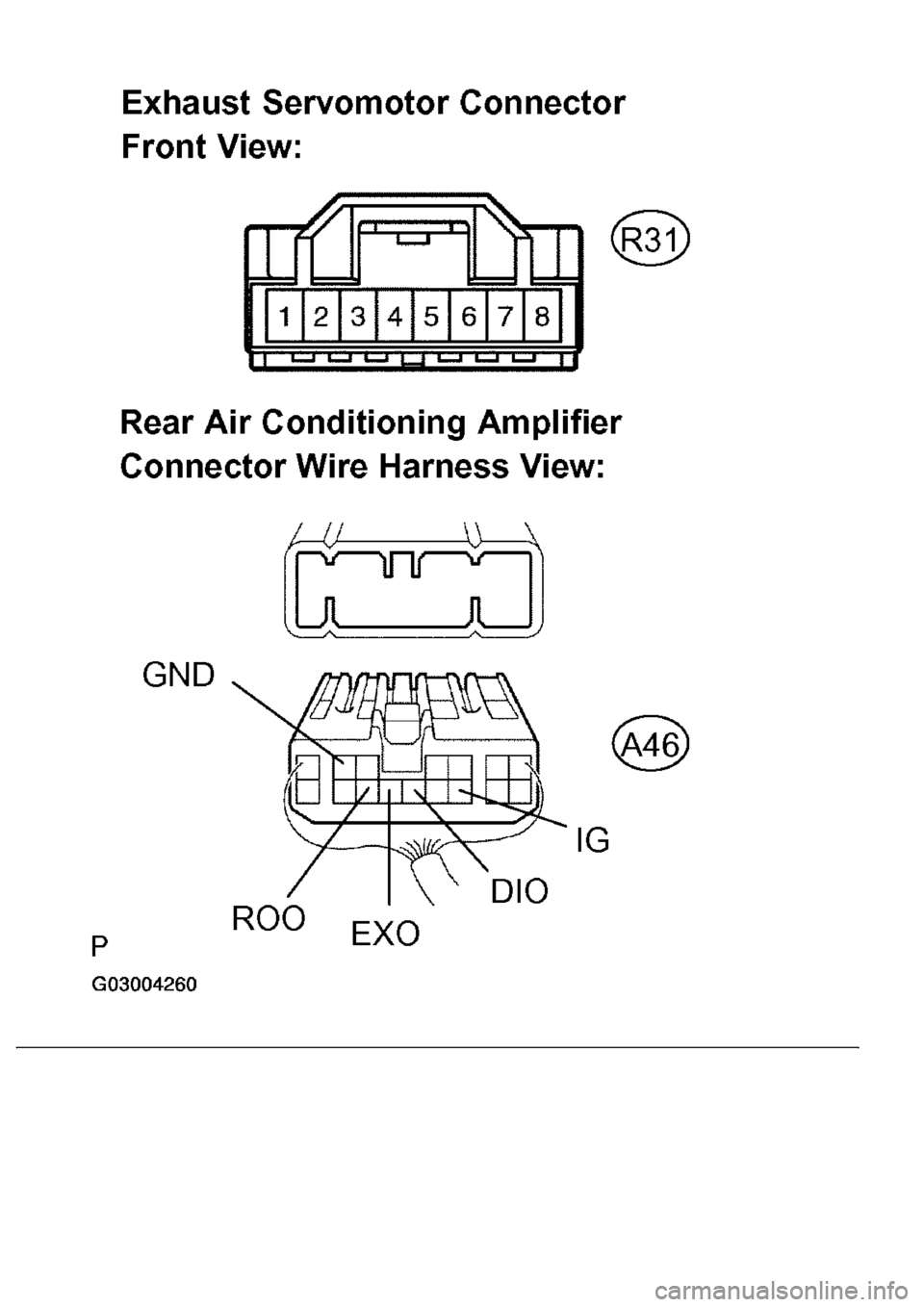

LEXUS LS430 2003 Factory Repair Manual Fig. 183: Checking Harness And Connector (Exhaust Servomotor -Rear Air Conditioning Amplifier) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. OK: REPLACE REAR AIR CONDITIONING AMPLIFIER (SEE OVERHAUL
