Fig. 52: Speaker Circuit Wiring Diagram (1 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Fig. 53: Speaker Circuit Wiring Diagram (2 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
1.CHECK HARNESS AND CONNECTOR (STEREO COMPONENT AMPLIFIER ASSY -
SPEAKER ASSY)
Page 770 of 4500
a. Disconnect the connectors from the stereo component amplifier assy S28, S30 and speakers.
b. Measure resistance between terminals of stereo component amplifier assy and speakers.
Standard: Below 1 ohms
c. Measure resistance between terminals of stereo component amplifier assy and body ground.

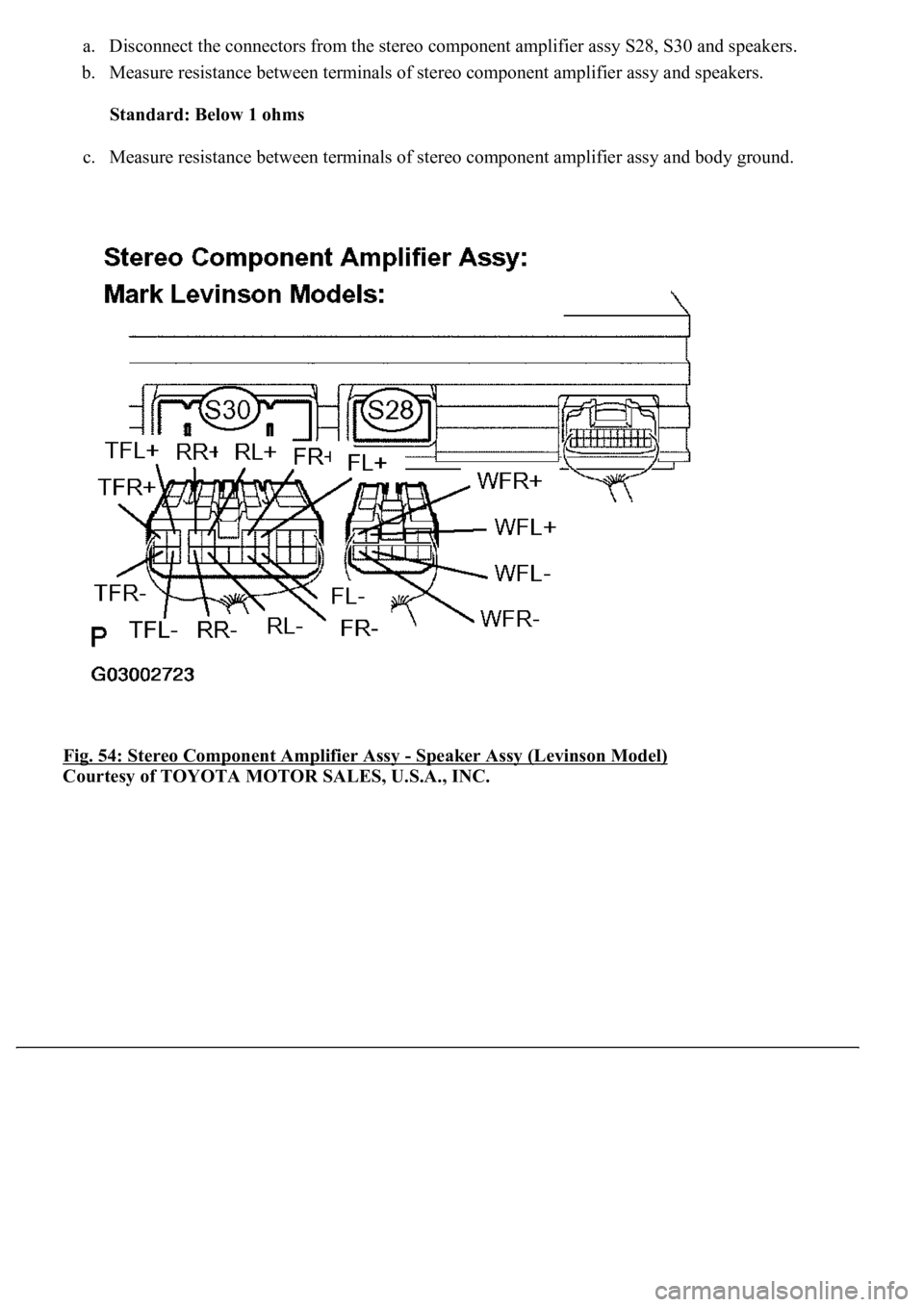

Fig. 54: Stereo Component Amplifier Assy
- Speaker Assy (Levinson Model)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 771 of 4500

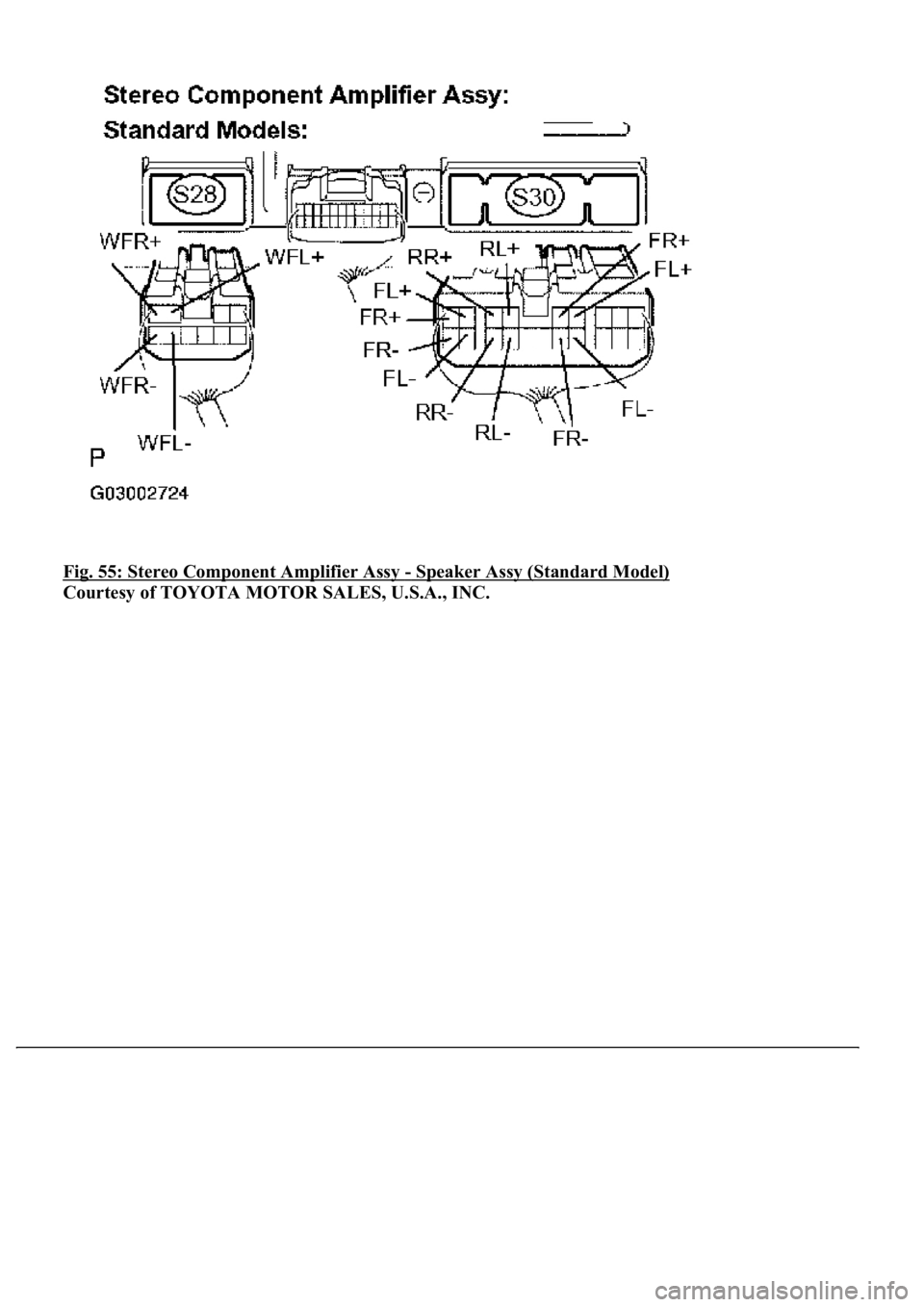

Fig. 55: Stereo Component Amplifier Assy - Speaker Assy (Standard Model)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 772 of 4500
Fig. 56: Identifying Wiring Harness Connector Front No.1
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 773 of 4500
Fig. 57: Identifying Wiring Harness Connector Front No.2
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
Page 774 of 4500
Fig. 58: Identifying Wiring Harness Connector Rear No.2
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: Go to next step
2.INSPECT FRONT NO.1 SPEAKER ASSY
a. Resistance check.
1. Measure the resistance between the terminals of the speaker.
Standard:
Standard models: 2 ohms
Mark Levinson models: 8 ohms
Page 775 of 4500

NG: REPLACE FRONT NO.1 SPEAKER ASSY (SEE REPLACEMENT )
OK: Go to next step

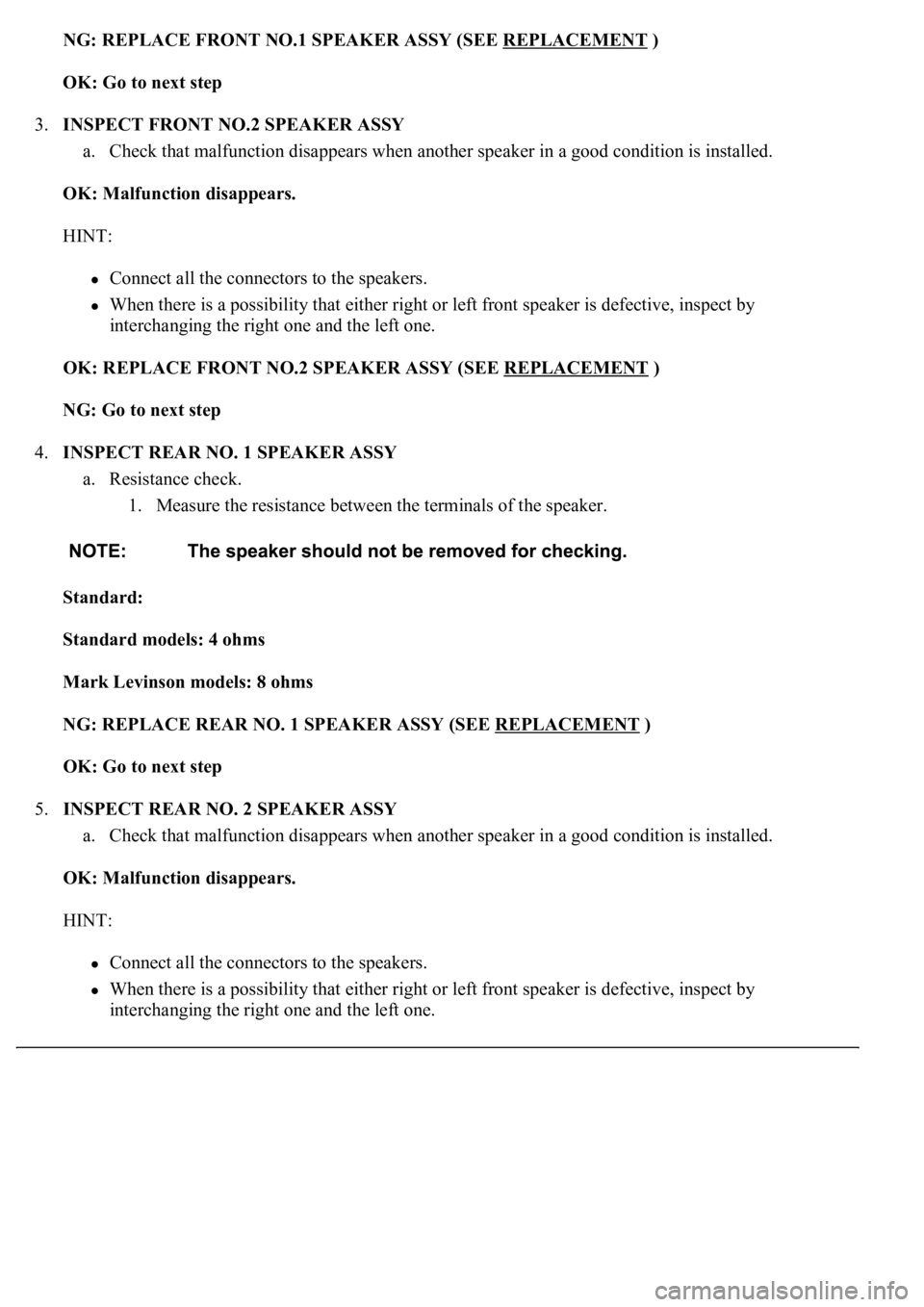

3.INSPECT FRONT NO.2 SPEAKER ASSY
a. Check that malfunction disappears when another speaker in a good condition is installed.
OK: Malfunction disappears.
HINT:
Connect all the connectors to the speakers.
When there is a possibility that either right or left front speaker is defective, inspect by
interchanging the right one and the left one.
OK: REPLACE FRONT NO.2 SPEAKER ASSY (SEE REPLACEMENT
)
NG: Go to next step
4.INSPECT REAR NO. 1 SPEAKER ASSY
a. Resistance check.
1. Measure the resistance between the terminals of the speaker.
Standard:
Standard models: 4 ohms
Mark Levinson models: 8 ohms
NG: REPLACE REAR NO. 1 SPEAKER ASSY (SEE REPLACEMENT
)
OK: Go to next step
5.INSPECT REAR NO. 2 SPEAKER ASSY
a. Check that malfunction disappears when another speaker in a good condition is installed.
OK: Malfunction disappears.
HINT:
Connect all the connectors to the speakers.
When there is a possibility that either right or left front speaker is defective, inspect by
interchan
ging the right one and the left one.
Page 776 of 4500
OK: REPLACE REAR NO. 2 SPEAKER ASSY (SEE REPLACEMENT )
NG: Go to next step

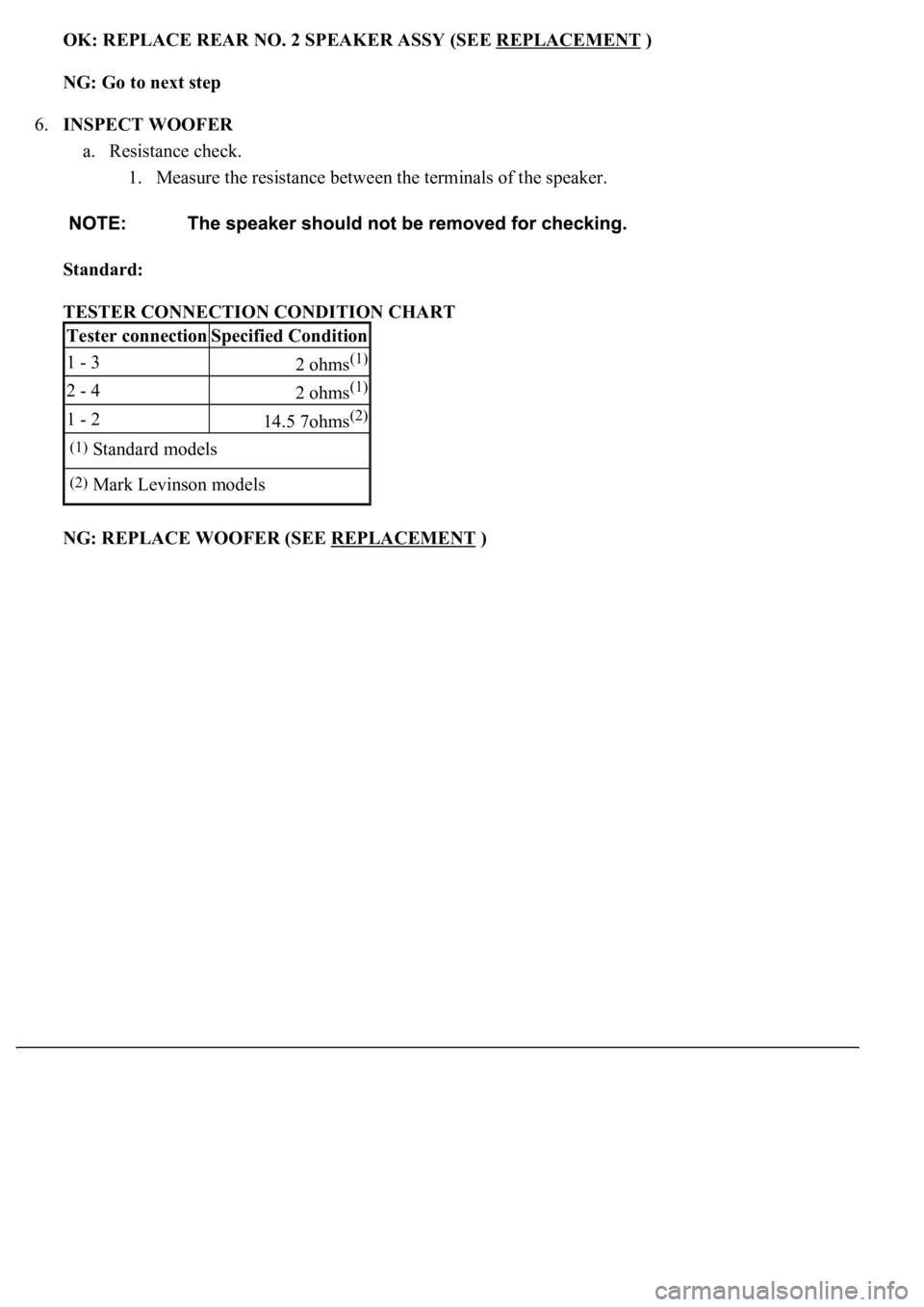

6.INSPECT WOOFER
a. Resistance check.
1. Measure the resistance between the terminals of the speaker.
Standard:
TESTER CONNECTION CONDITION CHART
NG: REPLACE WOOFER (SEE REPLACEMENT
)
Tester connectionSpecified Condition
1 - 32 ohms(1)
2 - 42 ohms(1)
1 - 214.5 7ohms(2)
(1)Standard models
(2)Mark Levinson models
