Page 169 of 4500

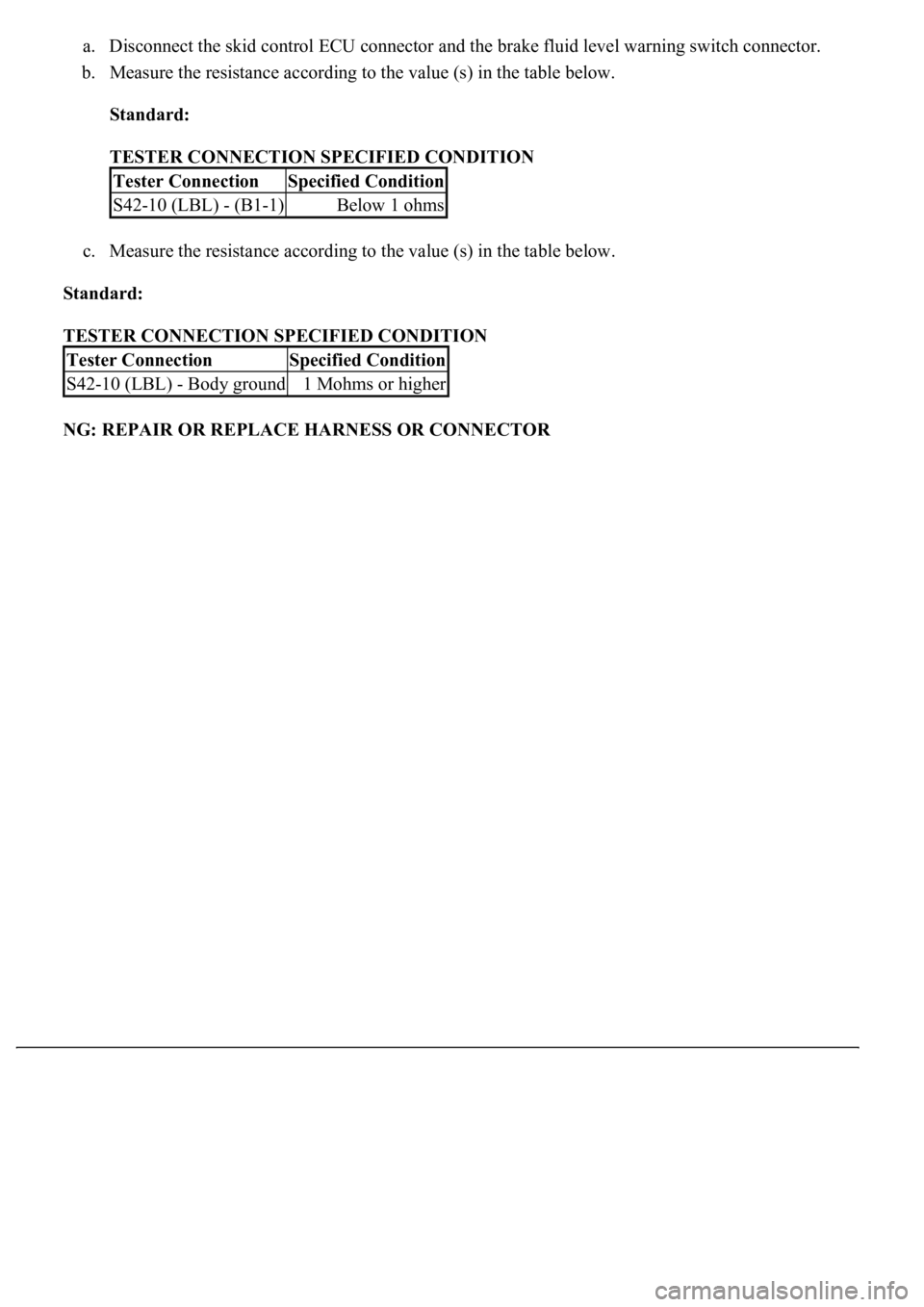

LEXUS LS430 2003 Factory Repair Manual b. Disconnect the brake fluid level warning switch connector. c. Measure the resistance according to the value (s) in the table below. Standard: TESTER CONNECTION SPECIFIED CONDITION NG: REPLAC

Page 170 of 4500

LEXUS LS430 2003 Factory Repair Manual a. Disconnect the skid control ECU connector and the brake fluid level warning switch connector. b. Measure the resistance according to the value (s) in the table below. Standard: TESTER CONNECTI

Page 171 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 125: Identifying Skid Control ECU Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. OK: Go to next step

Page 172 of 4500

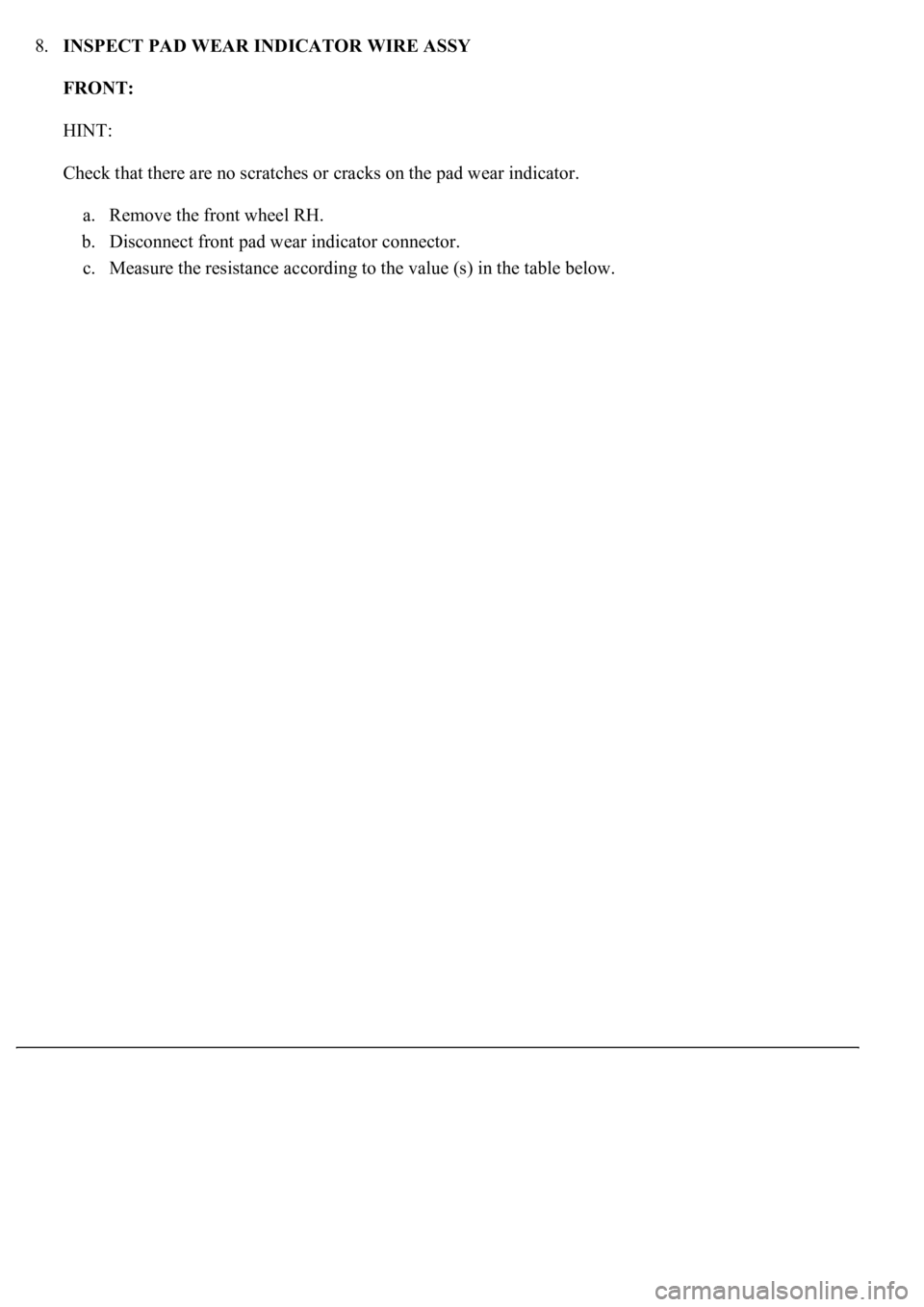

LEXUS LS430 2003 Factory Repair Manual 8.INSPECT PAD WEAR INDICATOR WIRE ASSY FRONT: HINT: Check that there are no scratches or cracks on the pad wear indicator. a. Remove the front wheel RH. b. Disconnect front pad wear indicator c

Page 173 of 4500

LEXUS LS430 2003 Factory Repair Manual

Page 174 of 4500

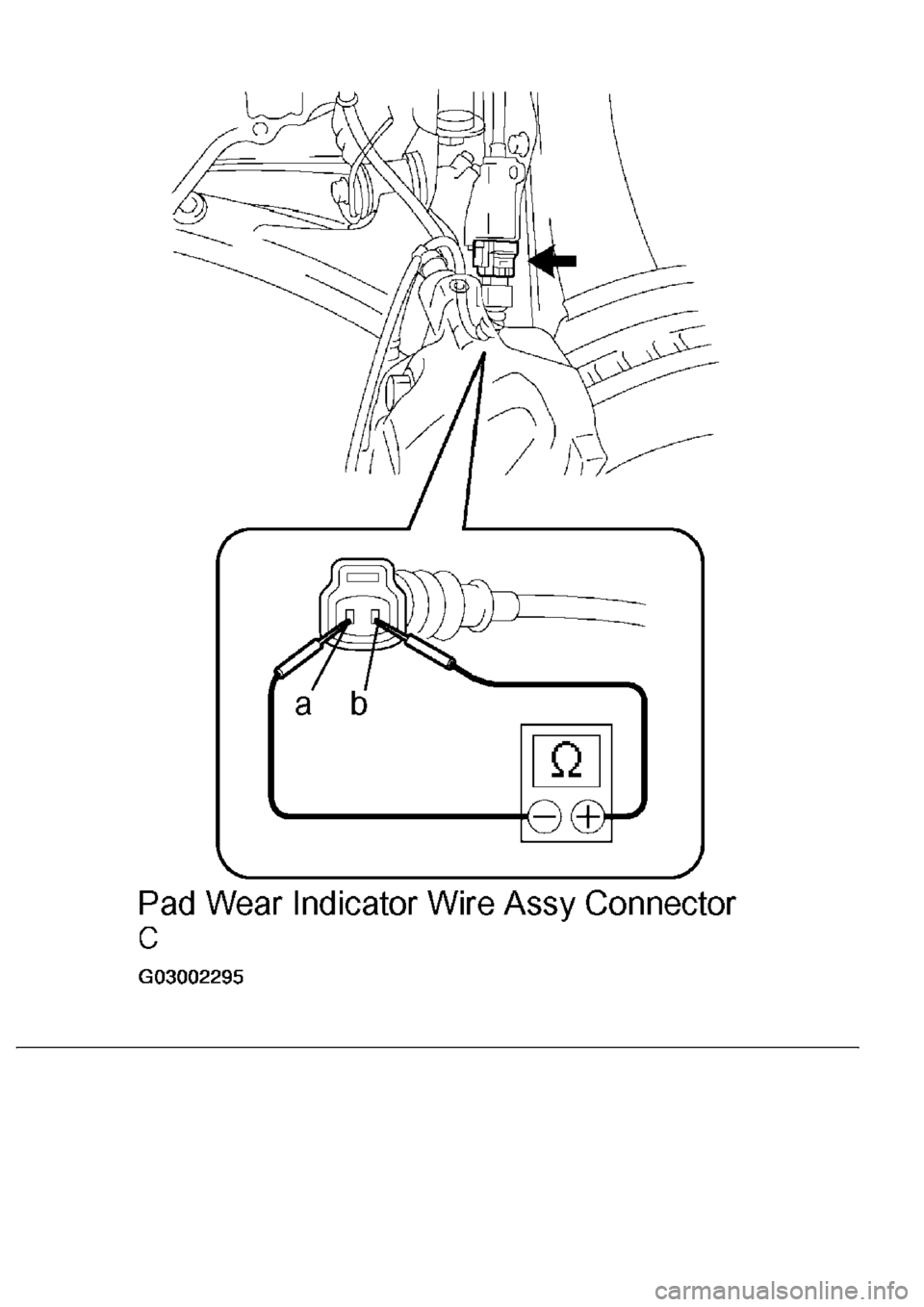

LEXUS LS430 2003 Factory Repair Manual Fig. 126: Inspecting Pad Wear Indicator Wire Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. Standard: TESTER CONNECTION SPECIFIED CONDITION REAR: HINT: Check that there are no scratches or c

Page 175 of 4500

LEXUS LS430 2003 Factory Repair Manual WIRING DIAGRAM Fig. 127: TRAC Off Indicator Light, TRAC Off Switch Wiring Diagram Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. INSPECTION PROCEDURE

Page 176 of 4500

LEXUS LS430 2003 Factory Repair Manual 1.PERFORM ACTIVE TEST BY HAND-HELD TESTER (TRAC OFF INDICATOR LIGHT) a. Connect the hand-held tester to the DLC3. b. Start the engine. c. Select the item "TRAC OFF LIGHT" in the ACTIVE TE
