Fig. 184: Identifying Cylinder Heads
Page 3466 of 4500
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
86.INSTALL CYLINDER HEAD COVER SUB-ASSY
a. Remove any old packing (FIPG) material.
b. Apply seal packing to the cylinder heads as shown in the illustration.
Seal packing: Part No. 08826-00080 or equivalent
c. Install the gasket to the cylinder head cover.
d. Install the seal washer to the bolt.
e. Install the cylinder head cover with the 9 bolts. Uniformly tighten the bolts in several passes.
Torque: 6.0 N.m (61 kgf.cm, 53 in.lbf)
Page 3467 of 4500

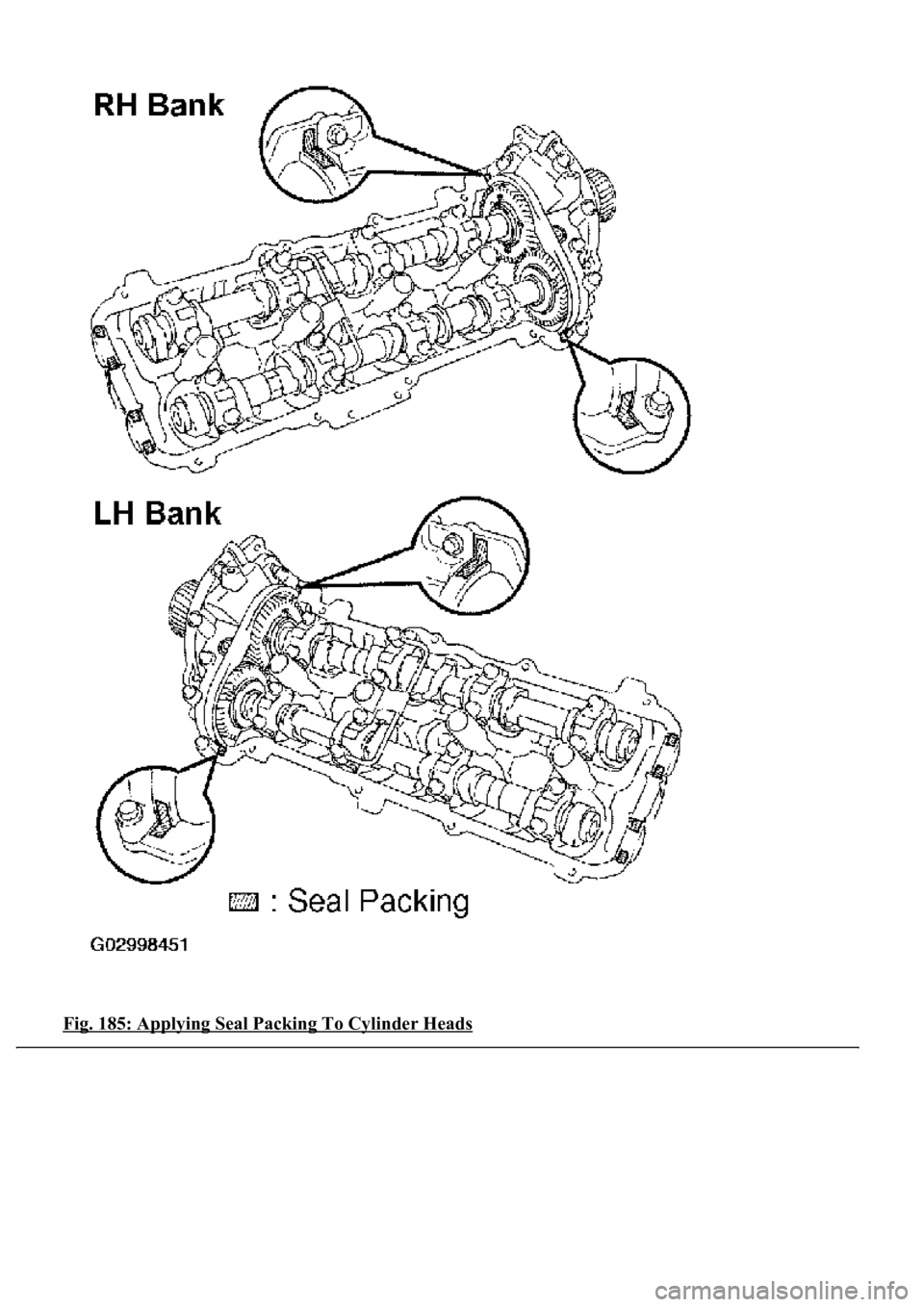

Fig. 185: Applying Seal Packing To Cylinder Heads
Page 3468 of 4500

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
87.INSTALL OIL FILLER CAP SUB-ASSY
88.INSTALL SPARK PLUG
REPLACEMENT
1.DISCONNECT BATTERY NEGATIVE TERMINAL
2.REMOVE AIR CLEANER INLET NO.1
3.DRAIN ENGINE COOLANT
4.REMOVE V-BANK COVER
5.REMOVE INTAKE AIR CONNECTOR PIPE
6.REMOVE ENGINE UNDER COVER NO.1
7.DISCONNECT RADIATOR HOSE NO.1
8.DISCONNECT RADIATOR HOSE NO.2
9.DISCONNECT OIL COOLER INLET TUBE NO.1
10.DISCONNECT OIL COOLER OUTLET TUBE NO.1
11.REMOVE AIR CLEANER ASSY
12.REMOVE RADIATOR ASSY (See REPLACEMENT
13.REMOVE FAN AND GENERATOR V BELT (See REPLACEMENT
)
14.REMOVE VANE PUMP ASSY
a. Remove the 2 bolts, nut and pump.
HINT:
Pump should be removed with the hoses connected and then hang with a rope or wire on the body's side.
15.REMOVE GENERATOR ASSY (See REPLACEMENT
)
16.DISCONNECT COMPRESSOR AND MAGNETIC CLUTCH
HINT:
The cooler compressor with the magnetic clutch should be removed with the low-pressure and high-
pressure hoses connected and then hang with a rope or wire on the body's side.
17.REMOVE TIMING CHAIN OR BELT COVER NO.2
a. Disconnect the 2 PS air hoses from the clamp on the cover.
b. Remove the cap nut, 3 bolts, cover and gasket.
Page 3469 of 4500
Fig. 186: Removing Cap Nut And Bolts, Cover And Gasket
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
18.REMOVE TIMING BELT COVER SUB-ASSY NO.3 LH
a. Remove the cap nut, and disconnect the No.3 water bypass pipe from the cover.
b. Disconnect the 2 water bypass hoses as shown in the illustration.
Page 3470 of 4500
Fig. 187: Disconnecting Water By-Pass Hoses
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Disconnect the engine wire from the 2 wire clamps.
d. Disconnect the camshaft position sensor connector.
e. Disconnect the camshaft position sensor wire from the wire clamp on the cover.
f. Remove the wire grommet from the cover.
g. Remove the 4 bolts.
h. Disconnect the cover from the timing plate and camshaft bearing cap.
i. Disconnect the wire clamp for the sensor from the cover.
j. Remove the connector holder from the sensor connector.
k. Remove the cover and gasket.
19.REMOVE TIMING BELT COVER SUB-ASSY NO.2
a. Remove the 2 bolts and timing belt cover.
20.REMOVE V-RIBBED BELT TENSIONER ASSY
a. Remove the bolt, 2 nuts and belt tensioner.
Page 3471 of 4500
Fig. 188: Disconnecting Wire Clamp For Sensor From Cover
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
21.REMOVE IDLER PULLEY ASSY
a. Remove the 2 bolts, 2 nuts and idler pulley.
22.REMOVE CRANKSHAFT DAMPER SUB-ASSY
a. Using SST, remove the pulley bolt.
SST 09213-7001 1, 09330-00021
Page 3472 of 4500

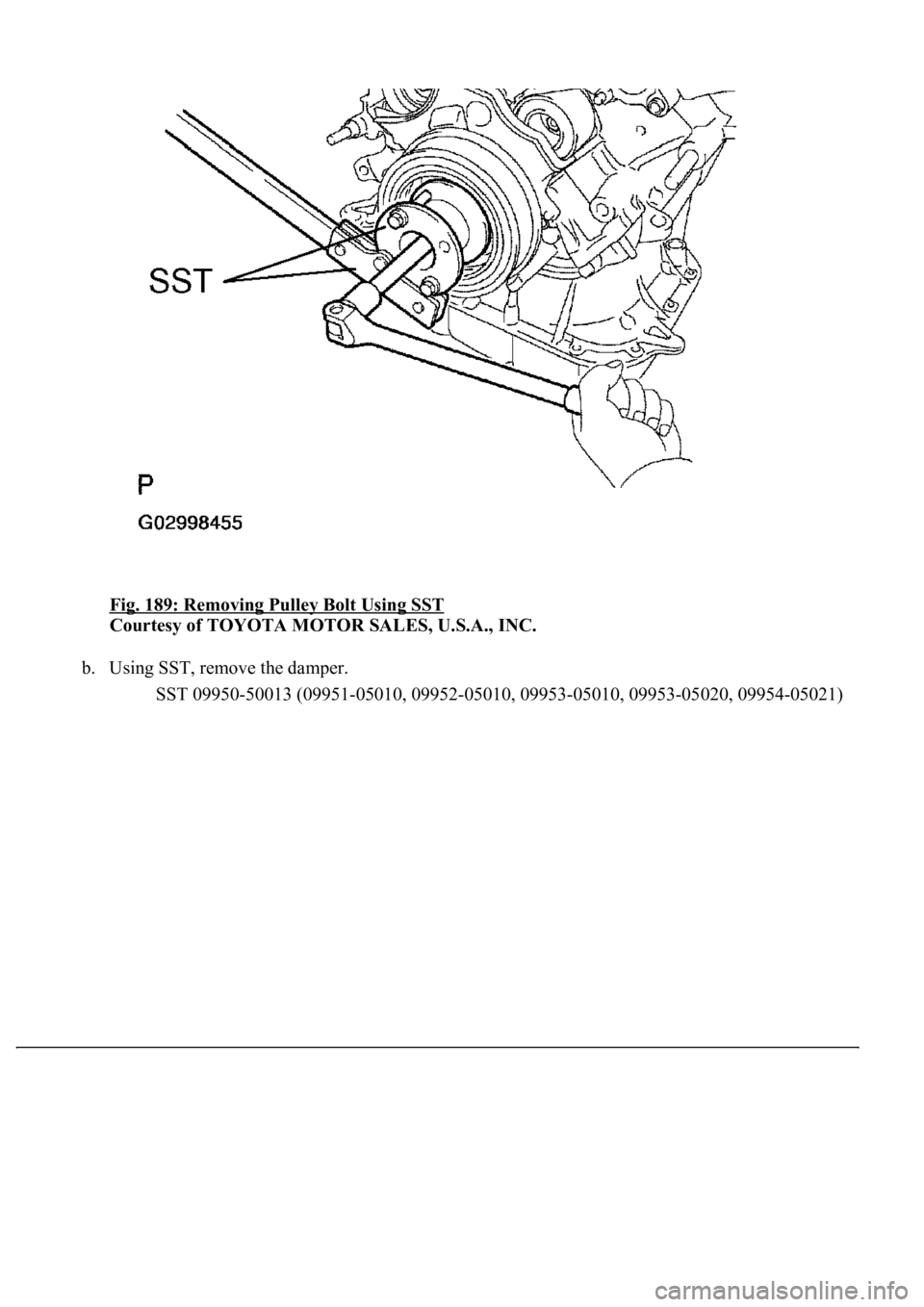

Fig. 189: Removing Pulley Bolt Using SST
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Using SST, remove the damper.
