Page 1113 of 4500

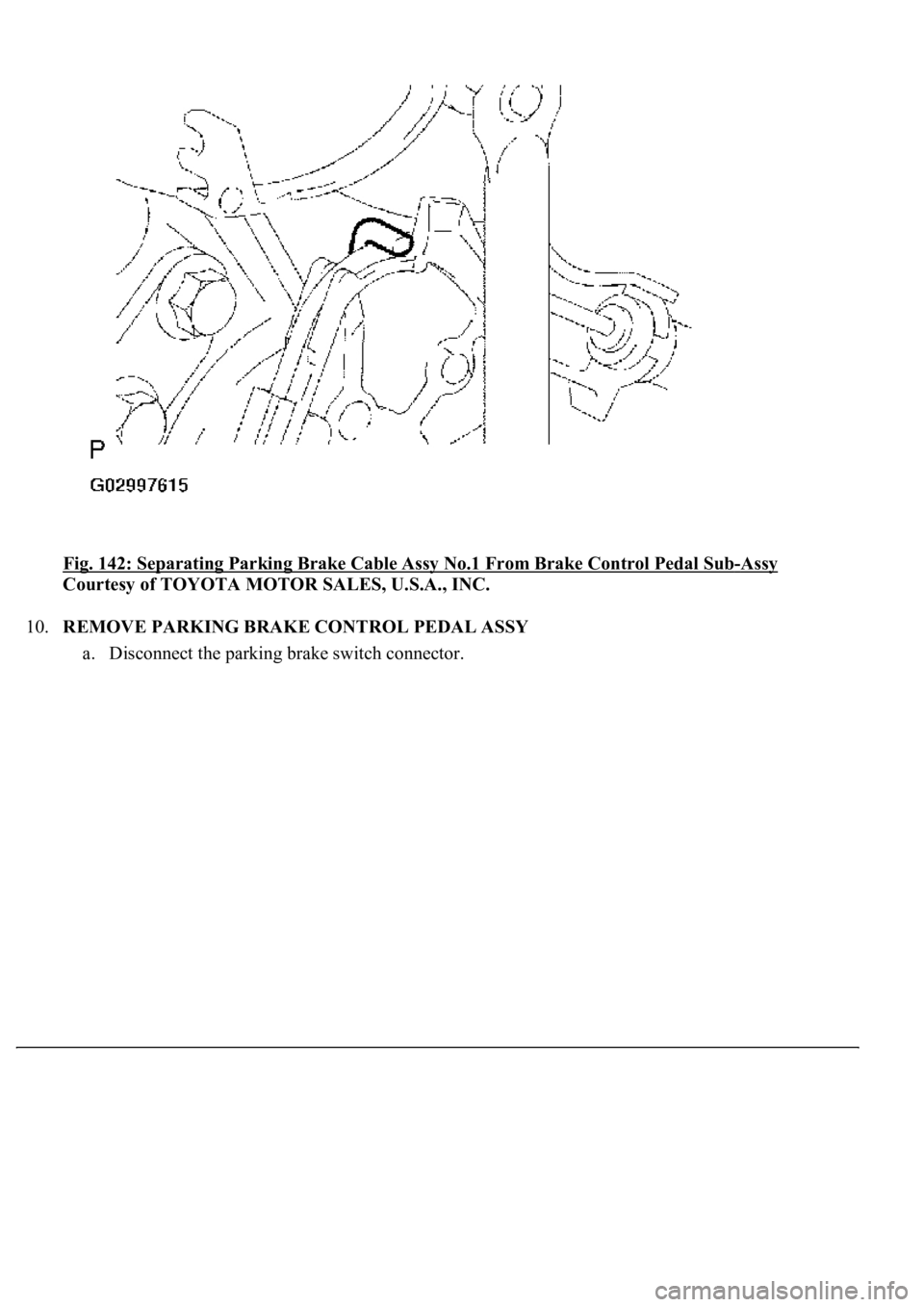

LEXUS LS430 2003 Factory Repair Manual Fig. 142: Separating Parking Brake Cable Assy No.1 From Brake Control Pedal Sub-Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 10.REMOVE PARKING BRAKE CONTROL PEDAL ASSY a. Disconnect the parkin

Page 1114 of 4500

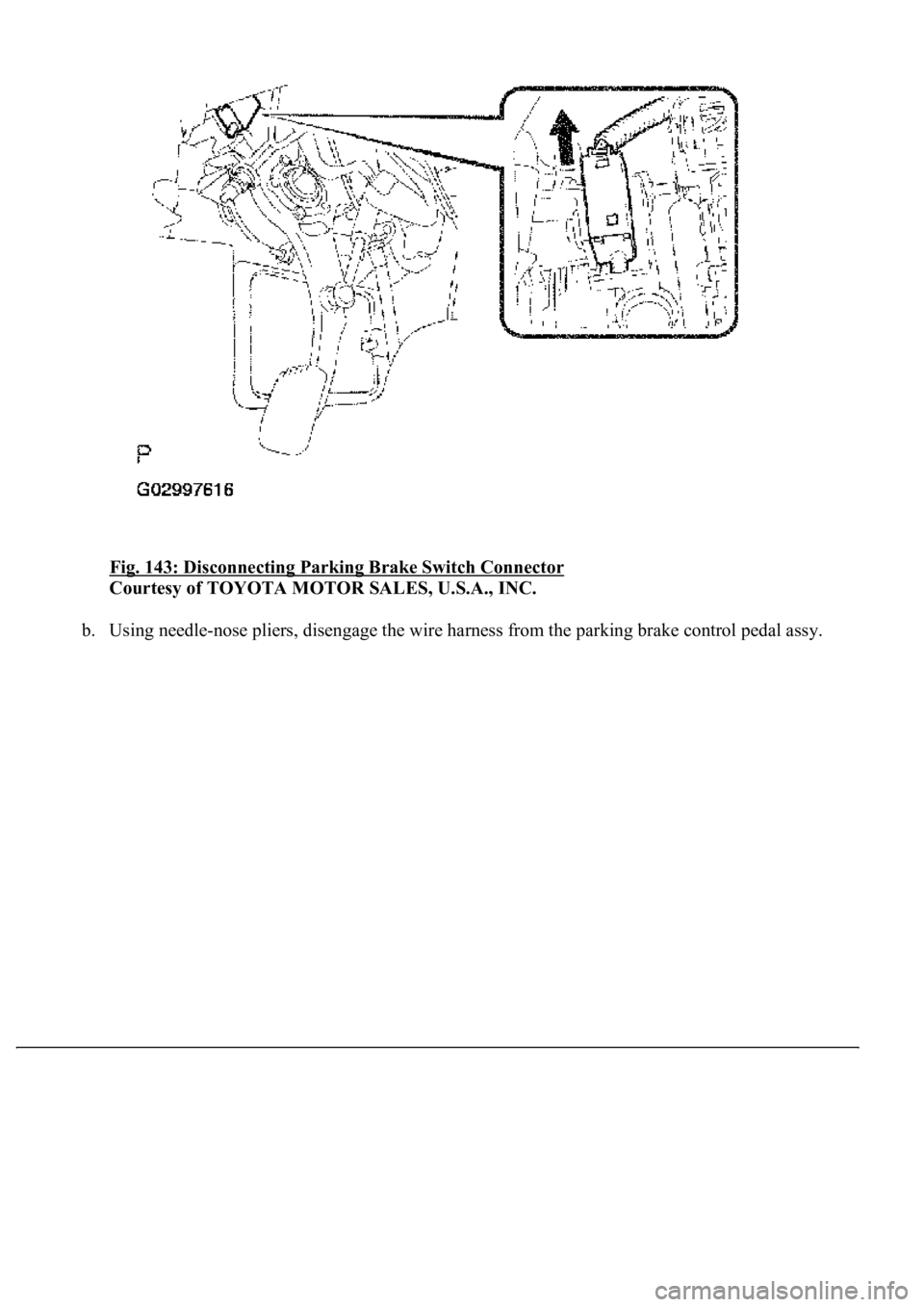

LEXUS LS430 2003 Factory Repair Manual Fig. 143: Disconnecting Parking Brake Switch Connector Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b.Using needle-nose pliers, disengage the wire harness from the parking brake control pedal assy.

Page 1115 of 4500

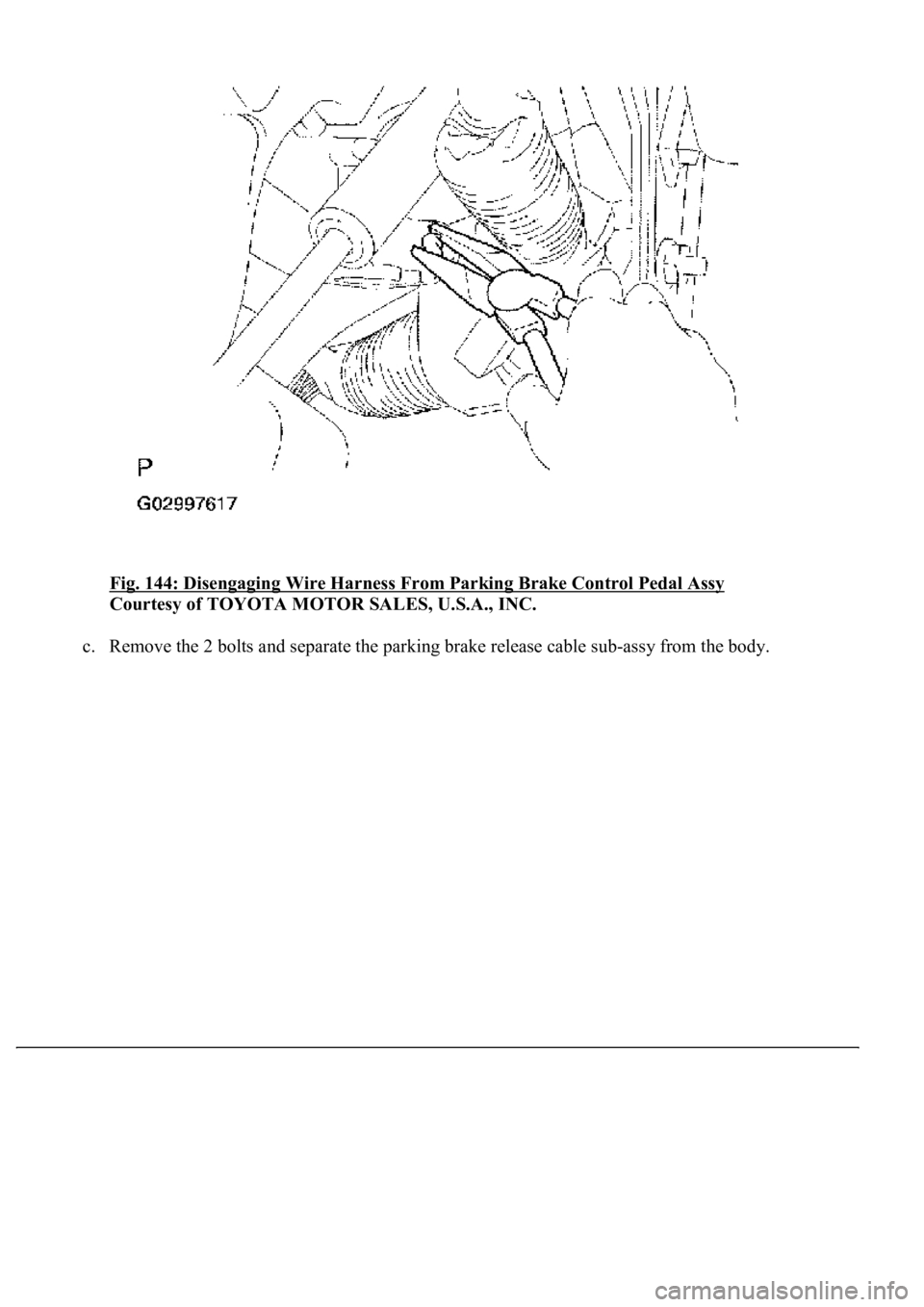

LEXUS LS430 2003 Factory Repair Manual Fig. 144: Disengaging Wire Harness From Parking Brake Control Pedal Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Remove the 2 bolts and separate the parkin g brake release cable sub-assy fro

Page 1116 of 4500

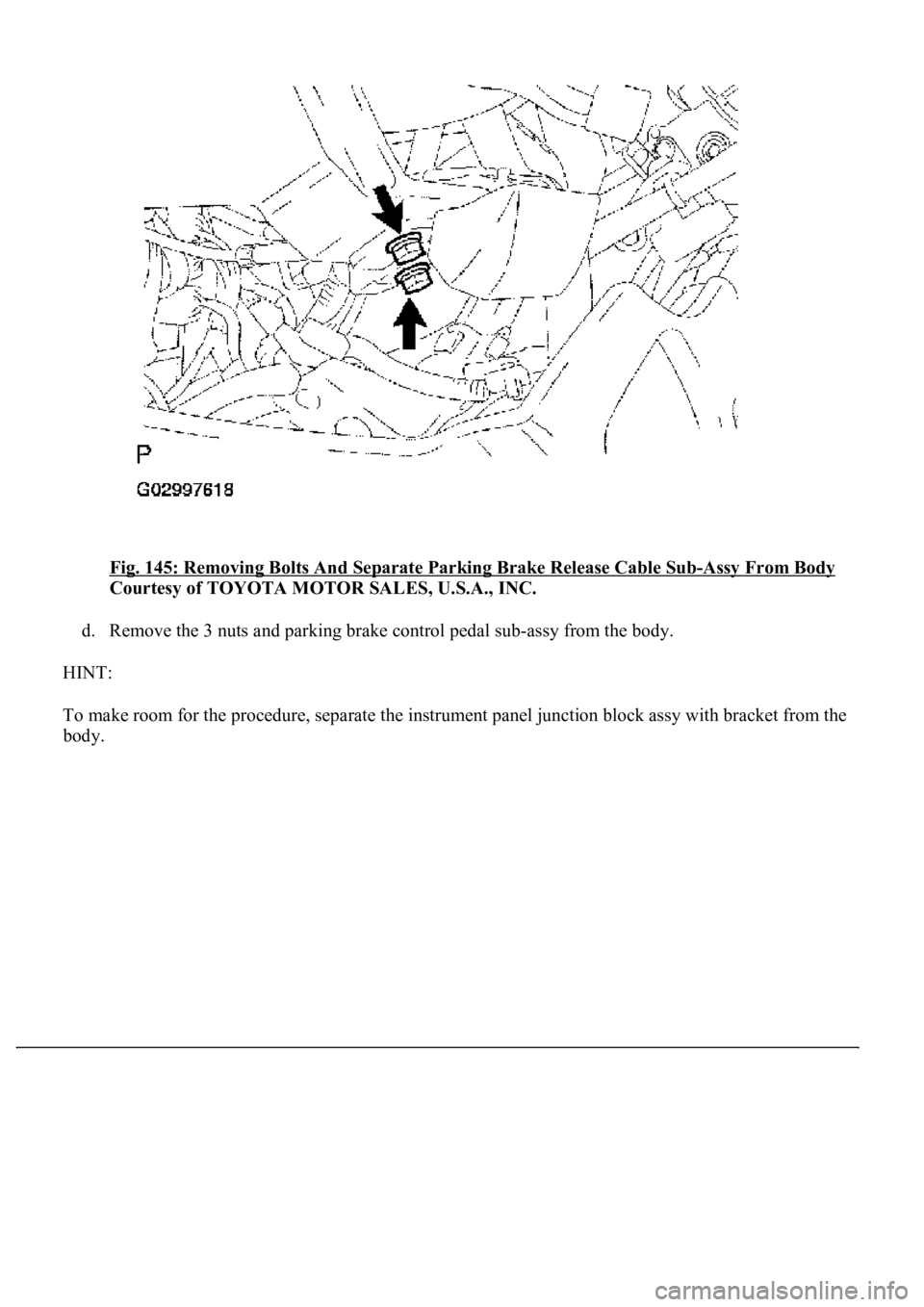

LEXUS LS430 2003 Factory Repair Manual Fig. 145: Removing Bolts And Separate Parking Brake Release Cable Sub-Assy From Body Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. d. Remove the 3 nuts and parking brake control pedal sub-assy from t

Page 1117 of 4500

LEXUS LS430 2003 Factory Repair Manual <0029004c004a00110003001400170019001d000300350048005000520059004c0051004a0003003100580057005600030024005100470003003300440055004e004c0051004a0003002500550044004e00480003002600520051005700550052004f000

Page 1118 of 4500

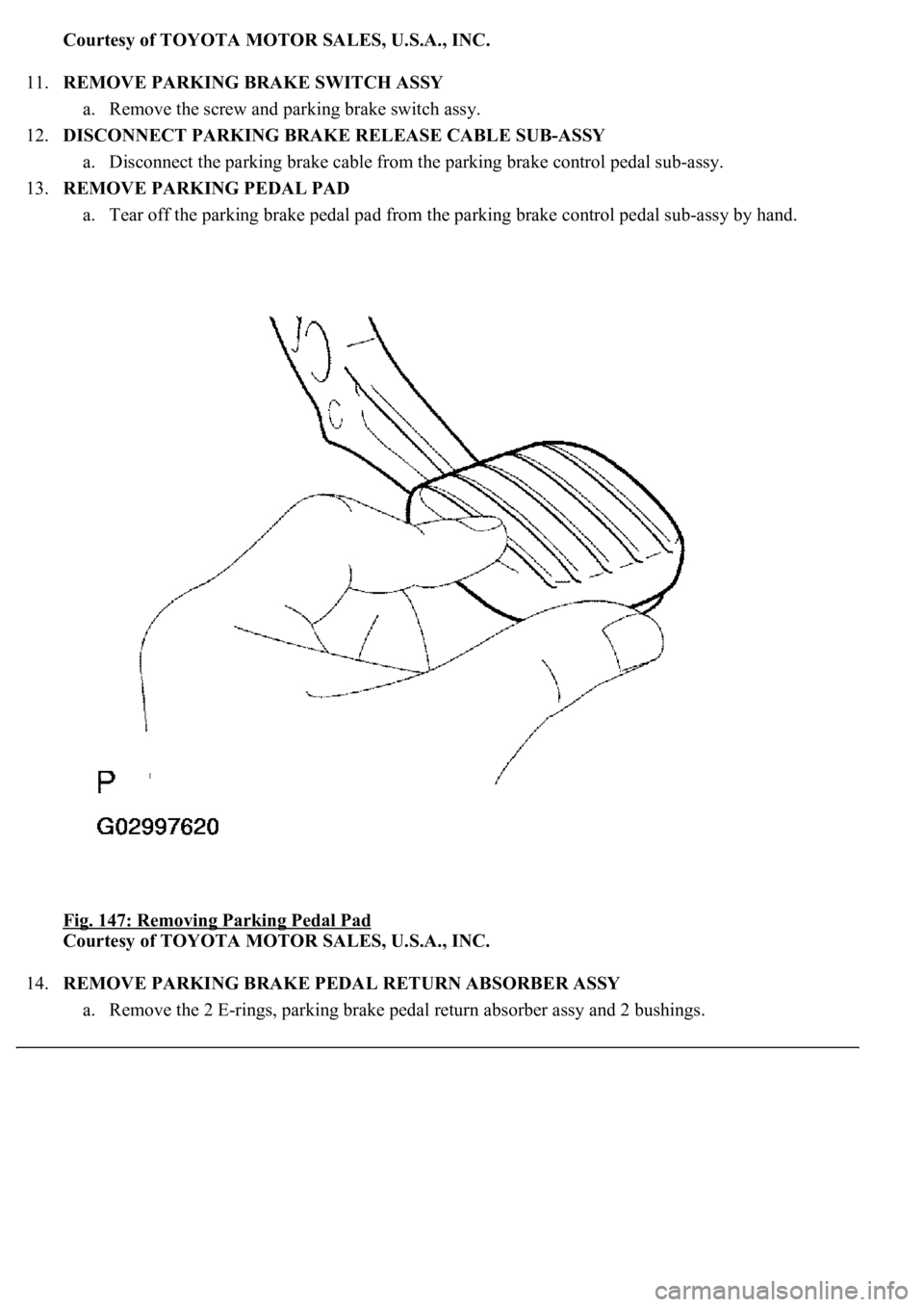

LEXUS LS430 2003 Factory Repair Manual Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 11.REMOVE PARKING BRAKE SWITCH ASSY a. Remove the screw and parking brake switch assy. 12.DISCONNECT PARKING BRAKE RELEASE CABLE SUB-ASSY a. Disconnect

Page 1119 of 4500

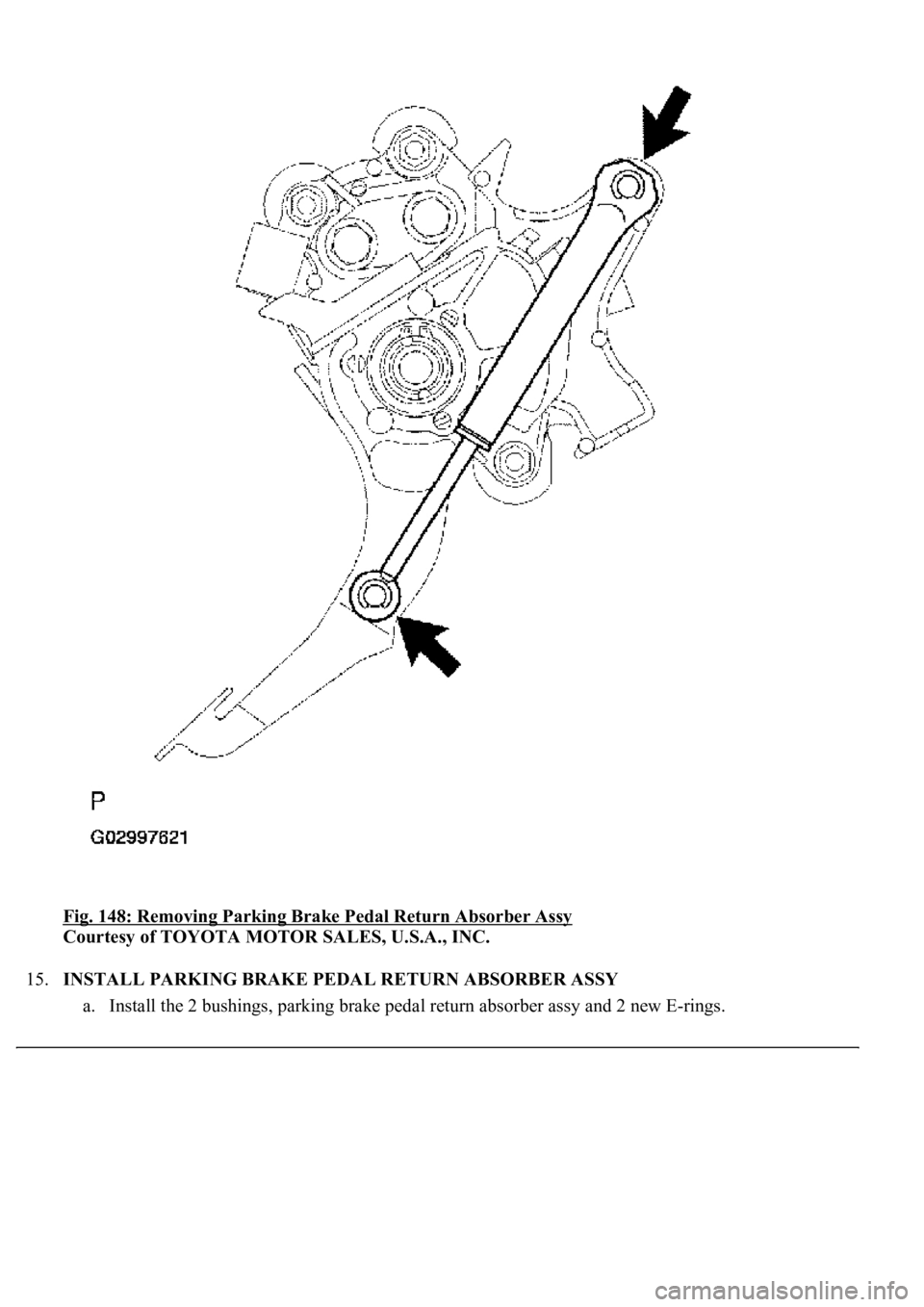

LEXUS LS430 2003 Factory Repair Manual Fig. 148: Removing Parking Brake Pedal Return Absorber Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 15.INSTALL PARKING BRAKE PEDAL RETURN ABSORBER ASSY a. Install the 2 bushings, parking brake

Page 1120 of 4500

LEXUS LS430 2003 Factory Repair Manual 16.INSTALL PARKING PEDAL PAD 17.CONNECT PARKING BRAKE RELEASE CABLE SUB-ASSY a. Connect the parking brake release cable sub-assy to the parking brake control pedal sub-assy. 18.INSTALL PARKING BR
