Page 4273 of 4500

LEXUS LS430 2003 Factory Repair Manual compressed air. b. If the fins of the cooler condenser assy are bent, straighten them using a screwdriver or pliers. 2.INSPECT CONDENSER FOR REFRIGERANT LEAKAGE a. Using a halogen leak detector, c

Page 4274 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 86: Identifying Cooler Condenser Assy Components And Replacements (1 Of 2) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 4275 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 87: Identifying Cooler Condenser Assy Components And Replacements (2 Of 2) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. OVERHAUL HINT: Installation is in the reverse order of removal. See C

Page 4276 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 88: Disconnecting Discharge Hose Sub-Assy No. 1 Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 6.DISCONNECT LIQUID TUBE SUB-ASSY A a. Remove the bolt and disconnect the liquid tube sub-assy A fr

Page 4277 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 89: Disconnecting Liquid Tube Sub-Assy A Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 7.REMOVE HIGH PITCHED HORN ASSY (See REPLACEMENT ) 8.REMOVE LOW PITCHED HORN ASSY (See REPLACEMENT )

Page 4278 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 90: Removing Smog Ventilation Sensor Bolt Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 10.REMOVE HOOD LOCK ASSY a. Remove the 2 bolts, nut and hood lock ass y.

Page 4279 of 4500

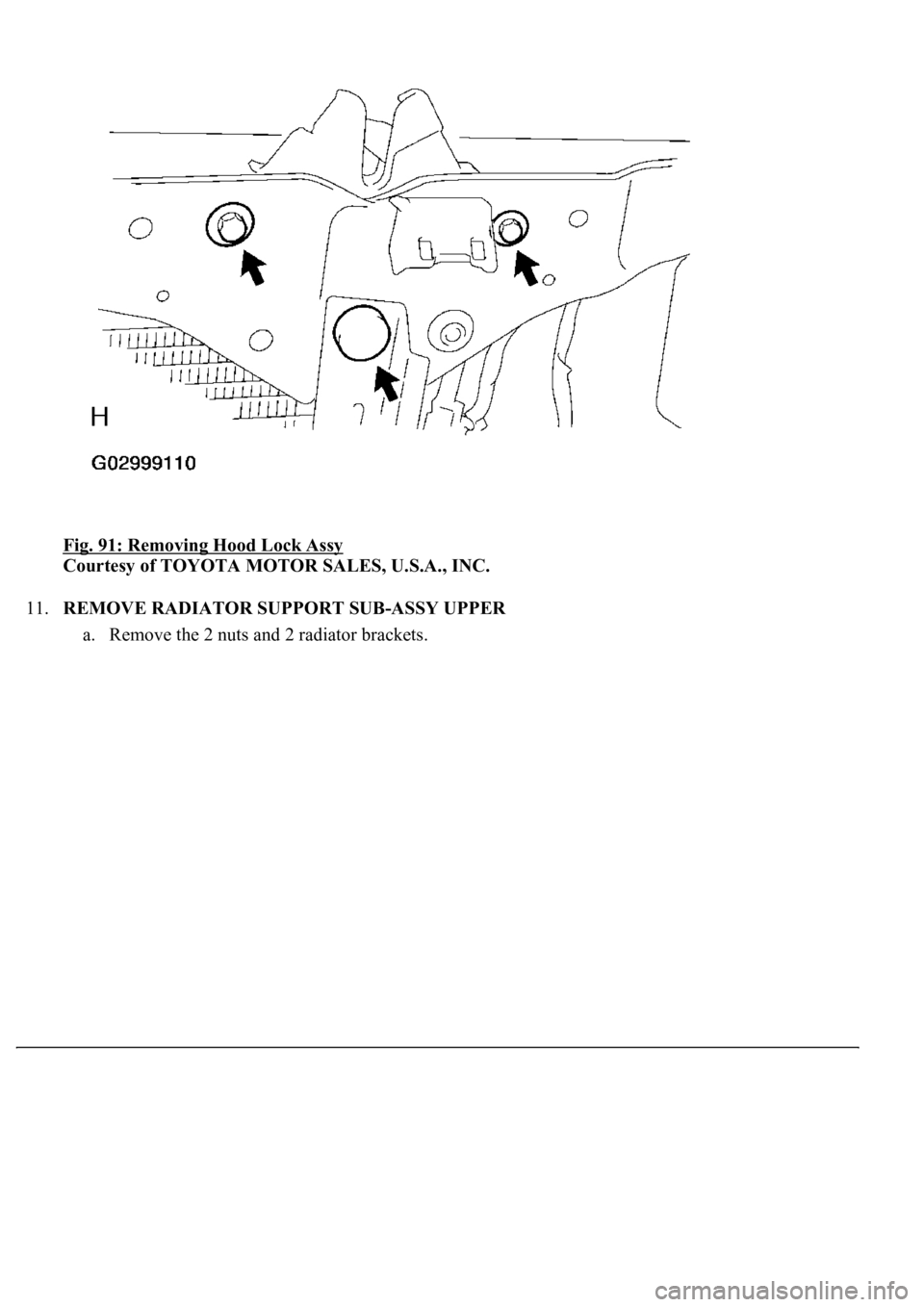

LEXUS LS430 2003 Factory Repair Manual Fig. 91: Removing Hood Lock Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 11.REMOVE RADIATOR SUPPORT SUB-ASSY UPPER a. Remove the 2 nuts and 2 radiator brackets.

Page 4280 of 4500

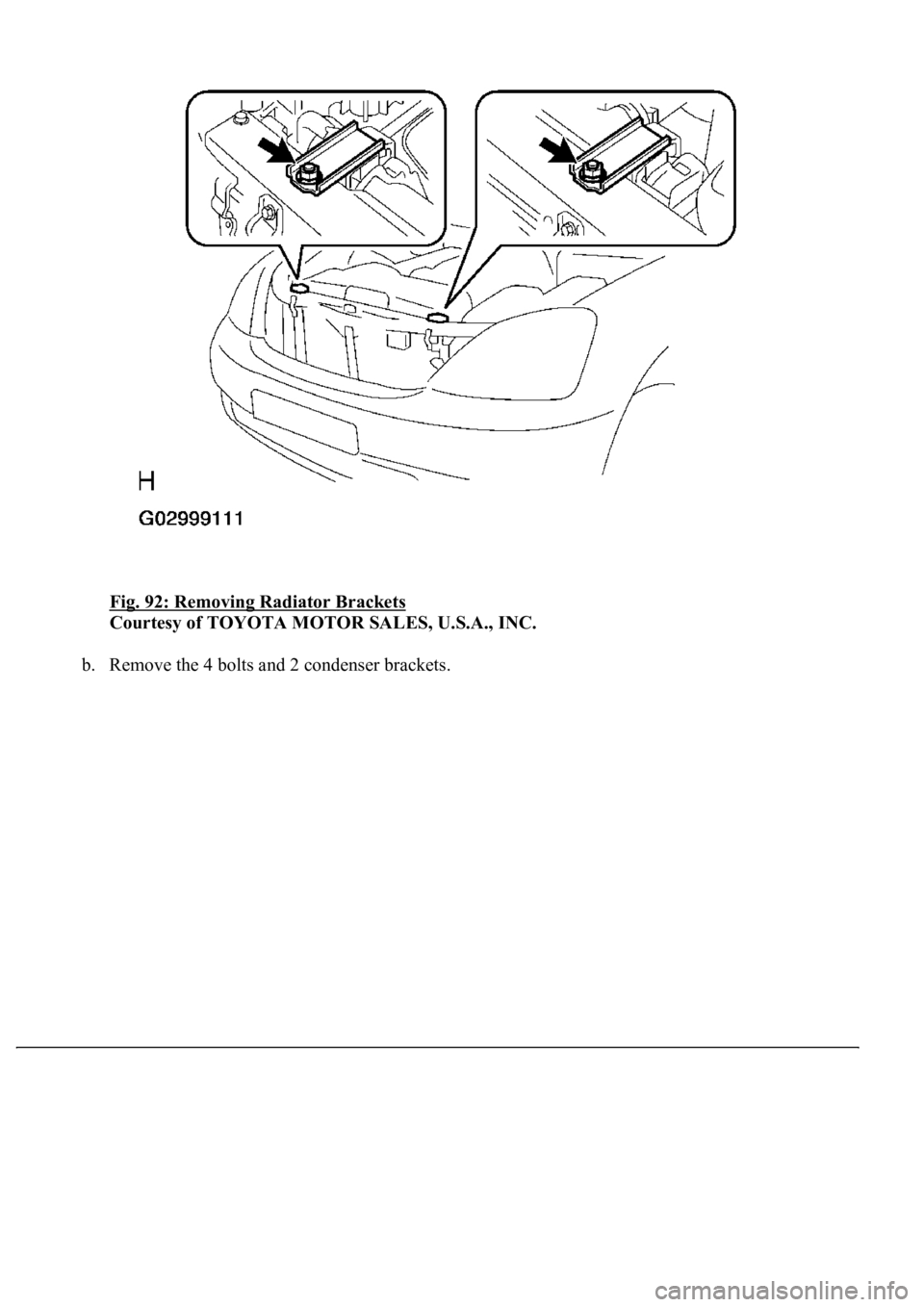

LEXUS LS430 2003 Factory Repair Manual Fig. 92: Removing Radiator Brackets Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Remove the 4 bolts and 2 condenser brackets.
