Page 3409 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 128: Aligning Holes Of Driven Main Gear And Sub Gear Using SST Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 48.REMOVE OIL PUMP SEAL a. Using a screwdriver and wooden block, pry out the oil sea

Page 3410 of 4500

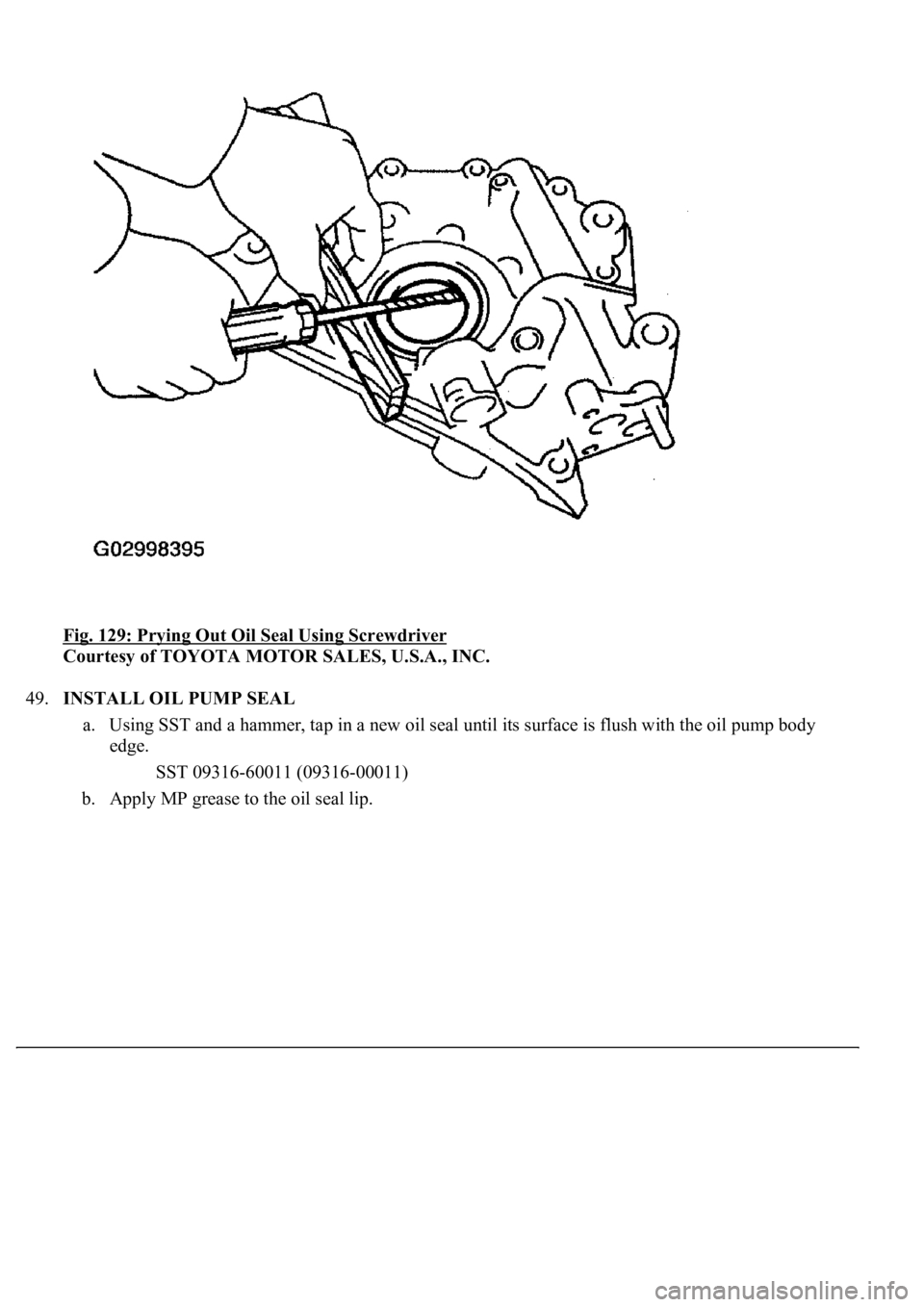

LEXUS LS430 2003 Factory Repair Manual Fig. 129: Prying Out Oil Seal Using Screwdriver Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 49.INSTALL OIL PUMP SEAL a. Using SST and a hammer, tap in a new oil seal until its surface is flush wit

Page 3411 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 130: Taping Oil Seal Using SST And Hammer Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 50.REMOVE ENGINE REAR OIL SEAL a. Using a screwdriver and hammer, tap out the oil seal.

Page 3412 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 131: Taping Out Oil Seal Using Screwdriver And Hammer Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 51.INSTALL ENGINE REAR OIL SEAL a. Using SST and a hammer, tap in a new oil seal until its su

Page 3413 of 4500

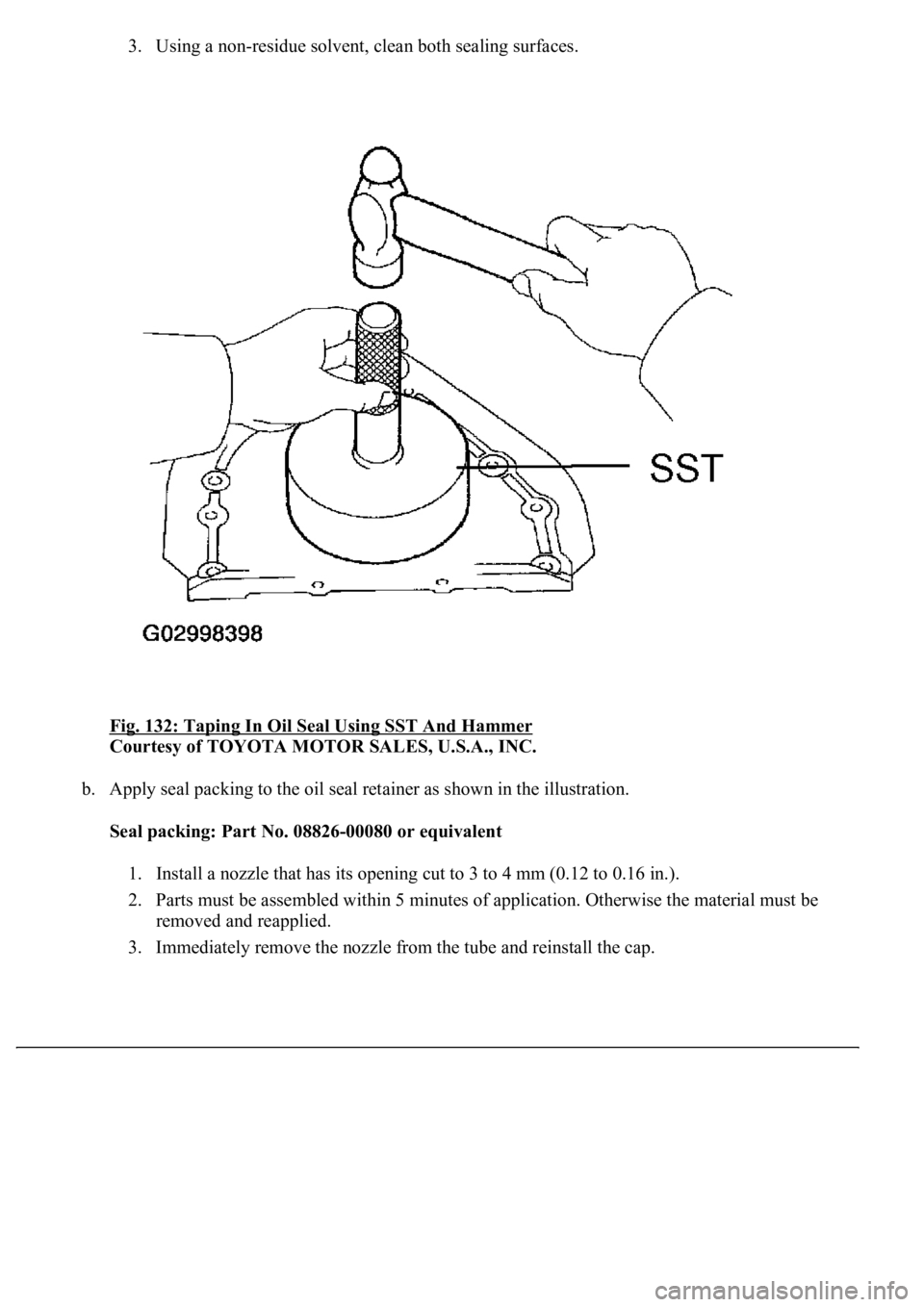

LEXUS LS430 2003 Factory Repair Manual 3. Using a non-residue solvent, clean both sealing surfaces. Fig. 132: Taping In Oil Seal Using SST And Hammer Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Apply seal packing to the oil seal r

Page 3414 of 4500

LEXUS LS430 2003 Factory Repair Manual <0029004c004a00110003001400160016001d0003002400530053004f005c004c0051004a0003003600480044004f0003003300440046004e004c0051004a00030037005200030032004c004f0003003600480044004f00030035004800570044004c005

Page 3415 of 4500

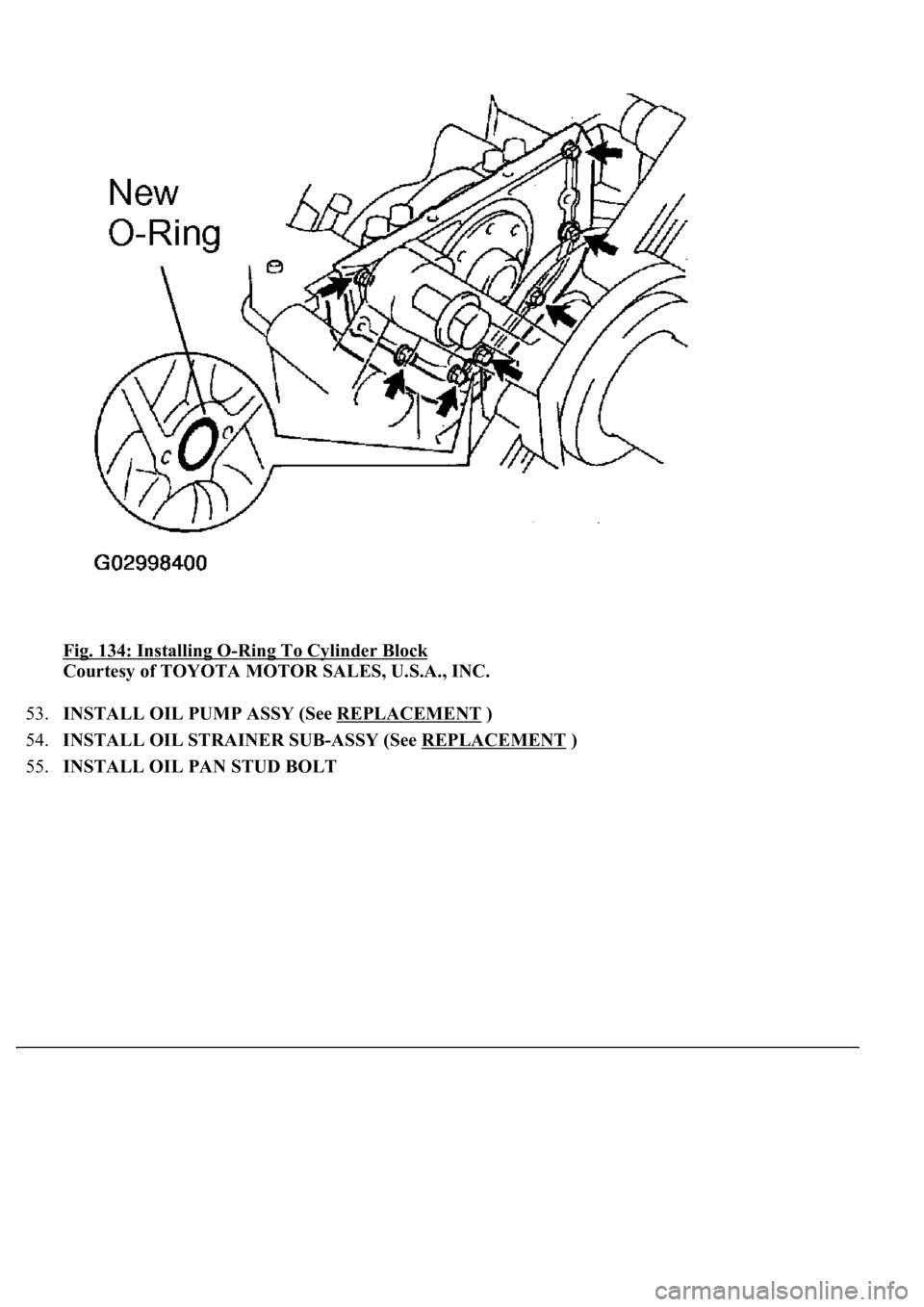

LEXUS LS430 2003 Factory Repair Manual Fig. 134: Installing O-Ring To Cylinder Block Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 53.INSTALL OIL PUMP ASSY (See REPLACEMENT ) 54.INSTALL OIL STRAINER SUB-ASSY (See REPLACEMENT ) 55.IN

Page 3416 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 135: Identifying Oil Pan Stud Bolt Diameter Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 56.INSTALL OIL PAN SUB-ASSY (See REPLACEMENT ) 57.INSTALL OIL PAN BAFFLE PLATE (See REPLACEMENT )
