Page 945 of 4500

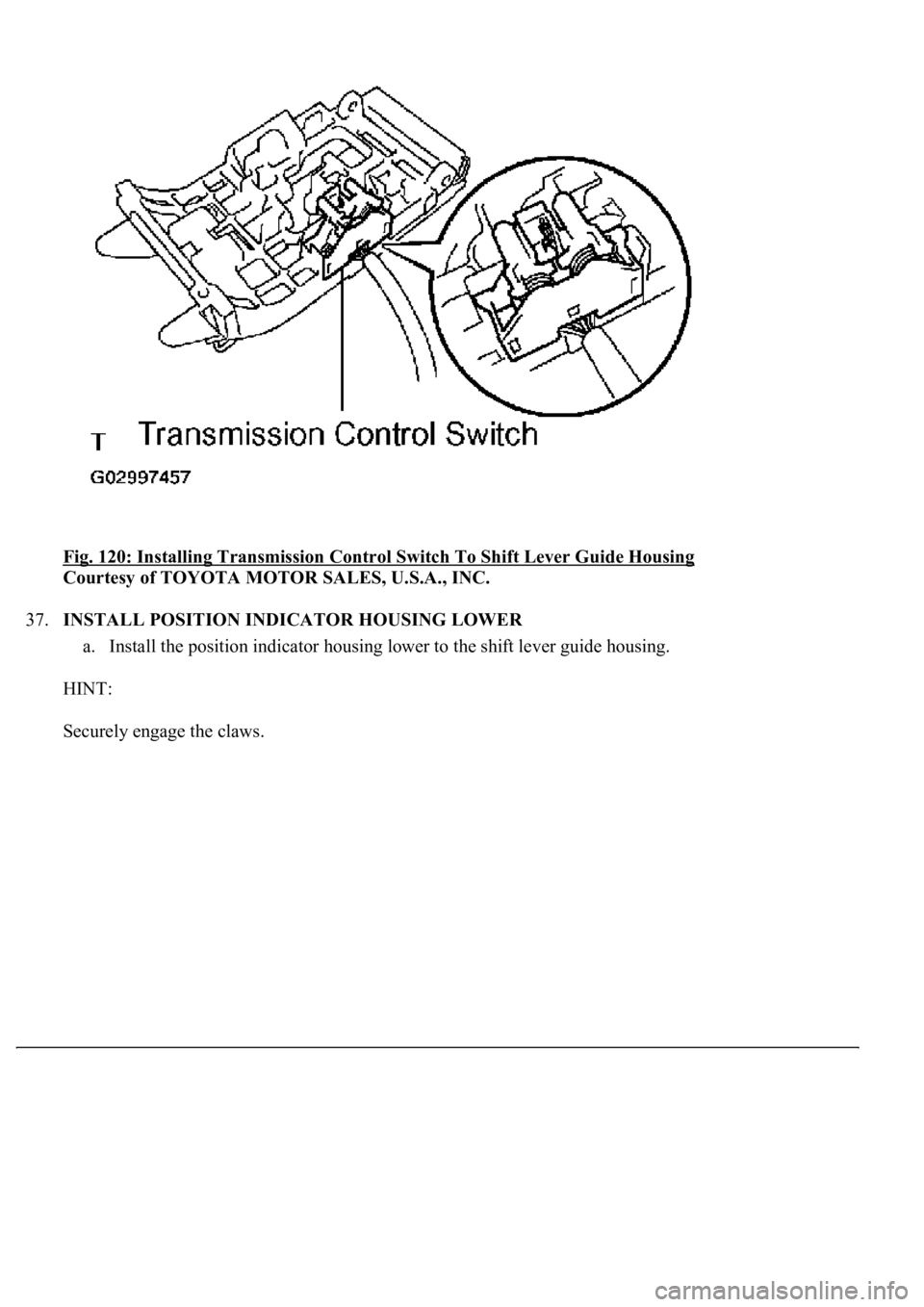

Fig. 120: Installing Transmission Control Switch To Shift Lever Guide Housing
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
37.INSTALL POSITION INDICATOR HOUSING LOWER
a. Install the position indicator housing lower to the shift lever guide housing.
HINT:
Securel
y engage the claws.
Page 946 of 4500

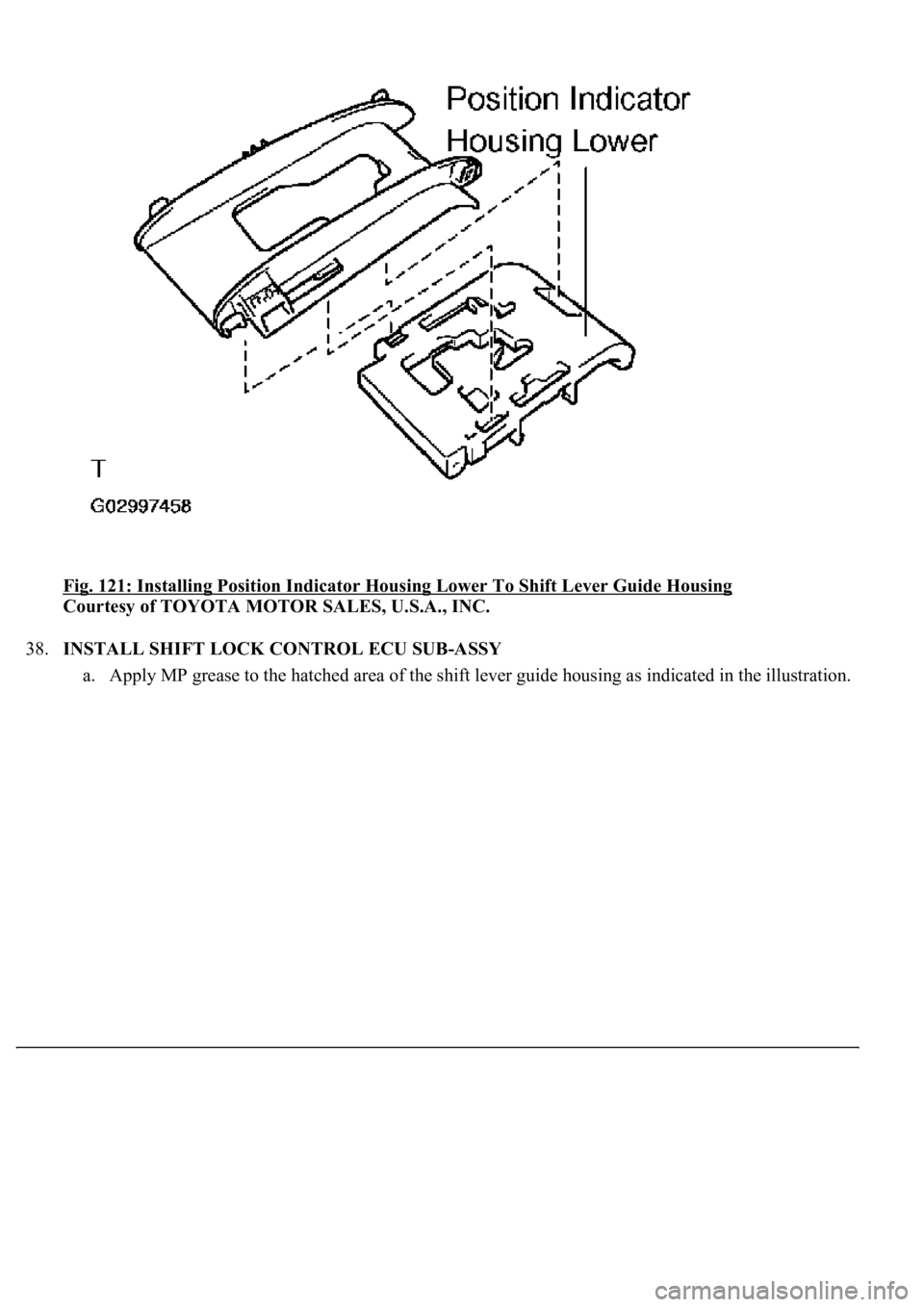

Fig. 121: Installing Position Indicator Housing Lower To Shift Lever Guide Housing
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
38.INSTALL SHIFT LOCK CONTROL ECU SUB-ASSY
a. Appl
y MP grease to the hatched area of the shift lever guide housing as indicated in the illustration.
Page 947 of 4500

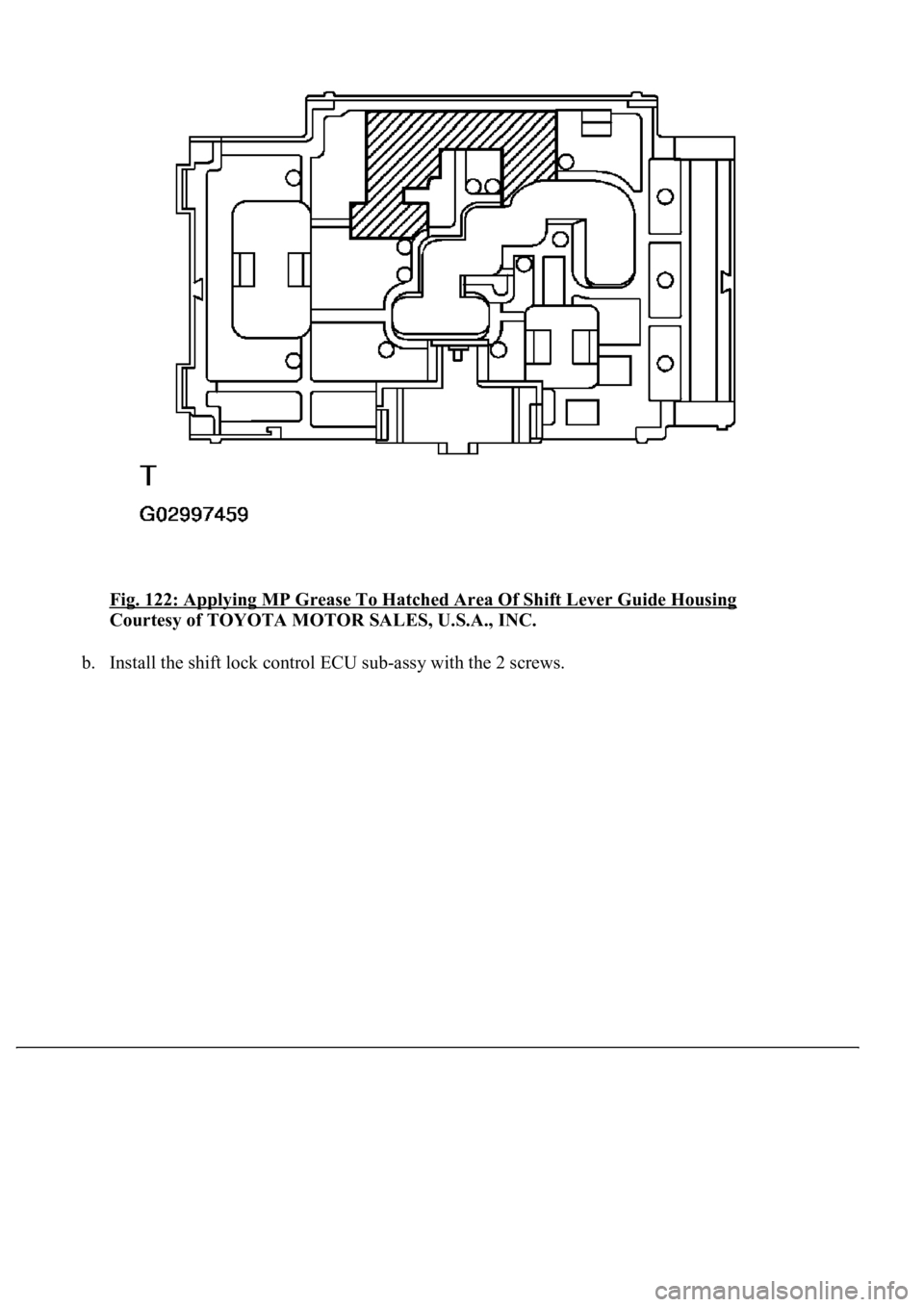

Fig. 122: Applying MP Grease To Hatched Area Of Shift Lever Guide Housing
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Install the shift lock control ECU sub-assy with the 2 screws.
Page 948 of 4500

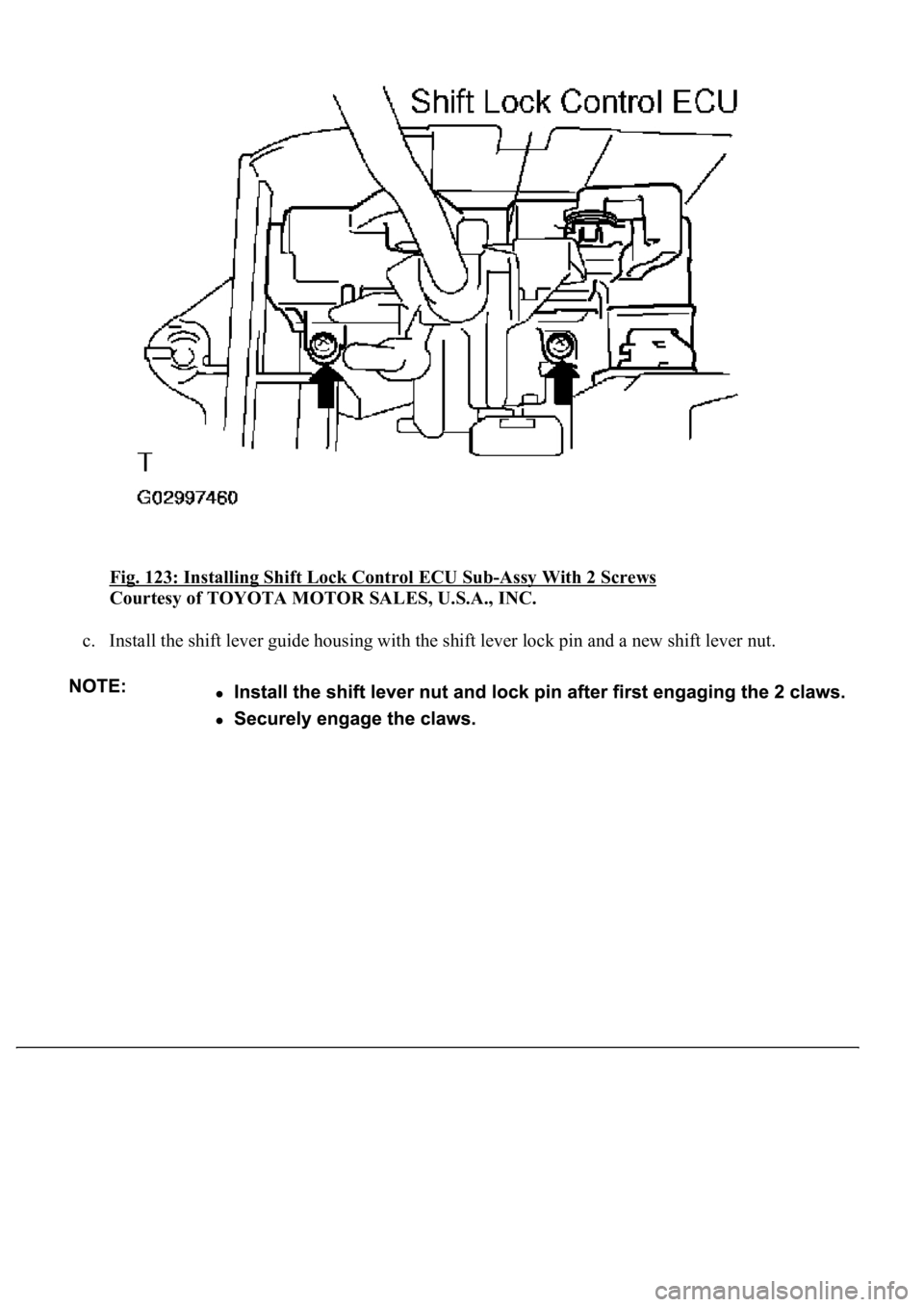

Fig. 123: Installing Shift Lock Control ECU Sub-Assy With 2 Screws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Install the shift lever guide housing with the shift lever lock pin and a new shift lever nut.
Page 949 of 4500
Fig. 124: Installing Shift Lever Nut And Lock Pin After First Engaging 2 Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
39.INSTALL POSITION INDICATOR SLIDE COVER
a. Install position indicator slide cover No.2 to the position indicator slide cover.
b. Install the position indicator slide cover to the shift lever guide housing.
Page 950 of 4500

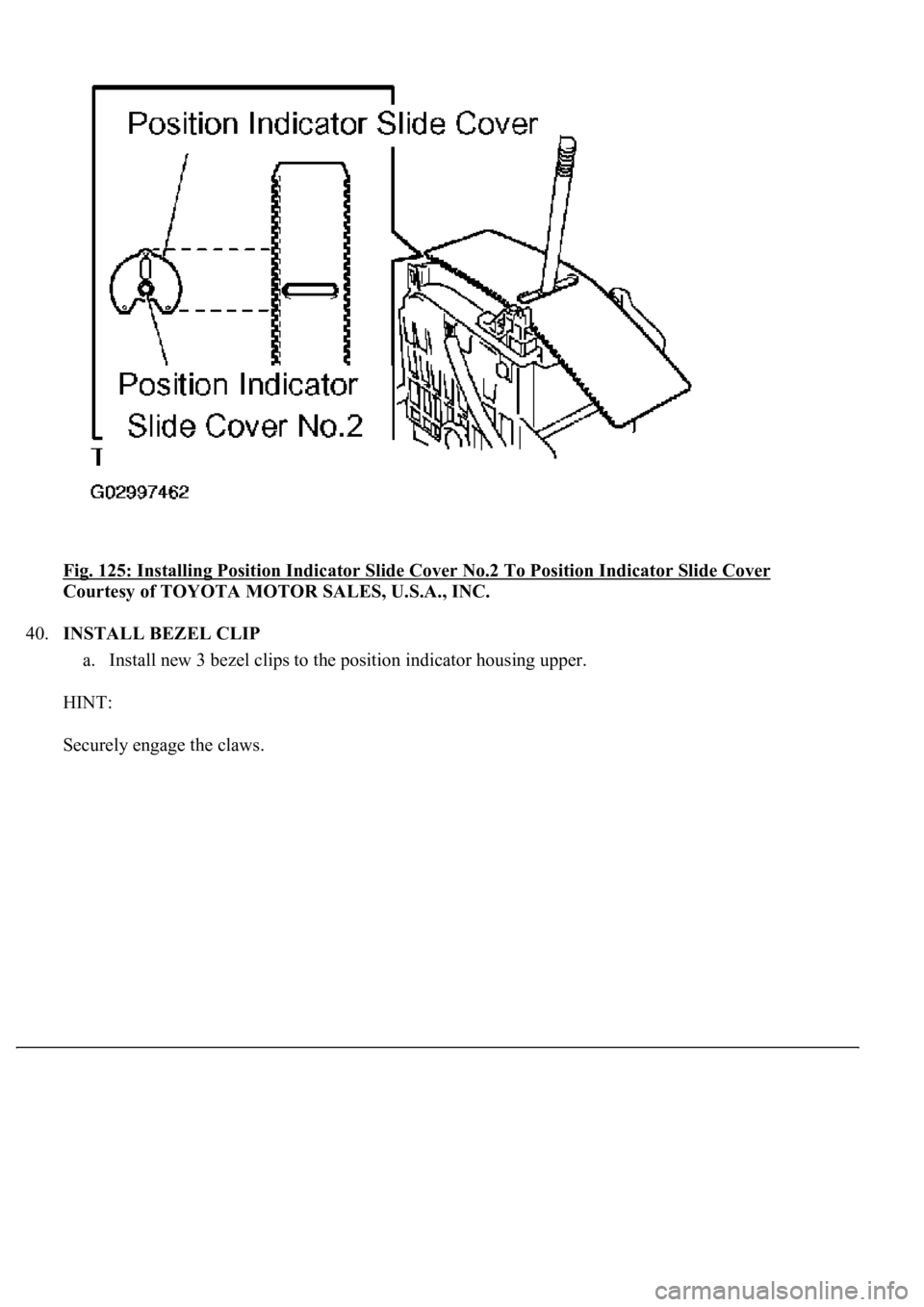

Fig. 125: Installing Position Indicator Slide Cover No.2 To Position Indicator Slide Cover
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
40.INSTALL BEZEL CLIP
a. Install new 3 bezel clips to the position indicator housing upper.
HINT:
Securel
y engage the claws.
Page 951 of 4500
Page 952 of 4500

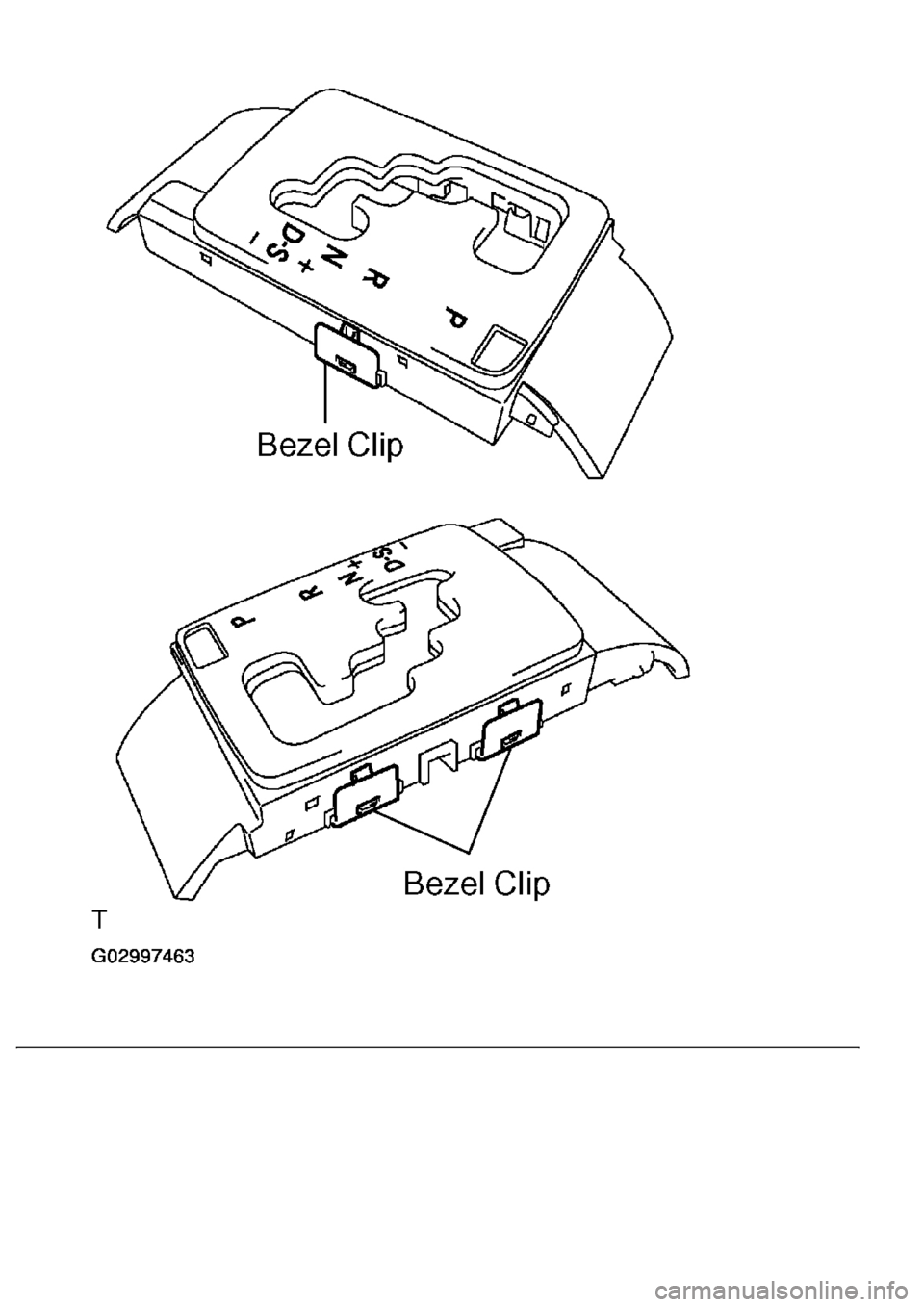

Fig. 126: Installing 3 bezel clips to position indicator housing upper
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
41.INSTALL SHIFT LOCK RELEASE BUTTON
a. Install the shift lock release button and spring to the floor shift assy.
HINT:
Securely engage the claws.
Fig. 127: Installing Shift Lock Release Button And Spring To Floor Shift Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
42.INSTALL INDICATOR LAMP WIRE SUB-ASSY
a. Securely connect the 2 terminals of the indicator lamp wire harness to the transmission control
switch connector.
b. Install the position indicator lamp bulb to the indicator lamp wire sub-assy.
c. Install the position indicator bulb cap to the position indicator lamp bulb.
