Page 4281 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 93: Removing Condenser Brackets Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Remove the 3 wire harness clamps.

Page 4282 of 4500

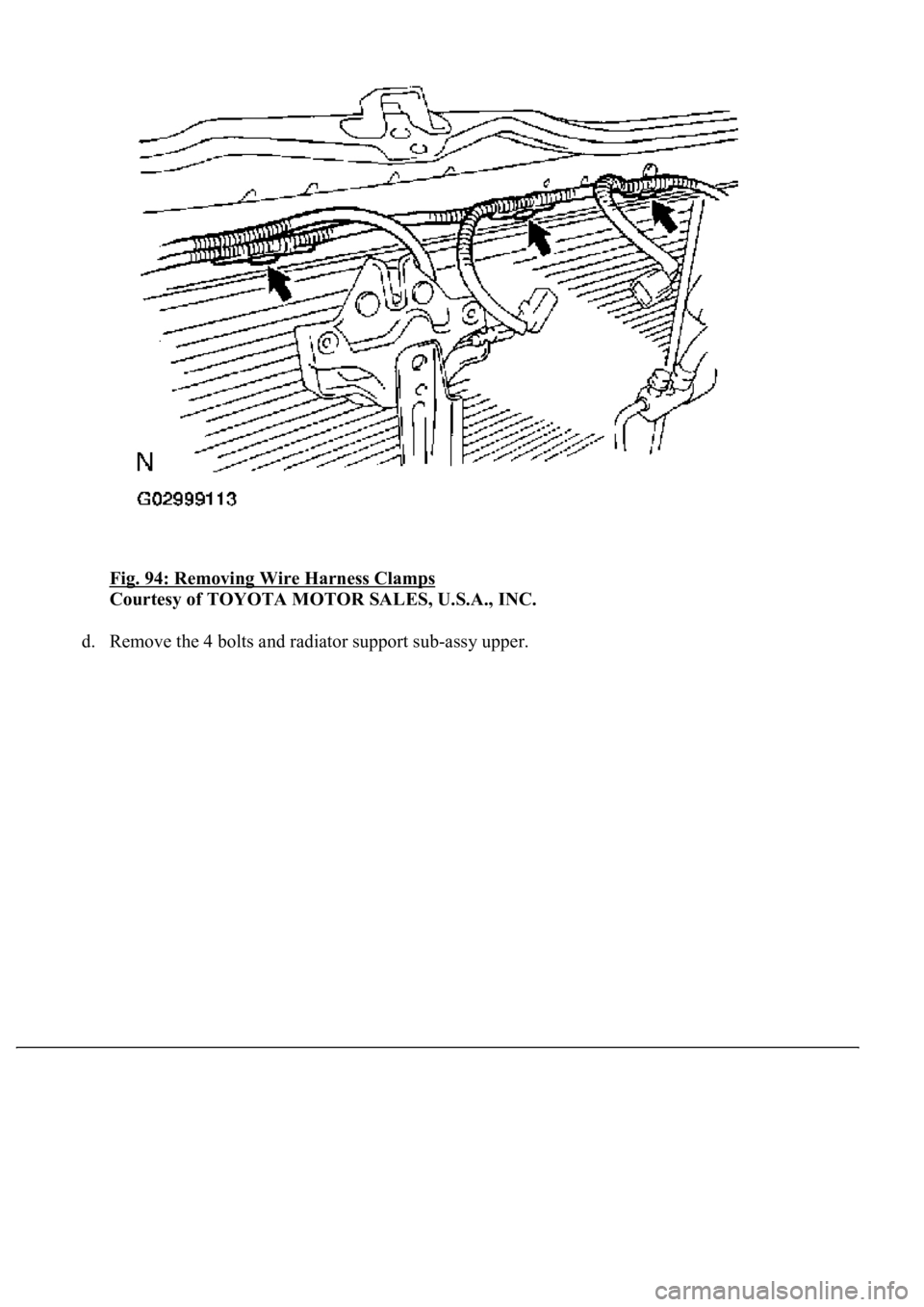

LEXUS LS430 2003 Factory Repair Manual Fig. 94: Removing Wire Harness Clamps Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. d. Remove the 4 bolts and radiator support sub-assy upper.

Page 4283 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 95: Removing Radiator Support Sub-Assy Upper Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 12.REMOVE COOLER CONDENSER ASSY a. Push down the 2 condenser brackets. b. Push the radiator toward t

Page 4284 of 4500

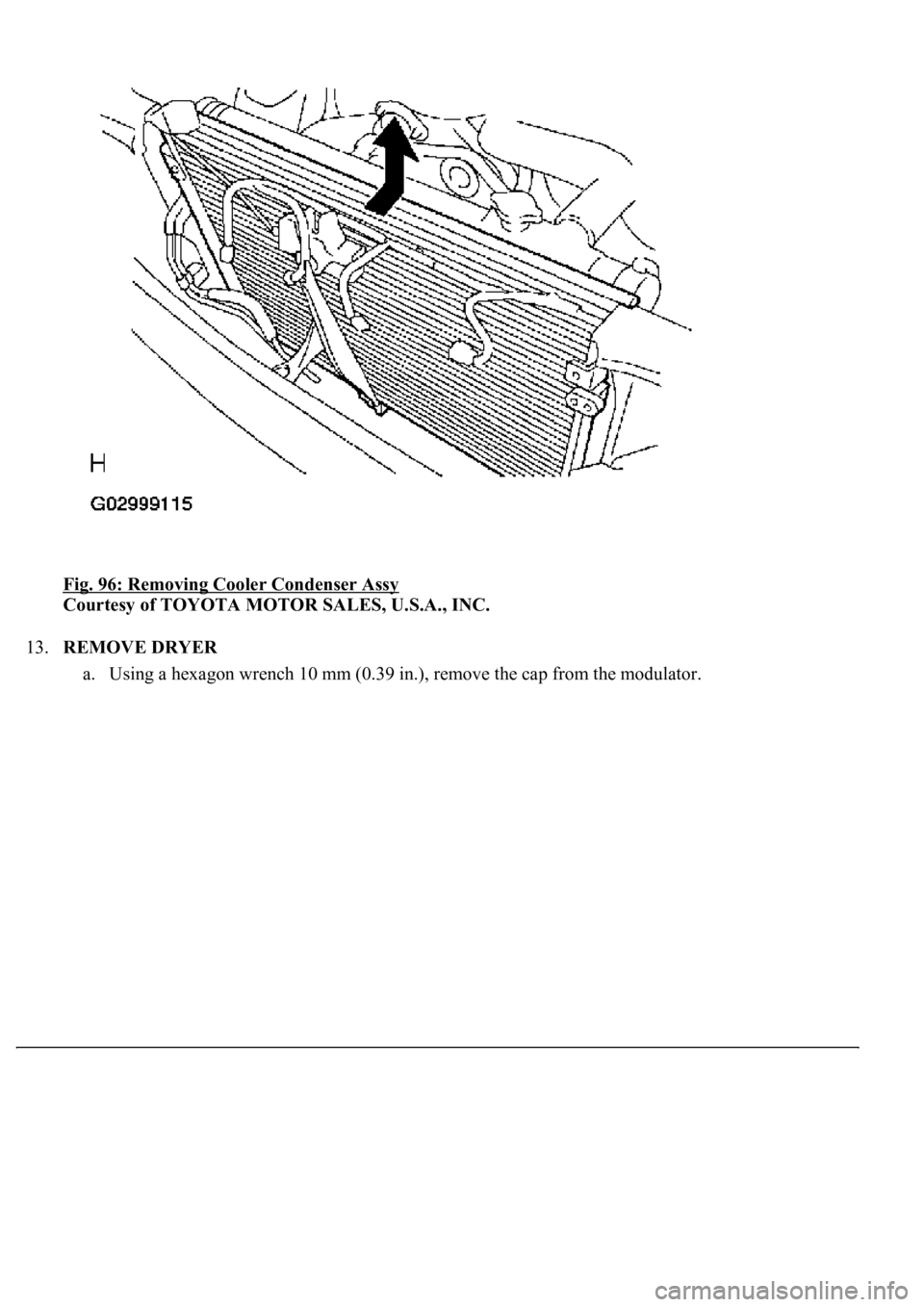

LEXUS LS430 2003 Factory Repair Manual Fig. 96: Removing Cooler Condenser Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 13.REMOVE DRYER a. Usin g a hexagon wrench 10 mm (0.39 in.), remove the cap from the modulator.

Page 4285 of 4500

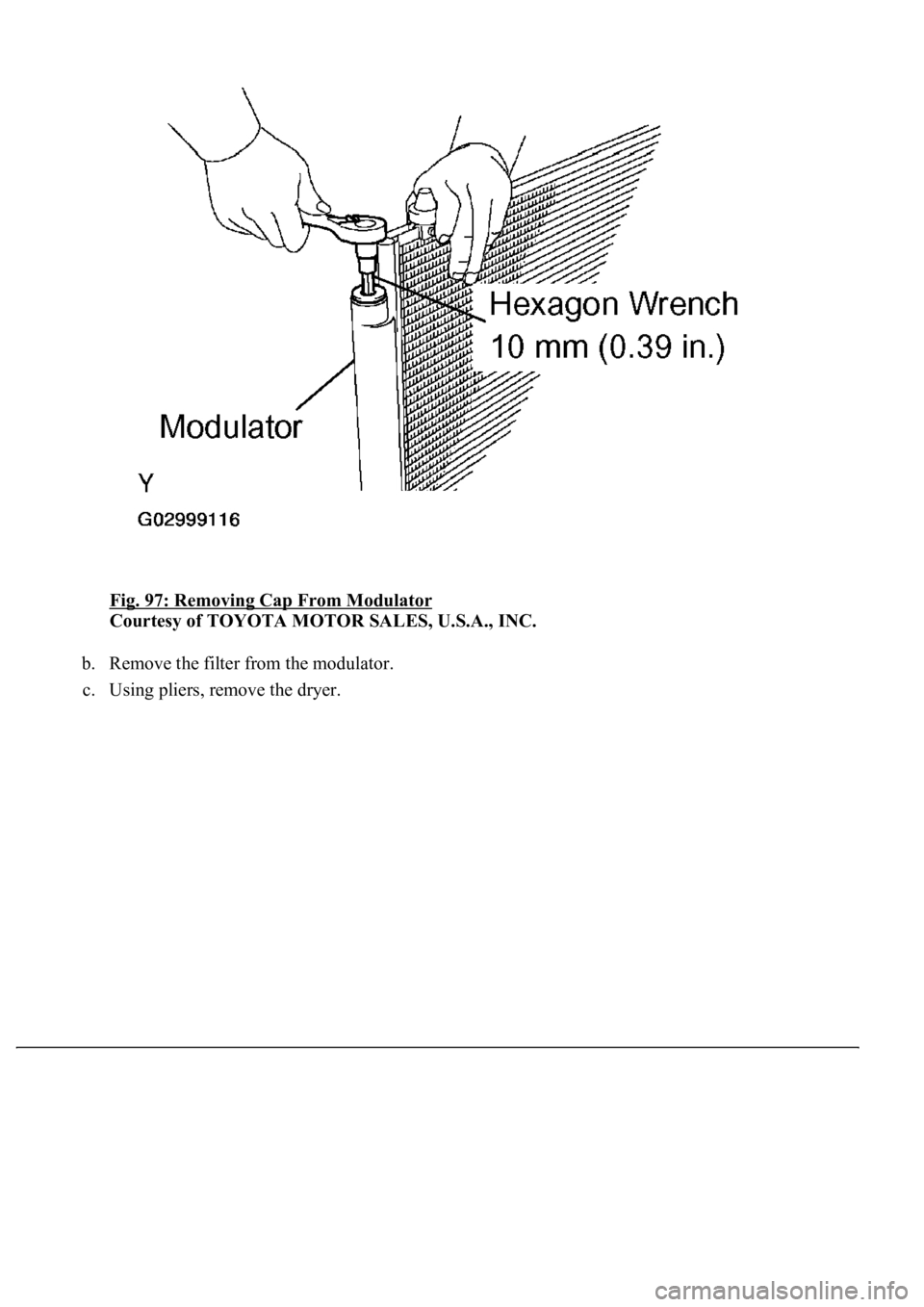

LEXUS LS430 2003 Factory Repair Manual Fig. 97: Removing Cap From Modulator Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Remove the filter from the modulator. c. Usin g pliers, remove the dryer.

Page 4286 of 4500

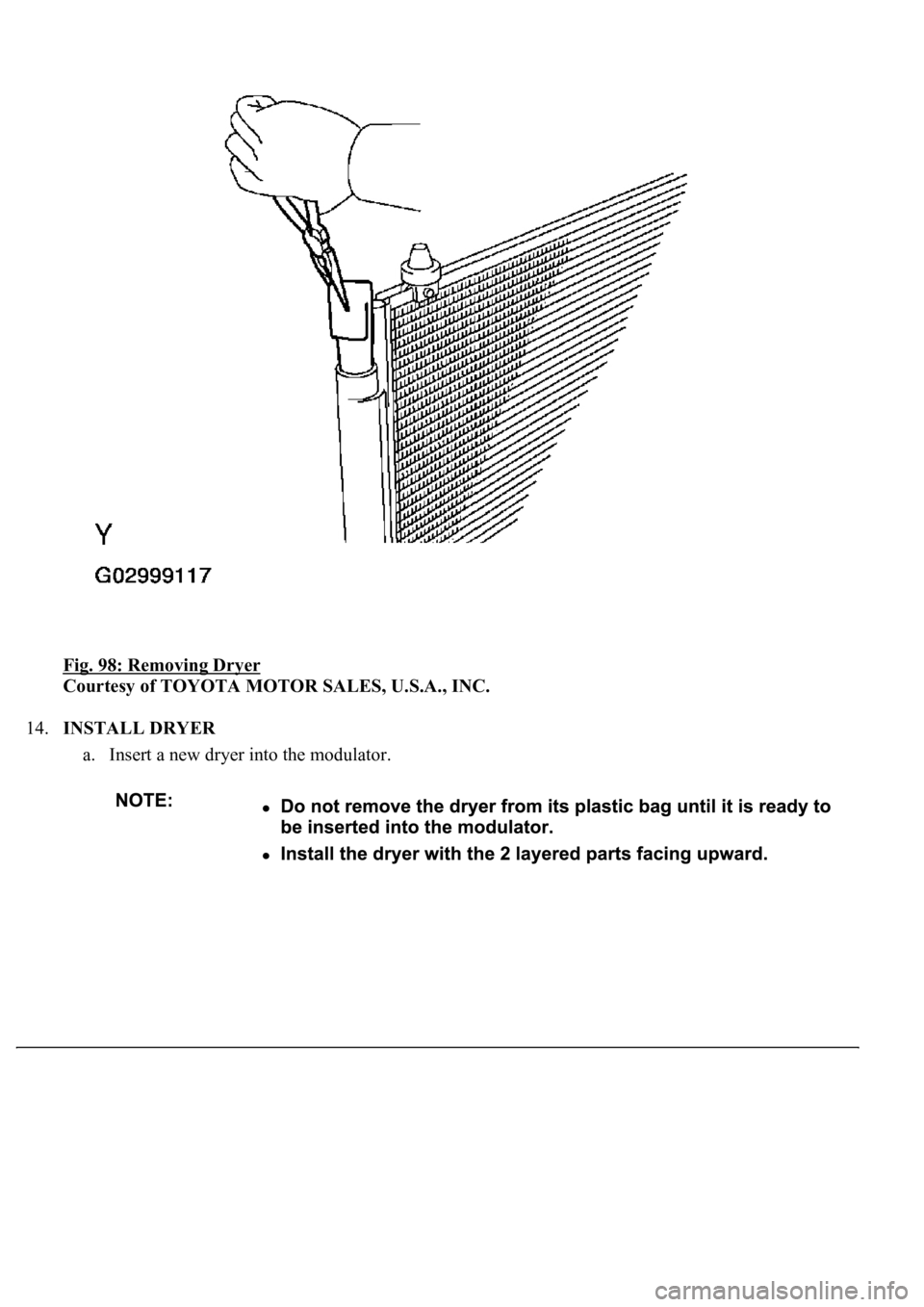

LEXUS LS430 2003 Factory Repair Manual Fig. 98: Removing Dryer Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 14.INSTALL DRYER a. Insert a new dryer into the modulator.

Page 4287 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 99: Installing Dryer Into Modulator Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Insert the filter into the modulator.

Page 4288 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 100: Installing Filter Into Modulator Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Install the cap to the modulator. 1. Apply compressor oil to the O-rings and thread of the cap. Compresso
