Page 369 of 4500

Fig. 129: Cool Air Bypass Damper Control Servomotor Circuit (Passenger Side)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
1.PERFORM ACTUATOR CHECK
a. Warm up the engine.
b. Set the actuator check mode (SEE ACTUATOR CHECK
).
c. Press the driver temperature up switch, and change to STEP operation.
d. Press the driver temperature up switch, and check the air flow by hand.
Display code Air flow position
DISPLAY CODE AIR FLOW POSITION
OK:
Cool air bypass damper changes in accordance with each display code.
NG: REPLACE AIR CONDITIONING AMPLIFIER (SEE REPLACEMENT
)
OK: Go to next step
2.INSPECT COOL AIR BYPASS SERVOMOTOR
a. Remove the cool air bypass servomotor.
b. Connect the positive (+) lead from the battery to terminal 4 and negative (-) lead to terminal 5, then
check that the lever turns to the "OPEN" position smoothly.
c. Connect the positive (+) lead from the battery to terminal 5 and negative (-) lead to terminal 4, then
check that the lever turns to the "SHUT" position smoothly.
Display codeAir flow lever position
0OPEN
1OPEN
2OPEN
3SHUT
4SHUT
5SHUT
6SHUT
7SHUT
8SHUT
9SHUT
Page 370 of 4500

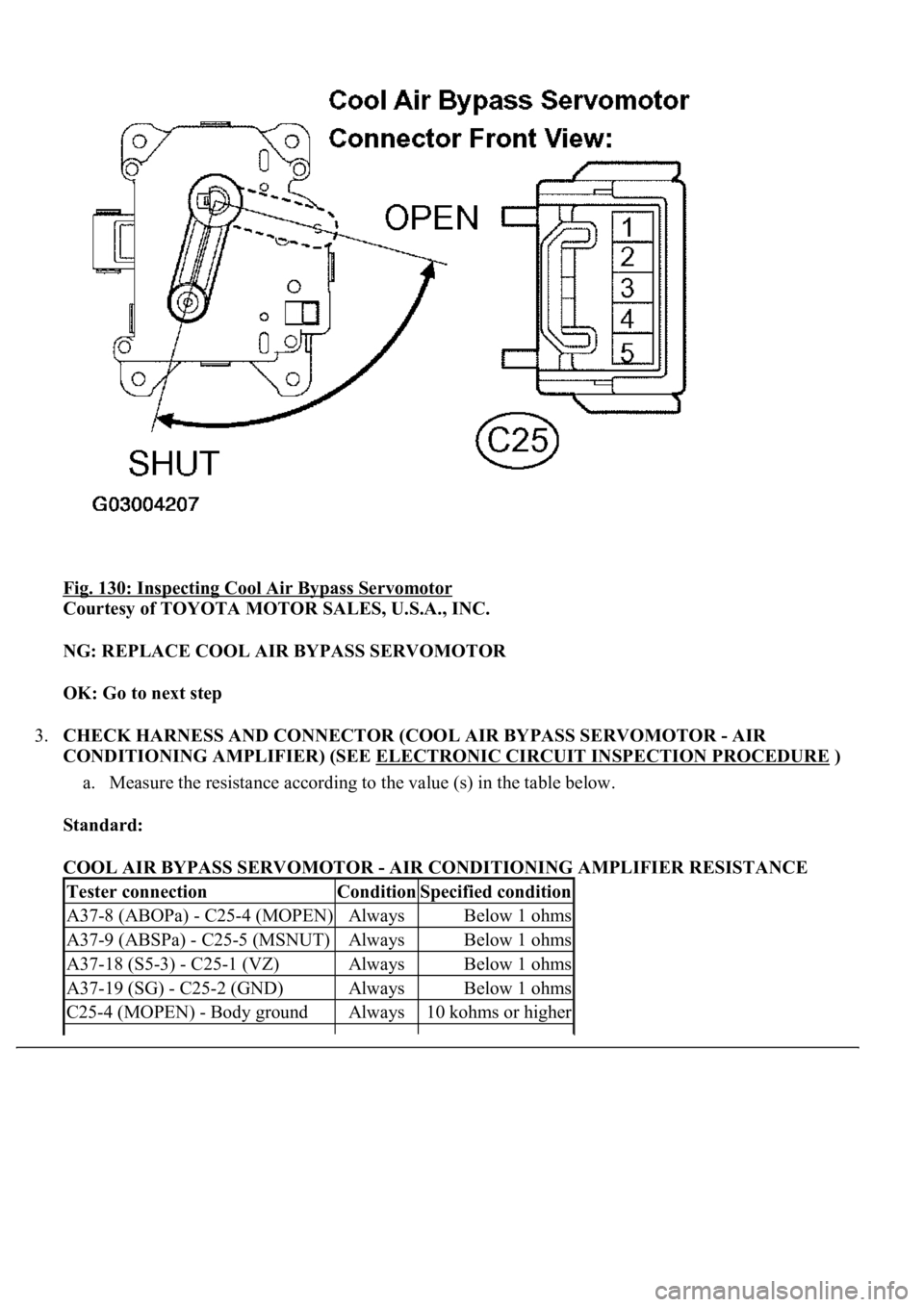

Fig. 130: Inspecting Cool Air Bypass Servomotor
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPLACE COOL AIR BYPASS SERVOMOTOR
OK: Go to next step
3.CHECK HARNESS AND CONNECTOR (COOL AIR BYPASS SERVOMOTOR - AIR
CONDITIONING AMPLIFIER) (SEE ELECTRONIC CIRCUIT INSPECTION PROCEDURE
)
a. Measure the resistance according to the value (s) in the table below.
Standard:
COOL AIR BYPASS SERVOMOTOR - AIR CONDITIONING AMPLIFIER RESISTANCE
Tester connectionConditionSpecified condition
A37-8 (ABOPa) - C25-4 (MOPEN)AlwaysBelow 1 ohms
A37-9 (ABSPa) - C25-5 (MSNUT)AlwaysBelow 1 ohms
A37-18 (S5-3) - C25-1 (VZ)AlwaysBelow 1 ohms
A37-19 (SG) - C25-2 (GND)AlwaysBelow 1 ohms
C25-4 (MOPEN) - Body groundAlways10 kohms or higher
Page 371 of 4500

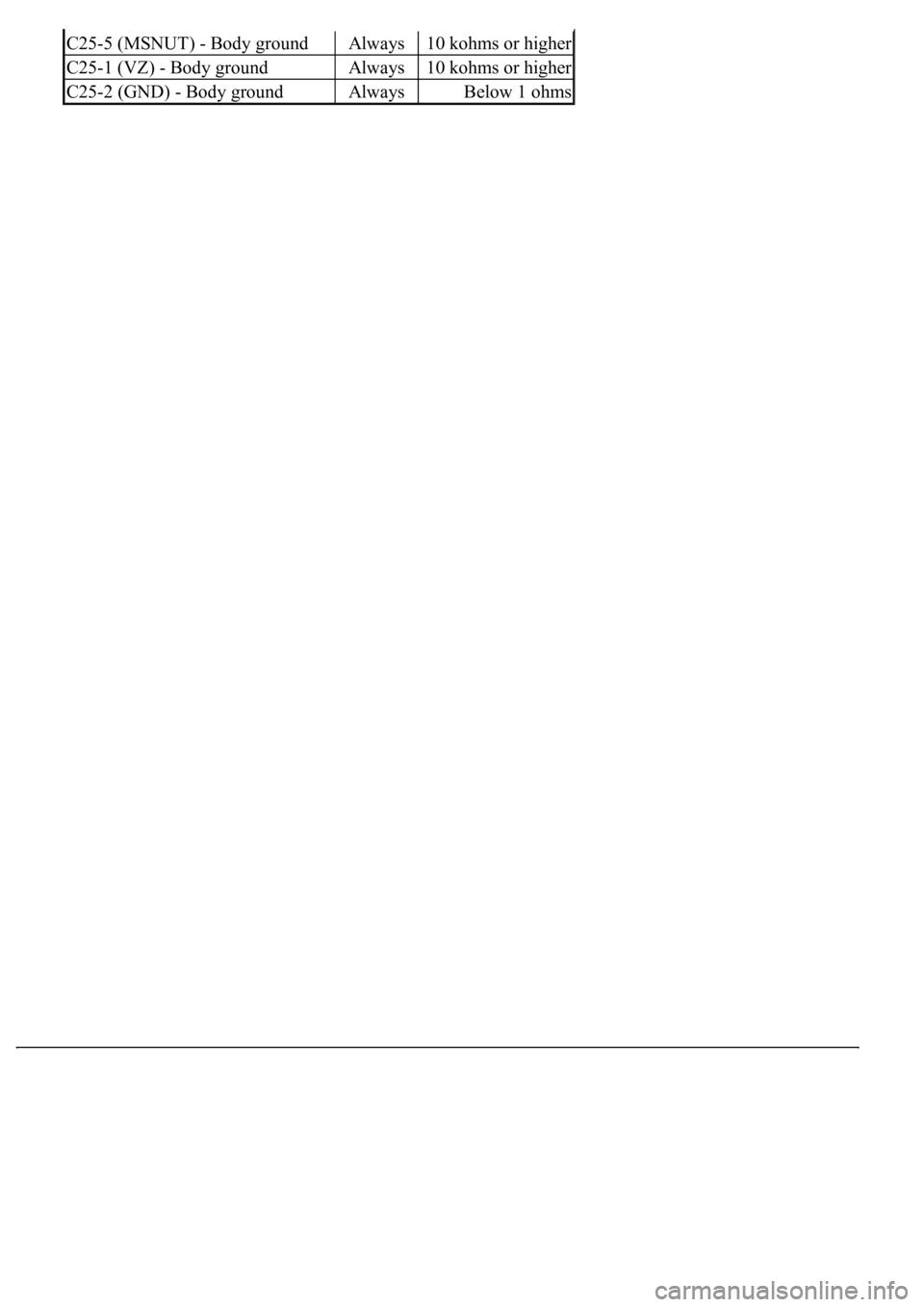

C25-5 (MSNUT) - Body groundAlways10 kohms or higher
C25-1 (VZ) - Body groundAlways10 kohms or higher
C25-2 (GND) - Body groundAlwaysBelow 1 ohms
Page 372 of 4500

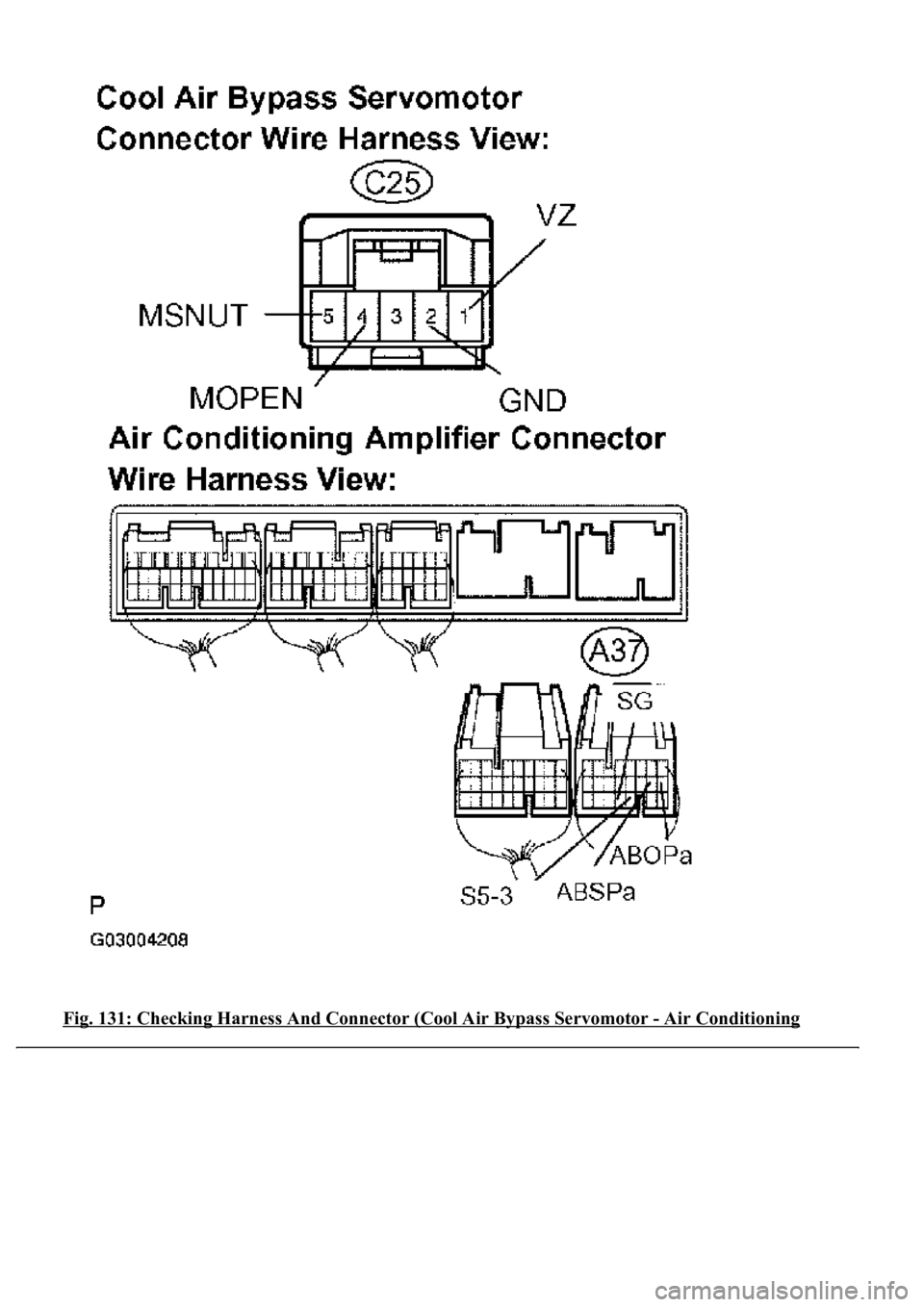

Fig. 131: Checking Harness And Connector (Cool Air Bypass Servomotor - Air Conditioning
Page 373 of 4500
Amplifier)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE AIR CONDITIONING AMPLIFIER (SEE REPLACEMENT
)
CIRCUIT DESCRIPTION
This circuit controls the amount of the coolant flowing to the heater core by a signal from the A/C amplifier,
and adjusts the temperature at the air outlets.
WIRING DIAGRAM
Fig. 132: Water Valve Control Servomotor Circuit
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 374 of 4500
INSPECTION PROCEDURE
1.PERFORM ACTUATOR CHECK
a. Warm up the engine.
b. Set the actuator check mode (SEE ACTUATOR CHECK
).
c. Press the driver temperature up switch, and change to STEP operation.
d. Press the driver temperature up switch, and check the operation of water valve.
Fig. 133: Checking Actuator
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
DISPLAY CODE - AIR FLOW LEVER POSITION
Display codeAir flow lever position
0SHUT
1SHUT
2SHUT
3OPEN
4OPEN
5OPEN
6OPEN
Page 375 of 4500
OK:
Water valve lever changes in accordance with each display code.
NG: REPLACE AIR CONDITIONING AMPLIFIER (SEE REPLACEMENT
)
OK: Go to next step
2.INSPECT WATER VALVE SERVOMOTOR
a. Remove the water valve servomotor.
b. Connect the positive (+) lead from the battery to terminal 3 and negative (-) lead to terminal 1, then
check that the lever turns to the "OPEN" position smoothly.
c. Connect the positive (+) lead from the battery to terminal 3 and negative (-) lead to terminal 2, then
check that the lever turns to the "SHUT" position smoothly.
Fig. 134: Inspecting Water Valve Servomotor
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
7OPEN
8OPEN
9OPEN
Page 376 of 4500

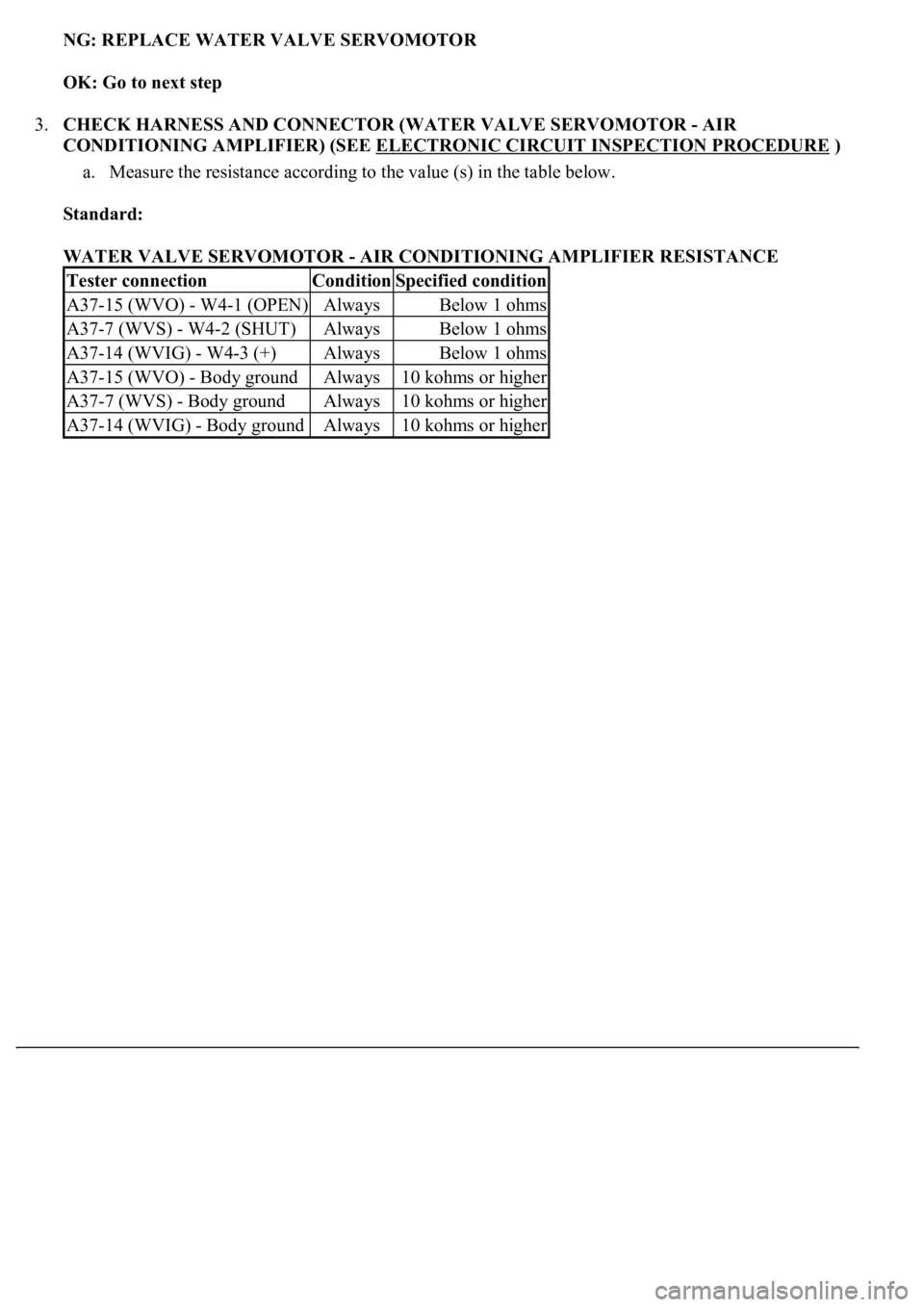

NG: REPLACE WATER VALVE SERVOMOTOR
OK: Go to next step
3.CHECK HARNESS AND CONNECTOR (WATER VALVE SERVOMOTOR - AIR
CONDITIONING AMPLIFIER) (SEE ELECTRONIC CIRCUIT INSPECTION PROCEDURE
)
a. Measure the resistance according to the value (s) in the table below.
Standard:
WATER VALVE SERVOMOTOR - AIR CONDITIONING AMPLIFIER RESISTANCE
Tester connectionConditionSpecified condition
A37-15 (WVO) - W4-1 (OPEN)AlwaysBelow 1 ohms
A37-7 (WVS) - W4-2 (SHUT)AlwaysBelow 1 ohms
A37-14 (WVIG) - W4-3 (+)AlwaysBelow 1 ohms
A37-15 (WVO) - Body groundAlways10 kohms or higher
A37-7 (WVS) - Body groundAlways10 kohms or higher
A37-14 (WVIG) - Body groundAlways10 kohms or higher
