Page 745 of 4500

LEXUS LS430 2003 Factory Repair Manual <0029004c004a0011000300160019001d000300350048005000520059004c0051004a0003002400510057004800510051004400030033004f0058004a000300290055005200500003003500440047004c005200030035004800460048004c00590048005

Page 746 of 4500

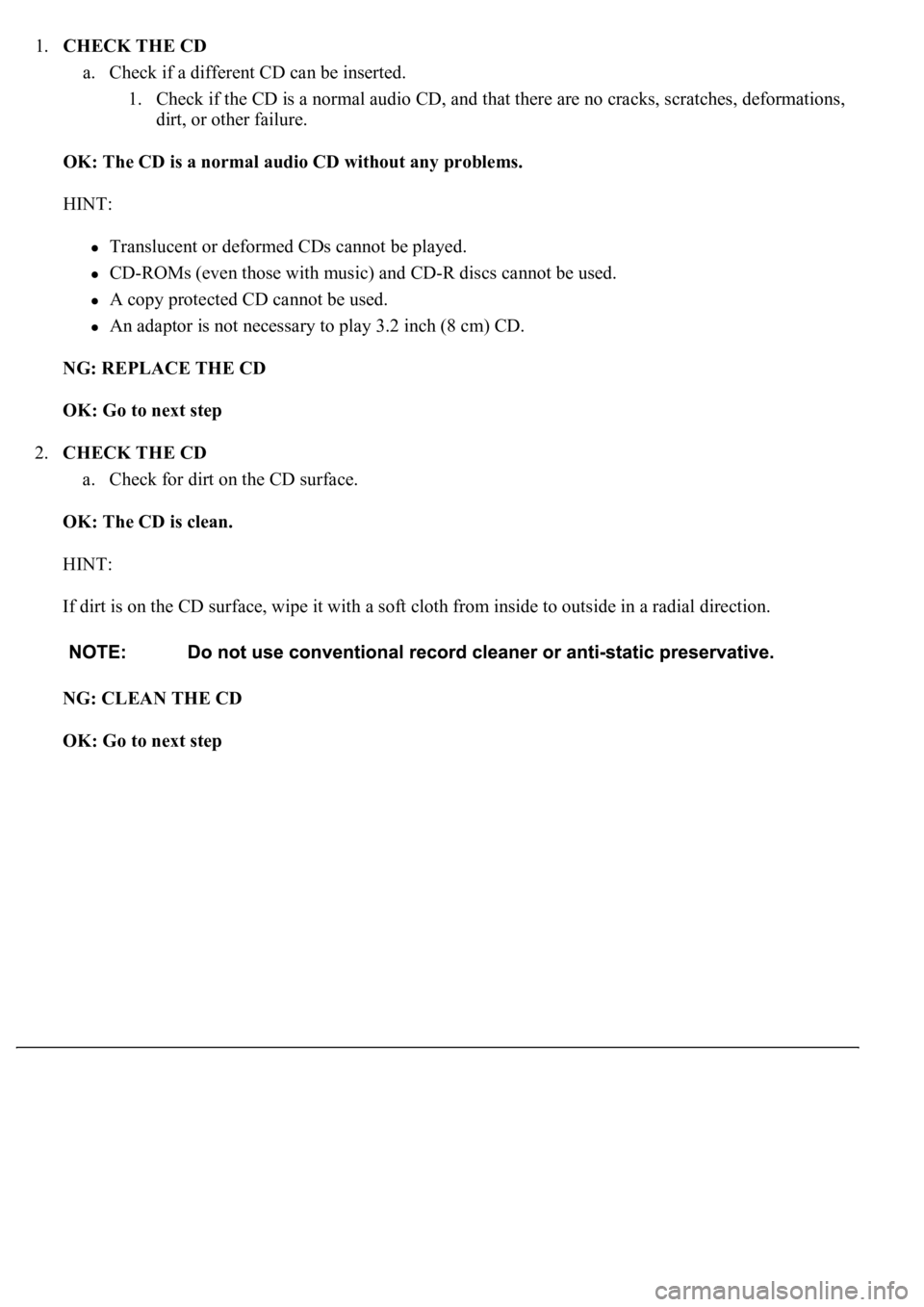

LEXUS LS430 2003 Factory Repair Manual 1.CHECK THE CD a. Check if a different CD can be inserted. 1. Check if the CD is a normal audio CD, and that there are no cracks, scratches, deformations, dirt, or other failure. OK: The CD is a

Page 747 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 37: Identifying CD Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 3.CHECK USING ANOTHER CD a. Check using another CD. 1. Check if the problem recurs using another CD. OK: The problem does not

Page 748 of 4500

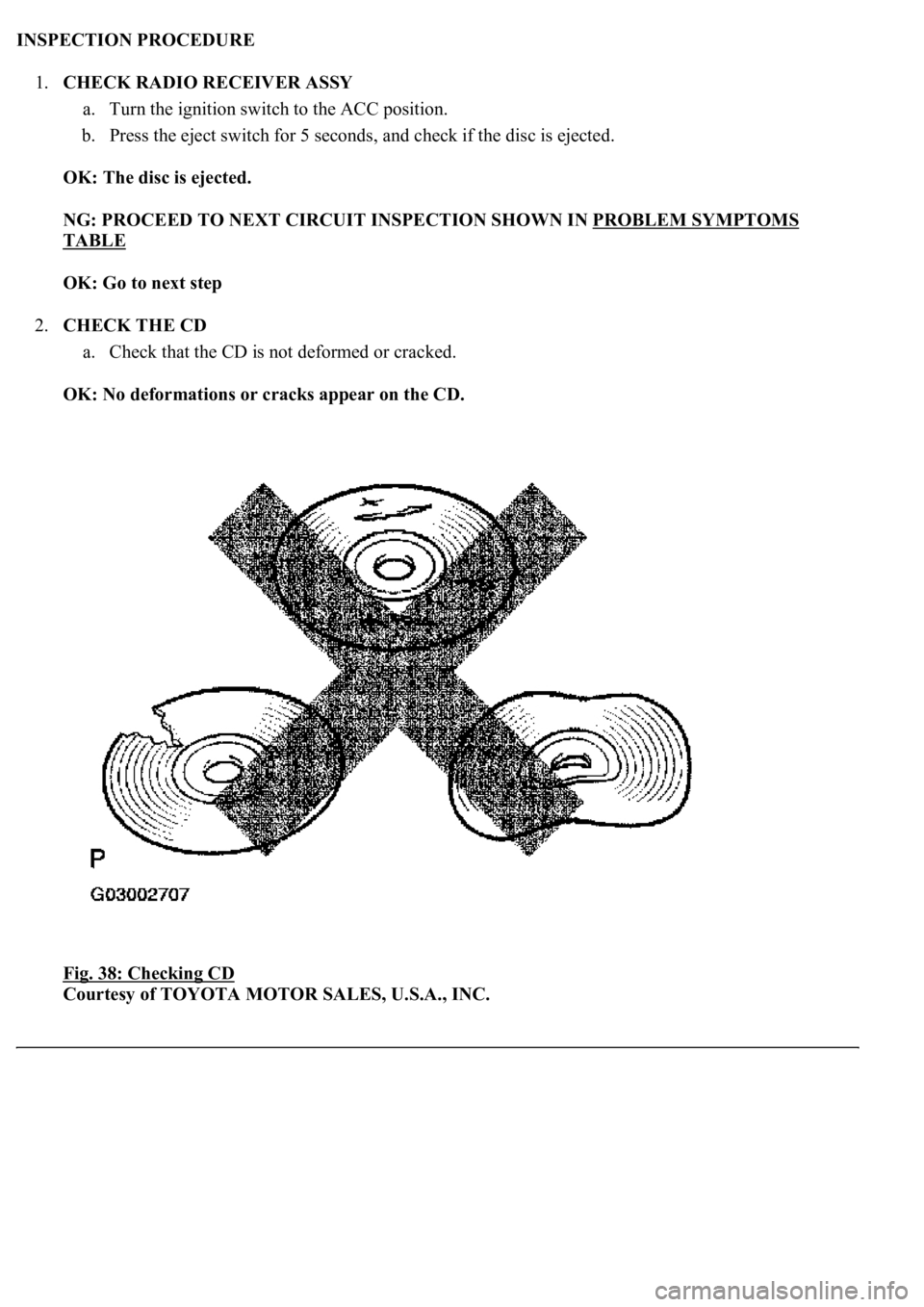

LEXUS LS430 2003 Factory Repair Manual INSPECTION PROCEDURE 1.CHECK RADIO RECEIVER ASSY a. Turn the ignition switch to the ACC position. b. Press the eject switch for 5 seconds, and check if the disc is ejected. OK: The disc is eject

Page 749 of 4500

LEXUS LS430 2003 Factory Repair Manual NG: REPLACE THE CD OK: Go to next step 3.CHECK RADIO RECEIVER ASSY a. Insert another CD and check if it is ejected. OK: The disc is ejected. NG: REPLACE RADIO RECEIVER ASSY (SEE REPLACEMENT

Page 750 of 4500

LEXUS LS430 2003 Factory Repair Manual HINT: Confirm the noise conditions and inspect the appropriate noise filter. First confirm that the foreign noise cannot be heard. Failure to do so will likely result in misunderstanding the sourc

Page 751 of 4500

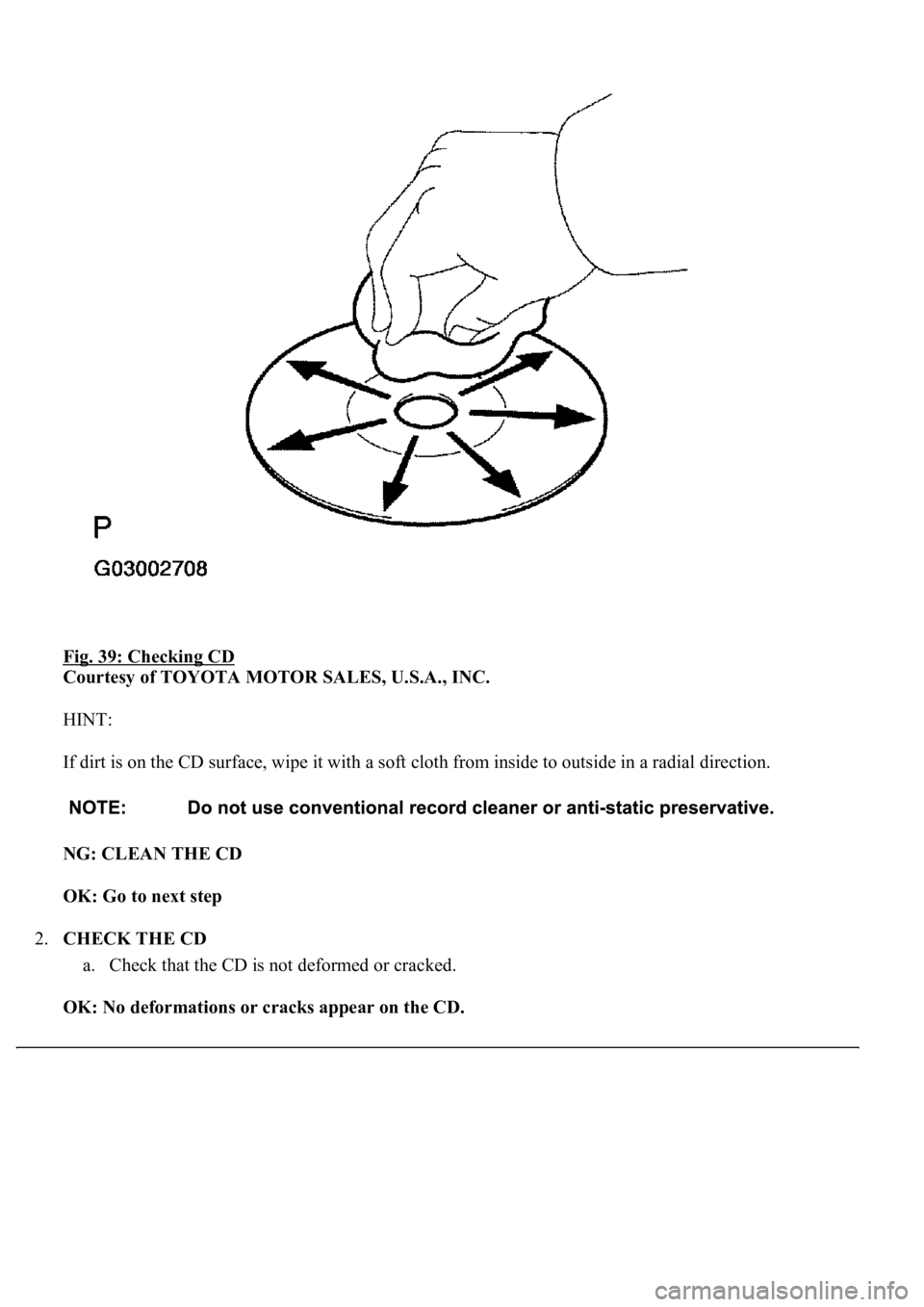

LEXUS LS430 2003 Factory Repair Manual Fig. 39: Checking CD Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. HINT: If dirt is on the CD surface, wipe it with a soft cloth from inside to outside in a radial direction. NG: CLEAN THE CD OK:

Page 752 of 4500

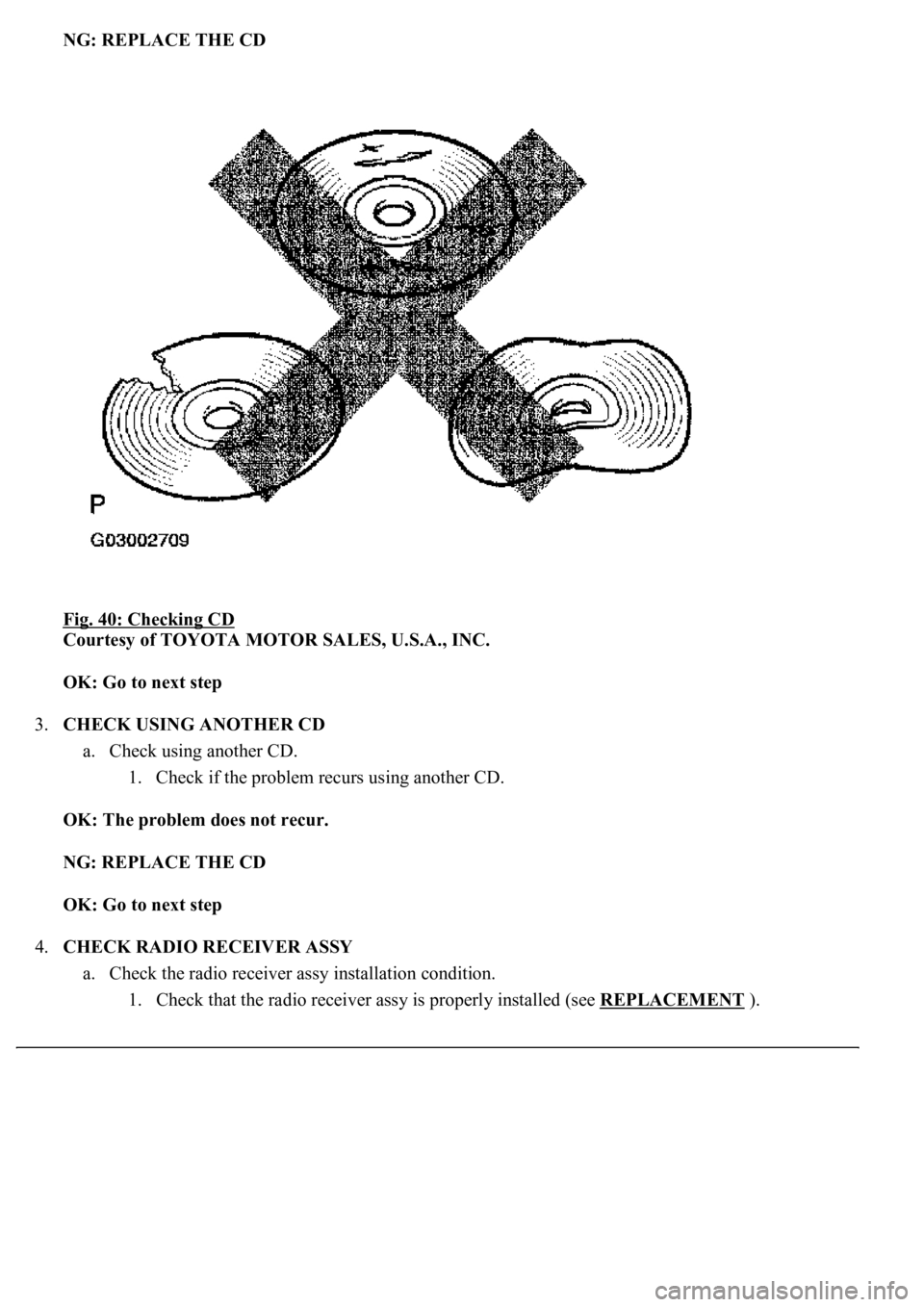

LEXUS LS430 2003 Factory Repair Manual NG: REPLACE THE CD Fig. 40: Checking CD Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. OK: Go to next step 3.CHECK USING ANOTHER CD a. Check using another CD. 1. Check if the problem recurs usi
