Page 33 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 24: Identifying VSC Test Location
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
e. BRAKE PEDAL LOAD SENSING SWITCH CHECK
1. Keep depressing the brake pedal for one second or more with a brake p

Page 34 of 4500

LEXUS LS430 2003 Factory Repair Manual 2. Drive the vehicle straight forward.
Drive the vehicle at a speed of 28 to 50 mph (45 to 80 km/h) or higher for several seconds and
check that the ABS warning light goes off.
Fig. 25: Identifyin

Page 35 of 4500

LEXUS LS430 2003 Factory Repair Manual If the speed sensor check is completed, the ABS warning lamp does not come on while driving and
blinks at test mode when the vehicle stops.
g. END OF SENSOR CHECK
1. If the sensor check is complete

Page 36 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 26: Identifying VSC OK Condition
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
i. DTC of TEST MODE CODE:

Page 37 of 4500

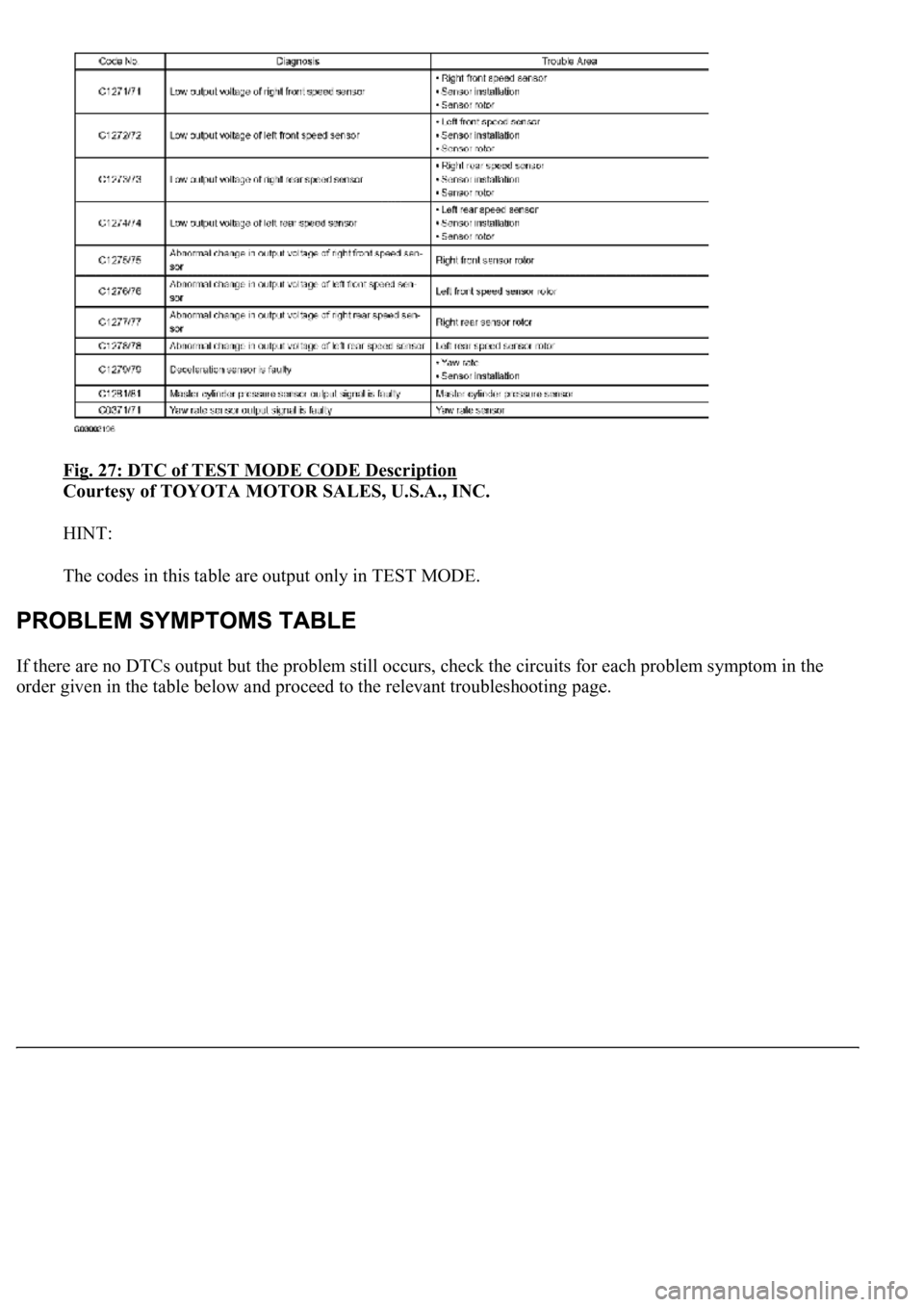

LEXUS LS430 2003 Factory Repair Manual Fig. 27: DTC of TEST MODE CODE Description
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
HINT:
The codes in this table are output only in TEST MODE.
If there are no DTCs output but the problem stil

Page 38 of 4500

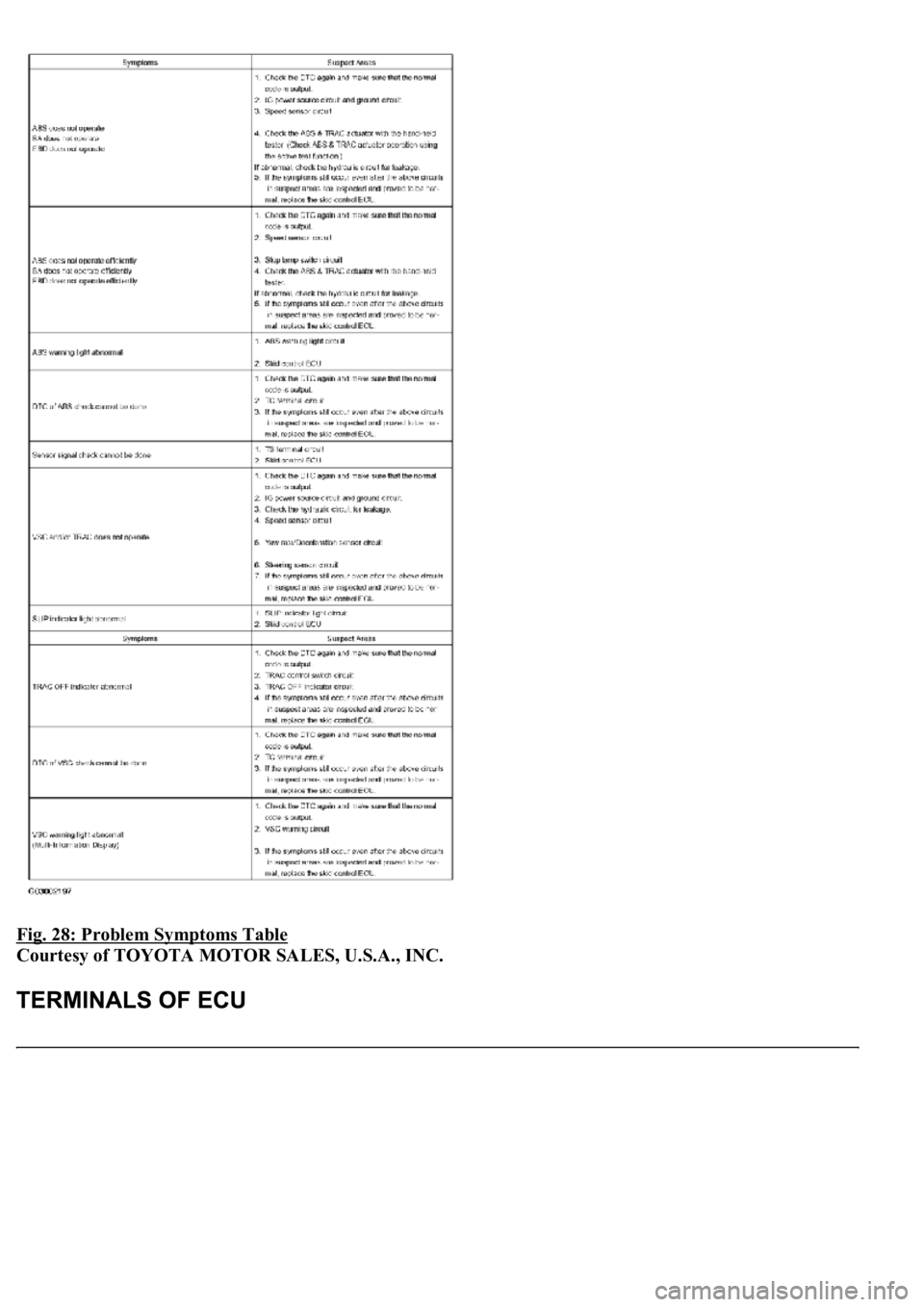

LEXUS LS430 2003 Factory Repair Manual Fig. 28: Problem Symptoms Table
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 39 of 4500

LEXUS LS430 2003 Factory Repair Manual SKID CONTROL ECU
Fig. 29: Installing SKID Control ECU Connector Terminals

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
HINT:
Inspect the ECU from the wire harness side while the connector is conn

Page 40 of 4500

LEXUS LS430 2003 Factory Repair Manual 1.DIAGNOSIS
FL+ (S42-18) - FL-
(S42-4)P -VFront LH wheel speed
signal inputIG switch ON, slowly turn
left front wheelAC generation
RL+ (S42-20) - RL-
(S42-6)BR-W -
BRRear LH wheel speed signal

1.DIAGNOSIS
FL+ (S42-18) - FL-
(S42-4)P -VFront LH wheel speed
signal inputIG switch ON, slowly turn
left front wheelAC generation
RL+ (S42-20) - RL-
(S42-6)BR-W -
BRRear LH wheel speed signal
inputIG switch ON, slowly turn
left rear wheelAC generation
TS (S42-24) -GND
(S42-1, 32)B - BR,
W-BSensor check inputIG switch ON11 to 14 V
STP (S42-27) -
GND (S42-1, 32)G-W - BR,
W-BStop lamp switch inputStop light switch ON
(Brake pedal pushed)8 to 14 V
STP (S42-27) -
GND (S42-1, 32)G-W - BR,
W-BStop lamp switch inputStop light switch OFF
(Brake pedal released)Below 1.5 V
PKB (S42-28) -
GND (S42-1, 32)B-L - BR,
W-BParking brake switch inputIG switch ON, parking
brake switch ONBelow 1.5 V
PKB (S42-28) -
GND (S42-1, 32)B-L - BR,
W-BParking brake switch inputIG switch ON, parking
brake switch OFF11 to 14 V
BZ (S42-30) -GND
(S42-1, 32)W-R - BR,
W-BBuzzer outputIG switch ON, VSC
buzzer soundsBelow 1.0 <-->
11 to 14 V
BZ (S42-30) -GND
(S42-1, 32)W-R - BR,
W-BBuzzer outputIG switch ON, VSC
buzzer does not sound11 to 14 V
+BS (S42-31) -
GND (S42-1, 32)B - BR,
W-BSolenoid relay power supplyAlways11 to 14 V
FRO (S42-37) -
GND (S42-1, 32)Y-R - BR,
W-BFront RH wheel speed
signal outputVehicle drives at approx.
12 mph (20 km/h)Pulse generation
FLO (S42-38) -
GND (S42-1, 32)Y-B - BR,
W-BFront LH wheel speed
signal outputVehicle drives at approx.
12 mph (20 km/h)Pulse generation
INIT (S42-41) -
GND (S42-1, 32)GR-R -
BR, W-BThe pressure warning
standardization switch InputIG switch ON, The
pressure warning switch
ON
Below 1.5 V
INIT (S42-41) -
GND (S42-1, 32)GR-R -
BR, W-BThe pressure warning
standardization switch InputIG switch ON, The
pressure warning switch
OFF
11 to 14 V
WFSE (S42-42) -
GND (S42-1, 32)LG-B -
BR, W-BWFSE inputIG switch ON11 to 14 V
CSW (S42-43) -
GND (S42-1, 32)Y-G - BR,
W-BTRAC cut switch InputIG switch ON, TRAC
OFF switch is off11 to 14 V
CSW (S42-43) -
GND (S42-1, 32)Y-G - BR,
W-BTRAC cut switch InputIG switch ON, TRAC
OFF switch is onBelow 1.5 V
R+ (S42-45) -GND
(S42-1, 32)R-W - BR,
W-BPower supply for motor
relayIG switch ON11 to 14 V
IG1 (S42-46) -GND
(S42-1, 32)B-R - BR,
W-BIG1 power supplyIG switch ON11 to 14 V
