Page 2937 of 4500
Fig. 31: Removing Nuts Spacers Canister Assembly
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
4.INSTALL CHARCOAL CANISTER ASSY
a. Install the canister and 4 spacers with the 4 nuts.
Torque: 5.5 N.m (5.6 kgf.cm, 4.9 in.lbf)
Page 2938 of 4500

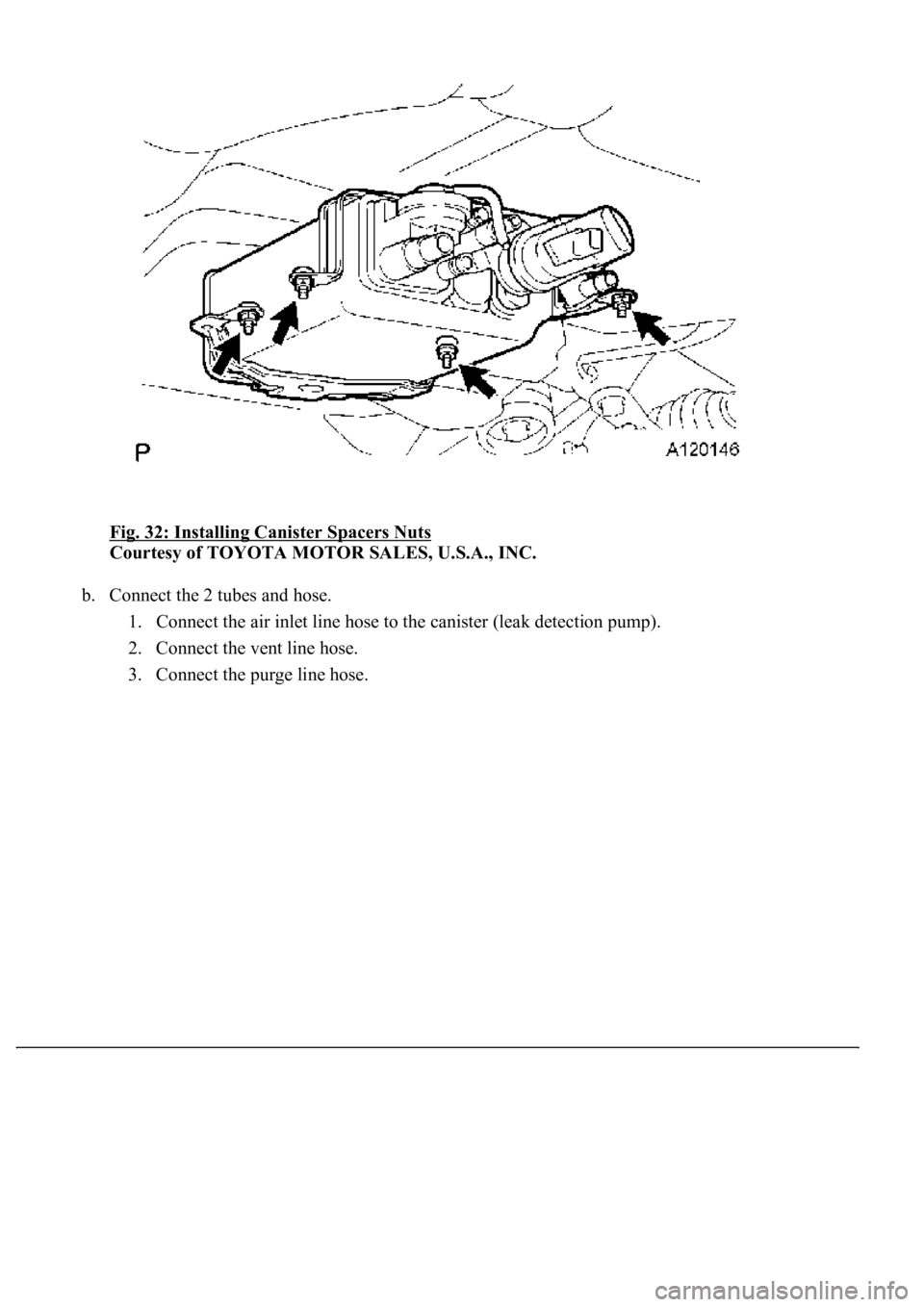

Fig. 32: Installing Canister Spacers Nuts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Connect the 2 tubes and hose.
1. Connect the air inlet line hose to the canister (leak detection pump).
2. Connect the vent line hose.
3. Connect the pur
ge line hose.
Page 2939 of 4500
Fig. 33: Connecting Tubes And Hose
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Connect the connector.
5.CONNECT REAR DRIVE SHAFT ASSEMBLY RH
6.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
7.PERFORM INITIALIZATION
a. Perform initialization.
Page 2940 of 4500
Fig. 34: Locating Nuts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
8.CONNECT REAR DRIVE SHAFT RH (See REAR DRIVE SHAFT
)
Page 2941 of 4500
LOCATION
Fig. 1: Identifying Engine Control System Location
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 2942 of 4500
SYSTEM DIAGRAM
Engine control system is determined by the ECM based on signals from various sensors.
Fig. 2: Engine Control
- System Diagram
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 2943 of 4500
ON-VEHICLE INSPECTION
1.INSPECTION THROTTLE BODY
a. Inspect the throttle control motor for operating sound.
1. Turn the ignition switch ON.
2. When turning the accelerator pedal position sensor lever, check the running sound of the
motor. The motor should be running smoothly without friction sounds.
If operation is not as specified, check the throttle control motor, wiring and ECM (see DTC P2118:
THROTTLE ACTUATOR CONTROL MOTOR CURRENT RANGE/PERFORMANCE ).
Fig. 3: Identifying Throttle Body
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Inspect the throttle position sensor.
Page 2944 of 4500

Fig. 4: Connecting Hand-Held Tester DLC3 (1 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
1. Connect the hand-held tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch ON.
3. Check that the MIL does not light up.
4. Check that, under the CURRENT DATA, THROTTLE POS (throttle valve opening percentage) is
within the standard value below.
Standard throttle valve opening percentage: 60% or more
If operation is not as specified, check the throttle position sensor, wiring and ECM (see DTC P0120,
P0122, P0123, P0220, P0222, P0223, P2135: THROTTLE/PEDAL POSITION SENSOR/SWITCH
"A" CIRCUIT, THROTTLE/PEDAL POSITION SENSOR/SWITCH "A" CIRCUIT LOW/HIGH
INPUT,THROTTLE/PEDAL POSITION SENSOR/SWITCH "B" CIRCUIT,
THROTTLE/PEDAL POSITION SENSOR/SWITCH ).
2.INSPECT ACCELERATOR PEDAL POSITION SENSOR
a. When turning ignition switch ON, check that the voltage of the accelerator pedal position sensor of
