LEXUS LS430 2003 Factory Repair Manual If clips are damaged during removal, replace them. 27.INSTALL REAR DOOR CHECK ASSY LH a. Apply MP grease to the sliding areas of the door check. b. Install the door check to the door panel with the

Page 3106 of 4500

LEXUS LS430 2003 Factory Repair Manual Torque: 5.5 N.m (56 kgf.cm, 49 in..lbf)

Page 3107 of 4500

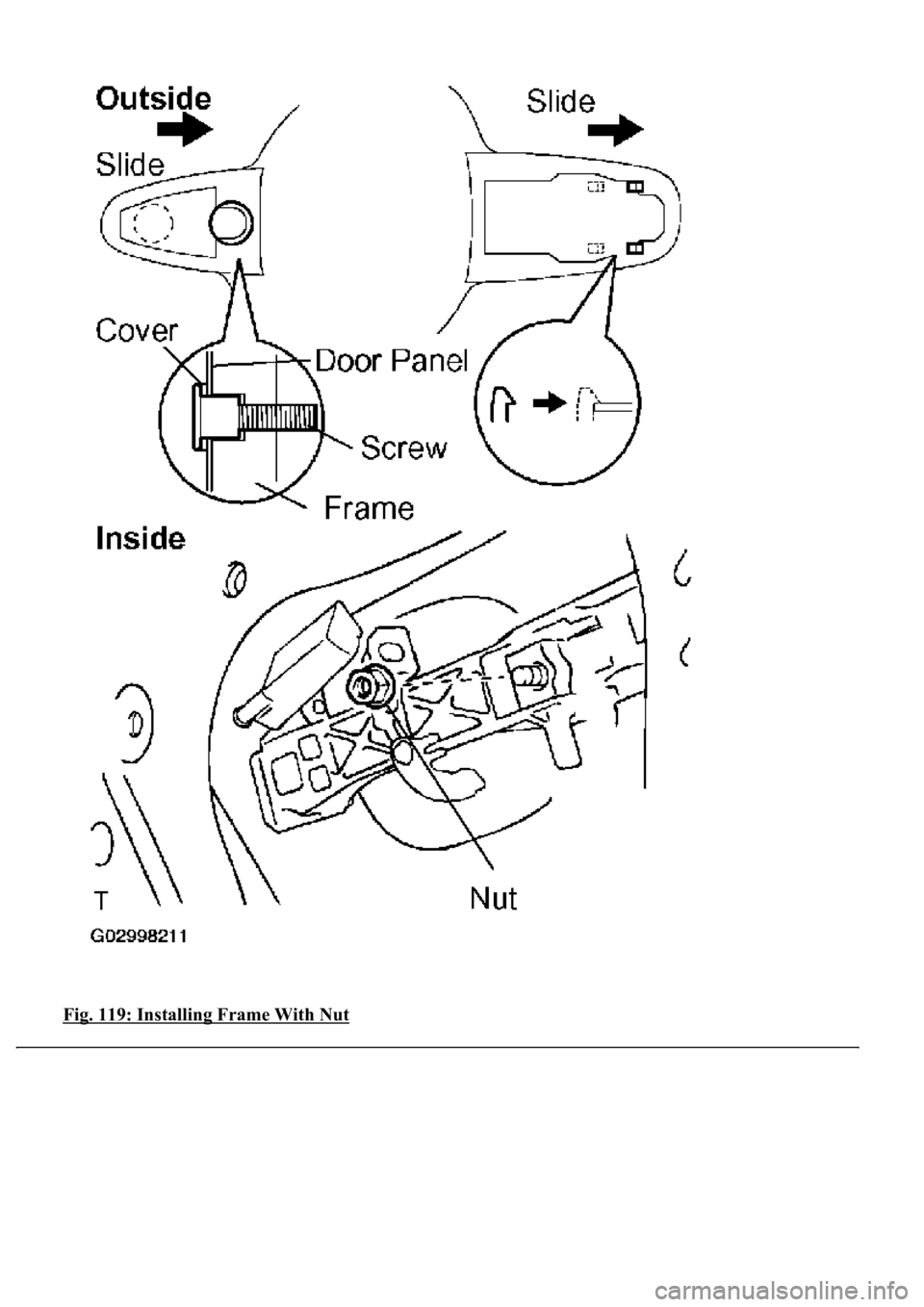

LEXUS LS430 2003 Factory Repair Manual Fig. 119: Installing Frame With Nut

Page 3108 of 4500

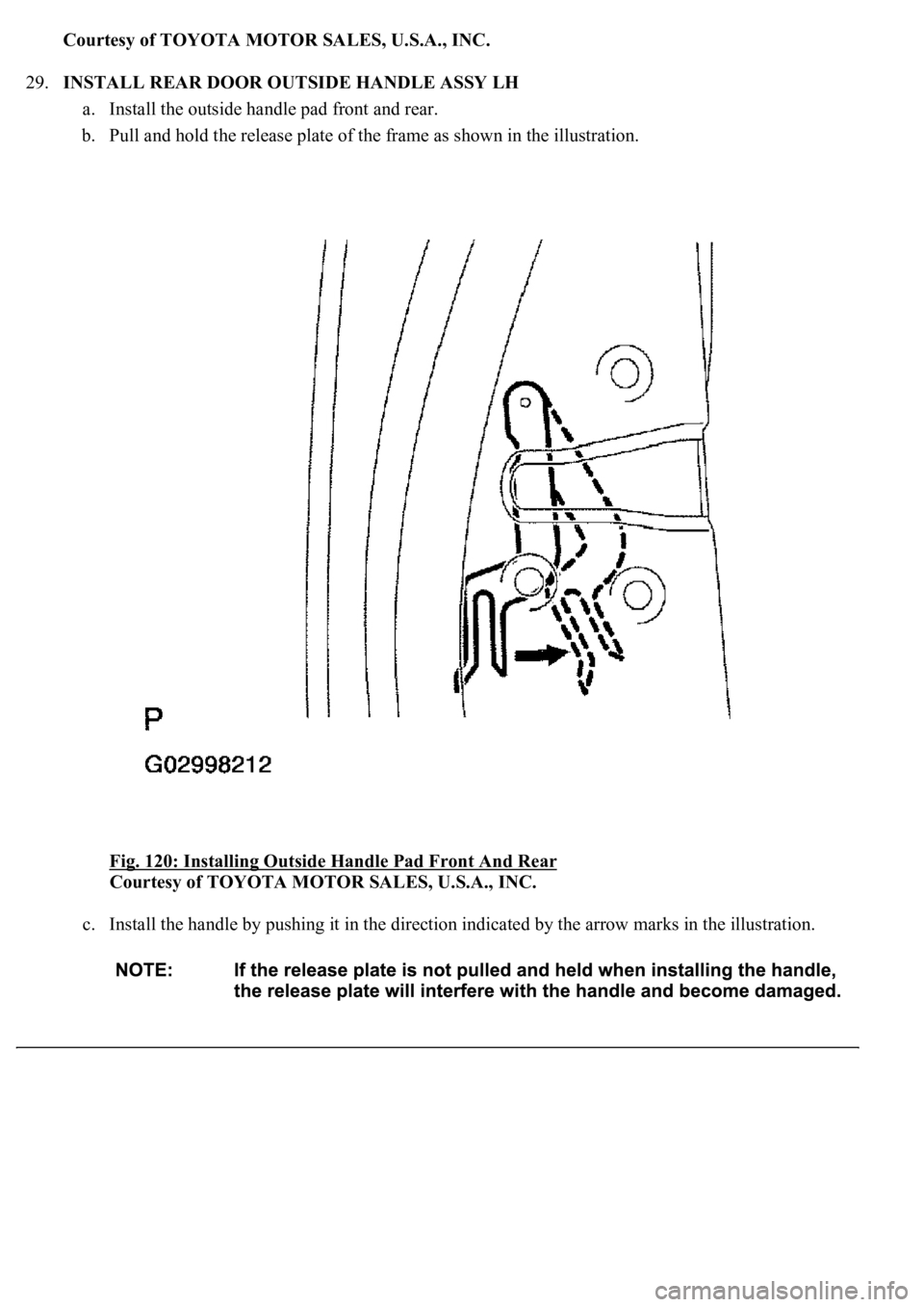

LEXUS LS430 2003 Factory Repair Manual Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 29.INSTALL REAR DOOR OUTSIDE HANDLE ASSY LH a. Install the outside handle pad front and rear. b. Pull and hold the release plate of the frame as shown i

Page 3109 of 4500

LEXUS LS430 2003 Factory Repair Manual d. w/ Smart key system: Connect the connector. Fig. 121: Connecting Connector Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 30.INSTALL REAR DOOR INSIDE HANDLE COVER a. Install the cover with the

Page 3110 of 4500

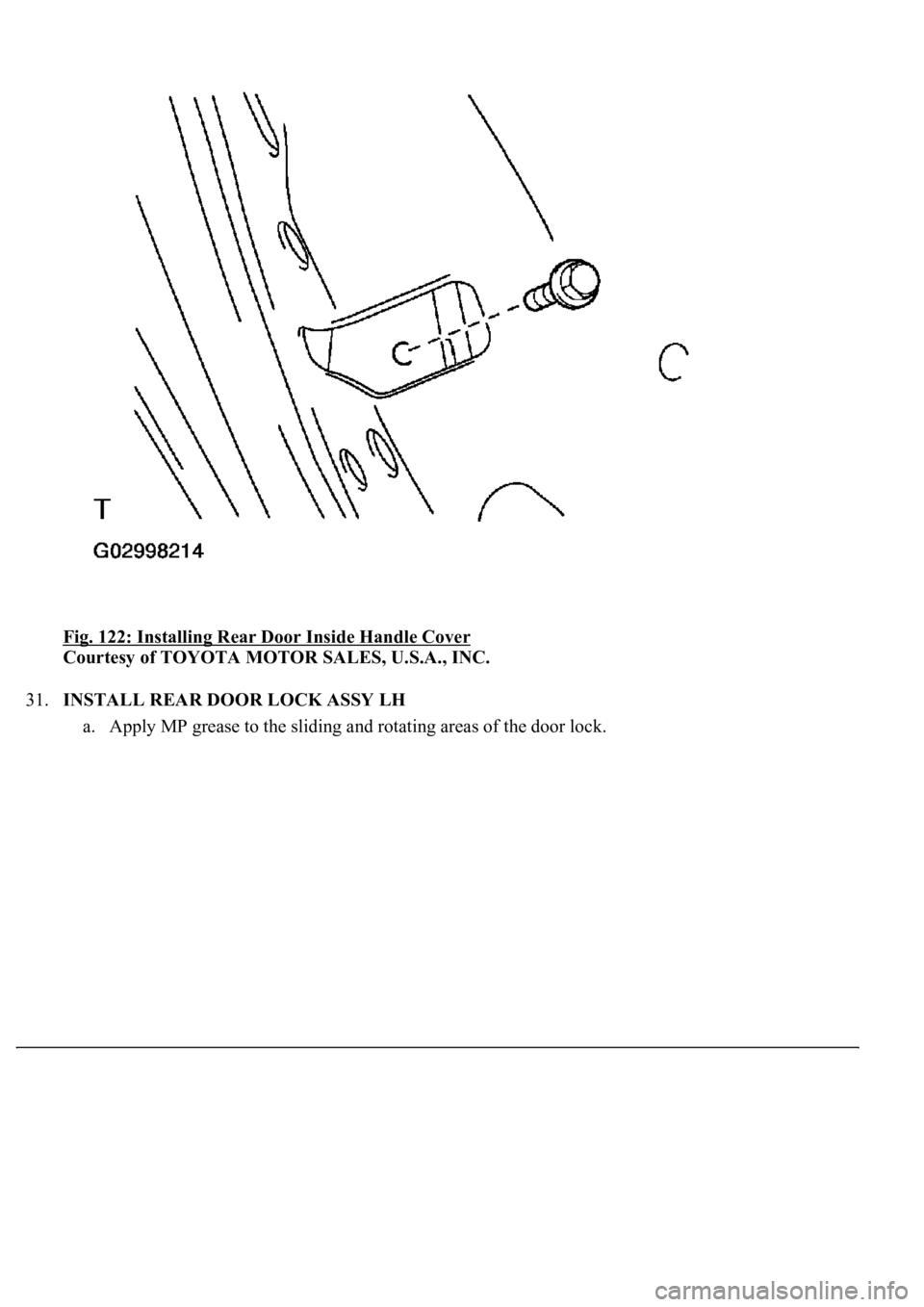

LEXUS LS430 2003 Factory Repair Manual Fig. 122: Installing Rear Door Inside Handle Cover Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 31.INSTALL REAR DOOR LOCK ASSY LH a. Apply MP grease to the sliding and rotating areas of the door lo

Page 3111 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 123: Applying MP Grease To Sliding And Rotating Areas Of Door Lock Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Apply adhesive to the threads of the 3 screws. Adhesive:

Page 3112 of 4500

LEXUS LS430 2003 Factory Repair Manual Part No. 08833-00070, THREE BOND 1324 or equivalent c. w/o Door closer: Using a T30 Torx° wrench, install the door lock with the 3 screws. Torque: 5.5 N.m (56 kgf.cm, 44 in..lbf) d. w/ Door clo
