Page 2369 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 63: Separating Parking Brake Cable Assy No. 3 Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 7.REMOVE REAR AXLE SHAFT NUT a. Remove the cotter pin and lock cap. b. While depressing the brake p

Page 2370 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 64: Removing Rear Axle Shaft Nut Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 8.SEPARATE SPEED SENSOR REAR LH a. Remove the bolt and separate the speed sensor from the rear axle carrier.

Page 2371 of 4500

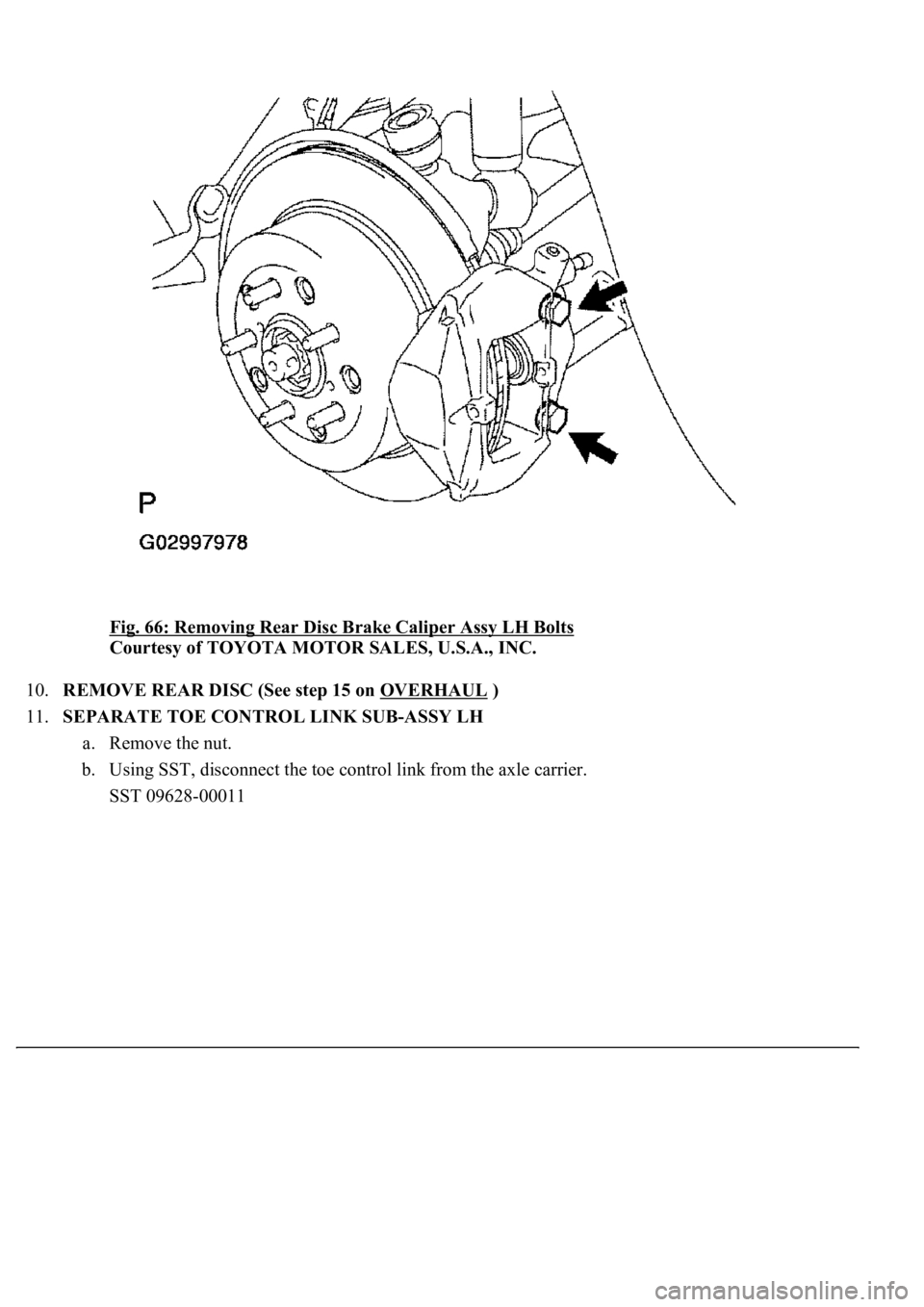

LEXUS LS430 2003 Factory Repair Manual Fig. 65: Removing Speed Sensor Rear LH Bolt Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 9.REMOVE REAR DISC BRAKE CALIPER ASSY LH a. Remove the 2 bolts and separate the rear brake caliper from the

Page 2372 of 4500

LEXUS LS430 2003 Factory Repair Manual <0029004c004a0011000300190019001d000300350048005000520059004c0051004a0003003500480044005500030027004c005600460003002500550044004e0048000300260044004f004c0053004800550003002400560056005c0003002f002b000

Page 2373 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 67: Disconnecting Toe Control Link From Axle Carrier Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 12.SEPARATE SHOCK ABSORBER ASSY REAR LH a. Remove the nut and disconnect the shock absorber ar

Page 2374 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 68: Removing Shock Absorber Arm Nut Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 13.SEPARATE UPPER CONTROL ARM ASSY REAR LH a. Loosen the nut to the top line of the bolt. HINT: Do not remove

Page 2375 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 69: Disconnecting Upper Control Arm Assy From Axle Carrier Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 14.SEPARATE REAR SUSPENSION ARM ASSY NO. 2 LH a. Remove the nut. b. Using SST, disconn

Page 2376 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 70: Disconnecting Suspension Arm No. 2 From Axle Carrier Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 15.DISCONNECT REAR DRIVE SHAFT ASSY LH a. Using a plastic hammer, separate the drive shaft
