Page 921 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 98: Staking Nut Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 24.INSTALL PROPELLER W/CENTER BEARING SHAFT ASSY (SEE OVERHAUL ) 25.FULLY TIGHTEN CENTER SUPPORT BEARING ASSY NO.1 (SEE OVERHAUL

Page 922 of 4500

LEXUS LS430 2003 Factory Repair Manual If the operation cannot be done as specified, inspect the shift lock control unit. 2.CHECK SHIFT LOCK RELEASE BUTTON OPERATION a. Using a small screwdriver, remove the shift lock release cover. b.

Page 923 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 99: Identifying Shift Lock Control Unit Assembly Connector Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 924 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 100: Shift Lock Control Unit Assembly Connector Terminals Reference Chart Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Measure the resistance according to the value in the table below. HIN

Page 925 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 101: Identifying Shift Lock Control Unit Assembly Connector Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. TERMINAL AND SPECIFIED VALUE< TerminalMeasuring ConditionSpecified Value 4 (E

Page 926 of 4500

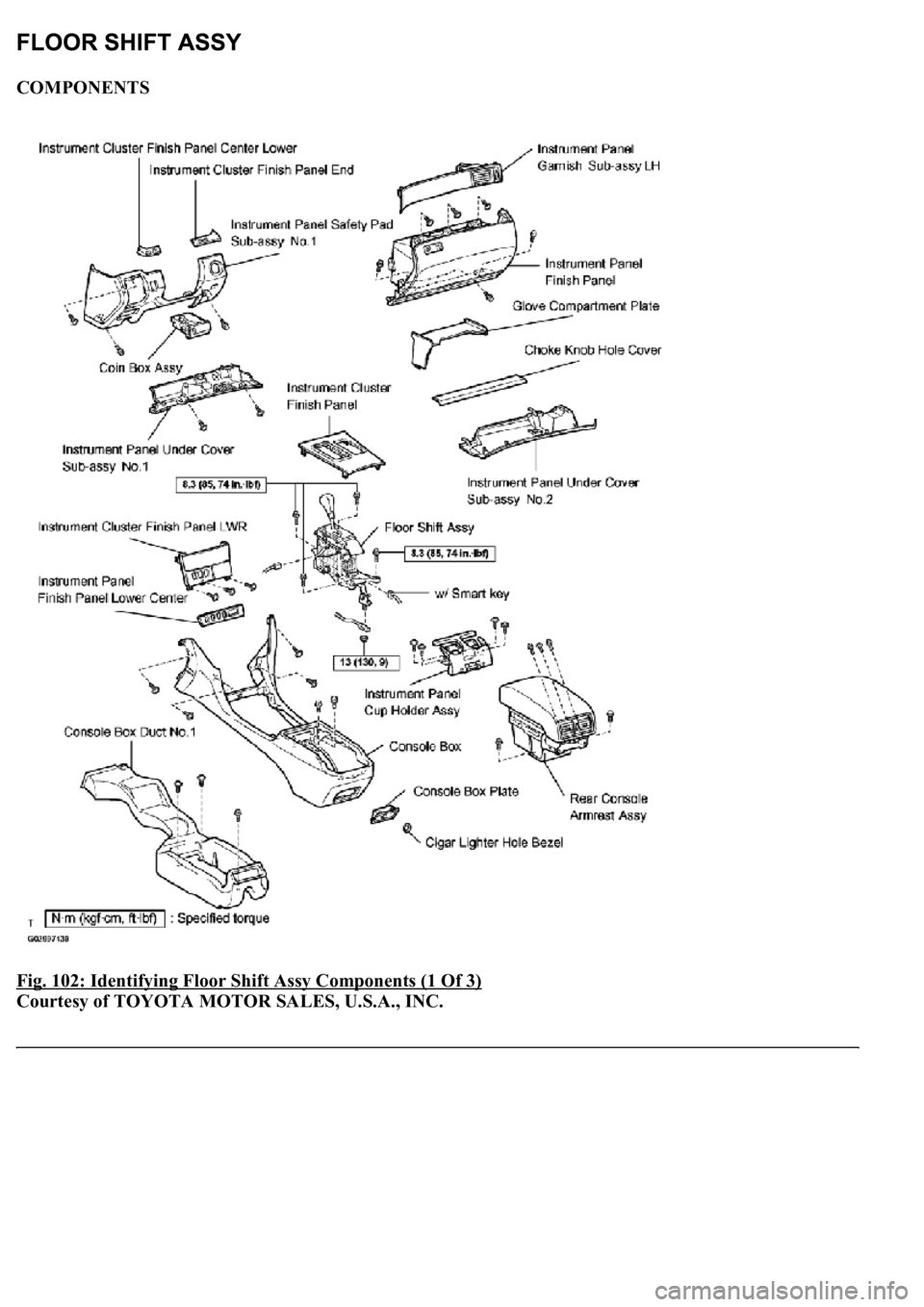

LEXUS LS430 2003 Factory Repair Manual COMPONENTS Fig. 102: Identifying Floor Shift Assy Components (1 Of 3) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 927 of 4500

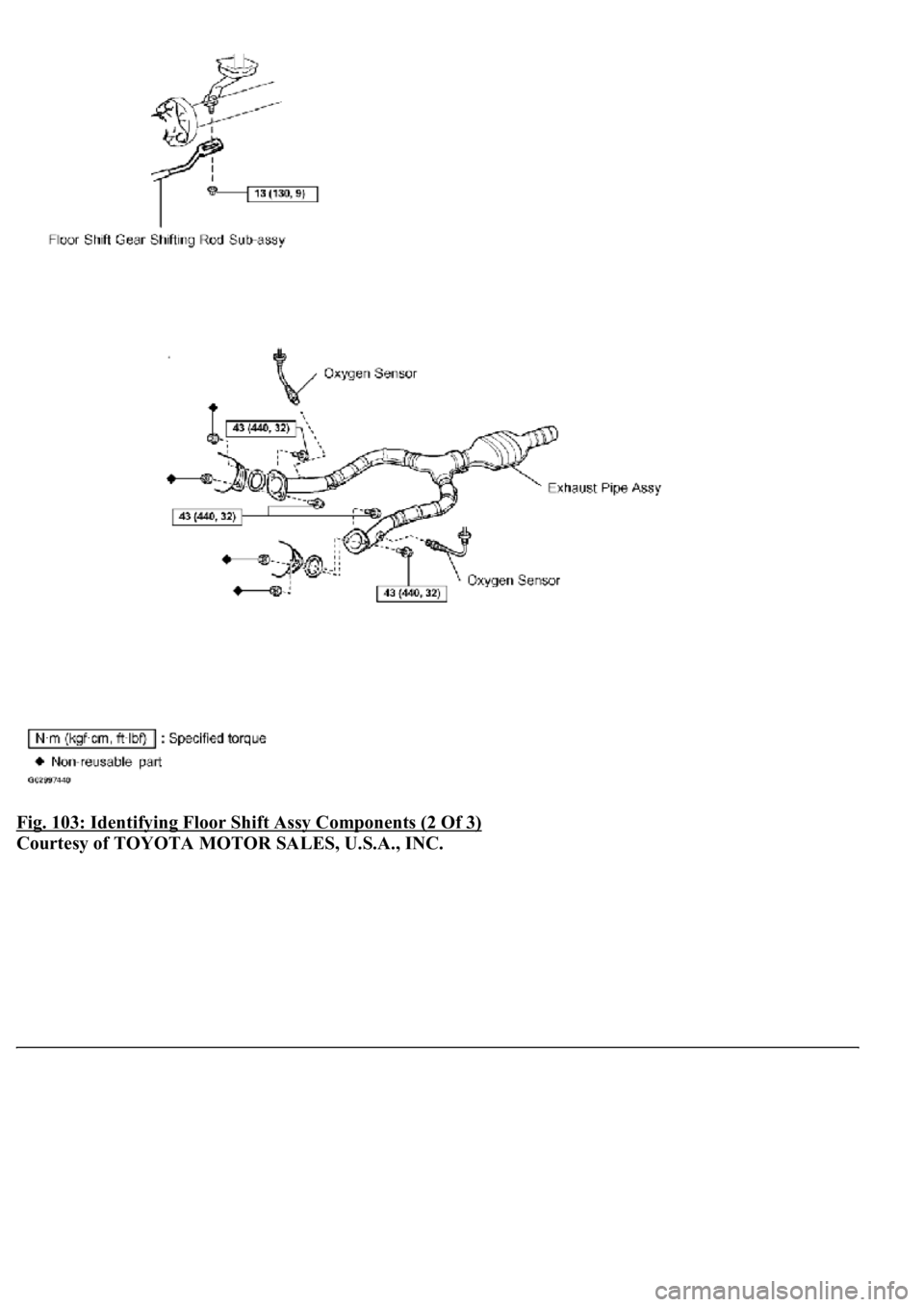

LEXUS LS430 2003 Factory Repair Manual Fig. 103: Identifying Floor Shift Assy Components (2 Of 3) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 928 of 4500

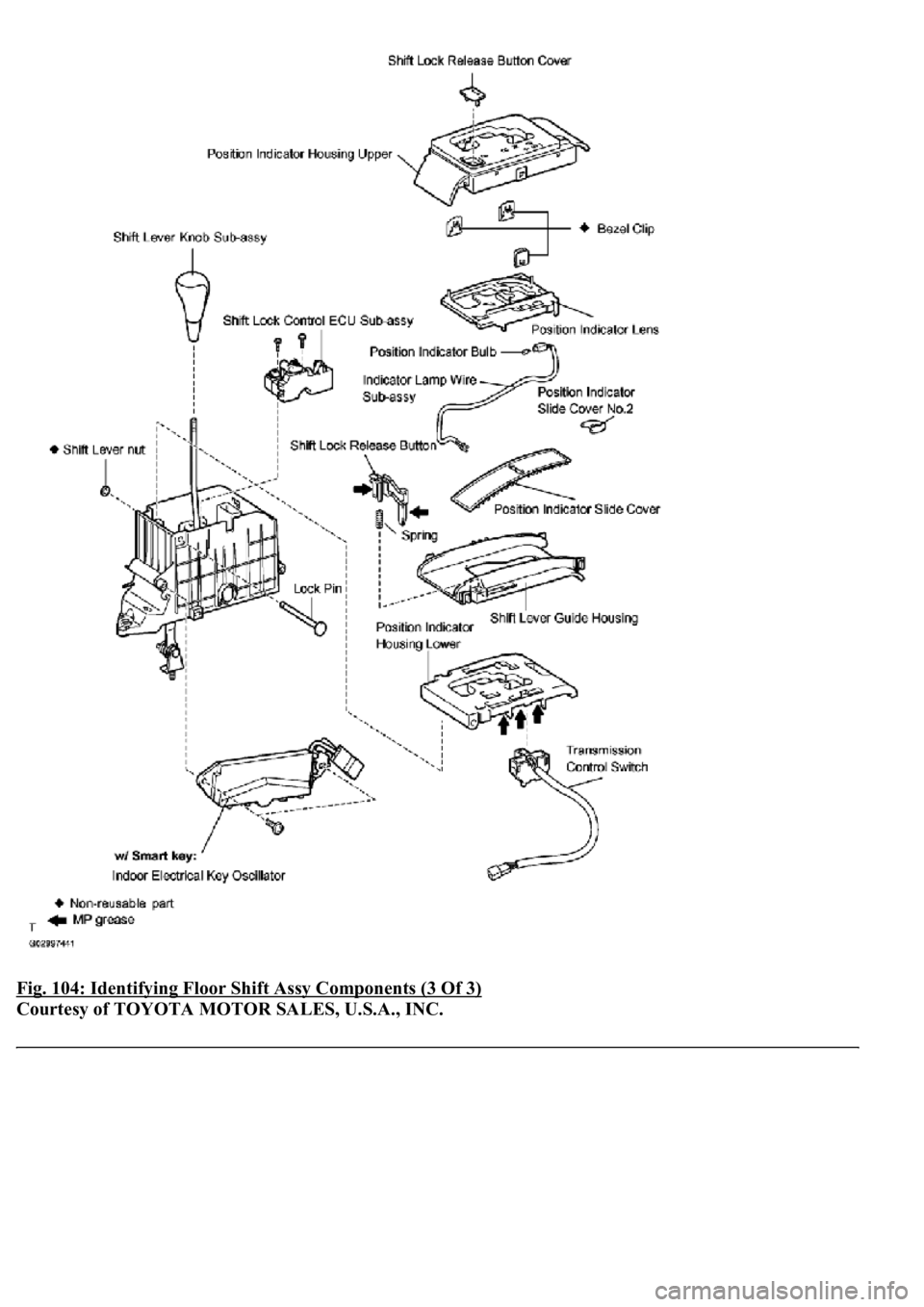

LEXUS LS430 2003 Factory Repair Manual Fig. 104: Identifying Floor Shift Assy Components (3 Of 3) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
