Page 993 of 4500

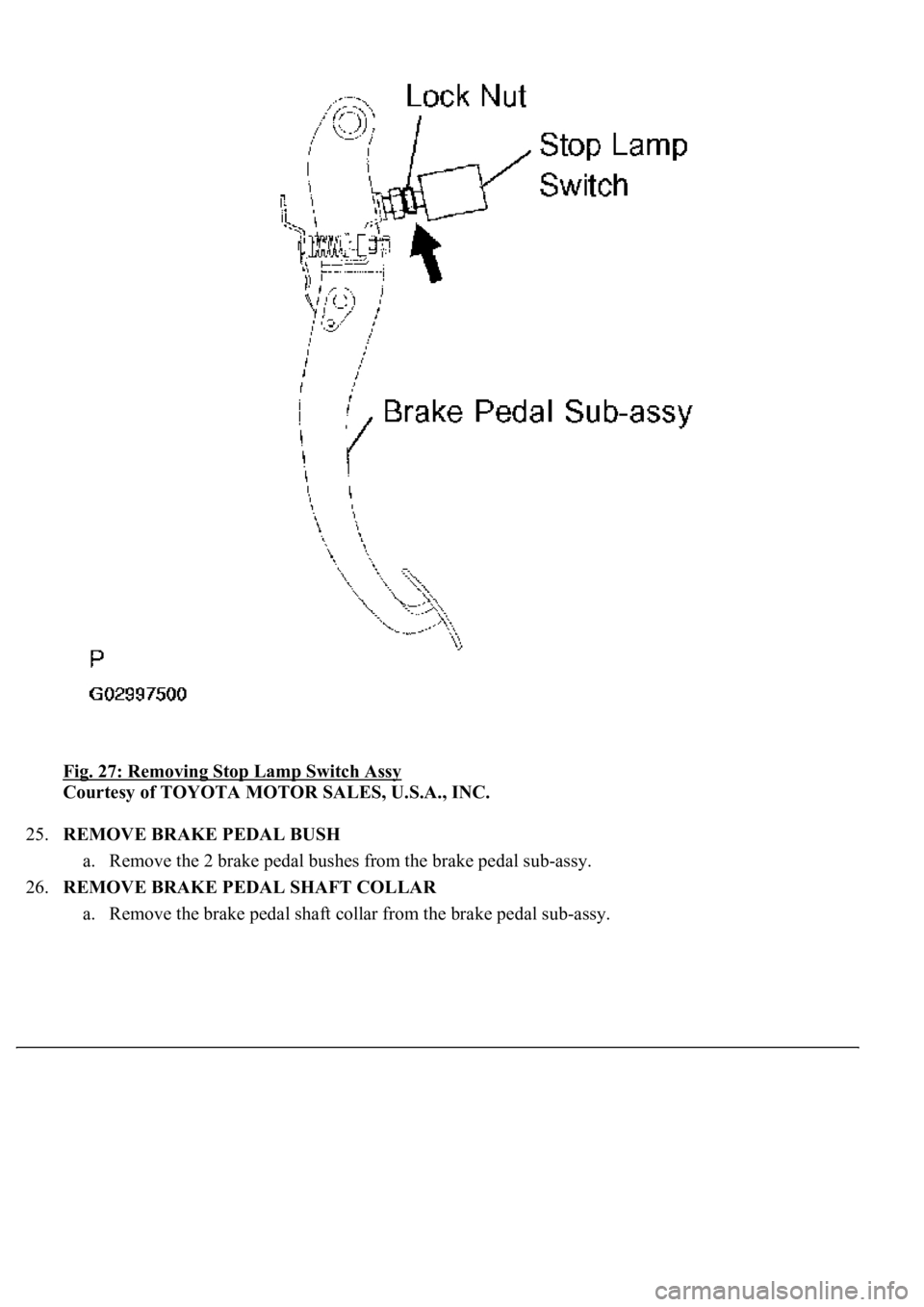

LEXUS LS430 2003 Factory Repair Manual Fig. 27: Removing Stop Lamp Switch Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 25.REMOVE BRAKE PEDAL BUSH a. Remove the 2 brake pedal bushes from the brake pedal sub-assy. 26.REMOVE BRAKE P

Page 994 of 4500

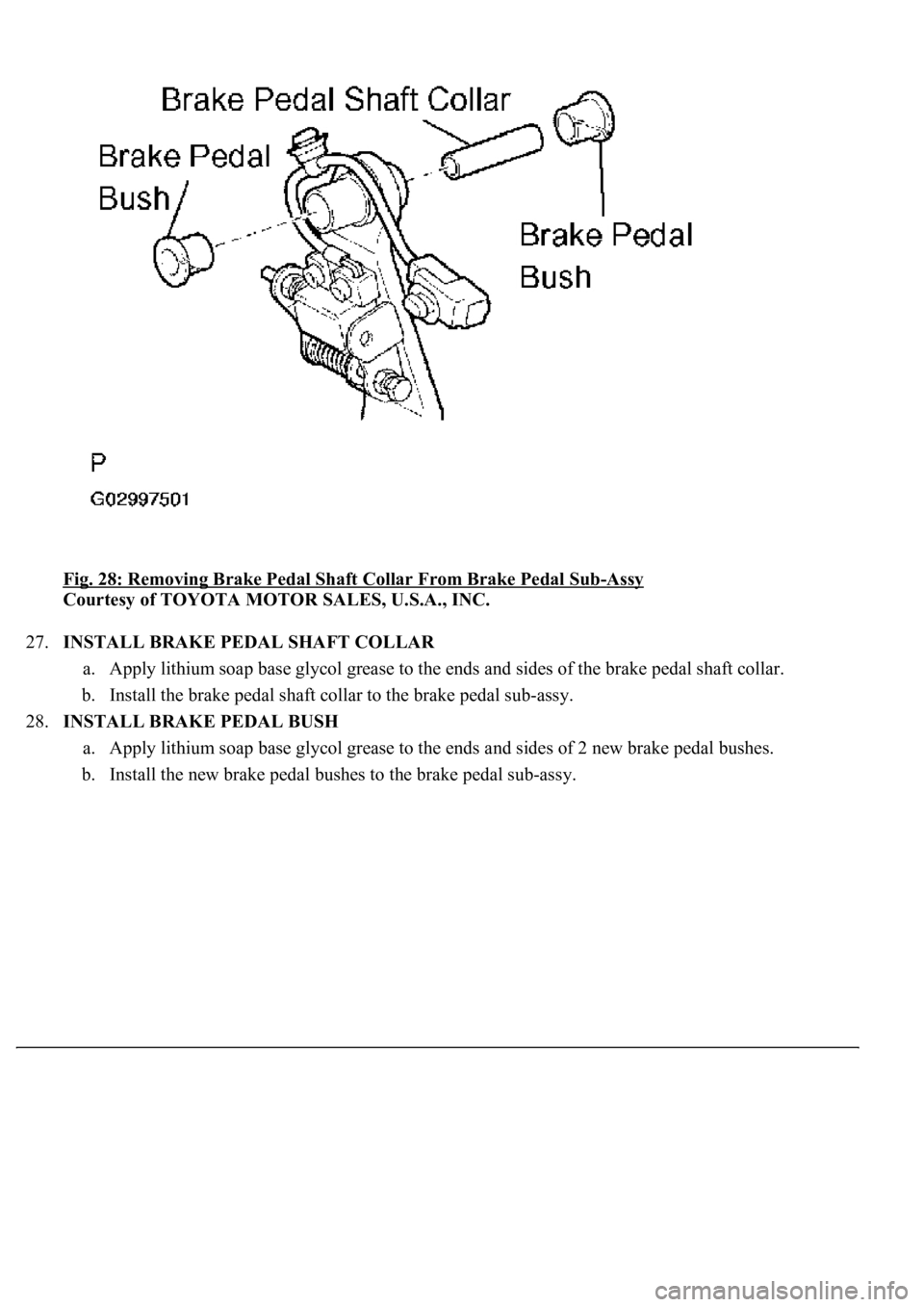

LEXUS LS430 2003 Factory Repair Manual Fig. 28: Removing Brake Pedal Shaft Collar From Brake Pedal Sub-Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 27.INSTALL BRAKE PEDAL SHAFT COLLAR a. Apply lithium soap base glycol grease to the

Page 995 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 29: Installing Brake Pedal Bushes To Brake Pedal Sub-Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 29.INSTALL STOP LAMP SWITCH ASSY a. Install the stop lamp switch assy with the stop lamp

Page 996 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 30: Installing Stop Lamp Switch Assy With Stop Lamp Switch Lock Nut Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 30.INSTALL BRAKE PEDAL PAD a. Install the brake pedal pad to the brake pedal su

Page 997 of 4500

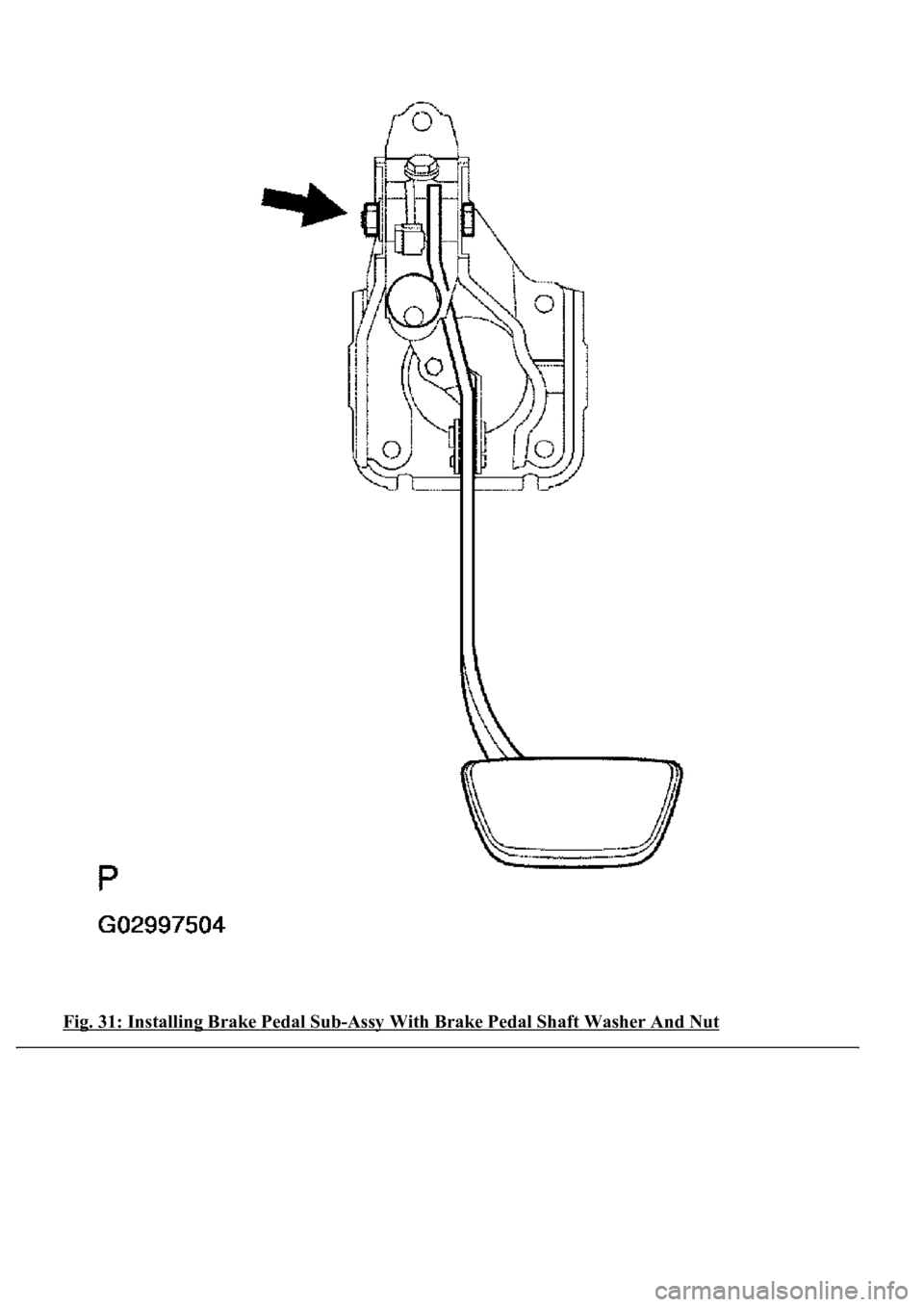

LEXUS LS430 2003 Factory Repair Manual Fig. 31: Installing Brake Pedal Sub-Assy With Brake Pedal Shaft Washer And Nut

Page 998 of 4500

LEXUS LS430 2003 Factory Repair Manual Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 32.INSTALL BRAKE PEDAL SUPPORT SUB-ASSY a. Place the brake pedal support sub-assy on the vehicle and temporarily tighten the bolt. Fig. 32: Installing Br

Page 999 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 33: Installing Brace Bolt And Nuts Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. d. Tighten the bolt. Torque: 19 N.m (195 kgf.cm, 14 ft.lbf)

Page 1000 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 34: Tightening Brake Pedal Support Sub-Assy Bolt Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. e. Tighten the bolt. Torque: 20 N.m (204 kgf.cm, 14 ft.lbf) f. Tighten the 4 nuts. Torque: 13
