Centering bolts are used to mount the door hinge to the vehicle body and door. The door cannot be
adjusted with the centering bolts on. Substitute the centering bolts with standard bolts (w/washers) when
making adjustments.
A bolt without a torque specification is shown in the standard bolt chart (see STANDARD BOLT ).
Fig. 140: Identifying Centering Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
1.INSPECT LUGGAGE COMPARTMENT DOOR PANEL SUB-ASSY
Fig. 141: Inspecting Luggage Compartment Door Panel Sub
-Assy
Page 3130 of 4500
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

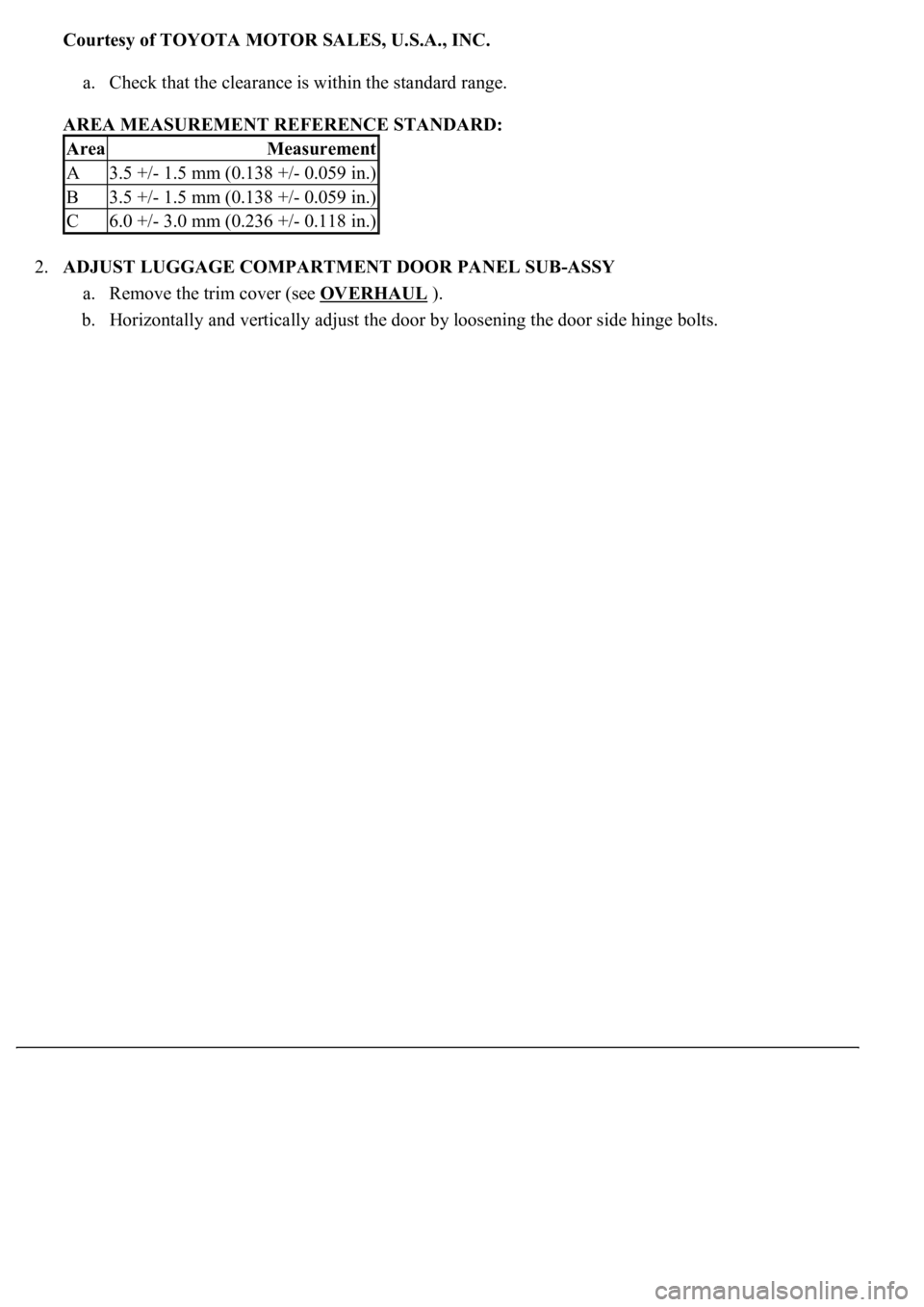

a. Check that the clearance is within the standard range.
AREA MEASUREMENT REFERENCE STANDARD:
2.ADJUST LUGGAGE COMPARTMENT DOOR PANEL SUB-ASSY
a. Remove the trim cover (see OVERHAUL
).
b. Horizontally and vertically adjust the door by loosening the door side hinge bolts.
AreaMeasurement
A3.5 +/- 1.5 mm (0.138 +/- 0.059 in.)
B3.5 +/- 1.5 mm (0.138 +/- 0.059 in.)
C6.0 +/- 3.0 mm (0.236 +/- 0.118 in.)
Page 3131 of 4500
Fig. 142: Removing Trim Cover
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Remove the rear floor finish plate (see OVERHAUL
).
d. Adjust the striker position by slightly loosening the striker mounting screws and hitting the striker
with a plastic-faced hammer.
e. Tighten the striker mounting screws after the adjustment.
Torque: 5.5 N.m (56 kgf.cm, 49 ft.lbf)
Page 3132 of 4500
Fig. 143: Removing Rear Floor Finish Plate
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OVERHAUL
HINT:
The installation procedures are the removal procedures in reverse order. However, only installation
procedures requiring additional information are included.
A bolt without a torque specification is shown in the standard bolt chart (see STANDARD BOLT ).
1.REMOVE REAR COMBINATION LAMP SERVICE COVER LH
a. Using a screwdriver, disengage the 2 clips and remove the cover.
HINT:
Tape the screwdriver tip before use.
2.REMOVE REAR COMBINATION LAMP SERVICE COVER RH
a. Using a screwdriver, disengage the 2 clips and remove the cover.
HINT:
Page 3133 of 4500
Tape the screwdriver tip before use.

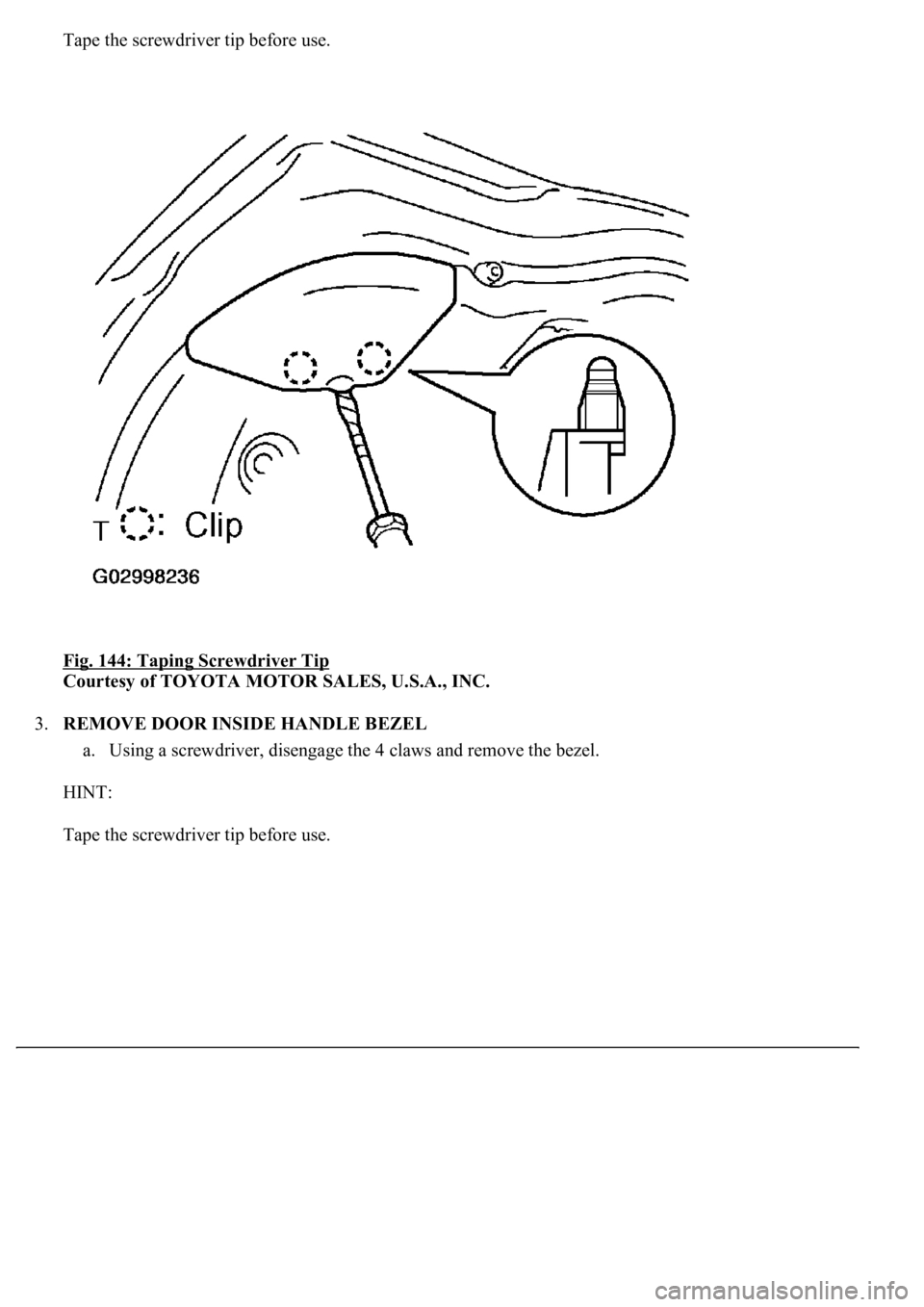

Fig. 144: Taping Screwdriver Tip
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
3.REMOVE DOOR INSIDE HANDLE BEZEL
a. Using a screwdriver, disengage the 4 claws and remove the bezel.
HINT:
Tape the screwdriver tip before use.
Page 3134 of 4500

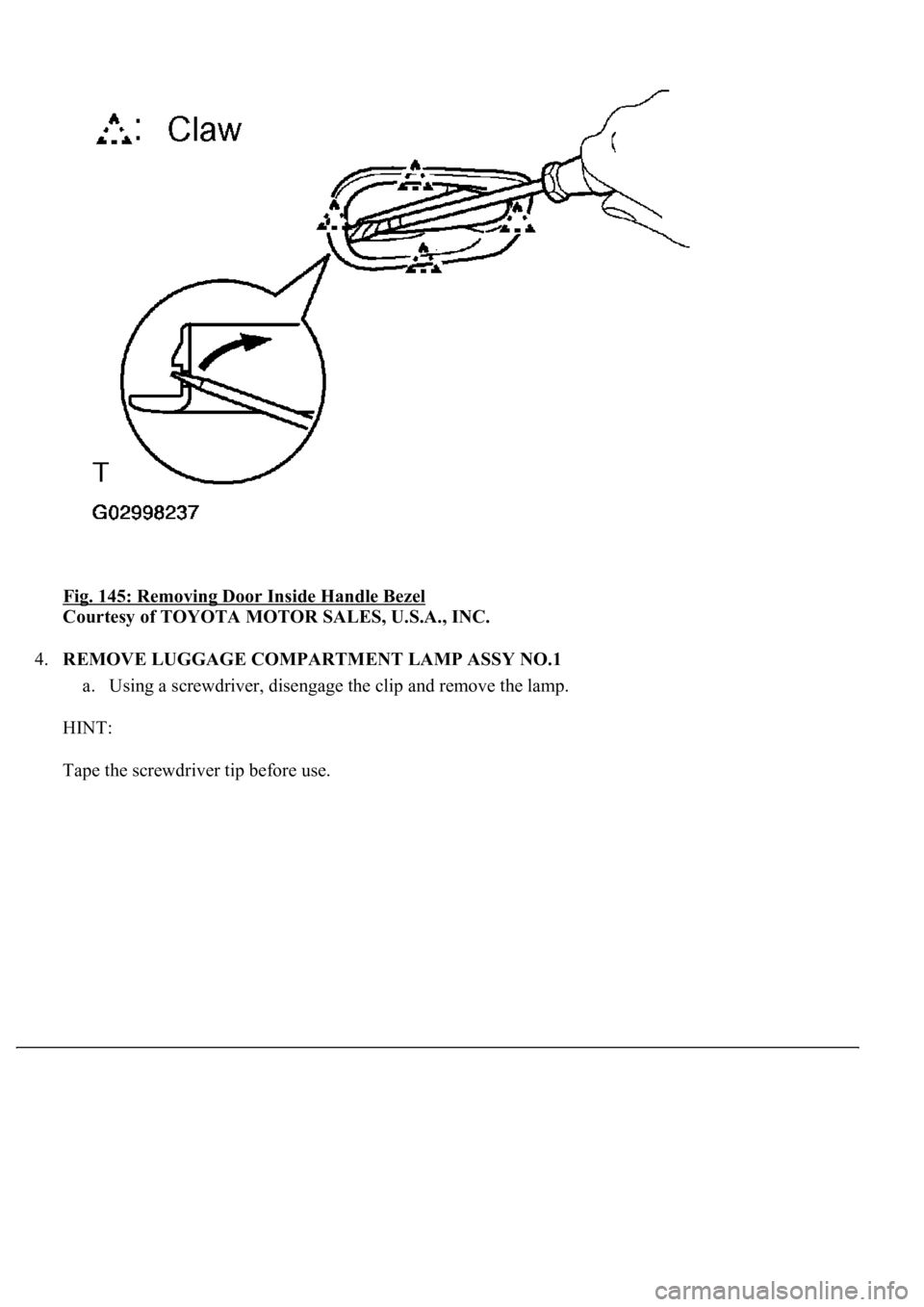

Fig. 145: Removing Door Inside Handle Bezel
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
4.REMOVE LUGGAGE COMPARTMENT LAMP ASSY NO.1
a. Using a screwdriver, disengage the clip and remove the lamp.
HINT:
Tape the screwdriver tip before use.
Page 3135 of 4500

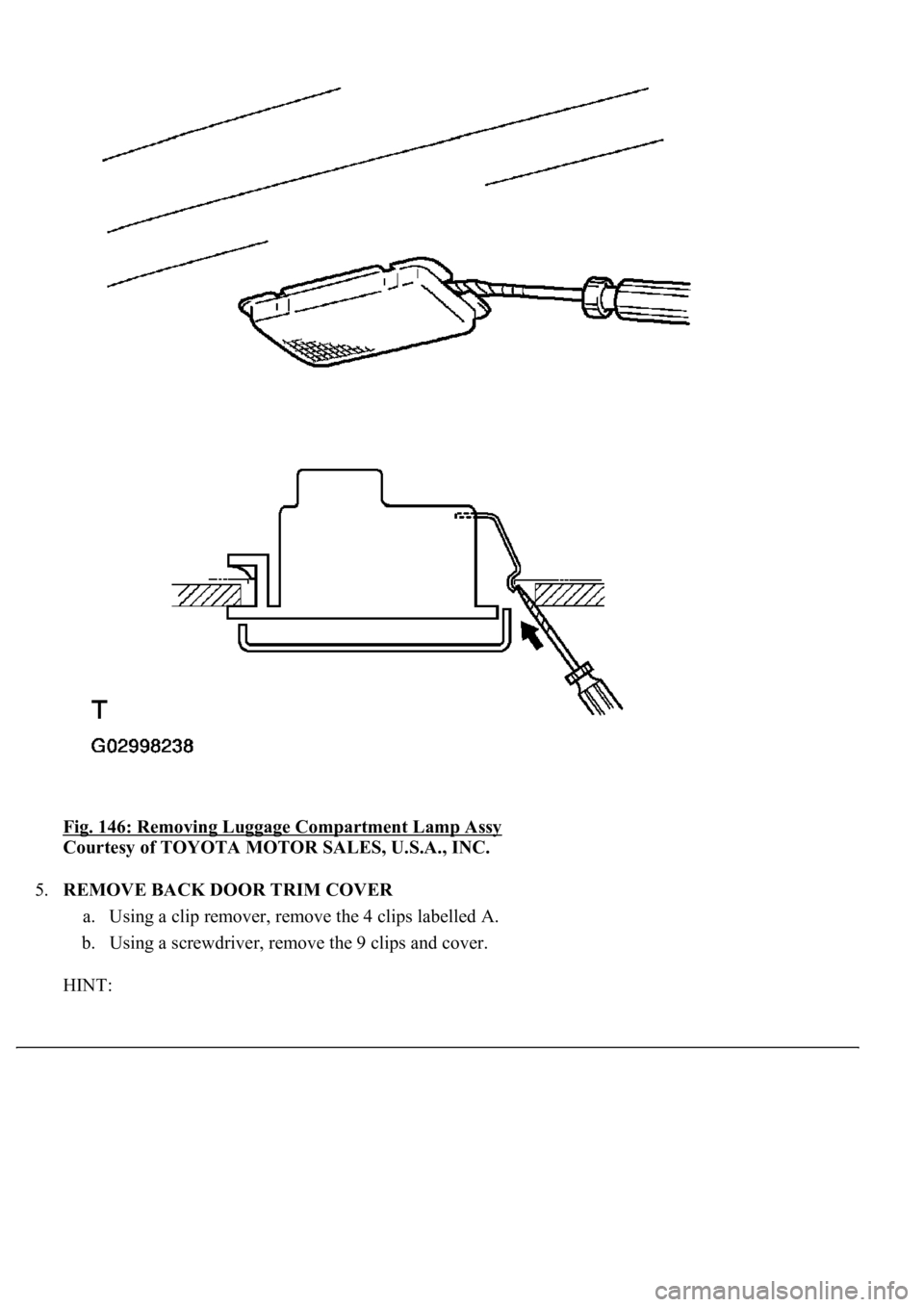

Fig. 146: Removing Luggage Compartment Lamp Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
5.REMOVE BACK DOOR TRIM COVER
a. Using a clip remover, remove the 4 clips labelled A.
b. Using a screwdriver, remove the 9 clips and cover.
HINT:
Page 3136 of 4500
Tape the screwdriver tip before use.

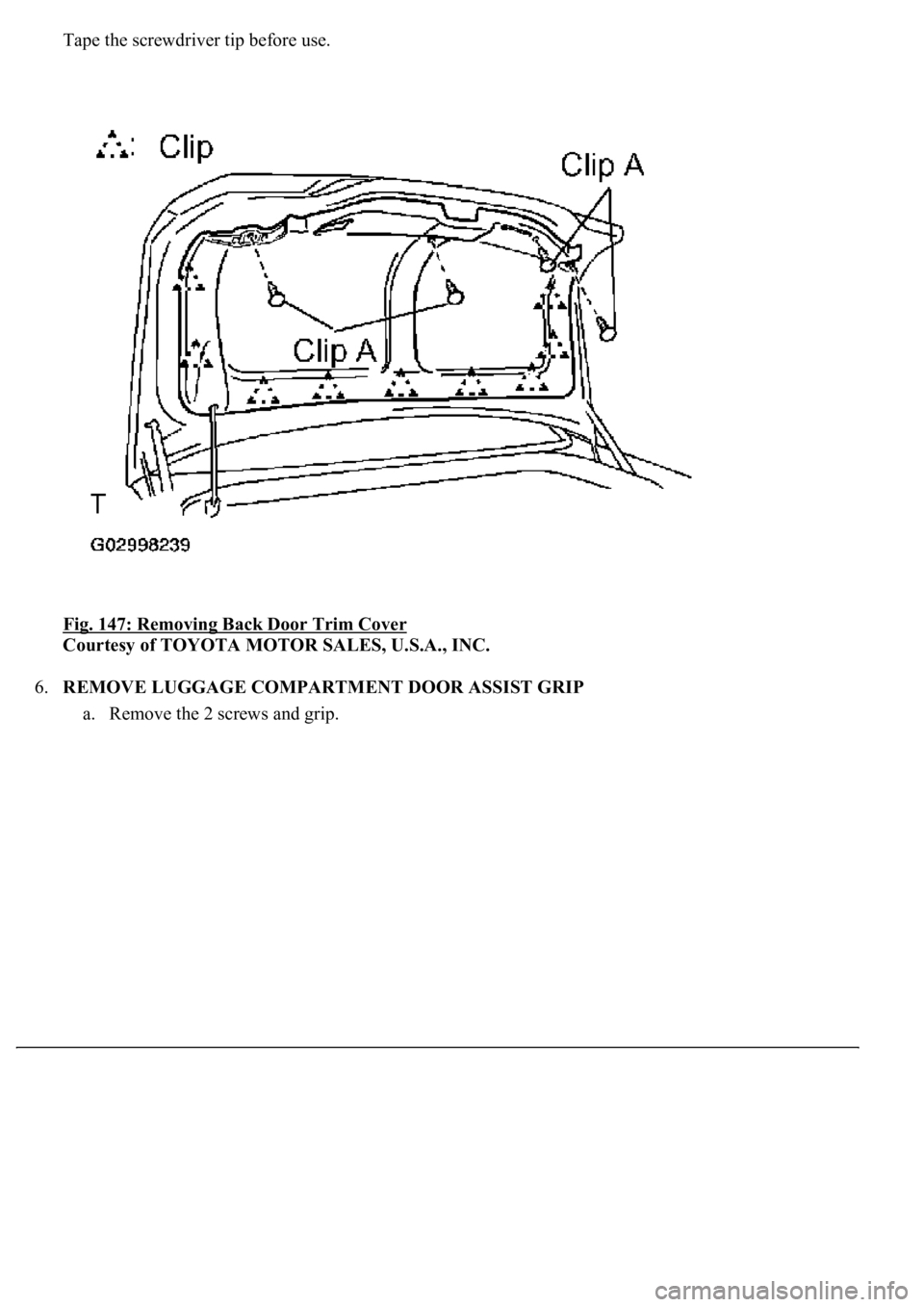

Fig. 147: Removing Back Door Trim Cover
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
6.REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP
a. Remove the 2 screws and
grip.
