Page 3585 of 4500

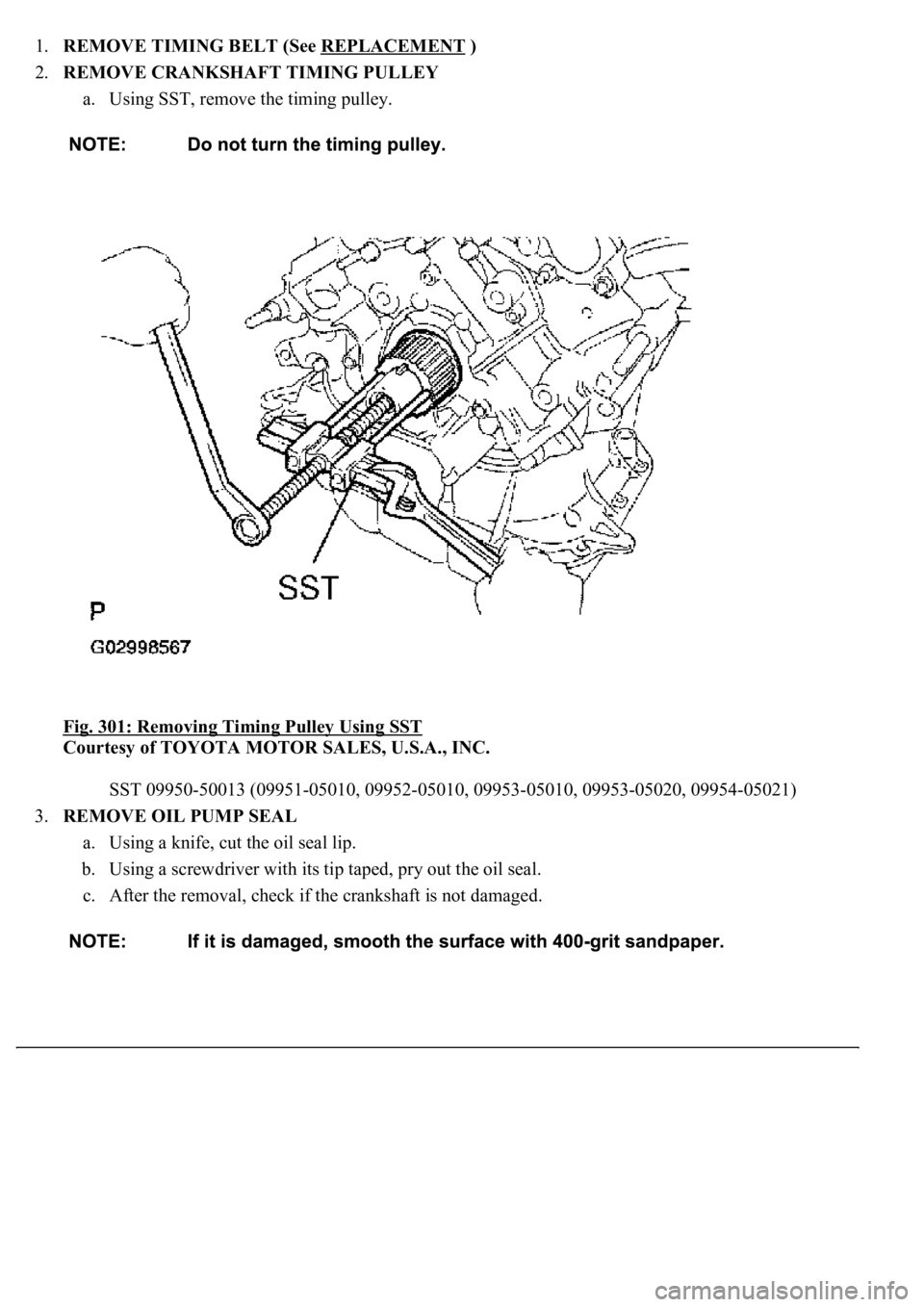

LEXUS LS430 2003 Factory Repair Manual 1.REMOVE TIMING BELT (See REPLACEMENT ) 2.REMOVE CRANKSHAFT TIMING PULLEY a. Using SST, remove the timing pulley. Fig. 301: Removing Timing Pulley Using SST Courtesy of TOYOTA MOTOR SALES, U.S.

Page 3586 of 4500

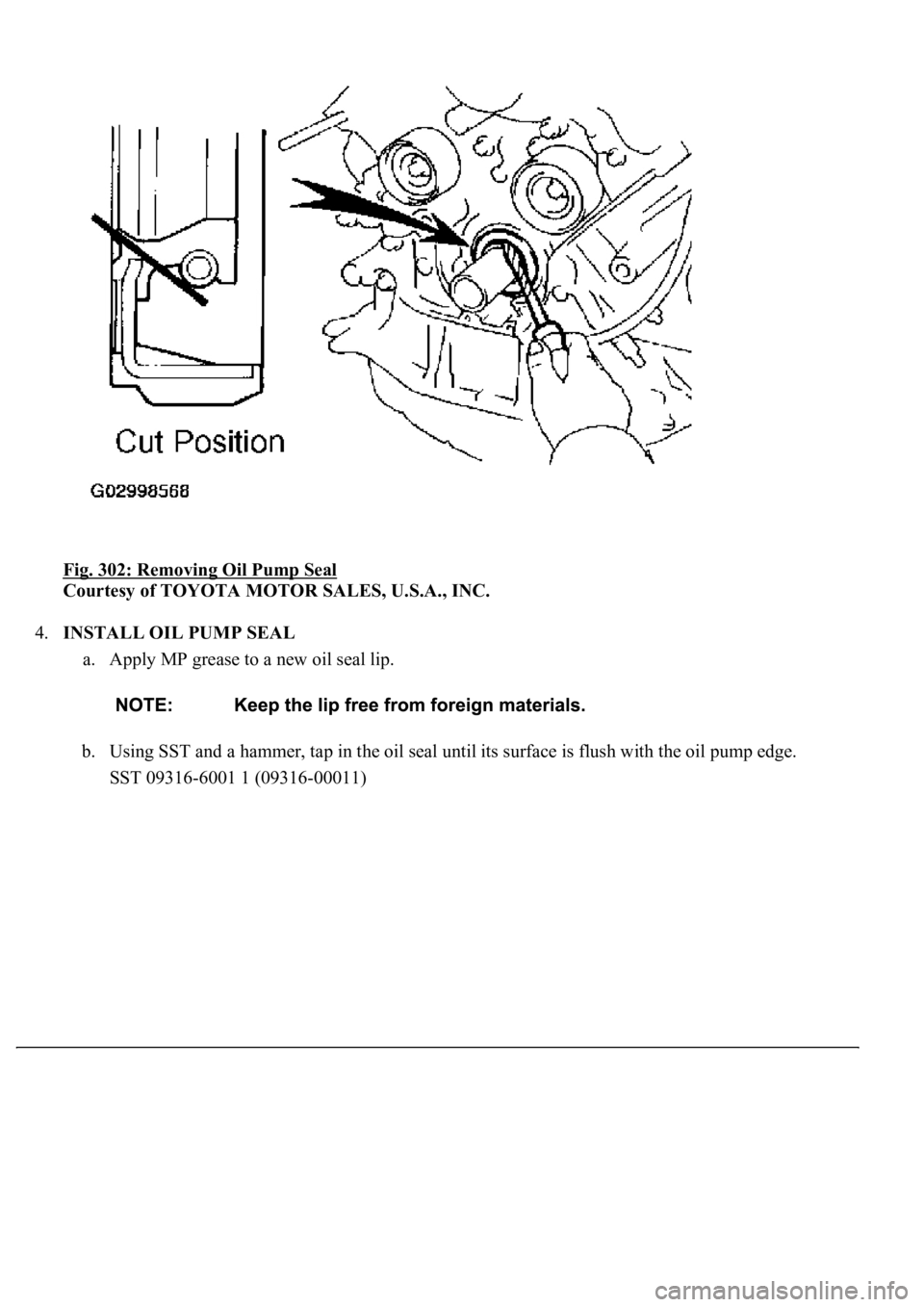

LEXUS LS430 2003 Factory Repair Manual Fig. 302: Removing Oil Pump Seal Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 4.INSTALL OIL PUMP SEAL a. Apply MP grease to a new oil seal lip. b. Using SST and a hammer, tap in the oil seal until

Page 3587 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 303: Taping In Oil Seal Using SST And A Hammer Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 5.INSTALL CRANKSHAFT TIMING PULLEY a. Align the timing pulley set key with the key groove of the pul

Page 3588 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 304: Aligning Timing Pulley Setting Key With Key Groove Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 6.INSTALL TIMING BELT (See REPLACEMENT ) REPLACEMENT 1.REMOVE AUTOMATIC TRANSMISSION ASS

Page 3589 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 305: Removing Drive Plate And Ring Gear And The Front Spacer Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Remove the 8 mounting bolts, the rear spacer, the drive plate and ring gear and the

Page 3590 of 4500

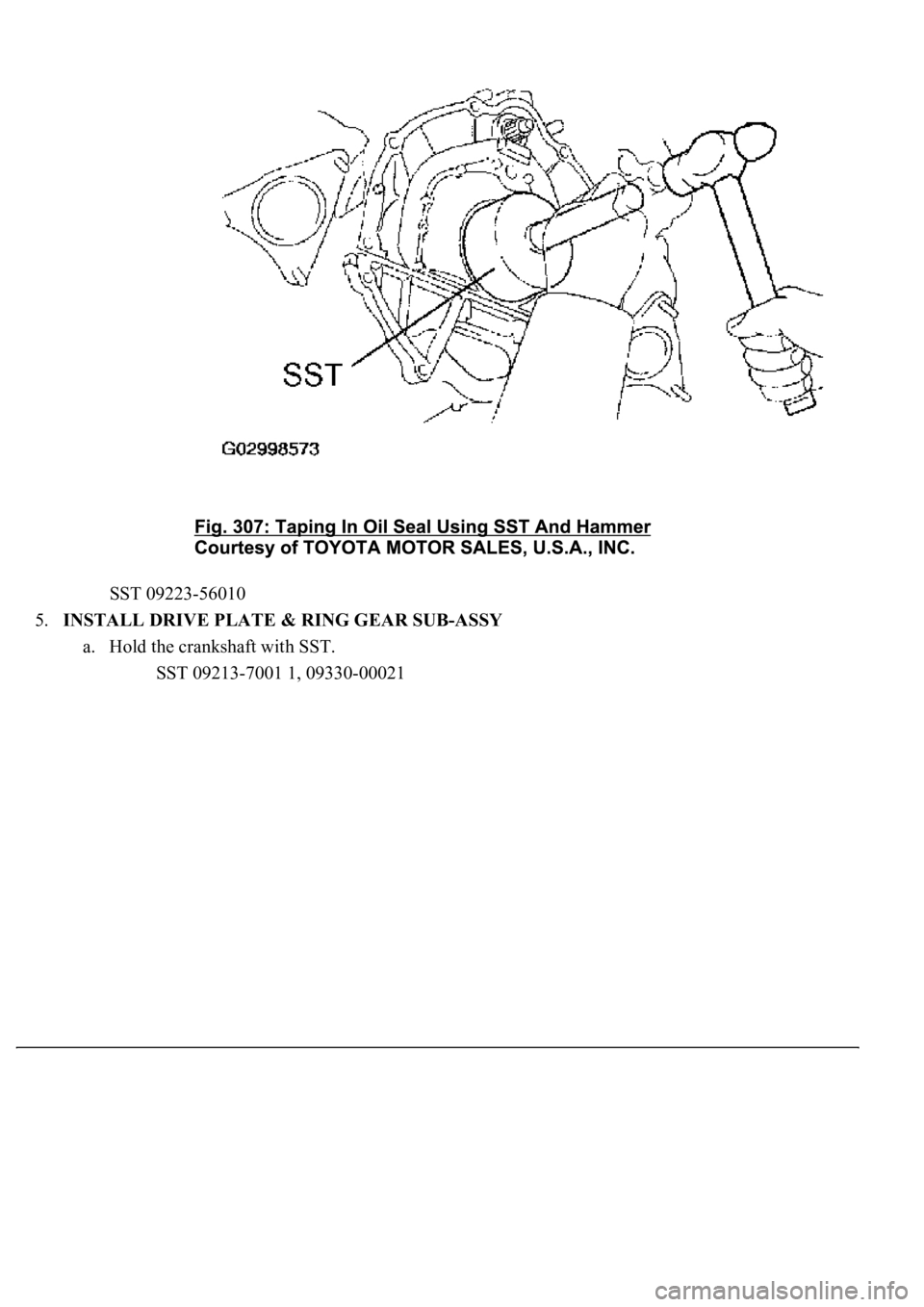

LEXUS LS430 2003 Factory Repair Manual Fig. 306: Removing Rear Oil Seal Using Screwdriver Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 4.INSTALL ENGINE REAR OIL SEAL a. Apply MP grease to a new oil seal lip. b. Using SST and a hammer,

Page 3591 of 4500

LEXUS LS430 2003 Factory Repair Manual SST 09223-56010 5.INSTALL DRIVE PLATE & RING GEAR SUB-ASSY a. Hold the crankshaft with SST. SST 09213-7001 1, 09330-00021

Page 3592 of 4500

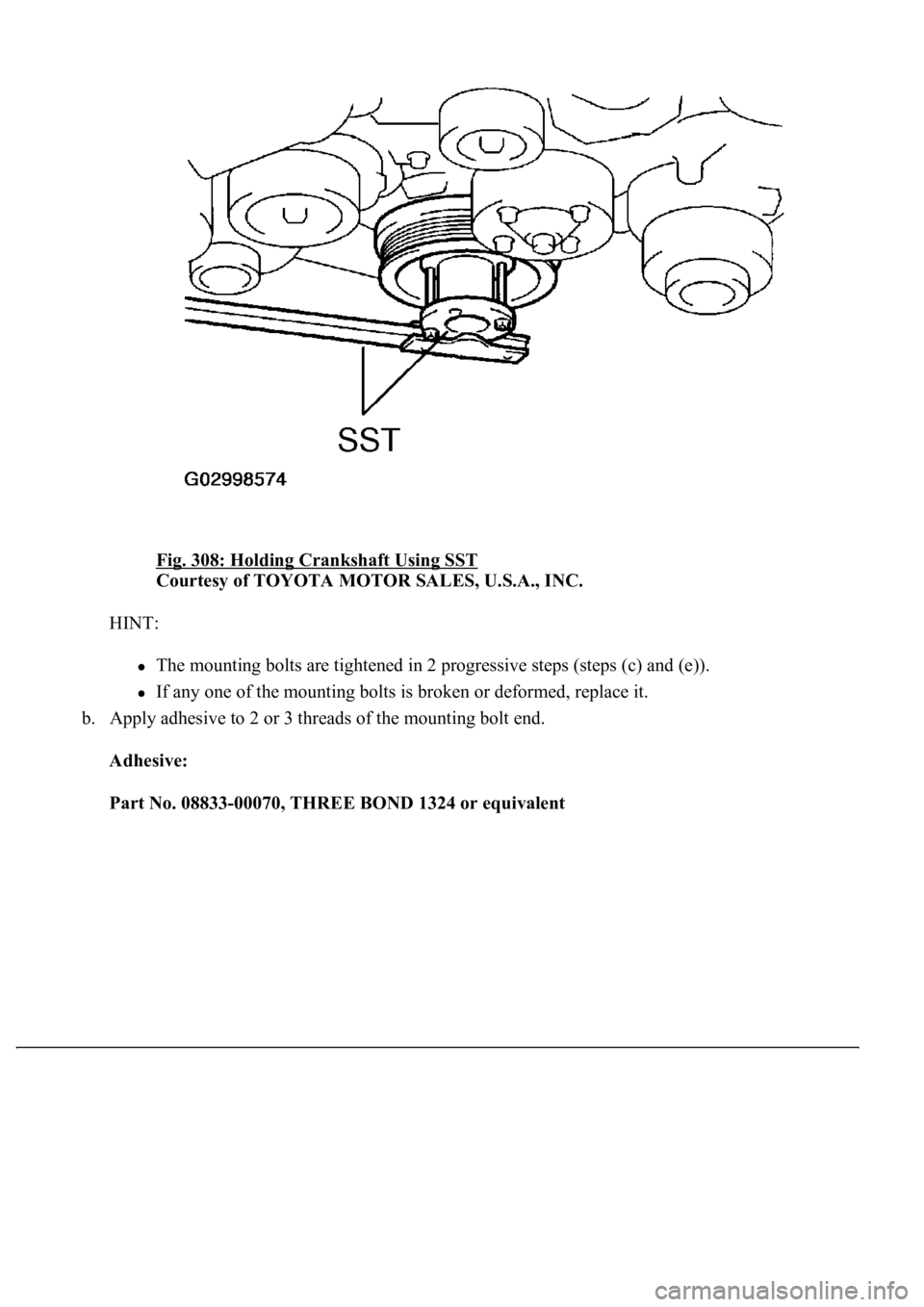

LEXUS LS430 2003 Factory Repair Manual Fig. 308: Holding Crankshaft Using SST Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. HINT: The mounting bolts are tightened in 2 progressive steps (steps (c) and (e)). If any one of the mounting b
