Page 417 of 4500
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step

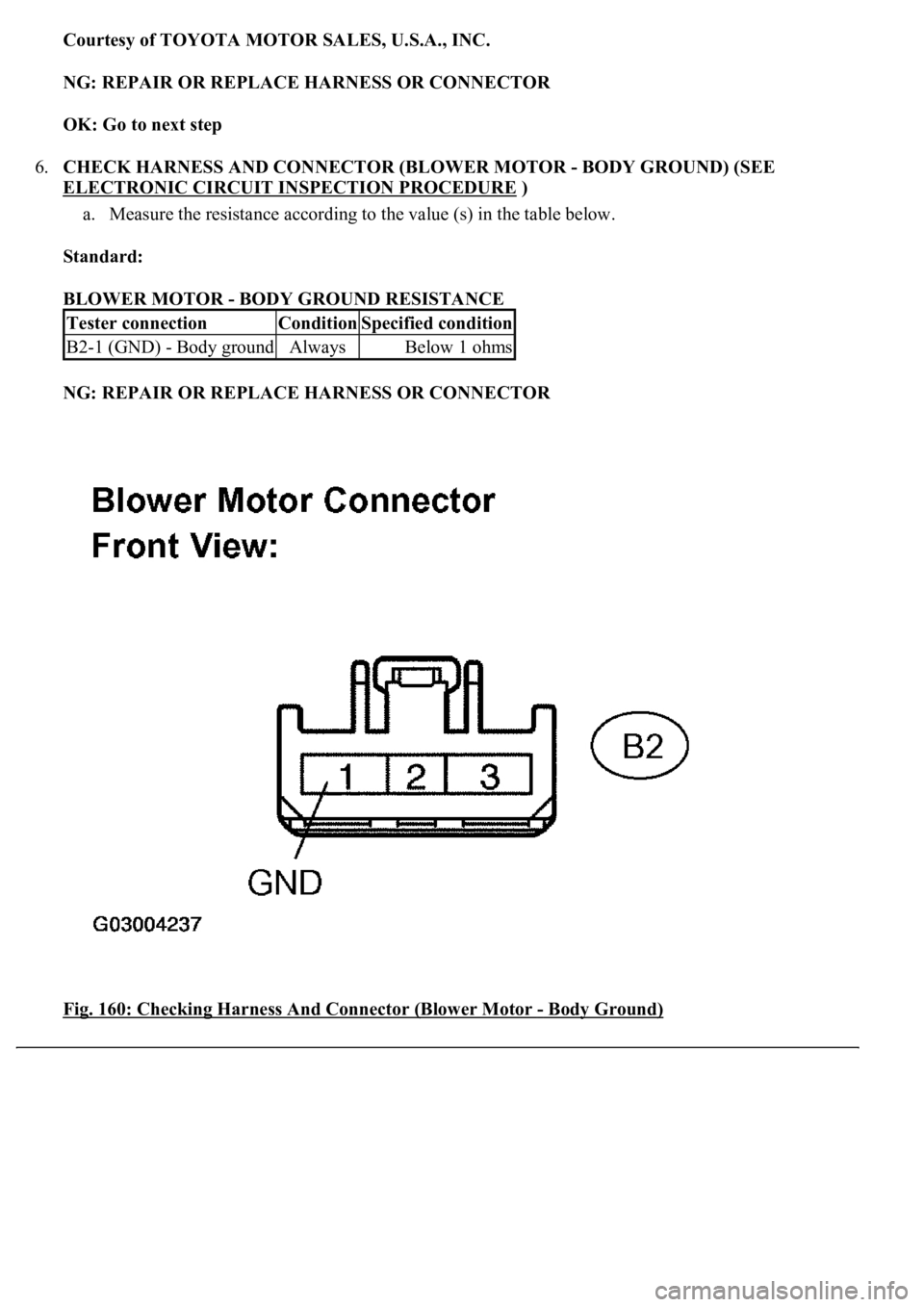

6.CHECK HARNESS AND CONNECTOR (BLOWER MOTOR - BODY GROUND) (SEE
ELECTRONIC CIRCUIT INSPECTION PROCEDURE
)
a. Measure the resistance according to the value (s) in the table below.
Standard:
BLOWER MOTOR - BODY GROUND RESISTANCE
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
<0029004c004a00110003001400190013001d00030026004b00480046004e004c0051004a0003002b004400550051004800560056000300240051004700030026005200510051004800460057005200550003000b0025004f0052005a004800550003003000
520057005200550003[
- Body Ground)
Tester connectionConditionSpecified condition
B2-1 (GND) - Body groundAlwaysBelow 1 ohms
Page 418 of 4500
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: Go to next step

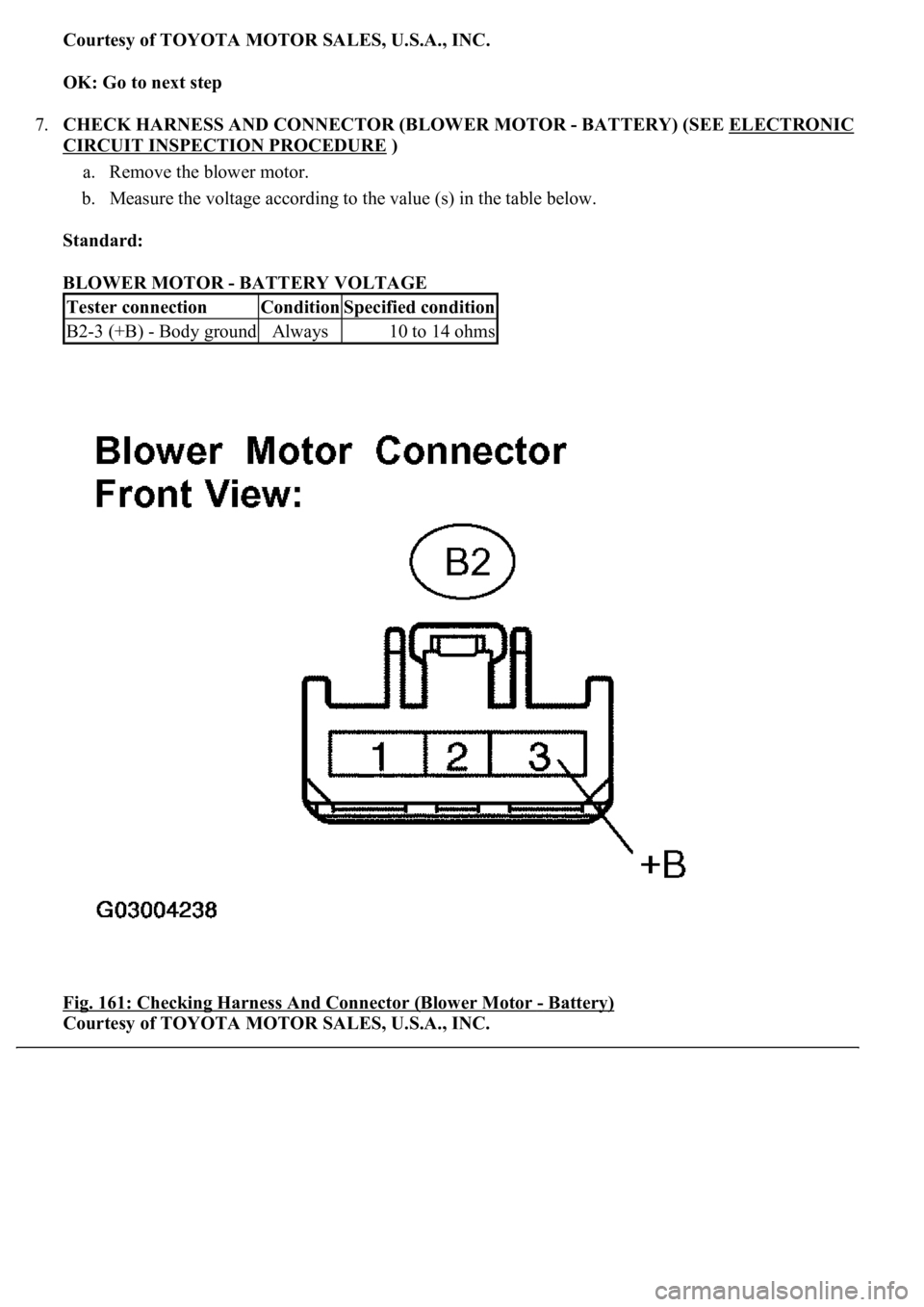

7.CHECK HARNESS AND CONNECTOR (BLOWER MOTOR - BATTERY) (SEE ELECTRONIC
CIRCUIT INSPECTION PROCEDURE )
a. Remove the blower motor.
b. Measure the voltage according to the value (s) in the table below.
Standard:
BLOWER MOTOR - BATTERY VOLTAGE
<0029004c004a00110003001400190014001d00030026004b00480046004e004c0051004a0003002b004400550051004800560056000300240051004700030026005200510051004800460057005200550003000b0025004f0052005a004800550003003000
520057005200550003[
- Battery)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Tester connectionConditionSpecified condition
B2-3 (+B) - Body groundAlways10 to 14 ohms
Page 419 of 4500
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step

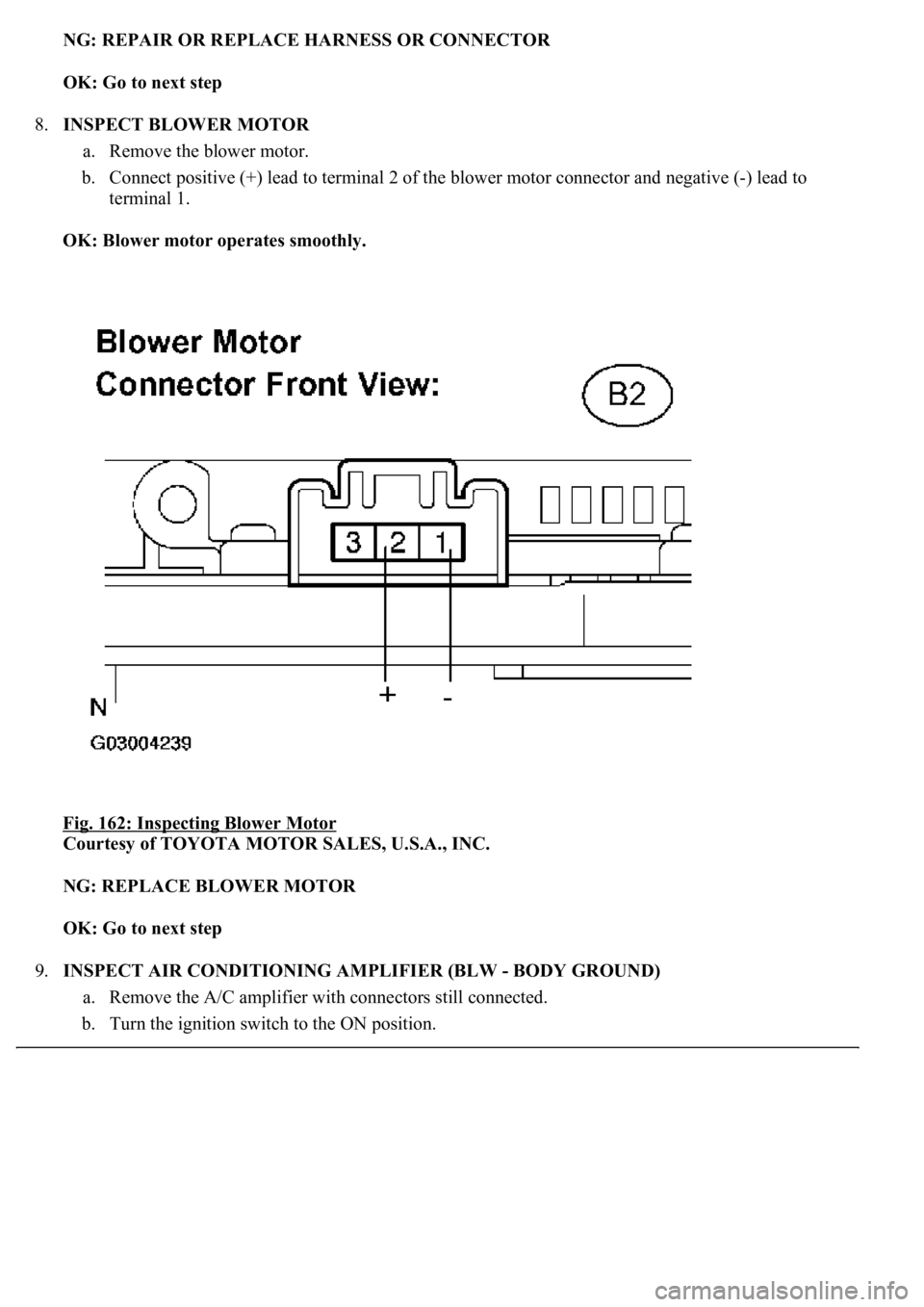

8.INSPECT BLOWER MOTOR
a. Remove the blower motor.
b. Connect positive (+) lead to terminal 2 of the blower motor connector and negative (-) lead to
terminal 1.
OK: Blower motor operates smoothly.
Fig. 162: Inspecting Blower Motor
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPLACE BLOWER MOTOR
OK: Go to next step

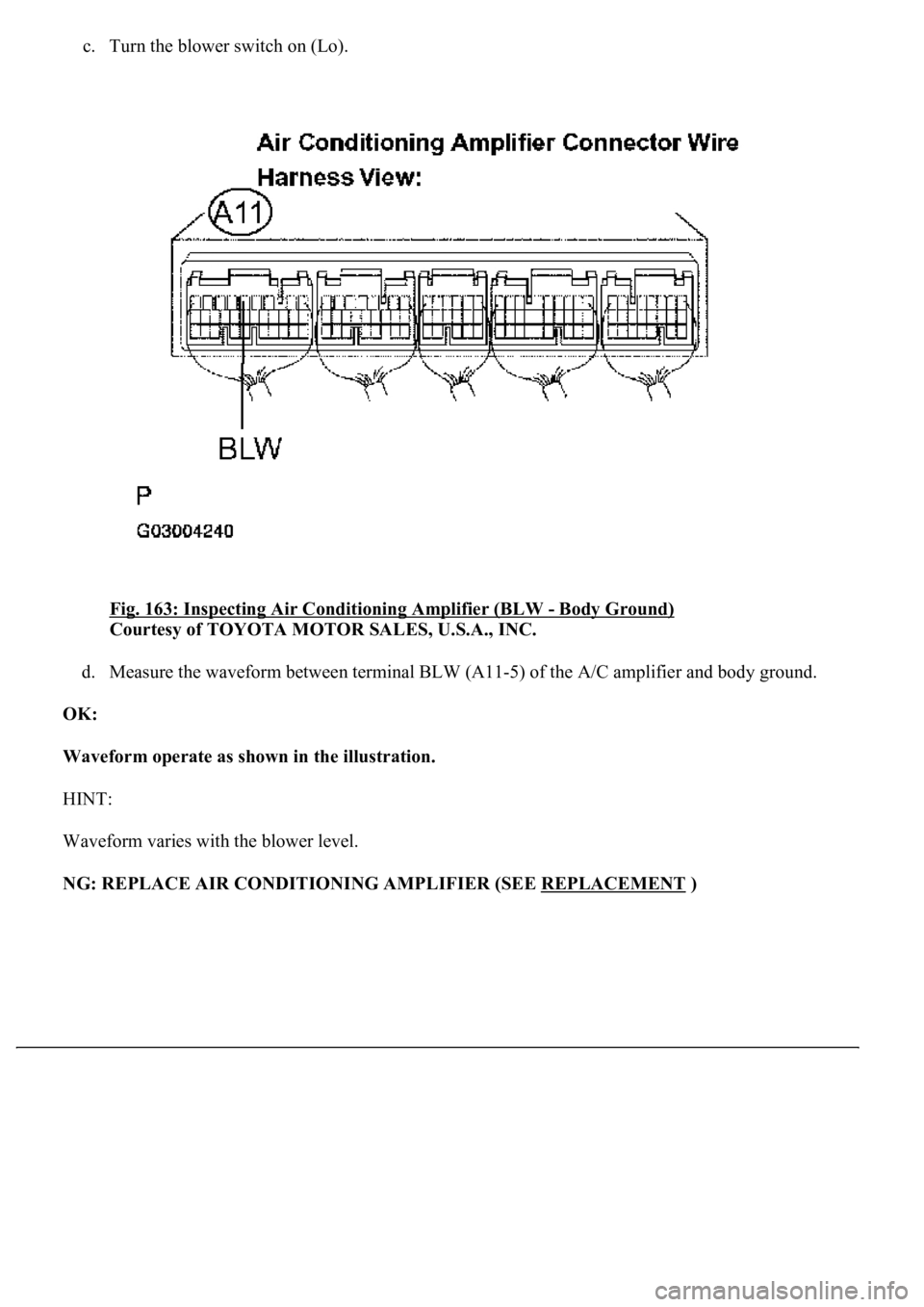

9.INSPECT AIR CONDITIONING AMPLIFIER (BLW - BODY GROUND)
a. Remove the A/C amplifier with connectors still connected.
b. Turn the ignition switch to the ON position.
Page 420 of 4500
c. Turn the blower switch on (Lo).
<0029004c004a00110003001400190016001d0003002c005100560053004800460057004c0051004a00030024004c005500030026005200510047004c0057004c00520051004c0051004a0003002400500053004f004c0049004c004800550003000b002500
2f003a0003[
- Body Ground)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
d. Measure the waveform between terminal BLW (A11-5) of the A/C amplifier and body ground.
OK:
Waveform operate as shown in the illustration.
HINT:
Waveform varies with the blower level.
NG: REPLACE AIR CONDITIONING AMPLIFIER (SEE REPLACEMENT
)
Page 421 of 4500
Fig. 164: Identifying Waveform Between Terminal BLW (A11-5) Of A/C Amplifier And Body
Ground
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS
TABLE
CIRCUIT DESCRIPTION
This is the backup power source for the rear A/C amplifier. Power is supplied even when the ignition switch is
off and is used for memory, etc.
WIRING DIAGRAM
Page 422 of 4500
Fig. 165: Rear Back-Up Power Source Circuit
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
1.INSPECT FUSE (RR ECU-B)
a. Remove RR ECU-B fuse from luggage room J/B.
b. Measure the resistance according to the value (s) in the table below.
Standard:
FUSE (RR ECU-B) RESISTANCE
Tester itemConditionSpecified condition
RR ECU-BAlwaysBelow 1 ohms
Page 423 of 4500
Fig. 166: Identifying Location Of Fuse (RR ECU-B)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: CHECK FOR SHORT IN ALL HARNESSES AND COMPONENTS CONNECTED TO
FAILURE FUSE (RR ECU-B)
OK: Go to next step
2.INSPECT REAR AIR CONDITIONING AMPLIFIER (R-B - BODY GROUND)
a. Remove the rear A/C amplifier assy and disconnect the connector.
b. Measure the voltage according to the value (s) in the table below.
Standard:
REAR AIR CONDITIONING AMPLIFIER (R-B - BODY GROUND) VOLTAGE
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (REAR AIR CONDITIONING
AMPLIFIER -BATTERY)
Tester connectionConditionSpecified condition
A46-3 (R-B) - Body groundAlways10 to 14 V
Page 424 of 4500
Fig. 167: Inspecting Rear Air Conditioning Amplifier (R-B - Body Ground)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS
TABLE
CIRCUIT DESCRIPTION
The main power source is supplied to the A/C amplifier when the ignition switch is turned to the ON position.
The power source supplied is used for operating the A/C amplifier and servomotor, etc.
WIRING DIAGRAM
