Page 1689 of 4500

LEXUS LS430 2003 Factory Repair Manual Standard: Rear LH TESTER CONNECTION AND SPECIFIED CONDITION - REAR RH Rear RH TESTER CONNECTION AND SPECIFIED CONDITION - REAR RH Fig. 68: Identifying Seat Climate Control Blower Connector Ter

Page 1690 of 4500

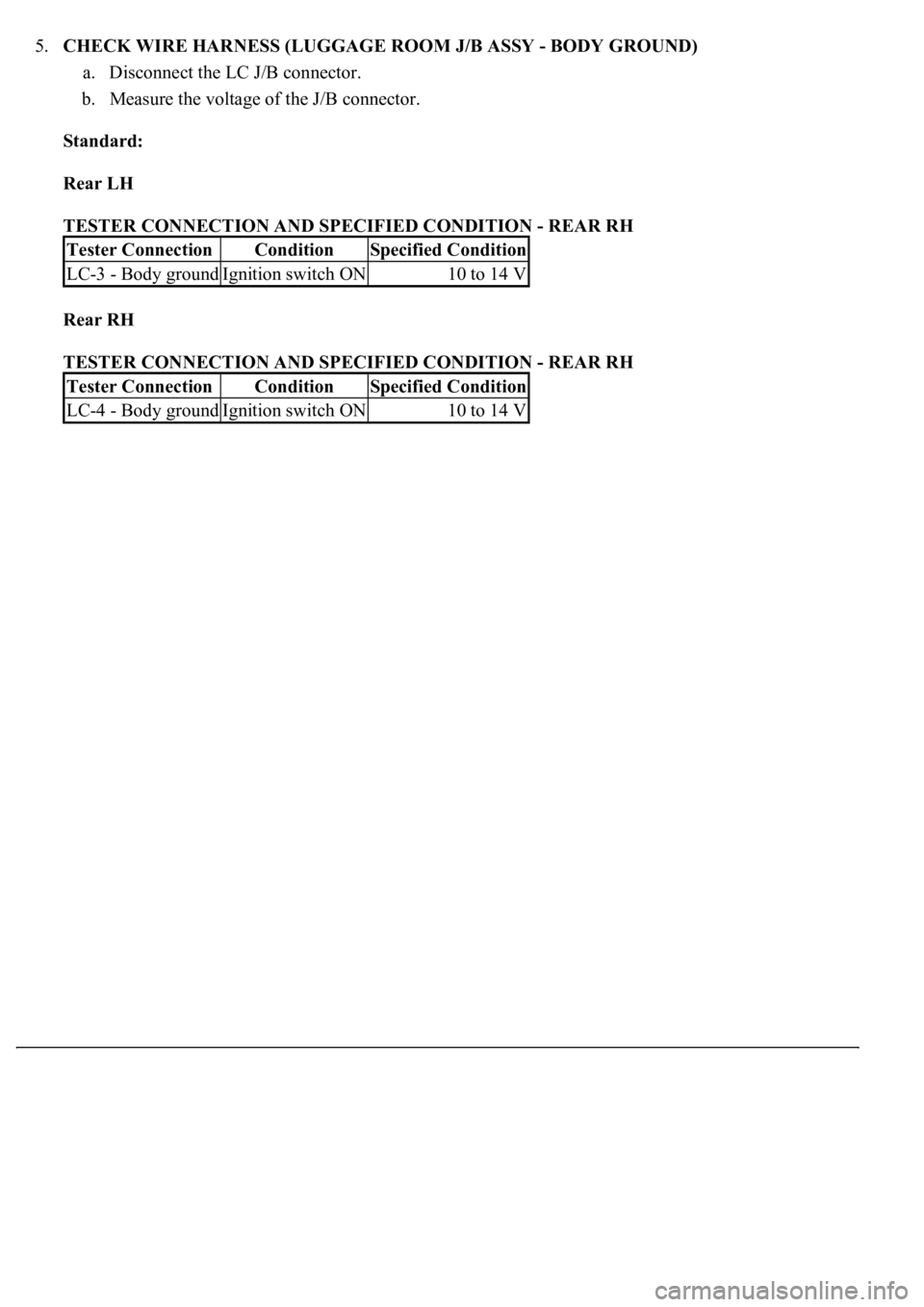

LEXUS LS430 2003 Factory Repair Manual 5.CHECK WIRE HARNESS (LUGGAGE ROOM J/B ASSY - BODY GROUND) a. Disconnect the LC J/B connector. b. Measure the voltage of the J/B connector. Standard: Rear LH TESTER CONNECTION AND SPECIFIED C

Page 1691 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 69: Identifying LC Luggage Room J/B Connector Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: Go to step 6 OK: REPAIR OR REPLACE HARNESS AND CONNECTOR (LUGGAGE ROOM J/B ASSY - CLI

Page 1692 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 70: Identifying LL Luggage Room J/B Ground Harness Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR OK: Go to next step 7.CHECK WIRE HARNESS (LUGGAGE

Page 1693 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 71: Identifying LA Luggage Room J/B Connector Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR OK: Go to next step 8.INSPECT RELAY (Marking

Page 1694 of 4500

LEXUS LS430 2003 Factory Repair Manual TESTER CONNECTION AND SPECIFIED CONDITION Fig. 72: Identifying L -IG1 Relay Terminals And Circuit Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPLACE RELAY OK: Go to next step 9.CHECK WIRE

Page 1695 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 73: Identifying L14 Luggage Room J/B ECU Connector Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPLACE LUGGAGE ROOM JUNCTION BLOCK ASSY OK: REPLACE LUGGAGE ROOM JUNCTION BLOCK

Page 1696 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 74: Identifying Climate Control Switch Connector Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPLACE REAR SEAT HEATER SWITCH OK: Go to next step 11.CHECK WIRE HARNESS (CLIMAT
