LEXUS LS430 2003 Factory Repair Manual Tester connectionConditionSpecified condition A13-17 (NOX) - E10-4 (NOX)AlwaysBelow 1 ohms A13-8 (SG-1) - E10-1 (S.G)AlwaysBelow 1 ohms A13-17 (NOX) - Body groundAlways10 kohms or higher A13-8 (SG-1)

Page 362 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 125: Checking Harness And Connector (Air Conditioning Amplifier - Exhaust Gas Sensor) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 363 of 4500

LEXUS LS430 2003 Factory Repair Manual NG: REPAIR OR REPLACE HARNESS OR CONNECTOR OK: REPLACE AIR CONDITIONING AMPLIFIER (SEE REPLACEMENT ) CIRCUIT DESCRIPTION The cool air bypass damper control servomotor is controlled by the A/C ampli

Page 364 of 4500

LEXUS LS430 2003 Factory Repair Manual 1.PERFORM ACTUATOR CHECK a. Warm up the engine. b. Set the actuator check mode (SEE ACTUATOR CHECK ). c. Press the driver temperature up switch, and change to STEP operation. d. Press the driv

Page 365 of 4500

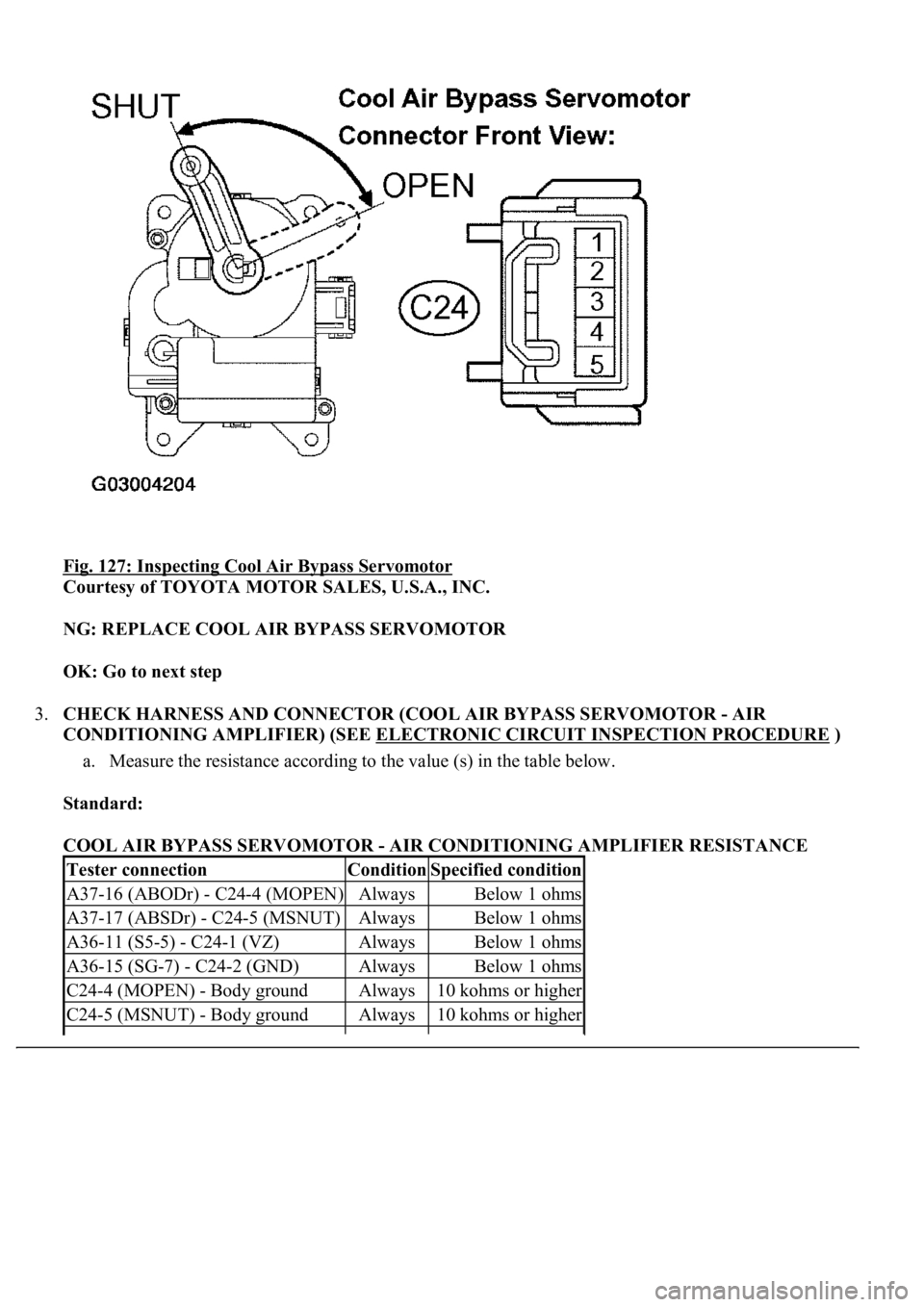

LEXUS LS430 2003 Factory Repair Manual Fig. 127: Inspecting Cool Air Bypass Servomotor Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPLACE COOL AIR BYPASS SERVOMOTOR OK: Go to next step 3.CHECK HARNESS AND CONNECTOR (COOL AIR BY

Page 366 of 4500

LEXUS LS430 2003 Factory Repair Manual C24-1 (VZ) - Body groundAlways10 kohms or higher C24-2 (GND) - Body groundAlwaysBelow 1 ohms

Page 367 of 4500

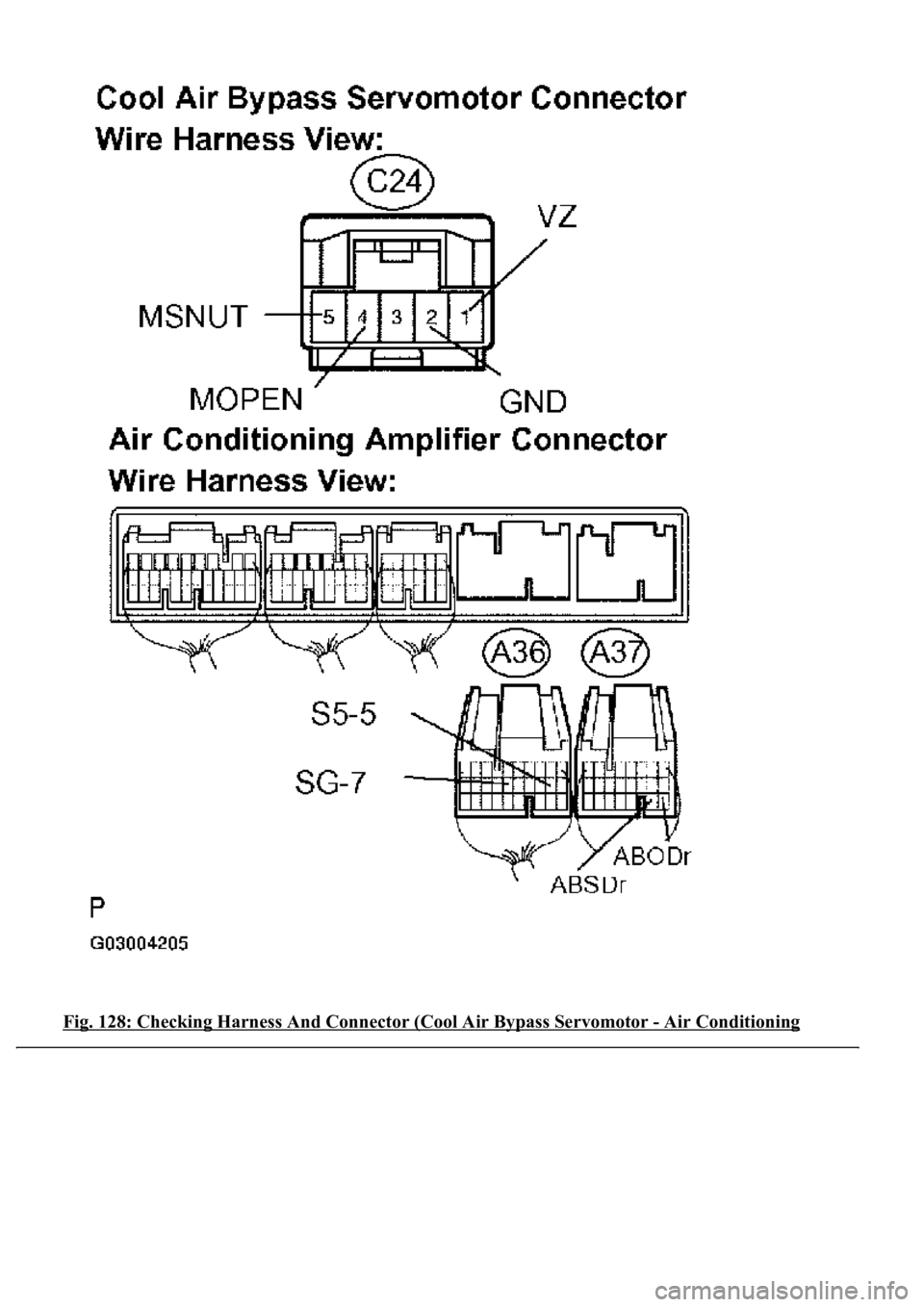

LEXUS LS430 2003 Factory Repair Manual Fig. 128: Checking Harness And Connector (Cool Air Bypass Servomotor - Air Conditioning

Page 368 of 4500

LEXUS LS430 2003 Factory Repair Manual Amplifier) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR OK: REPLACE AIR CONDITIONING AMPLIFIER (SEE REPLACEMENT ) CIRCUIT DESCRIPTION The cool air by
