Page 1457 of 4500

LEXUS LS430 2003 Factory Repair Manual terminal). Fig. 244: Identifying DLC3 Connector terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Measure the resistance according to the value (s) in the table below. Standard: DLC3 C

Page 1458 of 4500

LEXUS LS430 2003 Factory Repair Manual NG: REPLACE JUNCTION CONNECTOR (P-CAN J/C) OK: REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (CAN-H, CAN-L) 34.CONNECT CONNECTOR a. Reconnect the distance control ECU sub bus line connector (J48

Page 1459 of 4500

LEXUS LS430 2003 Factory Repair Manual OK: REPLACE DISTANCE CONTROL ECU ASSY (SEE REPLACEMENT ) NG: REPAIR OR REPLACE DISTANCE CONTROL ECU SUB BUS LINE OR CONNECTOR (CAN-H, CAN-L) 36.CONNECT CONNECTOR a. Reconnect the yaw rate sensor

Page 1460 of 4500

LEXUS LS430 2003 Factory Repair Manual b. Measure the resistance according to the value (s) in the table below. Standard: DLC3 CONNECTOR TERMINALS RESISTANCE OK: REPLACE YAW RATE SENSOR (SEE REPLACEMENT ) NG: REPAIR OR REPLACE YAW

Page 1461 of 4500

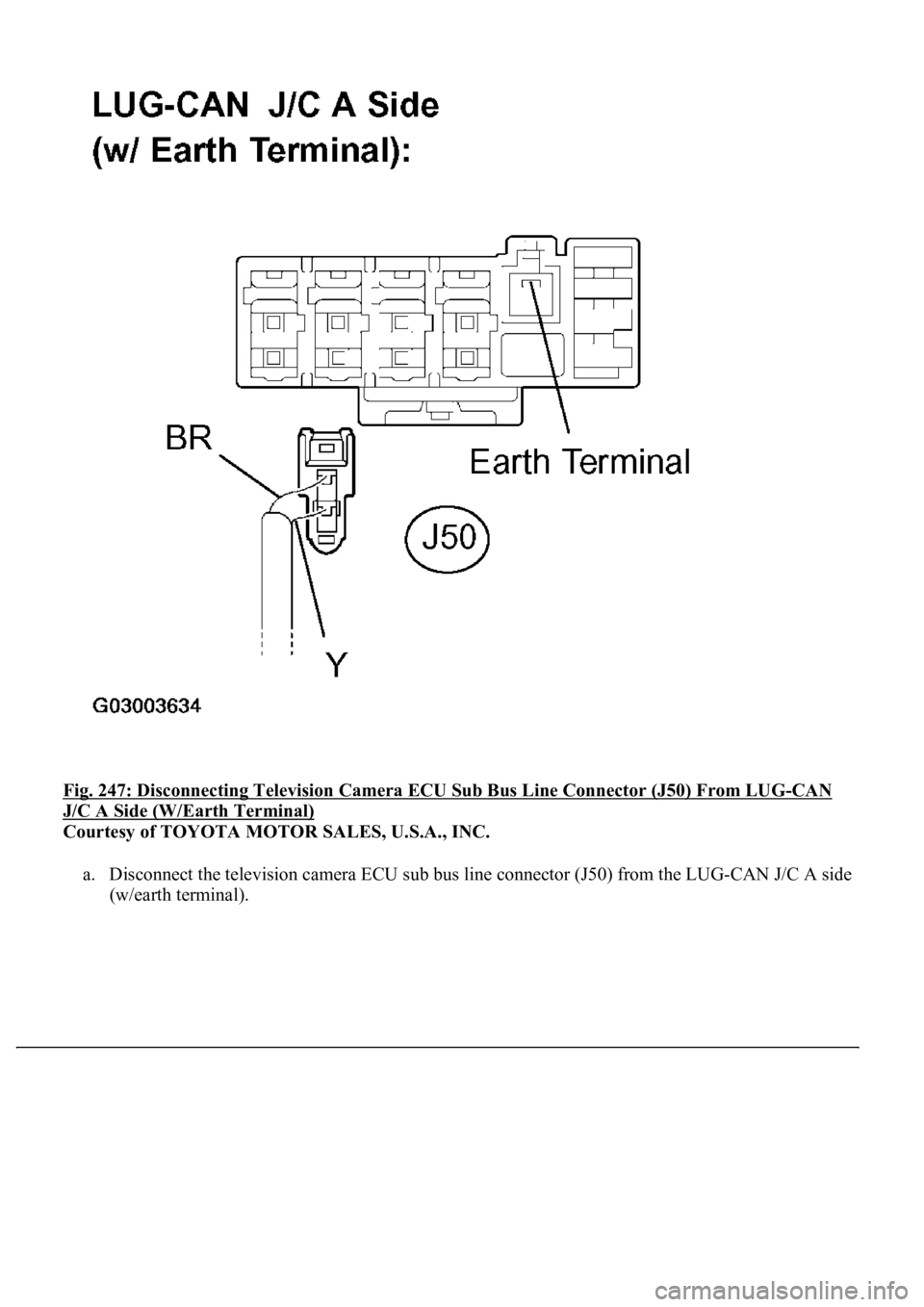

LEXUS LS430 2003 Factory Repair Manual Fig. 247: Disconnecting Television Camera ECU Sub Bus Line Connector (J50) From LUG-CAN J/C A Side (W/Earth Terminal) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. a. Disconnect the television camer

Page 1462 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 248: Identifying DLC3 Connector terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Measure the resistance according to the value (s) in the table below. Standard: DLC3 CONNECTOR TERM

Page 1463 of 4500

LEXUS LS430 2003 Factory Repair Manual 41.CHECK CAN BUS LINE FOR SHORT TO GND (TELEVISION CAMERA ECU SUB BUS LINE) Fig. 249: Identifying DLC3 Connector terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. a. Disconnect the televisio

Page 1464 of 4500

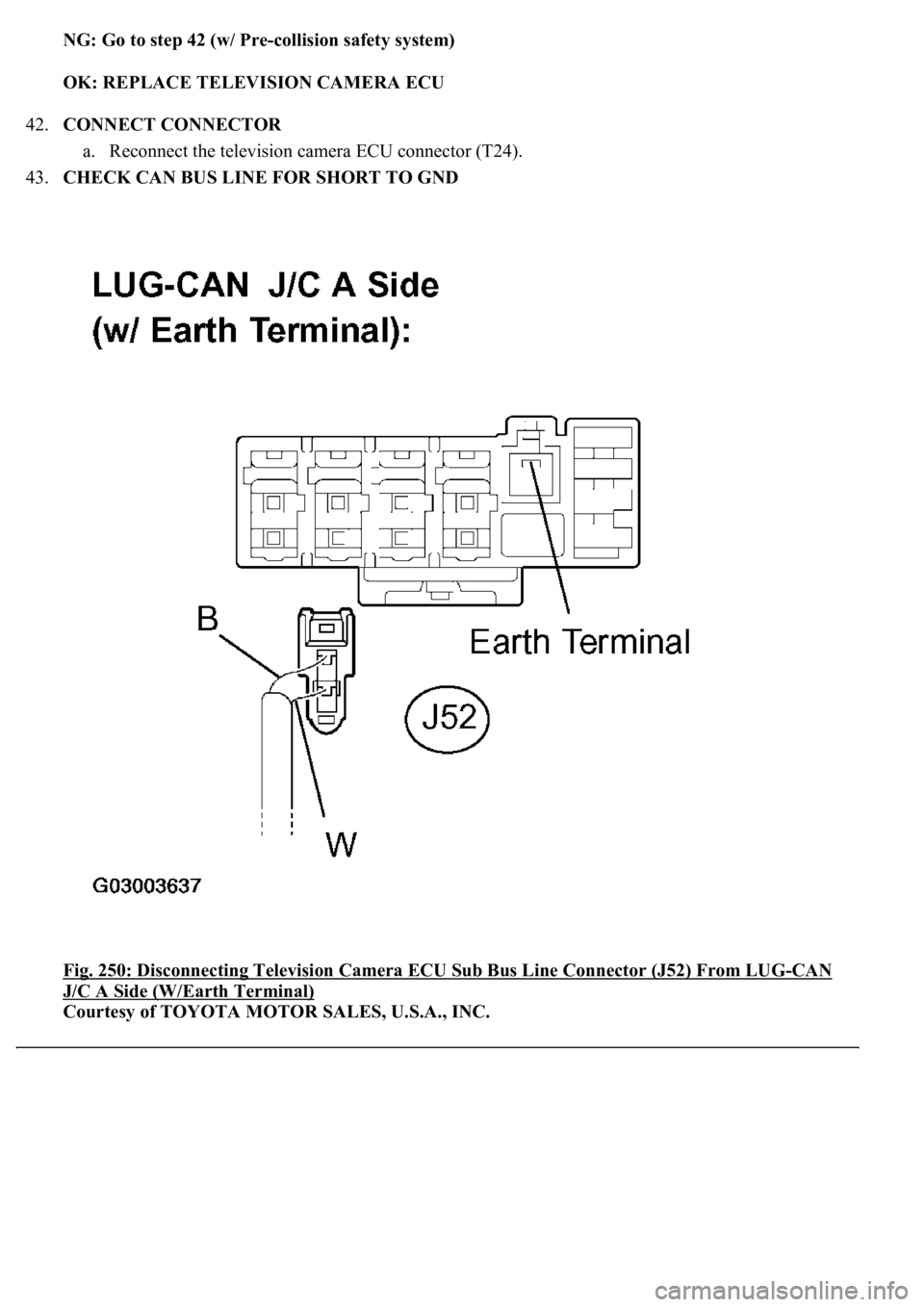

LEXUS LS430 2003 Factory Repair Manual NG: Go to step 42 (w/ Pre-collision safety system) OK: REPLACE TELEVISION CAMERA ECU 42.CONNECT CONNECTOR a. Reconnect the television camera ECU connector (T24). 43.CHECK CAN BUS LINE FOR SHORT T
