Page 3009 of 4500
Fig. 25: Installing Hood Lock With Bolts And Nut
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
f. w/ Pre-collision safety system:
Install the millimeter wave radar sensor with the 3 bolts.
Torque: 5.5 N.m (56 kgf.cm, 49 in..lbf)
g. w/ Pre-collision safety system:
Connect the connector.
h. w/ Pre-collision safety system:
Connect the negative (-) terminal cable to the battery.
i. w/ Pre-collision safety system:
Initialize both s
ystems (see INITIALIZATION).
Page 3010 of 4500
j. w/ Pre-collision safety system:
Inspect the SRS warning lamp (see DIAGNOSIS SYSTEM
).
k. w/ Pre-collision safety system:
Adjust the millimeter wave radar sensor (see ADJUSTMENT
).
Fig. 26: Inspecting SRS Warning Lamp
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
d.INSTALL HOOD AUXILIARY CATCH HOOK ASSY
a. Install the hook with the bolt.
Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)
Page 3011 of 4500
Fig. 27: Installing Hood Auxiliary Catch Hook Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
e.INSTALL RADIATOR GRILLE
a. w/ Pre-collision safety system:
Install the radiator grille garnish to the inside radiator grille with 4 new nuts.
b. Install the inside radiator grille to the outside radiator grille with the 8 screws.
c. Install the radiator grille protector.
d. Install the radiator grille with the 6 bolts.
Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)
Page 3012 of 4500
Fig. 28: Installing Radiator Grille Garnish To Inside Radiator Grille With New Nuts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
f.INSTALL AUXILIARY CATCH RELEASE LEVER ASSY
a. Install the lever with the 2 bolts.
Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)
b. Connect the rod and lock the snap as shown in the illustration.
Page 3013 of 4500
Fig. 29: Installing Lever With Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REPLACEMENT
HINT:
Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.
A bolt without a torque specification is a standard bolt (see STANDARD BOLT ).
1.REMOVE HOOD SUPPORT ASSY LH
a. Remove the 2 bolts and hood support.
HINT:
<00350048005000520059004800030057004b00480003004b005200520047000300560058005300530052005500570003005a004b004c004f004800030056005800530053005200550057004c0051004a00030057004b00480003004b005200520047000300
53004400510048004f0003005a004c0057004b0003005c0052[ur hands.
Page 3014 of 4500
Fig. 30: Removing Hood Support While Supporting Hood Panel
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2.INSTALL HOOD SUPPORT ASSY LH
a. Install the hood support with the 2 bolts.
Torque: 22 N.m (225 kgf.cm, 19 ft.lbf)
DISPOSAL
HINT:
Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.
1.DISPOSE OF HOOD SUPPORT ASSY LH
a. Remove the support (see REPLACEMENT
).
b. Horizontally fix the support in a vise with the piston-rod pulled out.
Page 3015 of 4500

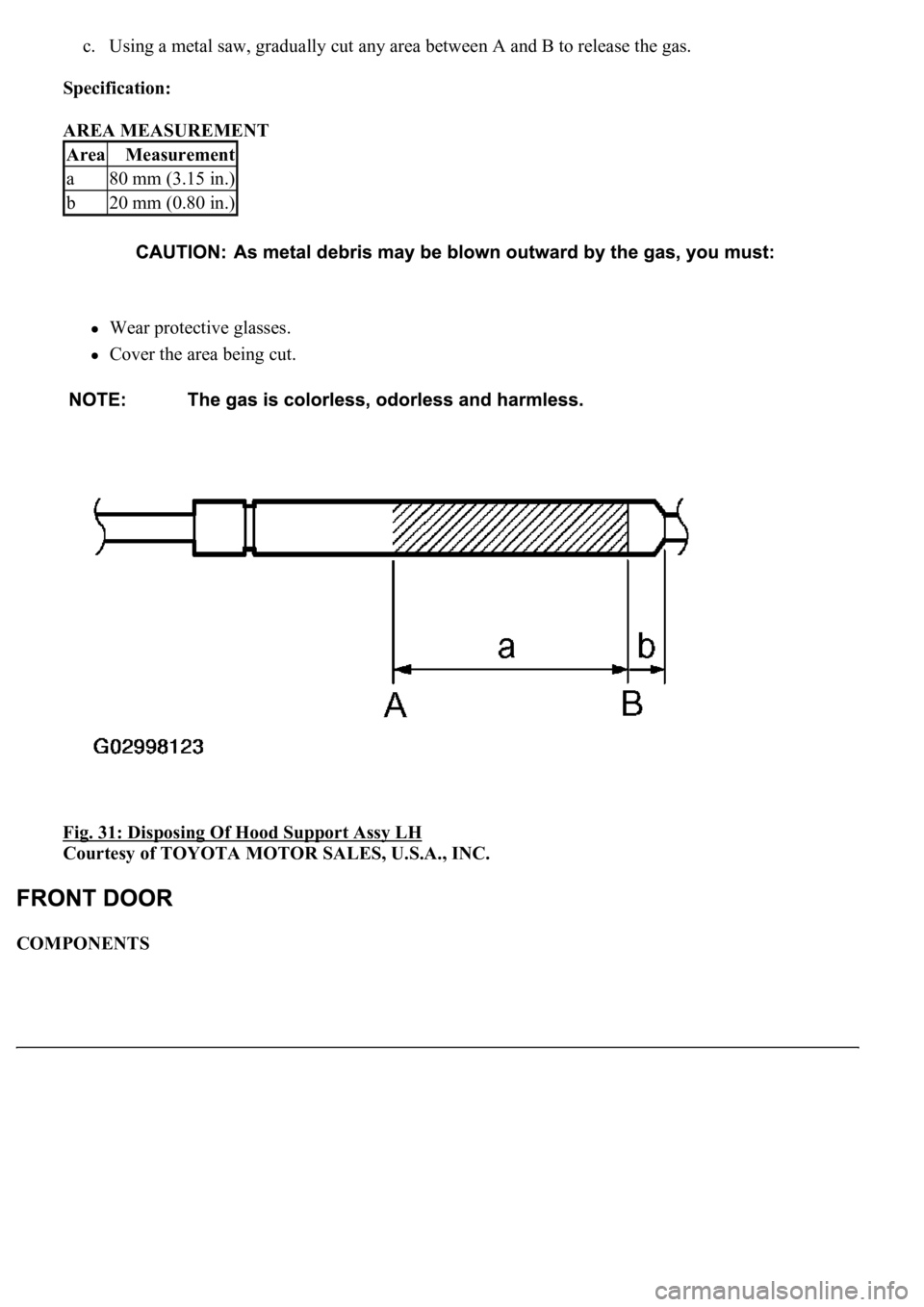

c. Using a metal saw, gradually cut any area between A and B to release the gas.
Specification:
AREA MEASUREMENT
Wear protective glasses.
Cover the area being cut.
Fig. 31: Disposing Of Hood Support Assy LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
COMPONENTS
AreaMeasurement
a80 mm (3.15 in.)
b20 mm (0.80 in.)
Page 3016 of 4500
Fig. 32: Identifying Front Door Components
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
ADJUSTMENT
HINT:
Before adjusting<00030057004b0048000300470052005200550003005300520056004c0057004c005200510003004900520055000300590048004b004c0046004f004800560003004800540058004c00530053004800470003005a004c0057004b00030056004c0047004800
030044004c005500450044[gs and curtain shield airbags, be
