LEXUS LS430 2003 Factory Repair Manual Fig. 17: Disconnecting Cable Clamps Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Pull the cable from the engine room and remove it.

Page 3002 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 18: Pulling Cable From Engine Room Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 12.INSTALL HOOD LOCK CONTROL CABLE ASSY a. Pass the cable to the engine room. b. Pass the cable rear side thro

Page 3003 of 4500

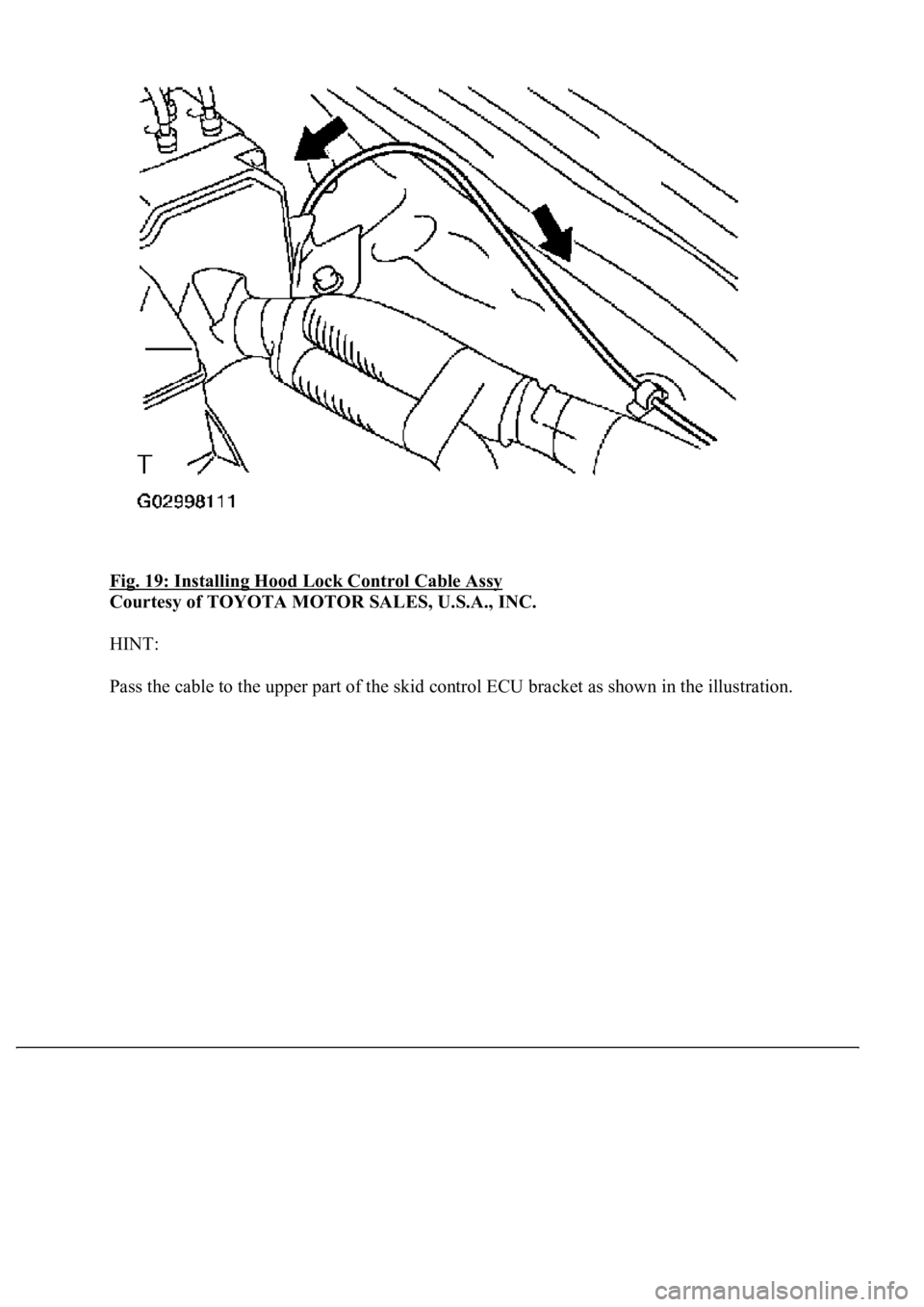

LEXUS LS430 2003 Factory Repair Manual Fig. 19: Installing Hood Lock Control Cable Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. HINT: Pass the cable to the upper part of the skid control ECU bracket as shown in the illustration.

Page 3004 of 4500

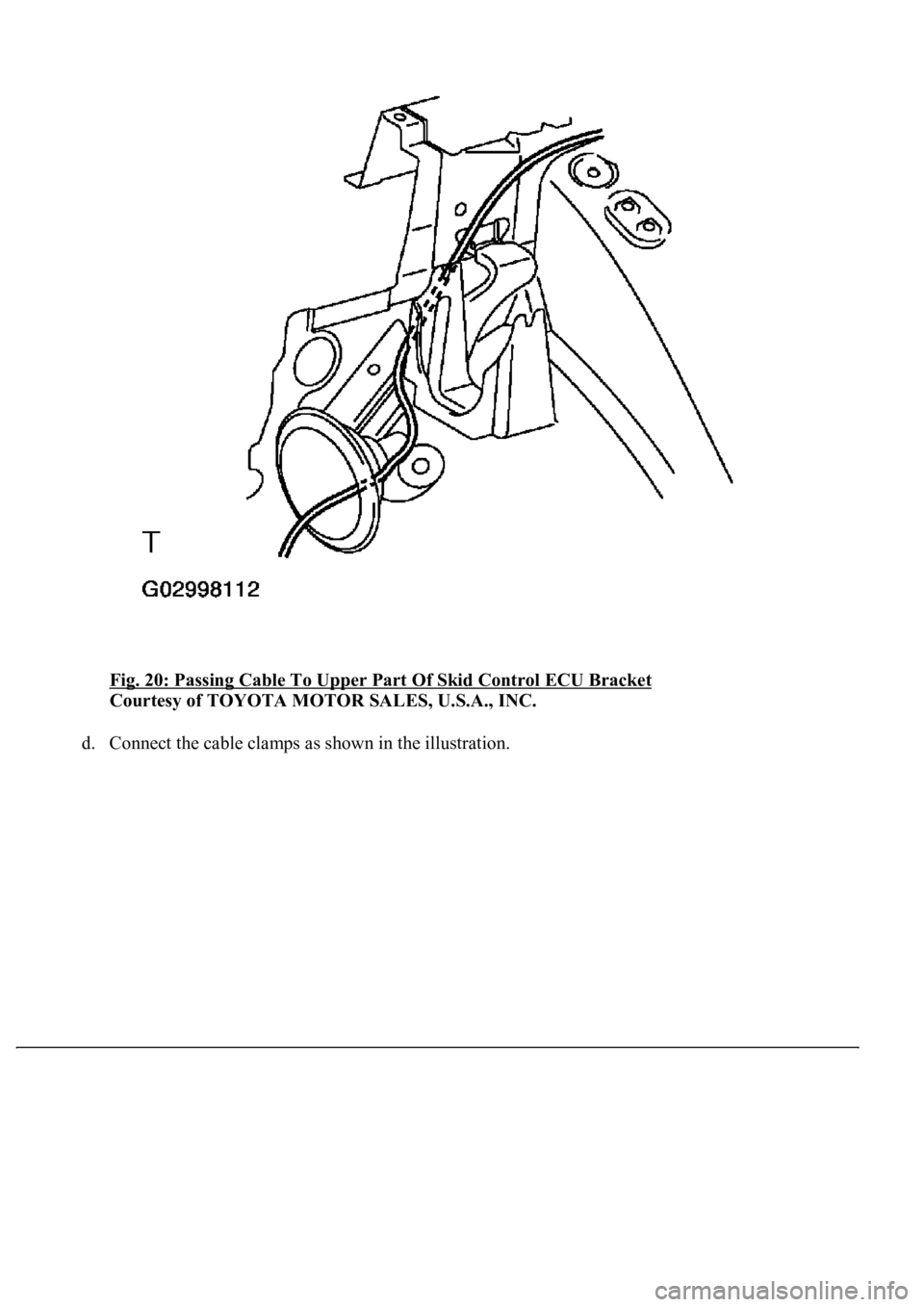

LEXUS LS430 2003 Factory Repair Manual Fig. 20: Passing Cable To Upper Part Of Skid Control ECU Bracket Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. d. Connect the cable clamps as shown in the illustration.

Page 3005 of 4500

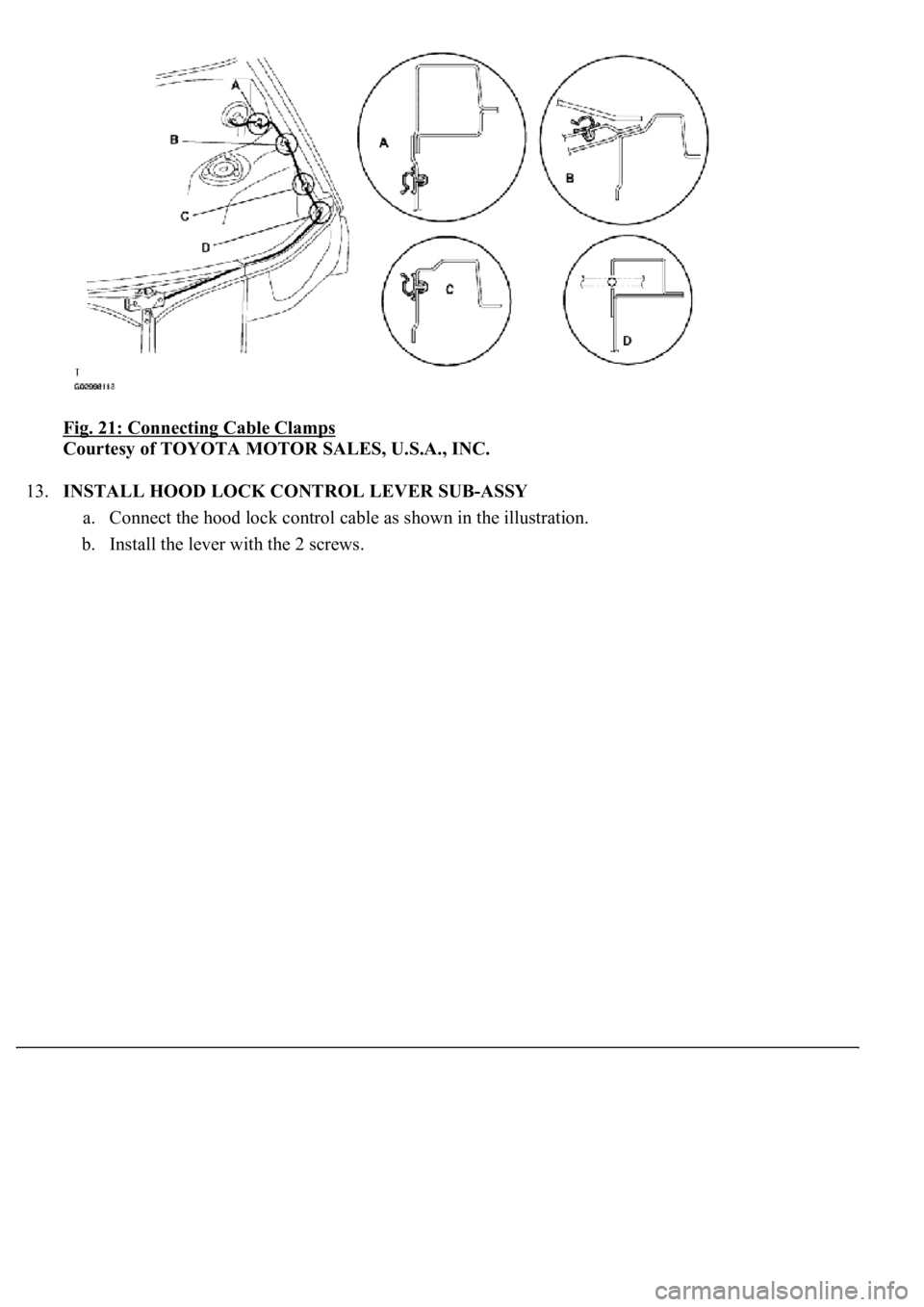

LEXUS LS430 2003 Factory Repair Manual Fig. 21: Connecting Cable Clamps Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 13.INSTALL HOOD LOCK CONTROL LEVER SUB-ASSY a. Connect the hood lock control cable as shown in the illustration. b. I

Page 3006 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 22: Installing Lever With Screws Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 14.INSTALL HOOD LOCK CONTROL CABLE COVER a. Install the cover with the nut. Torque: 8.0 N.m (82 kgf.cm, 71 in..lb

Page 3007 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 23: Installing Cover With Nut Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c.INSTALL HOOD LOCK ASSY a. Appl y MP grease to the sliding areas of the lock.

Page 3008 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 24: Applying MP Grease To Sliding Areas Of Lock Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Connect the hood lock control cable. c. Install the hood lock with the 2 bolts and nut. Torque
