Page 2305 of 4500

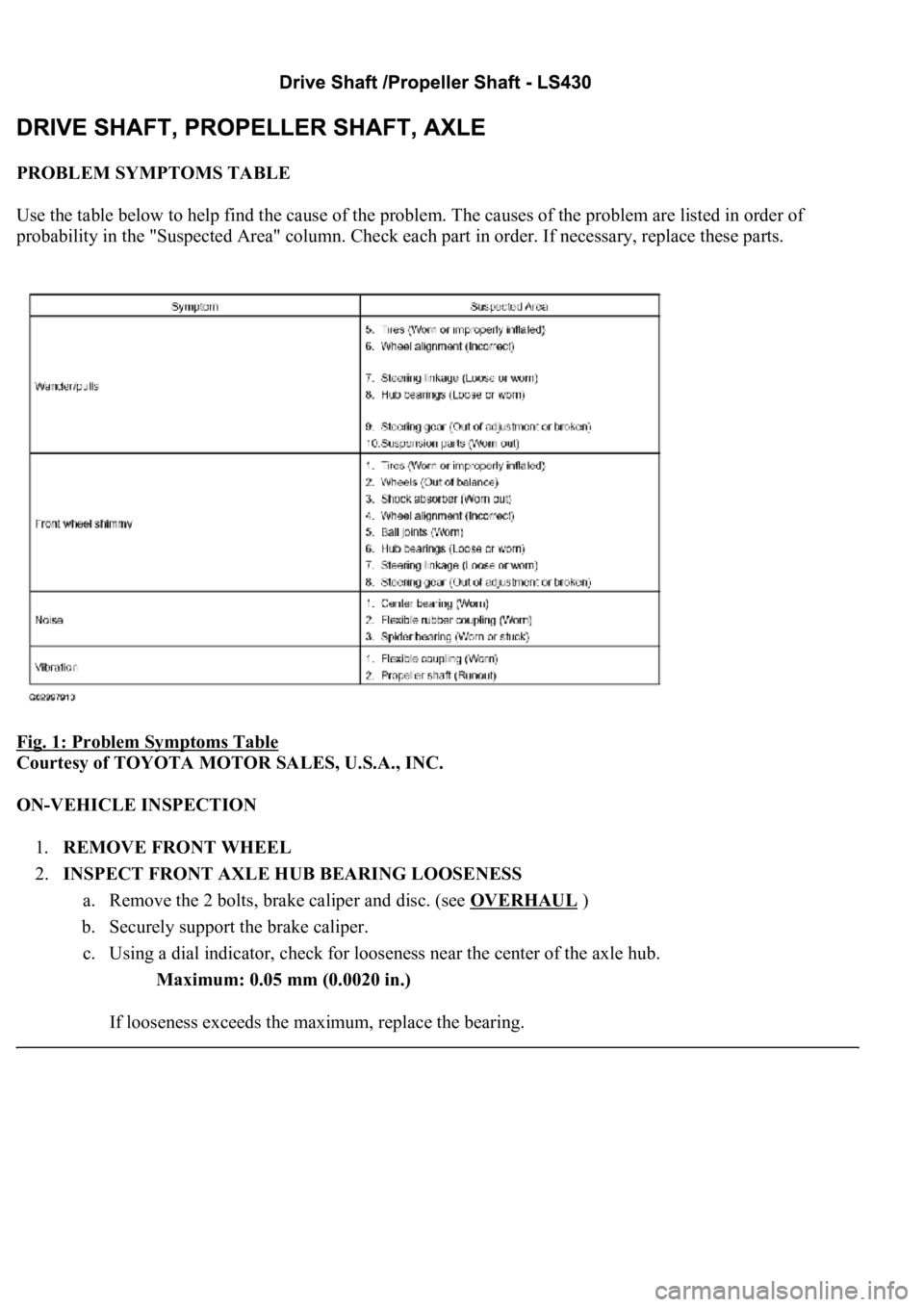

LEXUS LS430 2003 Factory Repair Manual PROBLEM SYMPTOMS TABLE Use the table below to help find the cause of the problem. The causes of the problem are listed in order of probability in the "Suspected Area" column. Check each part

Page 2306 of 4500

LEXUS LS430 2003 Factory Repair Manual d. Install the disc brake caliper and 2 bolts. Torque: 78 N.m (800 kgf.cm, 58 ft.lbf) Fig. 2: Inspecting Front Axle Hub Bearing Looseness Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 3.INSPECT

Page 2307 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 3: Inspecting Front Axle Hub Bearing Runout Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 4.REMOVE REAR WHEEL 5.INSPECT REAR AXLE HUB BEARING LOOSENESS a. Remove the 2 bolts, brake caliper an

Page 2308 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 4: Inspecting Rear Axle Hub Bearing Looseness Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 6.INSPECT REAR AXLE HUB BEARING RUNOUT a. Remove the 2 bolts, brake caliper and disc. (see OVERHAUL

Page 2309 of 4500

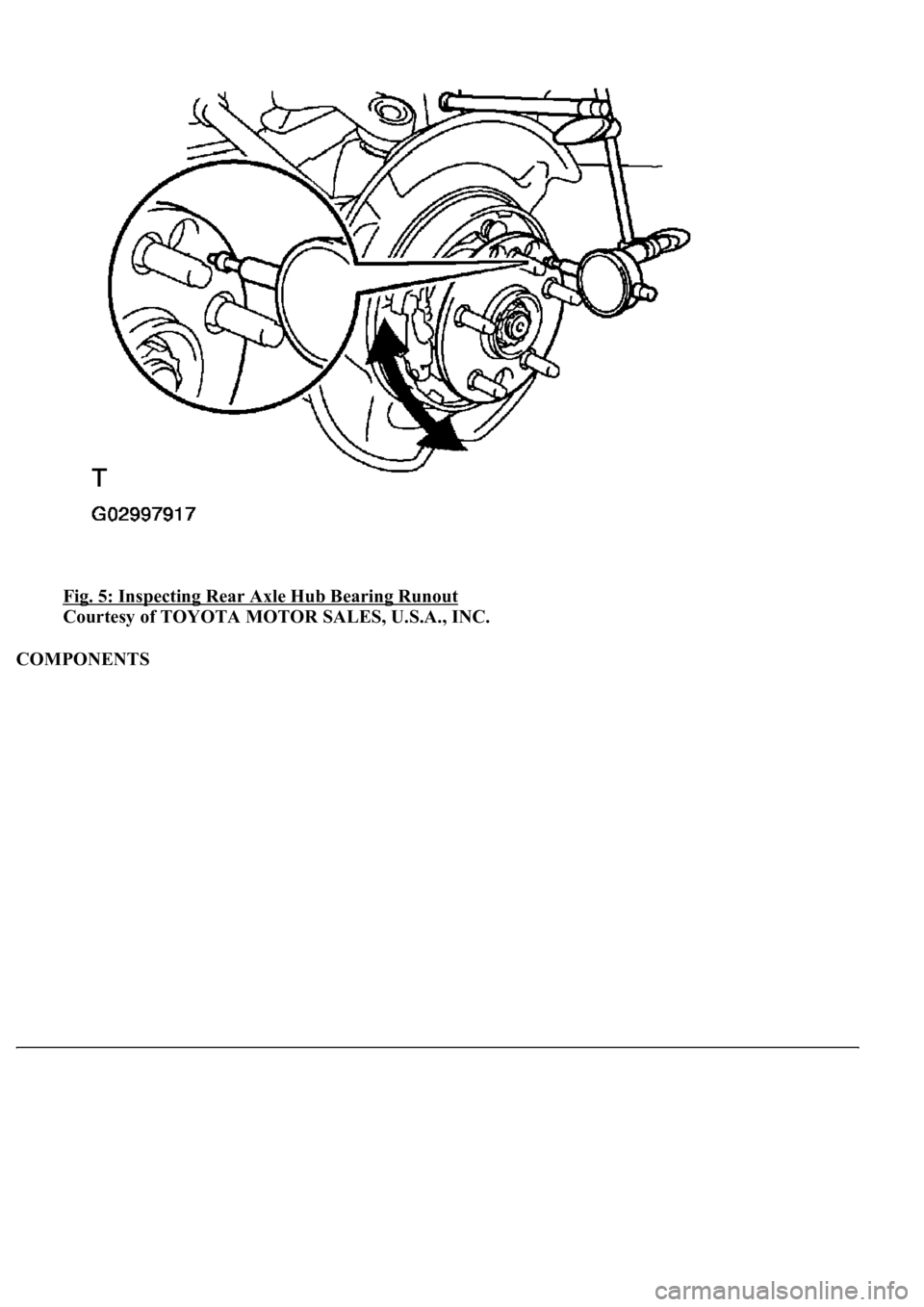

LEXUS LS430 2003 Factory Repair Manual Fig. 5: Inspecting Rear Axle Hub Bearing Runout Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. COMPONENTS

Page 2310 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 6: Identifying Drive Shaft/Propeller Shaft Components (1 Of 5) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 2311 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 7: Identifying Drive Shaft/Propeller Shaft Components (2 Of 5) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 2312 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 8: Identifying Drive Shaft/Propeller Shaft Components (3 Of 5) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
