Fig. 1: Identifying Hood Components
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
ADJUSTMENT
HINT:
Page 2986 of 4500
Centering bolts are used to mount the hood hinge and hood lock. The hood and hood lock cannot be
adjusted with the centering bolts on. Substitute the centering bolts with standard bolts (w/washers) when
making adjustments.
A bolt without a torque specification is shown in the standard bolt chart (see STANDARD BOLT ).
Fig. 2: Identifying Centering Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
1.INSPECT HOOD SUB-ASSY
a. Check that the clearance is within the standard range.
Page 2987 of 4500
Fig. 3: Inspecting Hood Sub-Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
AREA MEASUREMENT STANDARD:
2.ADJUST HOOD SUB-ASSY
a. Adjust the hood's position.
1. Loosen the 4 hinge bolts on the hood side.
2. Move the hood and adjust the clearance between the hood and front fender. Make sure that
the clearance is within the standard range.
Standard (A): 3.5 +/- 1.5 mm (0.138 +/- 0.059 in.)
3. Tighten the hood side hinge bolts after the adjustment.
Torque: 13 N.m (133 kgf.cm, 10 ft.lbf)
AreaMeasurement
A3.5 +/- 1.5 mm (0.138 +/- 0.059 in.)
Page 2988 of 4500

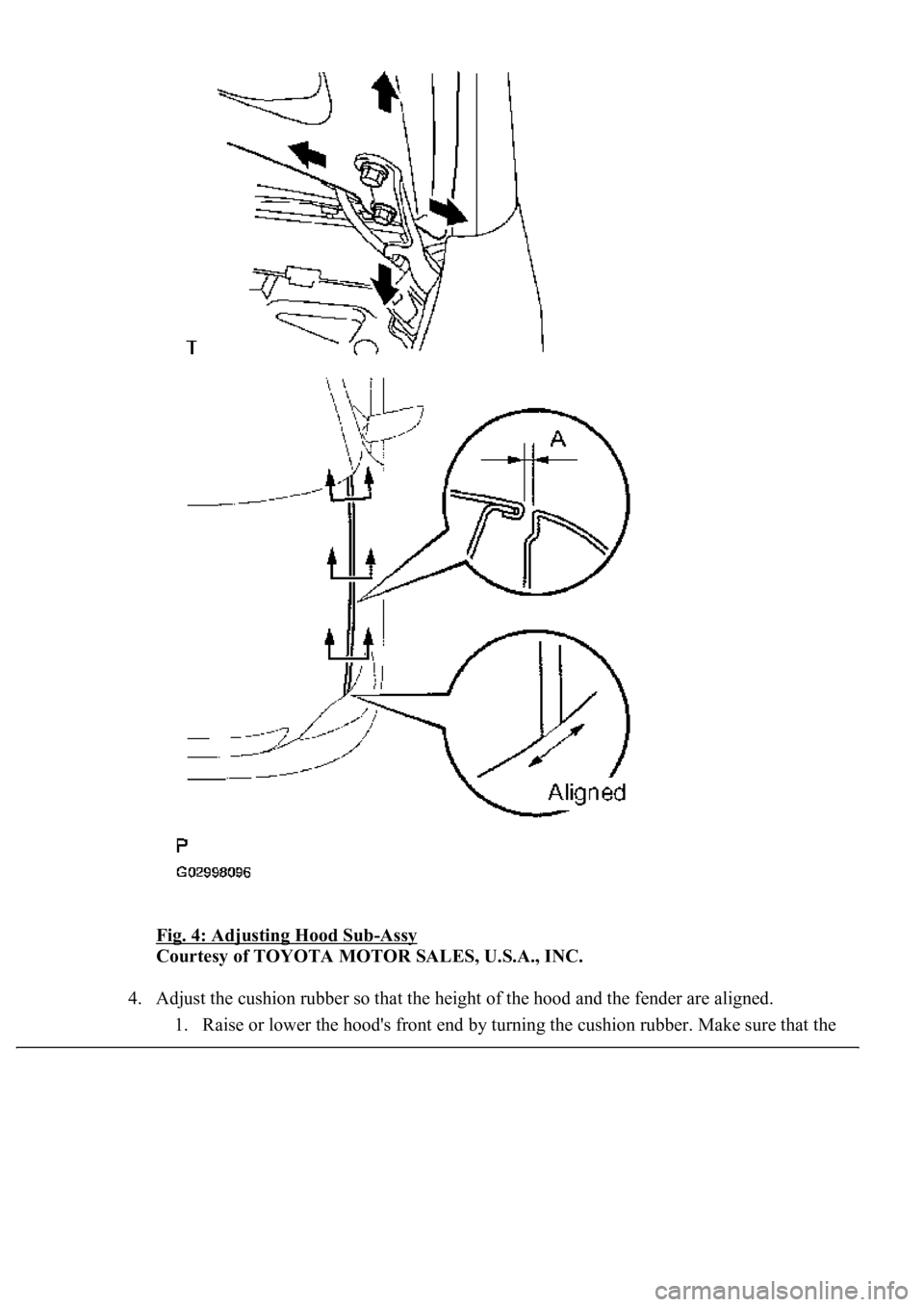

Fig. 4: Adjusting Hood Sub-Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
4. Adjust the cushion rubber so that the height of the hood and the fender are aligned.
1. Raise or lower the hood's front end b
y turning the cushion rubber. Make sure that the
Page 2989 of 4500
clearance is within the standard range.

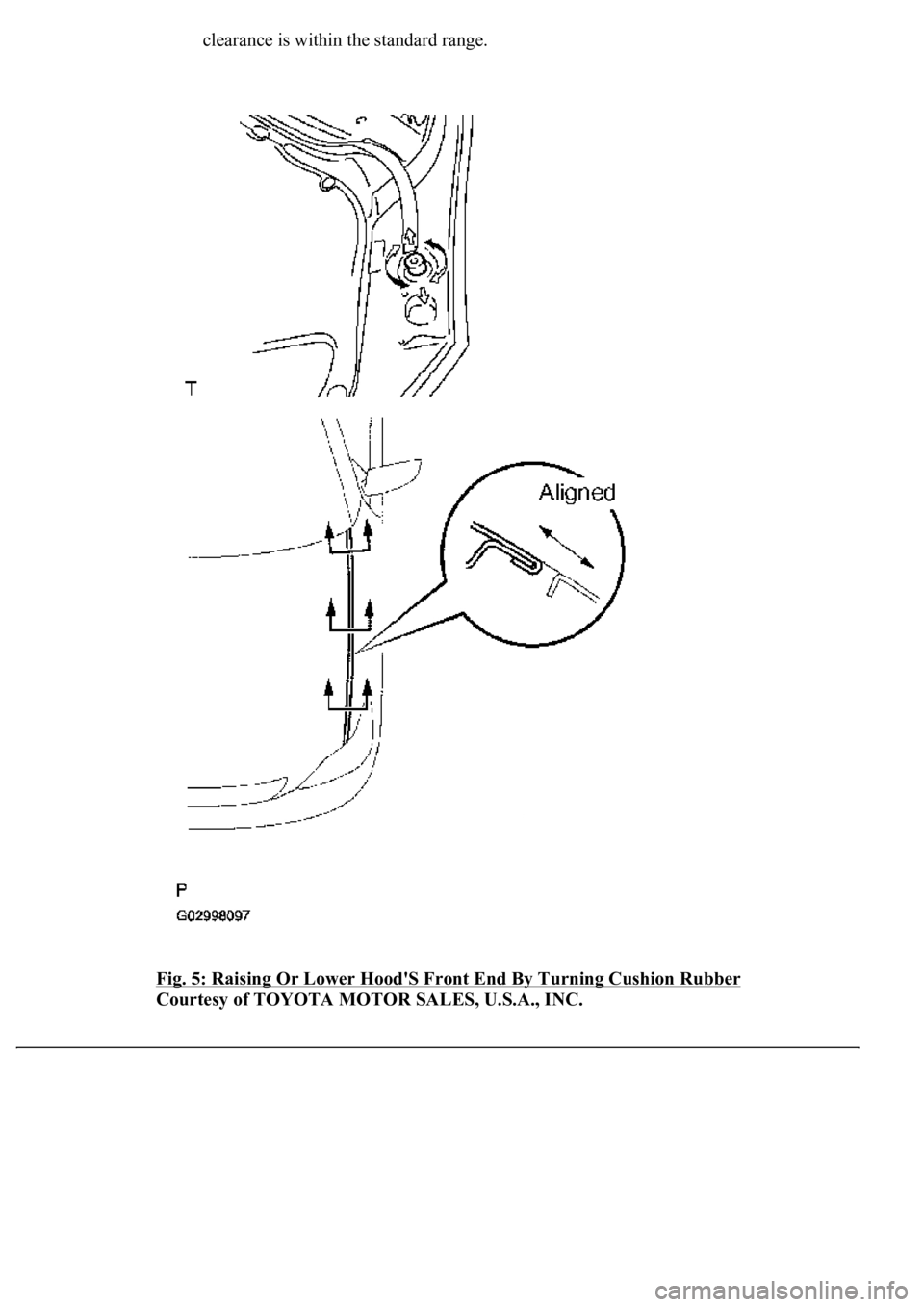

Fig. 5: Raising Or Lower Hood'S Front End By Turning Cushion Rubber
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 2990 of 4500
5. Adjust the hood lock.
1. w/ Pre-collision safety system:
Disconnect the cable from the battery negative (-) terminal.
2. w/ Pre-collision safety system:
Disconnect the connector.
3. w/ Pre-collision safety system:
Remove the 3 bolts and millimeter wave radar sensor.
Fig. 6: Removing Bolts And Millimeter Wave Radar Sensor
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
4. Remove the cap (see OVERHAUL
).
5. Loosen the 2 bolts and nut.
6. Ad
just the hood lock position so that the striker can enter it smoothly.
Page 2991 of 4500
7. Tighten the bolts and nut after the adjustment.
Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)
8. Install new cap.
Fig. 7: Installing New Cap
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
9. w/ Pre-collision safety system:
Install the millimeter wave radar sensor with the 3 bolts.
Torque: 5.5 N.m (56 kgf.cm, 49 in..lbf)
10. w/ Pre-collision safety system:
Connect the connector.
11. w/ Pre-collision safety system:
<002600520051005100480046005700030057004b00480003004600440045004f004800030057005200030057004b00480003004500440057005700480055005c000300510048004a00440057004c005900480003000b0010000c0003005700480055005000
4c00510044004f00110003[
12. w/ Pre-collision safet
y system:
Page 2992 of 4500
Preform the initialization (see INITIALIZATION).
13. w/ Pre-collision safety system:
Inspect the SRS warning lamp (see DIAGNOSIS SYSTEM
).
14. w/ Pre-collision safety system:
Adjust the millimeter wave radar sensor (see ADJUSTMENT
).
Fig. 8: Adjusting Millimeter Wave Radar Sensor
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OVERHAUL
HINT:
The installation procedures are the removal procedures in reverse order. However, only installation
procedures requiring additional information are included.
A bolt without a torque specification is shown in the standard bolt chart (see STANDARD BOLT).
