Page 3785 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 2: Removing And Installing Of Front Bumper Components (2 Of 2) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. REPLACEMENT HINT:

Page 3786 of 4500

LEXUS LS430 2003 Factory Repair Manual The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included. A bolt without a torque specification i

Page 3787 of 4500

LEXUS LS430 2003 Factory Repair Manual HINT: Use the same procedure described for the LH side. 3.REMOVE RADIATOR SIDE DEFLECTOR LH a. Remove the 3 clips and deflector. 4.REMOVE RADIATOR SIDE DEFLECTOR RH a. Remove the 3 clips and def

Page 3788 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 5: Removing Front Bumper Cover Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 6.REMOVE HEADLAMP CLEANER (FROM MOTOR TO JOINT) HOSE (W/ HEADLAMP CLEANER) a. Disconnect the cleaner hose joint fro

Page 3789 of 4500

LEXUS LS430 2003 Factory Repair Manual bumper reinforcement can be removed in step (9). Fig. 6: Removing Radiator Support Reinforcement Lower Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 9.REMOVE FRONT BUMPER REINFORCEMENT SUB-ASSY a.

Page 3790 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 7: Removing Fog Lamp Assy LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 12.REMOVE FOG LAMP ASSY RH HINT: Use the same procedures described for the LH side. 13.REMOVE HEADLAMP CLEANER WASHE

Page 3791 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 8: Removing Headlamp Cleaner Washer Nozzle (W/Headlamp Cleaner) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 14.REMOVE HEADLAMP WASHER ACTUATOR SUB-ASSY LH (W/ HEADLAMP CLEANER) a. Remove the

Page 3792 of 4500

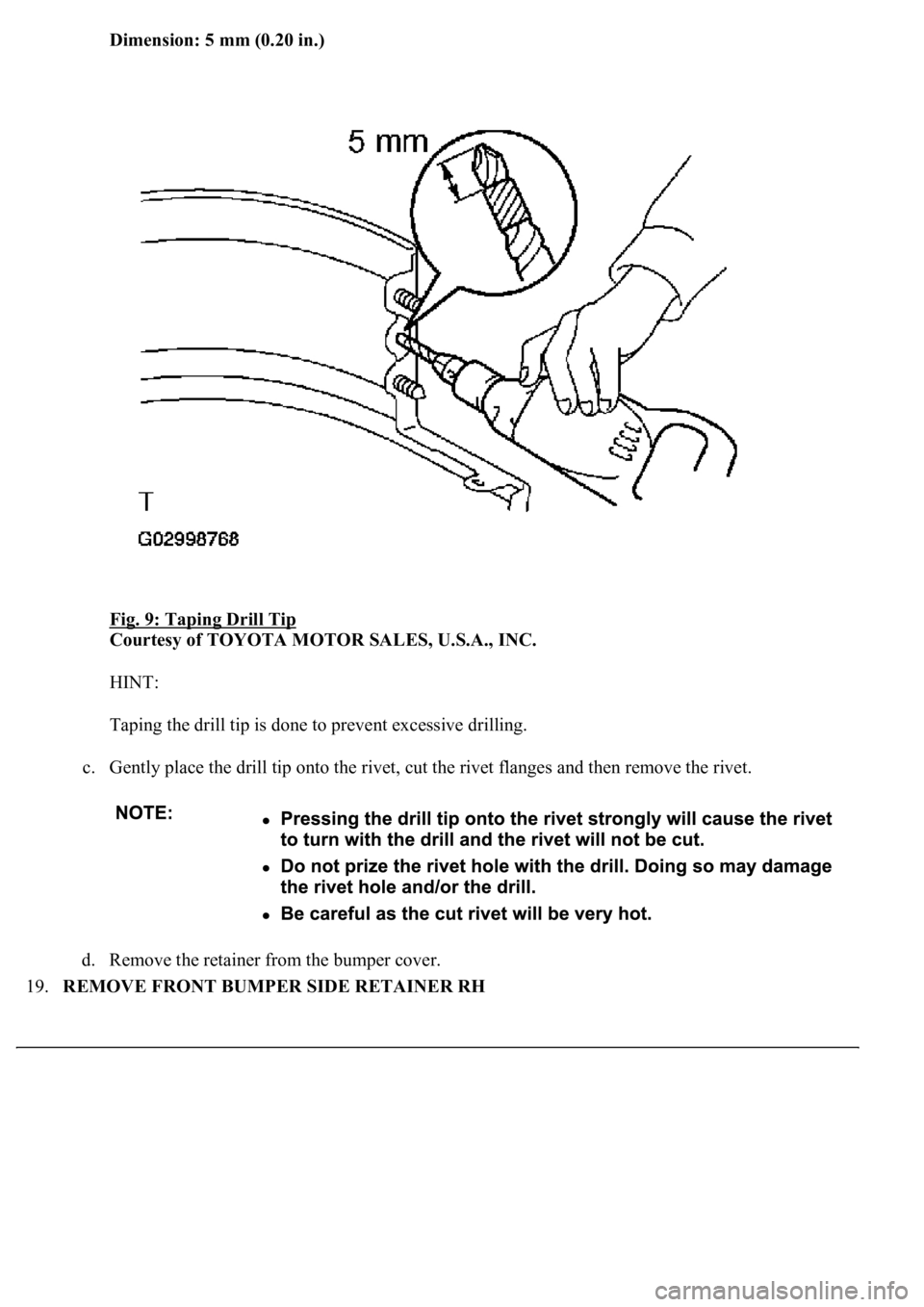

LEXUS LS430 2003 Factory Repair Manual Dimension: 5 mm (0.20 in.) Fig. 9: Taping Drill Tip Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. HINT: Taping the drill tip is done to prevent excessive drilling. c. Gently place the drill tip
