LEXUS LS430 2003 Factory Repair Manual Fig. 83: Identifying Steering Pad Switch Item Condition Chart Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE NG: REPLACE STEER

Page 802 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 84: Identifying Stereo Component Amplifier Assy - Stereo Component Tuner Wiring Diagram Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. INSPECTION PROCEDURE 1.CHECK HARNESS AND CONNECTOR (STEREO

Page 803 of 4500

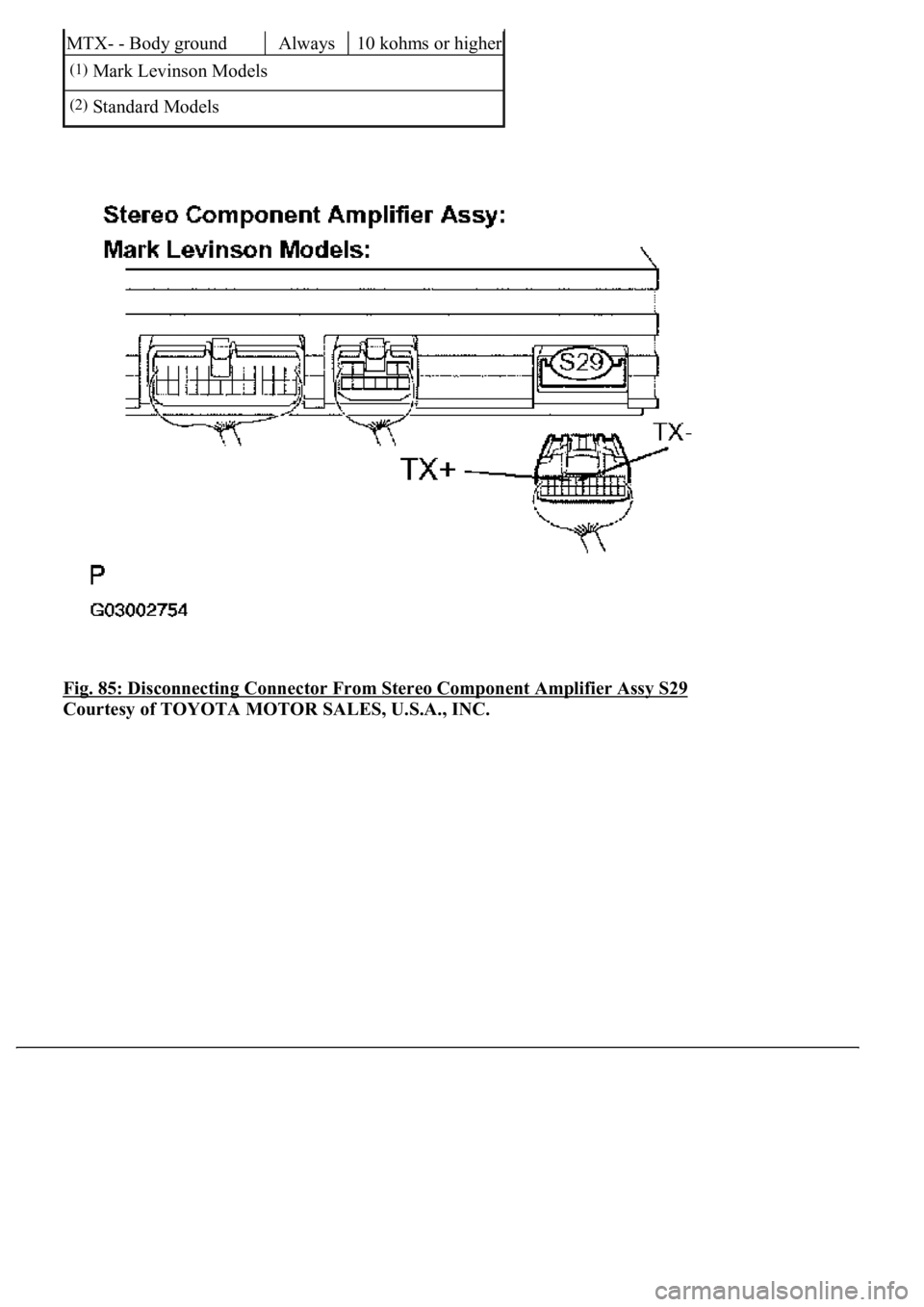

LEXUS LS430 2003 Factory Repair Manual Fig. 85: Disconnecting Connector From Stereo Component Amplifier Assy S29 Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. MTX- - Body groundAlways10 kohms or higher (1)Mark Levinson Models (2)Standard M

Page 804 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 86: Identifying Stereo Amplifier Connector Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 805 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 87: Identifying Stereo Components Connector Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN DIAGNOSTIC

Page 806 of 4500

LEXUS LS430 2003 Factory Repair Manual In AVC-LAN, radio receiver assy becomes the communication master, and the radio receiver assy has enough resistance necessary for transmitting the communication. WIRING DIAGRAM Fig. 88: Identifying

Page 807 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 89: Identifying Stereo Component Amplifier Assy - Audio And Rear A/C Control SW Connector Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 808 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 90: Identifying Stereo Components Amplifier Assy Connector Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
