Page 3049 of 4500

LEXUS LS430 2003 Factory Repair Manual Torque: 7.0 N.m (71 kgf.cm, 62 in..lbf)

Page 3050 of 4500

LEXUS LS430 2003 Factory Repair Manual

Page 3051 of 4500

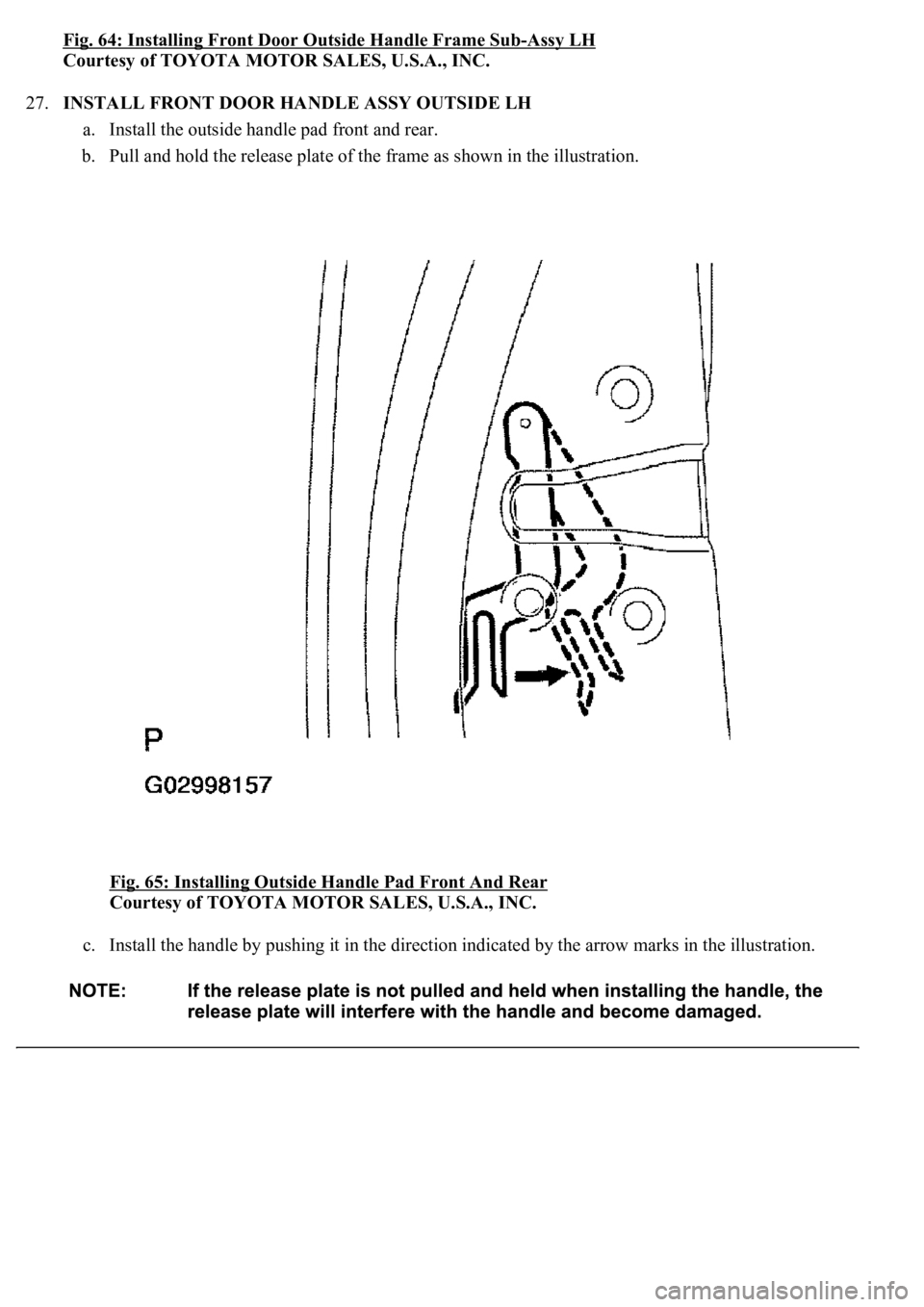

LEXUS LS430 2003 Factory Repair Manual Fig. 64: Installing Front Door Outside Handle Frame Sub-Assy LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 27.INSTALL FRONT DOOR HANDLE ASSY OUTSIDE LH a. Install the outside handle pad front and

Page 3052 of 4500

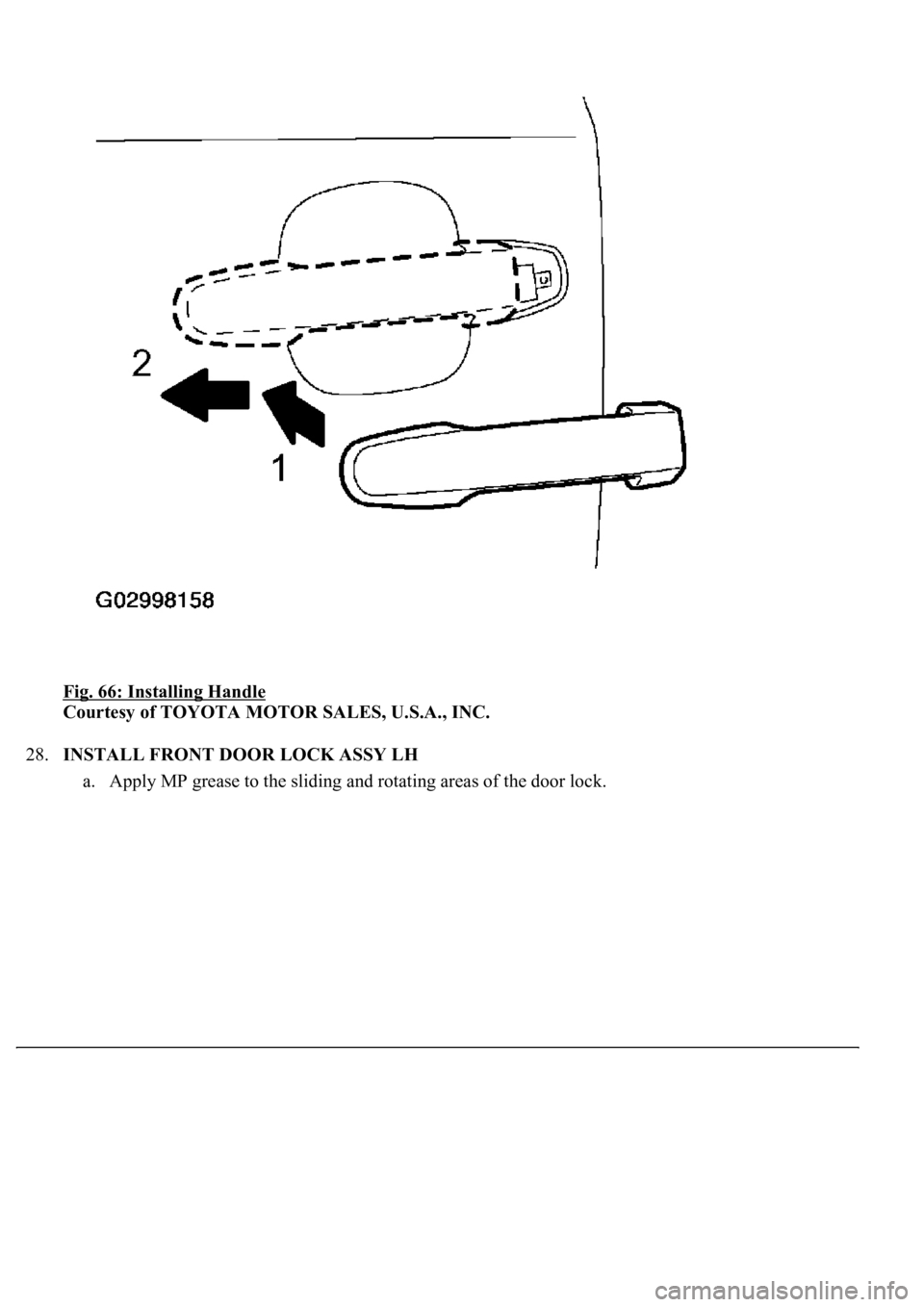

LEXUS LS430 2003 Factory Repair Manual Fig. 66: Installing Handle Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 28.INSTALL FRONT DOOR LOCK ASSY LH a. Appl y MP grease to the sliding and rotating areas of the door lock.

Page 3053 of 4500

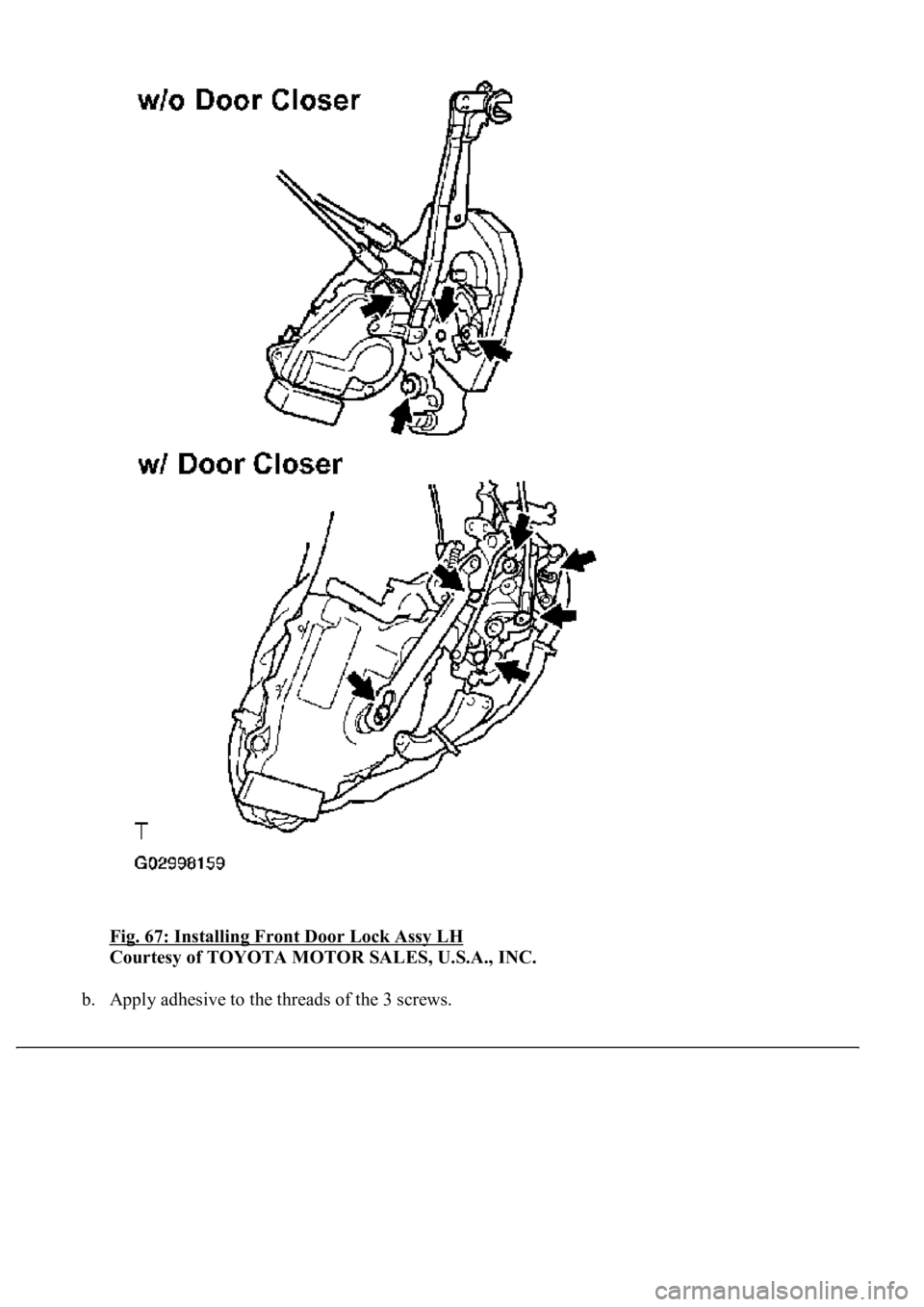

LEXUS LS430 2003 Factory Repair Manual Fig. 67: Installing Front Door Lock Assy LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Apply adhesive to the threads of the 3 screws.

Page 3054 of 4500

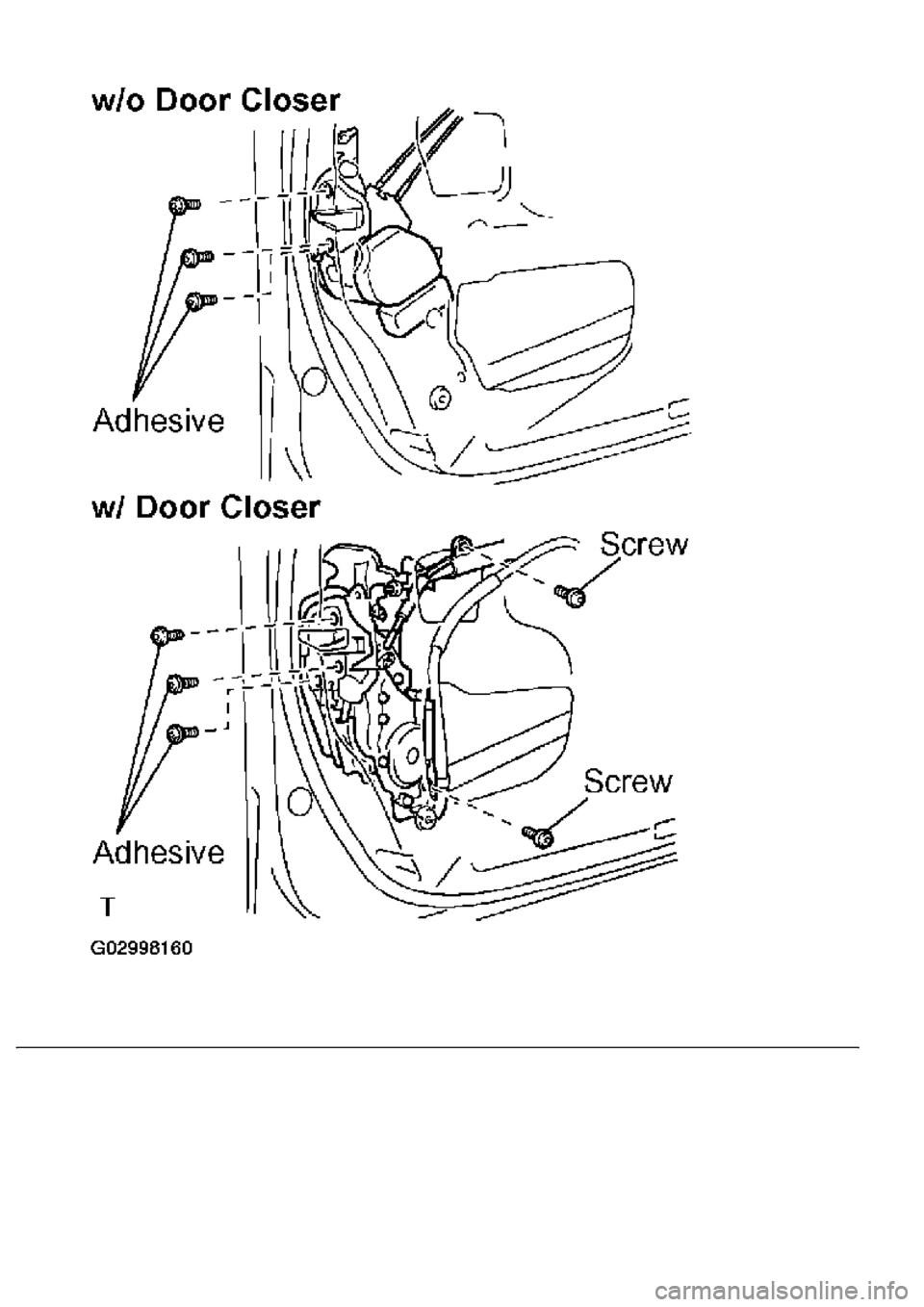

LEXUS LS430 2003 Factory Repair Manual Adhesive: Part No. 08833-00070, THREE BOND 1324 or equivalent c. Using a T30 Torx° wrench, install the door lock with the 3 screws. Torque: 5.5 N.m (56 kgf.cm, 49 in..lbf) d. w/ Door closer:

Page 3055 of 4500

LEXUS LS430 2003 Factory Repair Manual

Page 3056 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 68: Connecting Door Lock Connector Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 29.INSTALL DOOR OUTSIDE HANDLE COVER ASSY a. Using a T30 Torx° wrench, install the outside handle cover with the
