Page 2593 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 64: Signal Waveform Graph Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. OK: REPLACE CRUISE CONTROL ECU ASSY (SEE REPLACEMENT ) CIRCUIT DESCRIPTION The millimeter wave radar sensor and cruise

Page 2594 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 65: DTC U1102 Problem Symptom Diagnostic Chart Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. WIRING DIAGRAM Fig. 66: Wiring Diagram - Lost Communication With Radar Sensor Courtesy of TOYOTA M

Page 2595 of 4500

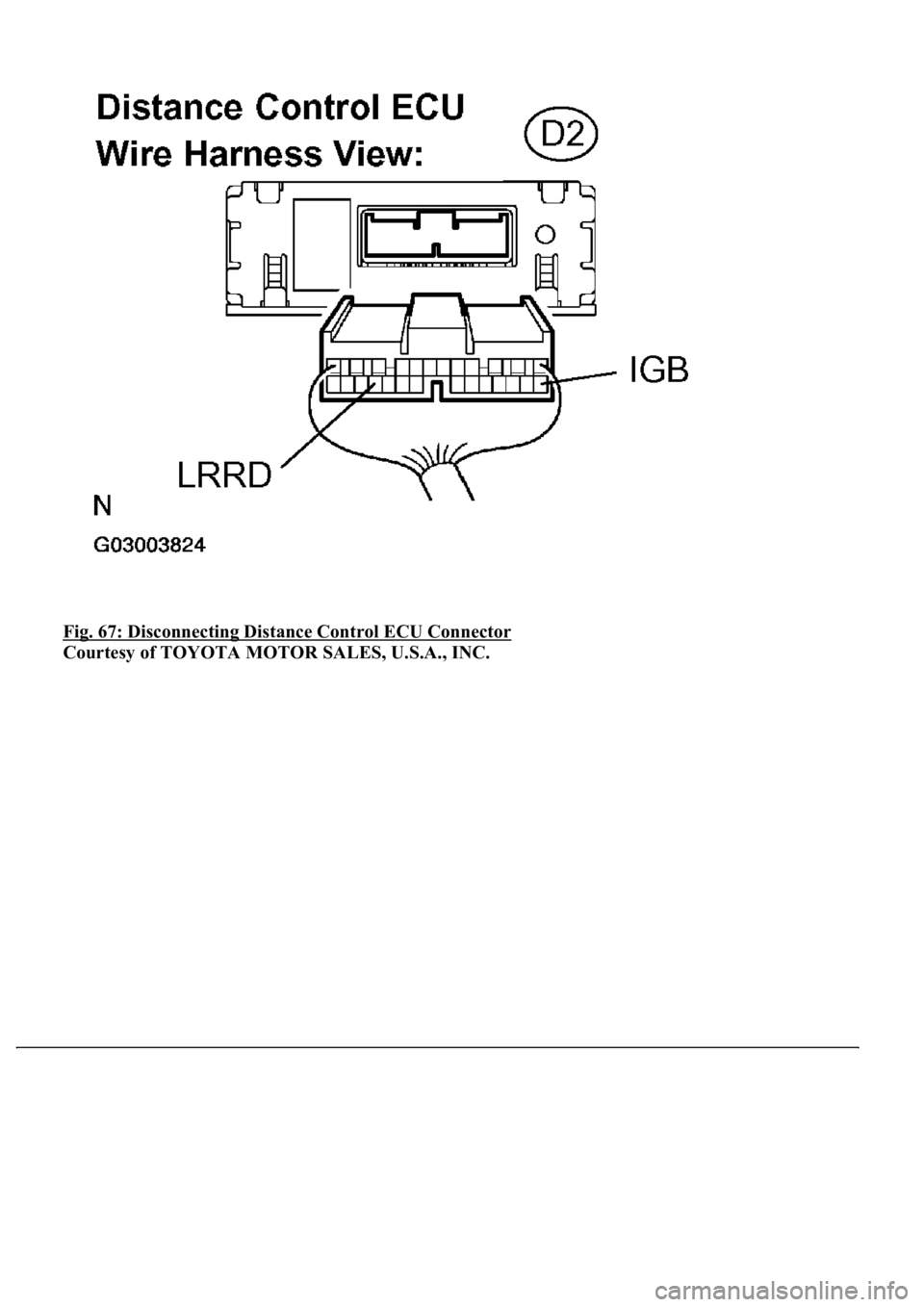

LEXUS LS430 2003 Factory Repair Manual Fig. 67: Disconnecting Distance Control ECU Connector Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 2596 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 68: Disconnecting Millimeter Wave Radar Sensor Connector Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPAIR OR REPLACE WIRE HARNESS OR CONNECTOR OK: Go To Next Step. 2.INSPECT CRUISE C

Page 2597 of 4500

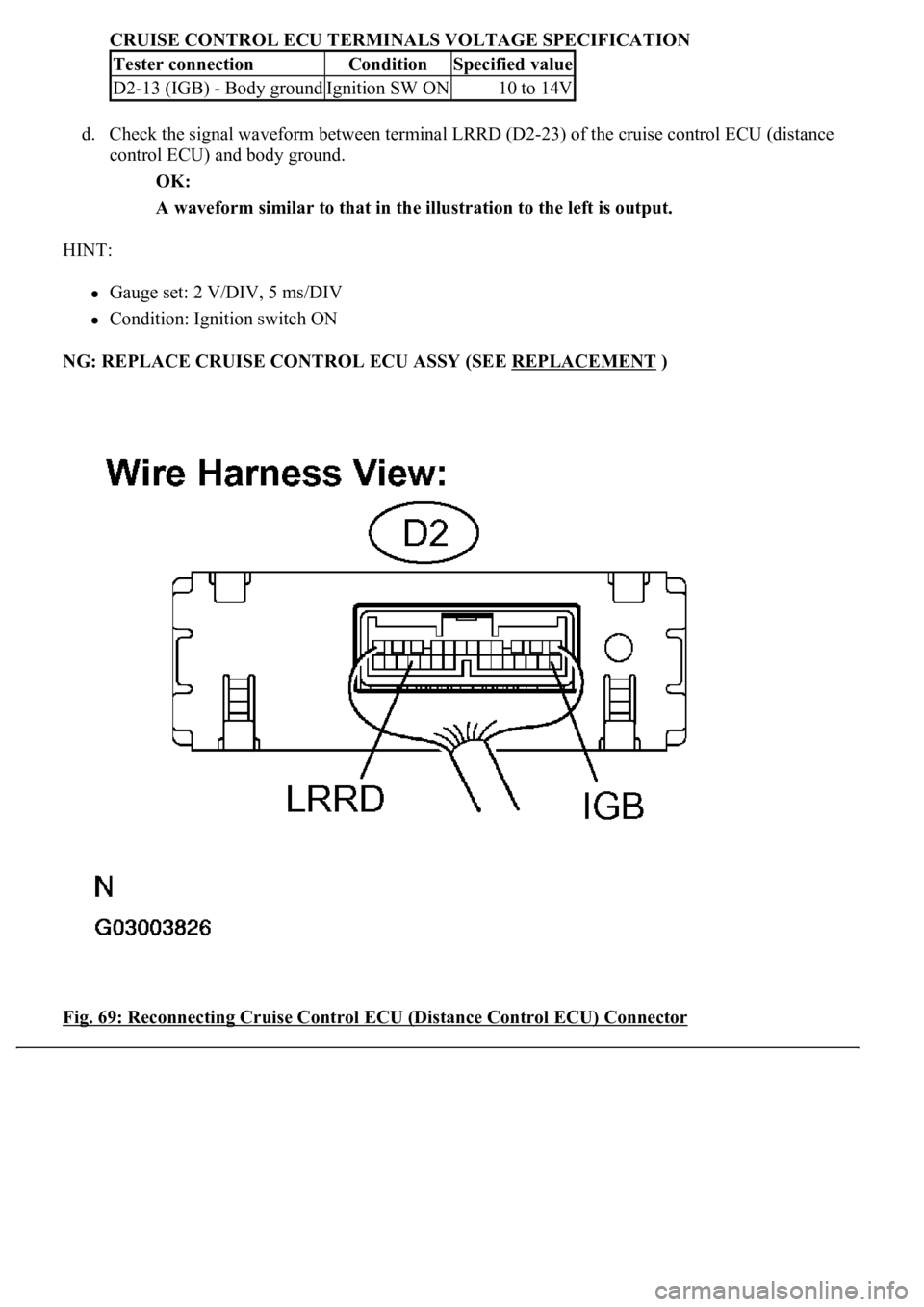

LEXUS LS430 2003 Factory Repair Manual CRUISE CONTROL ECU TERMINALS VOLTAGE SPECIFICATION d. Check the signal waveform between terminal LRRD (D2-23) of the cruise control ECU (distance control ECU) and body ground. OK: A waveform simi

Page 2598 of 4500

LEXUS LS430 2003 Factory Repair Manual Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. Fig. 70: Signal Waveform Graph Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. OK: REPLACE MILLIMETER WAVE RADAR SENSOR ASSY (SEE ADJUSTMENT ) CIRCUIT D

Page 2599 of 4500

LEXUS LS430 2003 Factory Repair Manual Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. HINT: If the beam axis deviates to the distance 4.0 to 6.0 m, upper/lower side +/-2° or more and/or the right/left side +/-4° or more, this DTC is dete

Page 2600 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 73: DTC U0123 Problem Symptom Diagnostic Chart Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. INSPECTION PROCEDURE HINT: This circuit uses CAN for communication. Therefore, if there are any mal
