Page 1930 of 4500
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

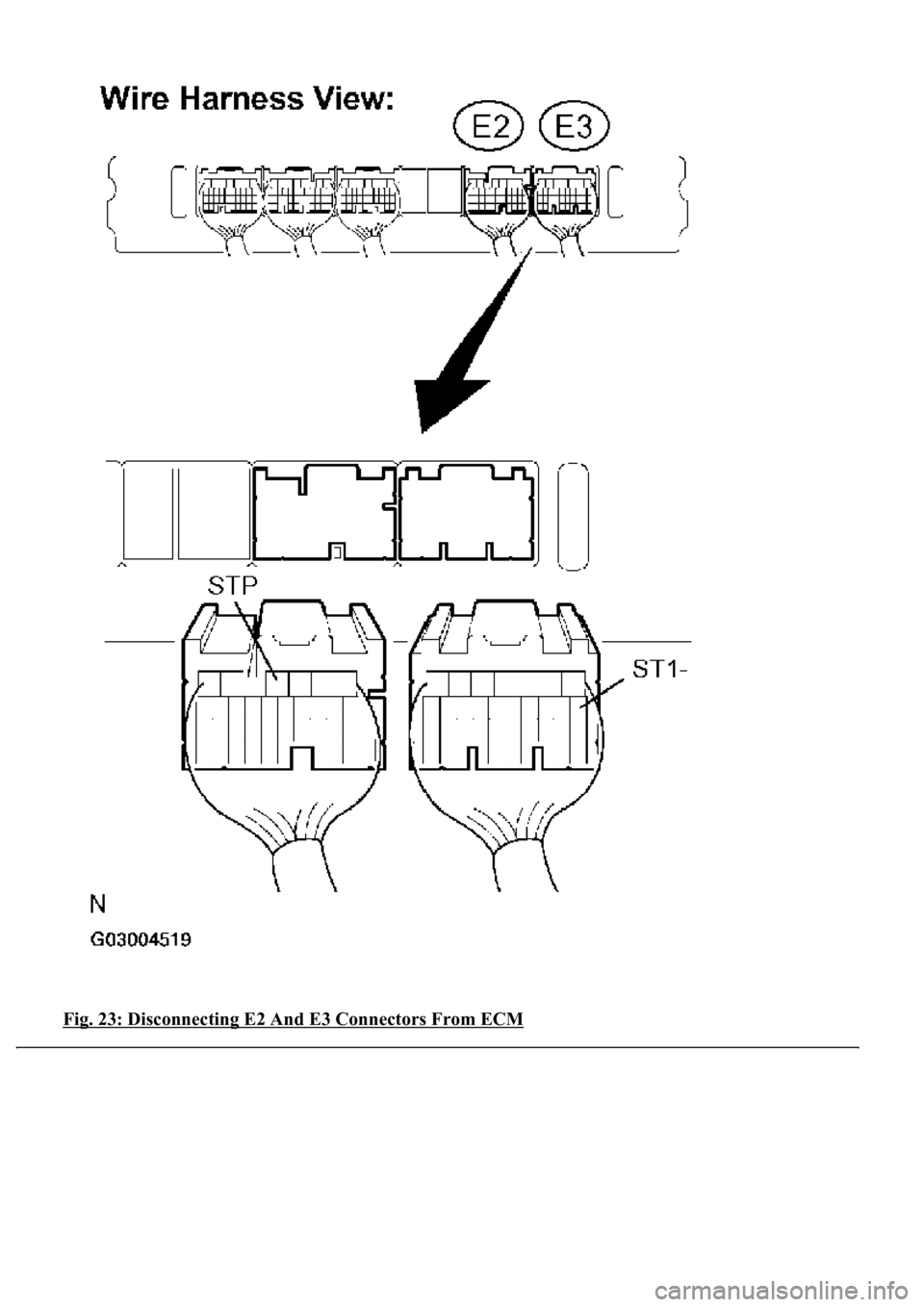

A: REPLACE ECM (SEE REPLACEMENT
)
5.INSPECT DRIVER SIDE J/B
a. Measure the voltage according to the value(s) in the table below.
Fig. 24: Identifying Driver Side Junction Block ECU Connectors
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
DRIVER SIDE JUNCTION BLOCK ECU TERMINALS VOLTAGE SPECIFICATION
NG: Go to step 6
OK: REPAIR OR REPLACE HARNESS OR CONNECTOR (DRIVER SIDE J/B ECU - ECM)
6.INSPECT DRIVER SIDE J/B
Pedal conditionTester connectionSpecification
DepressedD3-12 (STPO) - Body ground10 to 14 V
ReleasedD3-12 (STPO) - Body groundBelow 1 V
Page 1931 of 4500
a. Measure the voltage according to the value(s) in the table below.
Fig. 25: Identifying Driver Side Junction Block ECU Connectors
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
DRIVER SIDE JUNCTION BLOCK ECU TERMINALS VOLTAGE SPECIFICATION
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (STOP LAMP SWITCH - DRIVER
SIDE J/B ECU)
OK: REPLACE DRIVER SIDE J/B
CIRCUIT DESCRIPTION
Pedal conditionTester connectionSpecification
DepressedD3-12 (STPI) - Body ground10 to 14 V
ReleasedD3-12 (STPI) - Body groundBelow 1 V
Page 1932 of 4500

This DTC indicates the internal abnormalities of the ECM.
DTC P0607 PROBLEM SYMPTOM DIAGNOSTIC
HINT:
The ECM receives signals from each sensor to control all the functions of the cruise control with the
microcomputer.
When a trouble code is detected, fail-safe remains on until the ignition switch is turned off.
INSPECTION PROCEDURE
1.REPLACE ECM (SEE REPLACEMENT
)
CIRCUIT DESCRIPTION
The cruise control main switch operates seven functions: SET, COAST, TAP-DOWN, RESUME, ACCEL,
TAP-UP, and CANCEL. The SET, TAP-DOWN and COAST functions, and the RESUME, TAP-UP and
ACCEL functions are operated with the same switch respectively. The cruise control main switch is an
automatic return type switch which turns on only while operating it in each arrow direction and turns off after
releasing it. The internal contact point of the cruise control main switch is turned on with the switch operation.
Then the ECM reads the resistance value that has been changed by the switch operation to control SET,
COAST, RESUME, ACCEL and CANCEL.
WIRING DIAGRAM
DTC No.Detection ItemTrouble Area
P0607The ECM has a supervisory CPU and a control ECU inside. When
each input STP signal is different for 0.15 sec. or more, this trouble
code is output. This trouble code is output after 0.4 sec. has passed
from the time the cruise cancel input signal (STP input) is input into
the ECM.ECM
Page 1933 of 4500
Fig. 26: Wiring Diagram - Cruise Control Switch Circuit
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
1.READ VALUE ON HAND-HELD TESTER
a. Connect the hand-held tester to the DLC3.
b. Turn the ignition switch to the ON position.
c. Accordin
g to the display on the tester, read the "DATA LIST".
Page 1934 of 4500
Fig. 27: Identifying Cruise Control Main Switch Positions
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
HAND-HELD TESTER VALUE (ECM)
OK: When cruise control main switch operation is performed the standard values will be above.
RESULT DETAIL
Item
Measurement Item /
Display (Range)
Normal ConditionDiagnostic Note
MAIN SW (MAIN)Main SW signal (Main
CPU) / ON or OFFON: Main SW ON (Pushed on)
OFF Main SW OFF (Pushed off)-
MAIN SW (SUB)Main SW signal (Main
CPU) / ON or OFFON: Main SW ON (Pushed on)
OFF Main SW OFF (Pushed off)-
CANCEL SWCANCEL SW signal / ON or
OFFON: CANCEL SW ON OFF:
CANCEL SW OFF-
SET/COAST SWSET/COAST SW signal / ON
or OFFON: SET/COAST SW ON OFF:
SET/COAST SW OFF-
RES/ACC SWRES/ACC SW signal / ON or
OFFON: RES/ACC SW ON OFF:
RES/ACC OFF-
Page 1935 of 4500

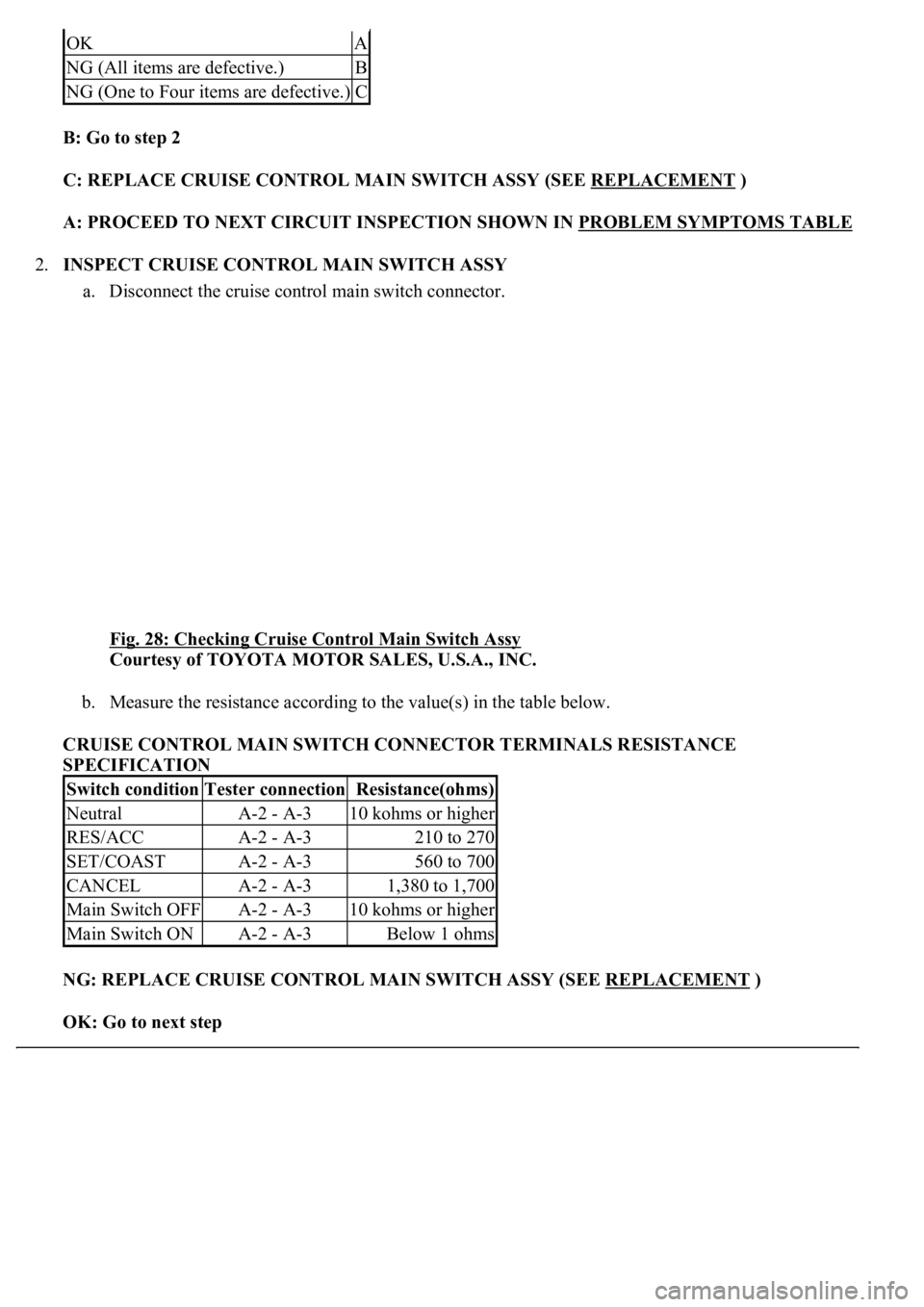

B: Go to step 2
C: REPLACE CRUISE CONTROL MAIN SWITCH ASSY (SEE REPLACEMENT
)
A: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
2.INSPECT CRUISE CONTROL MAIN SWITCH ASSY
a. Disconnect the cruise control main switch connector.
Fig. 28: Checking Cruise Control Main Switch Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Measure the resistance according to the value(s) in the table below.
CRUISE CONTROL MAIN SWITCH CONNECTOR TERMINALS RESISTANCE
SPECIFICATION
NG: REPLACE CRUISE CONTROL MAIN SWITCH ASSY (SEE REPLACEMENT
)
OK: Go to next step
OKA
NG (All items are defective.)B
NG (One to Four items are defective.)C
Switch conditionTester connectionResistance(ohms)
NeutralA-2 - A-310 kohms or higher
RES/ACCA-2 - A-3210 to 270
SET/COASTA-2 - A-3560 to 700
CANCELA-2 - A-31,380 to 1,700
Main Switch OFFA-2 - A-310 kohms or higher
Main Switch ONA-2 - A-3Below 1 ohms
Page 1936 of 4500

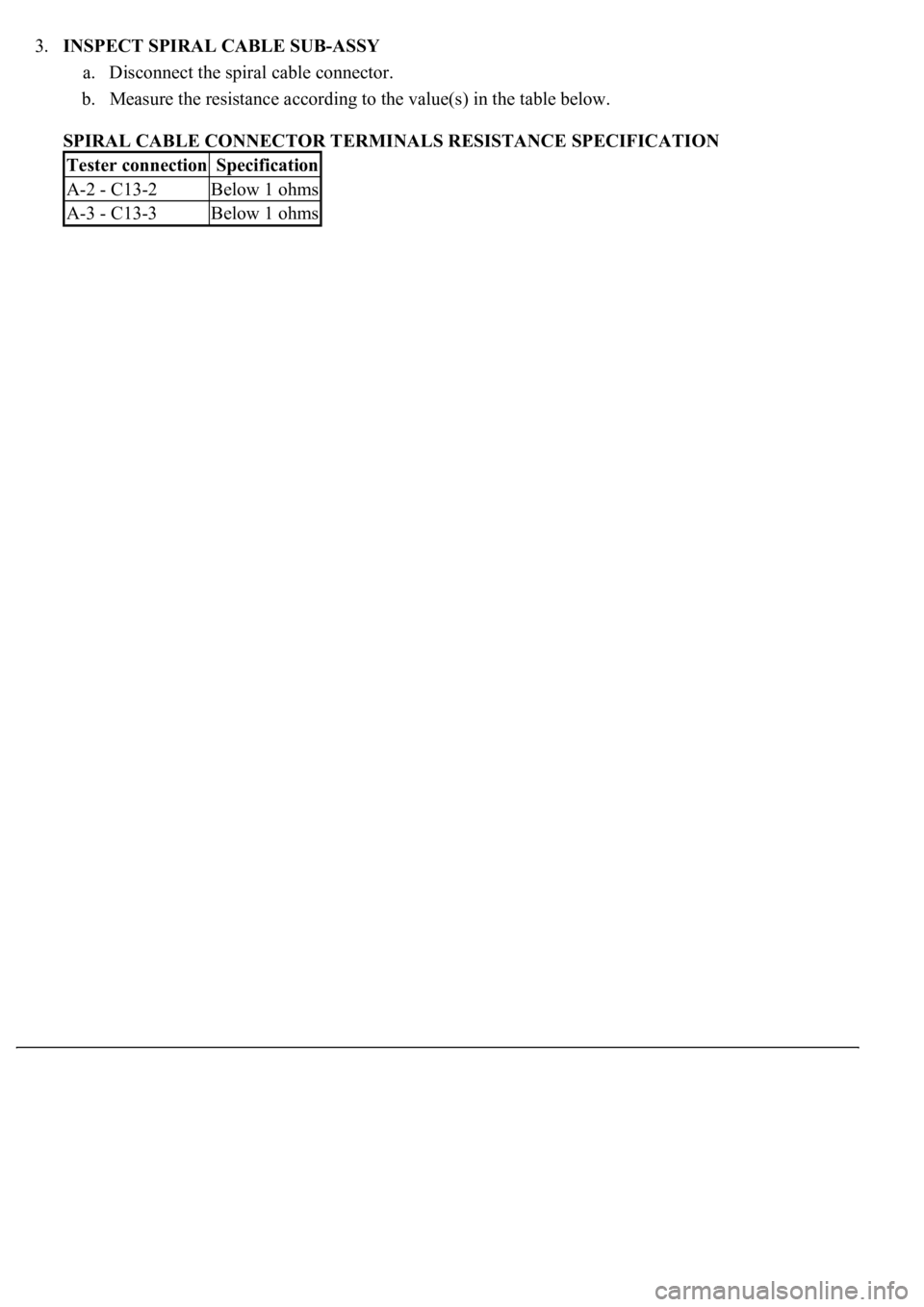

3.INSPECT SPIRAL CABLE SUB-ASSY
a. Disconnect the spiral cable connector.
b. Measure the resistance according to the value(s) in the table below.
SPIRAL CABLE CONNECTOR TERMINALS RESISTANCE SPECIFICATION
Tester connectionSpecification
A-2 - C13-2Below 1 ohms
A-3 - C13-3Below 1 ohms
