1.REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (See step 31 on
REPLACEMENT
)
2.REMOVE INSTRUMENT PANEL CUP HOLDER ASSY (See REPLACEMENT
)
3.REMOVE CONSOLE UPPER REAR PANEL SUB-ASSY (See step 39 on REPLACEMENT
)
4.REMOVE CONSOLE BOX CARPET (See step 40 on REPLACEMENT
)
5.REMOVE REAR CONSOLE ARMREST ASSY (See step 41 on REPLACEMENT
)
6.REMOVE POWER OUTLET SOCKET ASSY CTR
a. Turn the socket counterclockwise as shown in the illustration.
b. Disengage the claw between the socket and the socket cover, and push out the socket.
c. Align the socket with the notch on the socket cover, and remove the socket assy.
Fig. 58: Removing Power Outlet Socket Assy CTR
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
7.INSTALL POWER OUTLET SOCKET ASSY CTR
a. Align the socket with the notch on the socket cover, push in the socket assy as hard as possible to
install it.
REPAIR
Page 698 of 4500
1.GLASS PRINTED ANTENNA INSPECTION PROCEDURE

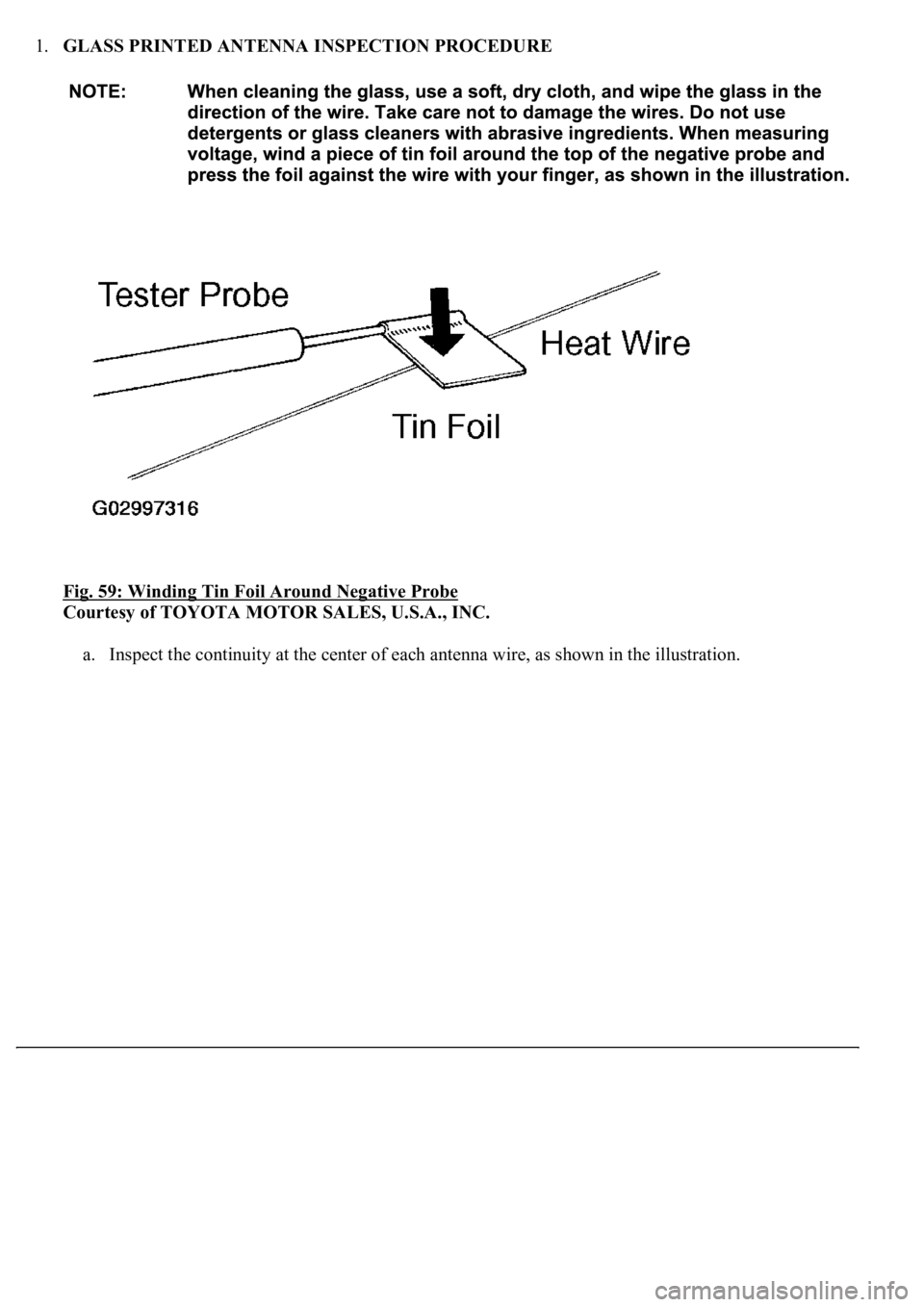

Fig. 59: Winding Tin Foil Around Negative Probe
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Inspect the continuity at the center of each antenna wire, as shown in the illustration.
Page 699 of 4500

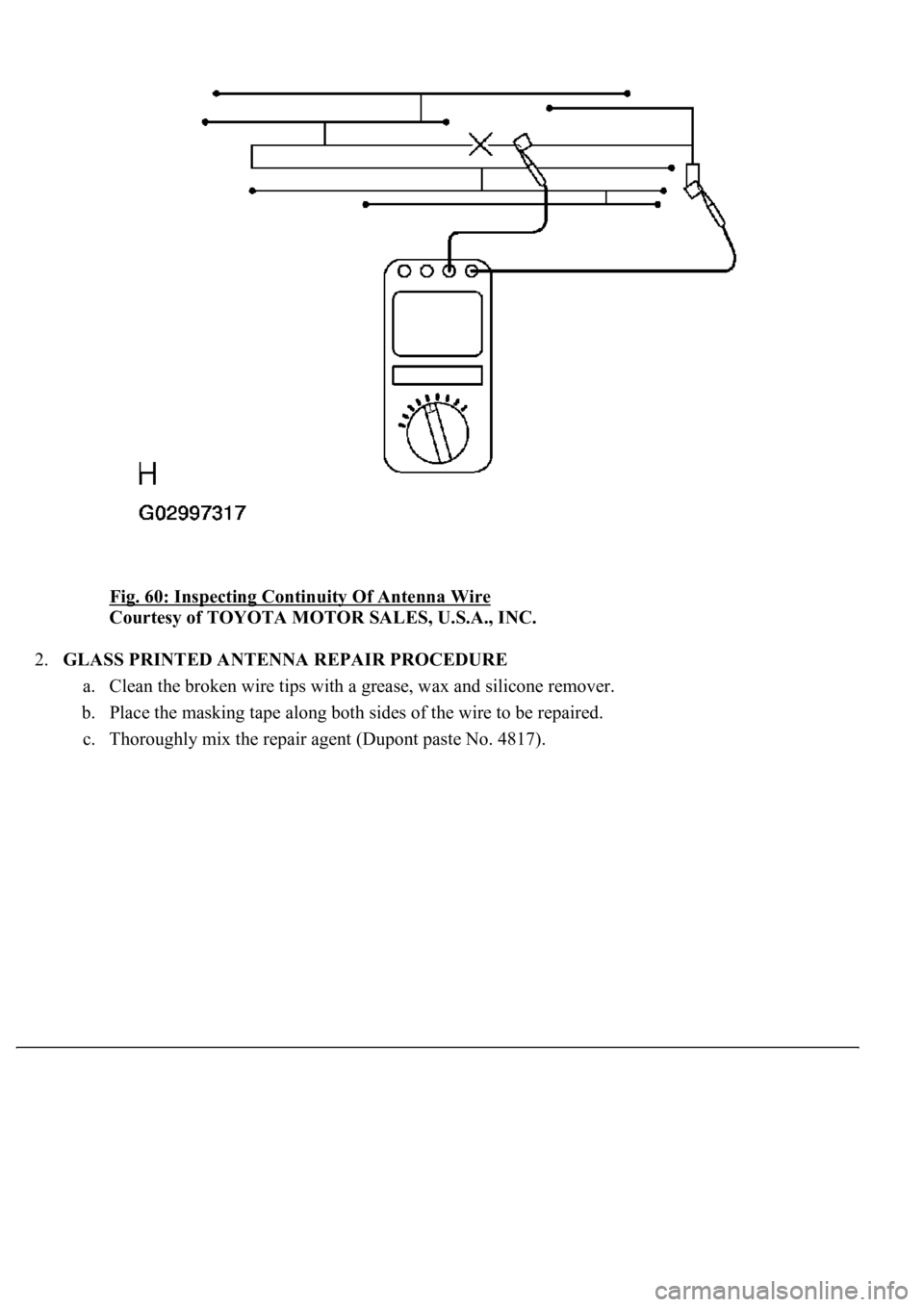

Fig. 60: Inspecting Continuity Of Antenna Wire
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2.GLASS PRINTED ANTENNA REPAIR PROCEDURE
a. Clean the broken wire tips with a grease, wax and silicone remover.
b. Place the masking tape along both sides of the wire to be repaired.
c. Thorou
ghly mix the repair agent (Dupont paste No. 4817).
Page 700 of 4500

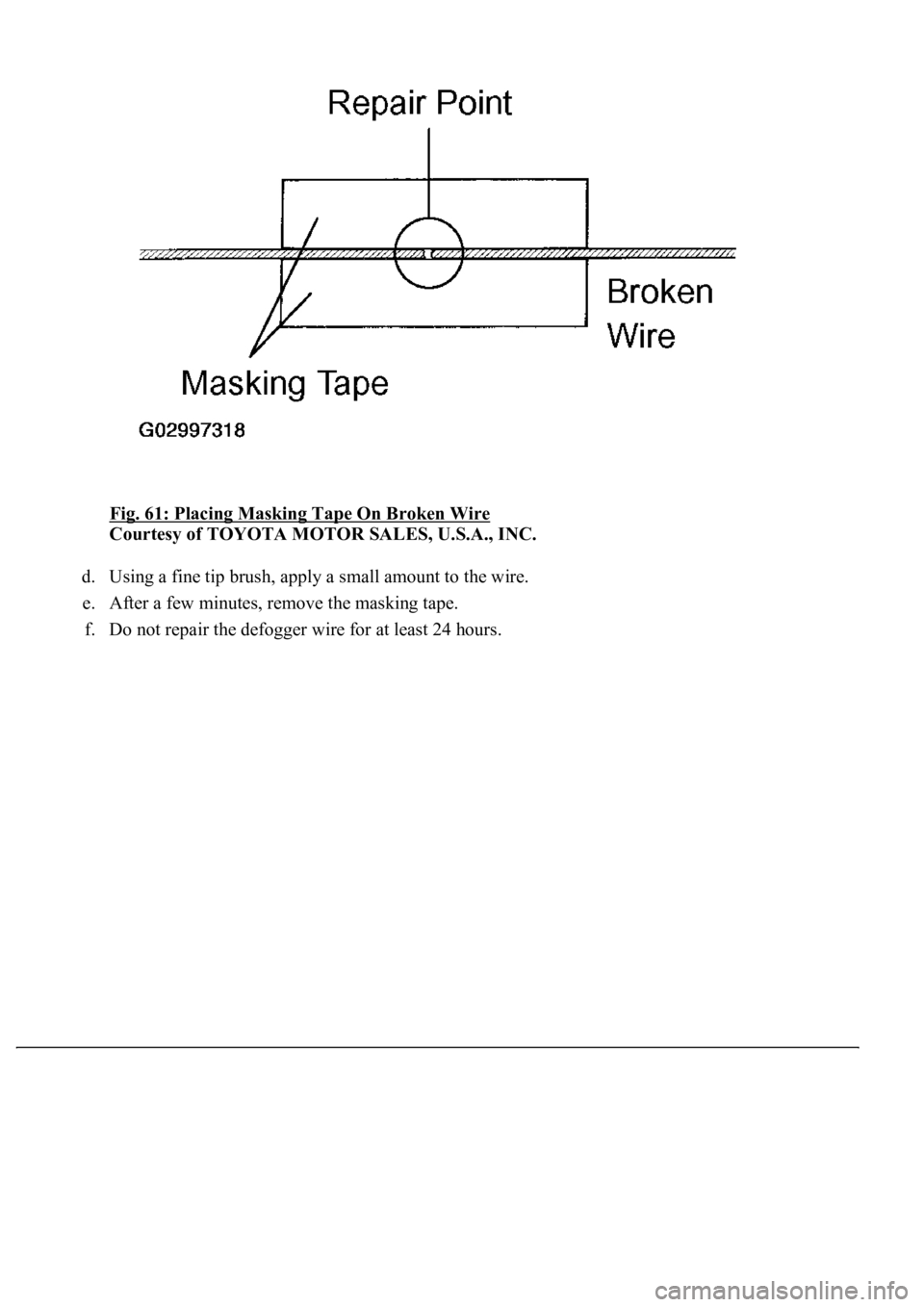

Fig. 61: Placing Masking Tape On Broken Wire
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
d. Using a fine tip brush, apply a small amount to the wire.
e. After a few minutes, remove the masking tape.
f. Do not repair the defo
gger wire for at least 24 hours.
Page 701 of 4500

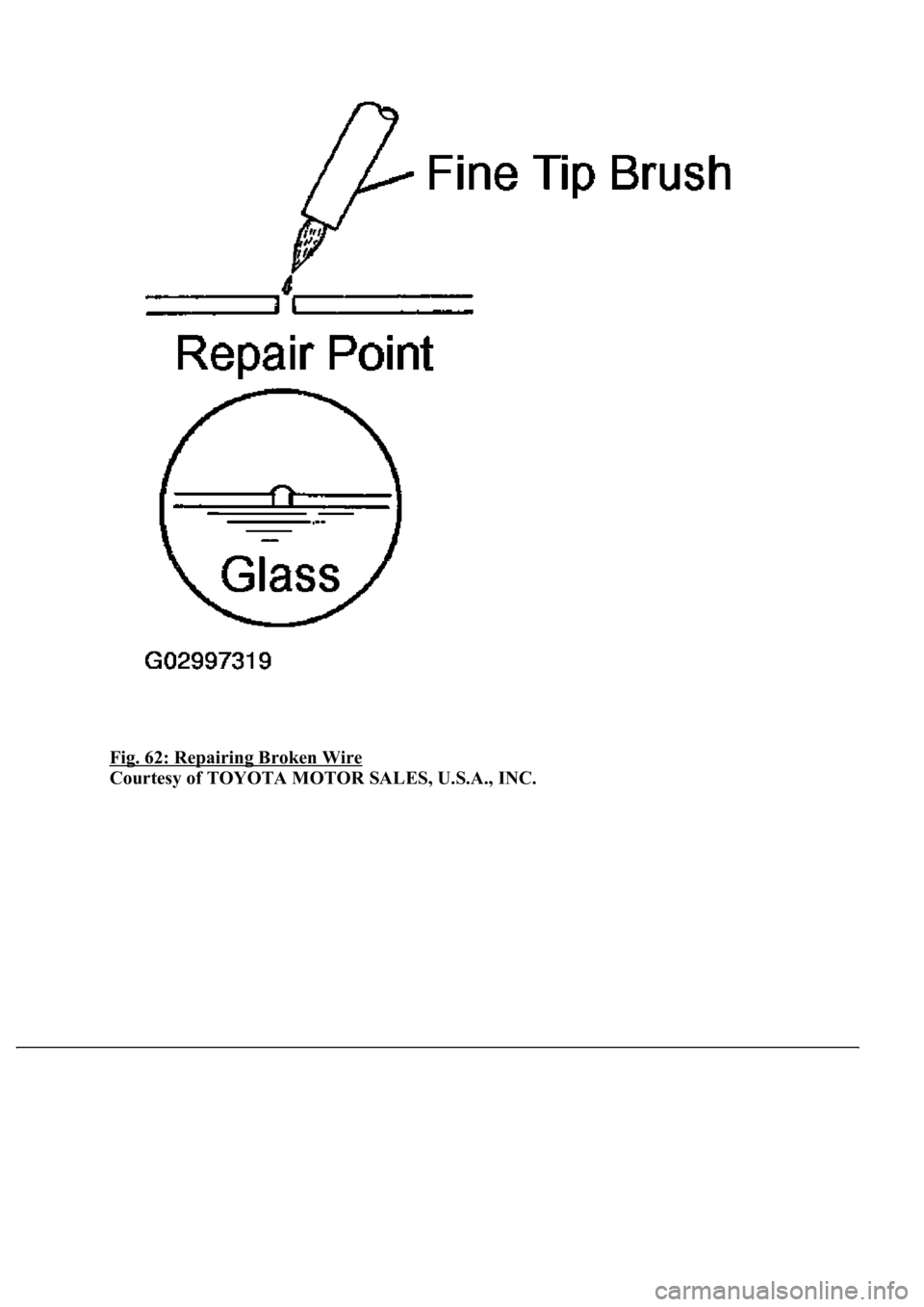

Fig. 62: Repairing Broken Wire
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 702 of 4500

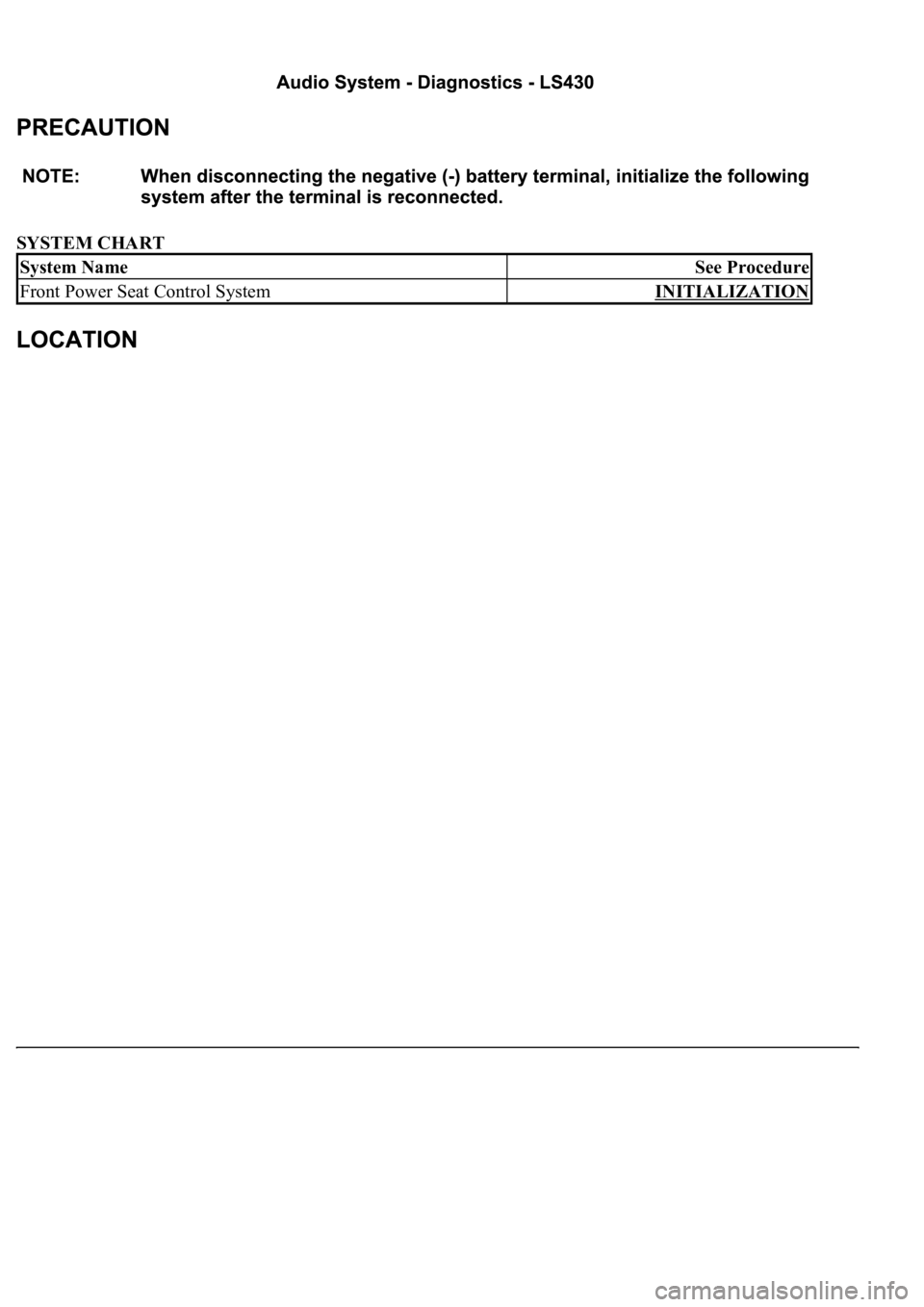

SYSTEM CHART
System NameSee Procedure
Front Power Seat Control SystemINITIALIZATION
Page 703 of 4500
Fig. 1: Locating Audio System
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 704 of 4500
Fig. 2: Audio System Diagram
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Input and output signals of each ECU.
TRANSMITTING ECU (TRANSMITTER) CHART
1.CD (Compact Disc) player outline
a. A compact disc player uses a laser pickup to read digital signals recorded on a compact disc (CD).
Transmitting ECU
(Transmitter)
Receiving ECUSignalsCommunication method
Driver Side J/B ECUSteering Pad SwitchACC SW SignalBEAN (Column Bus)
Driver Side J/B ECUSteering Pad SwitchTaillight ON SignalBEAN (Column Bus)
Steering Pad SwitchRadio Receiver AssyAudio SignalBEAN (Column Bus) AVC-
LAN
