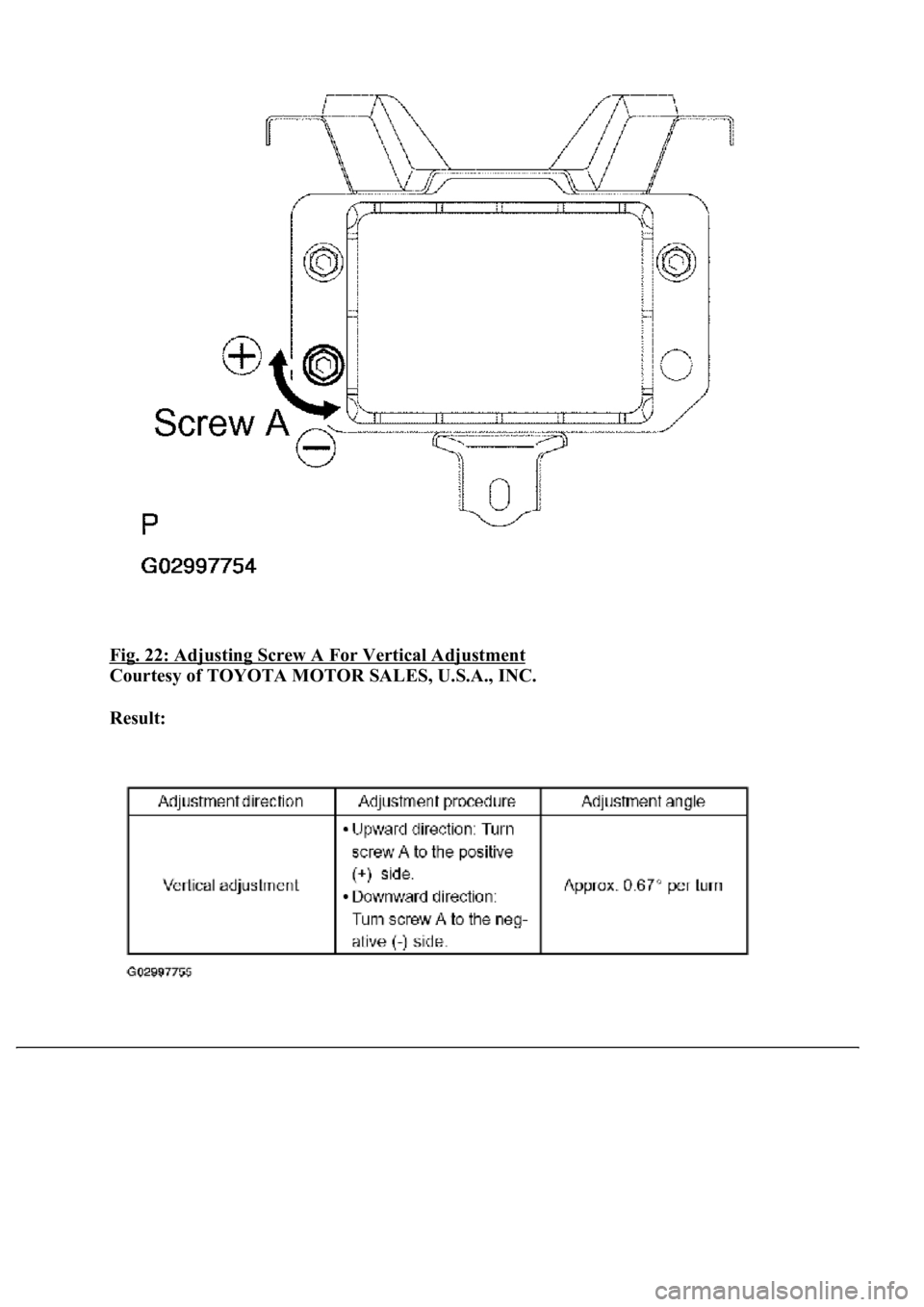

LEXUS LS430 2003 Factory Repair Manual Fig. 22: Adjusting Screw A For Vertical Adjustment Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. Result:

Page 1970 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 23: Adjustment Direction Chart Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. d. Adjust the reflector height 1. Adjust the reflector so that the center of the SST reflector is the same height as

Page 1971 of 4500

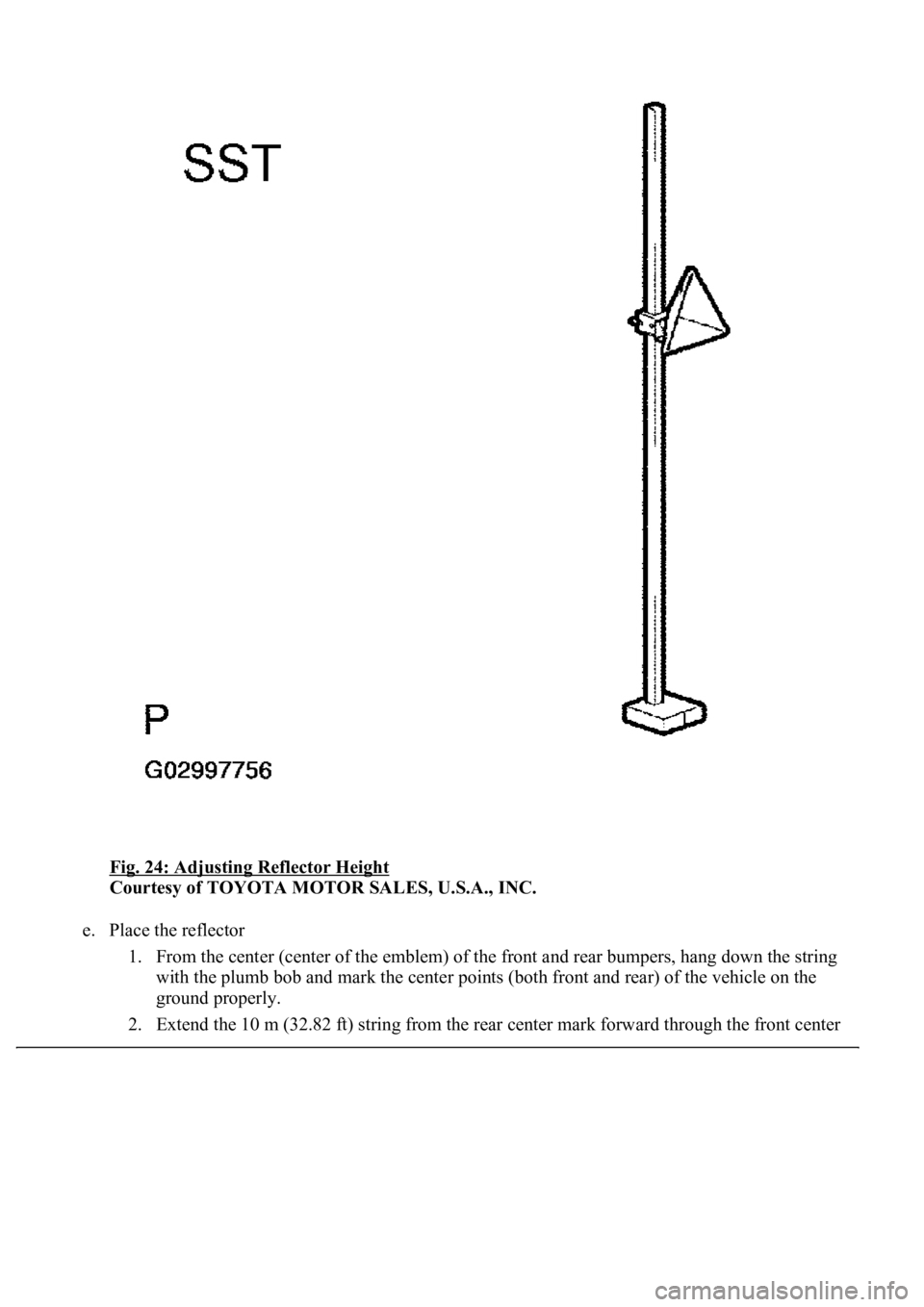

LEXUS LS430 2003 Factory Repair Manual Fig. 24: Adjusting Reflector Height Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. e. Place the reflector 1. From the center (center of the emblem) of the front and rear bumpers, hang down the string

Page 1972 of 4500

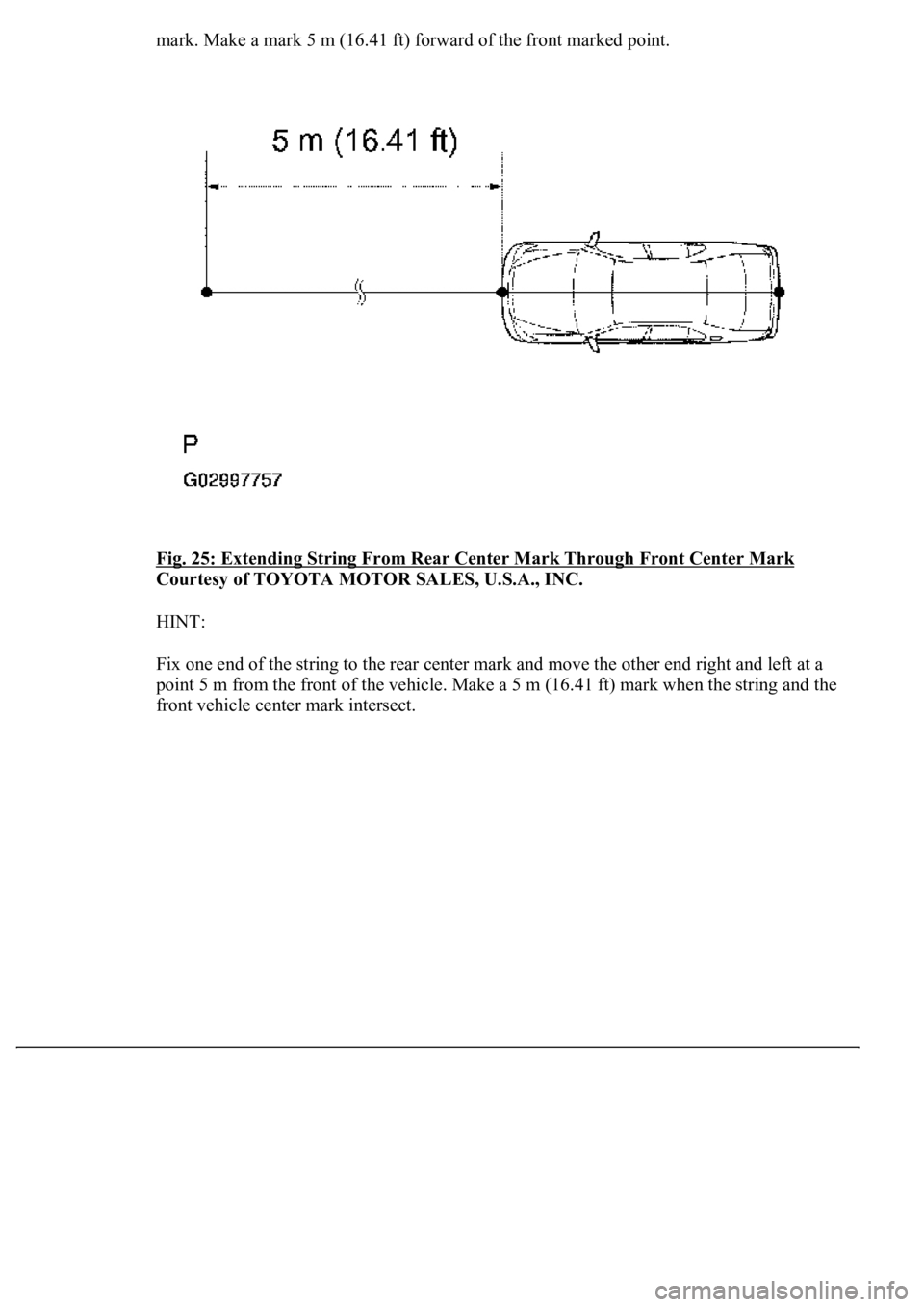

LEXUS LS430 2003 Factory Repair Manual mark. Make a mark 5 m (16.41 ft) forward of the front marked point. Fig. 25: Extending String From Rear Center Mark Through Front Center Mark Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. HINT: Fi

Page 1973 of 4500

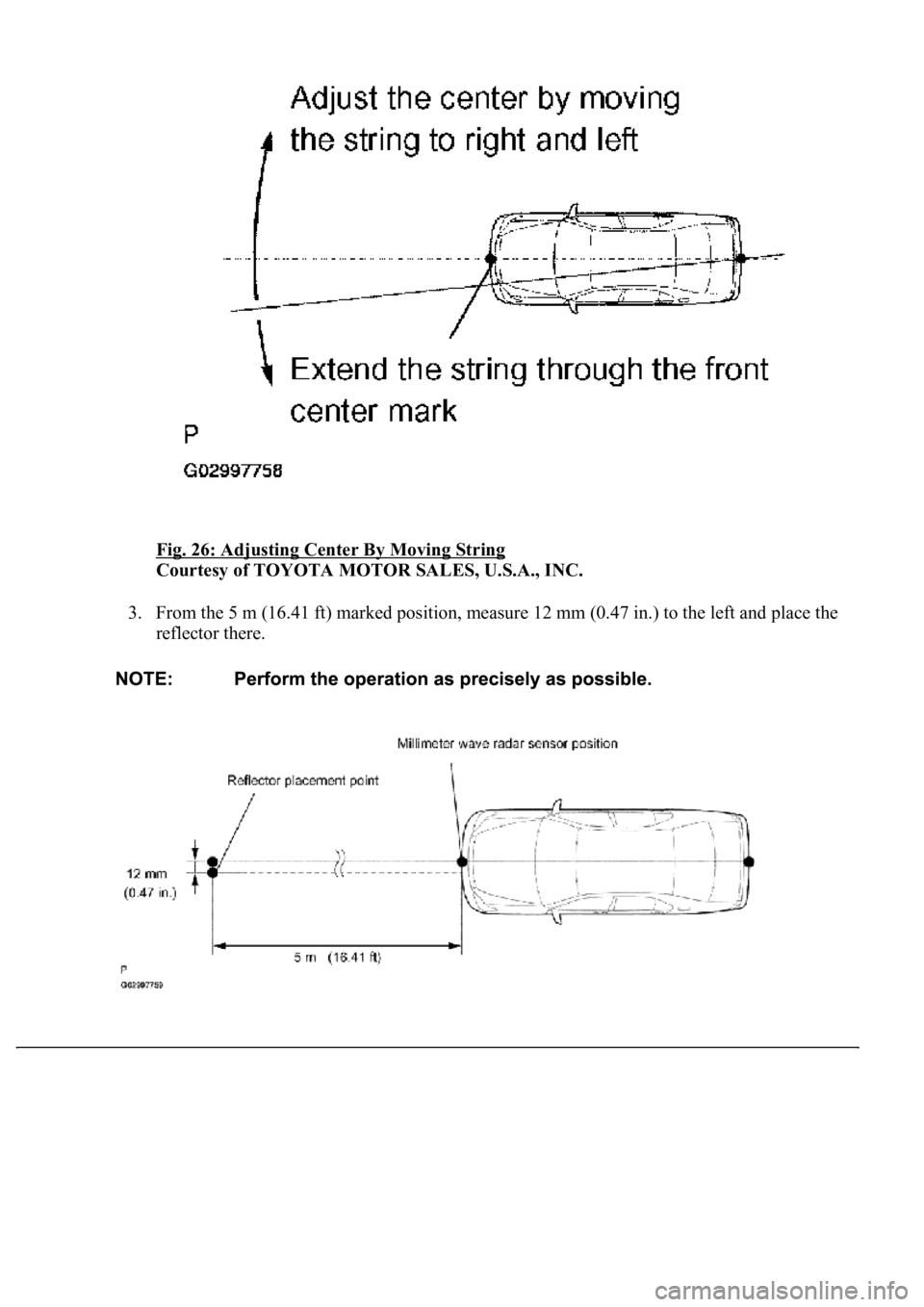

LEXUS LS430 2003 Factory Repair Manual Fig. 26: Adjusting Center By Moving String Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 3. From the 5 m (16.41 ft) marked position, measure 12 mm (0.47 in.) to the left and place the reflector ther

Page 1974 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 27: Measuring To Left And Placing Reflector Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. f. Adjust the radar beam axis 1. Turn the ignition switch to the ON position. 2. Push the cruise contr

Page 1975 of 4500

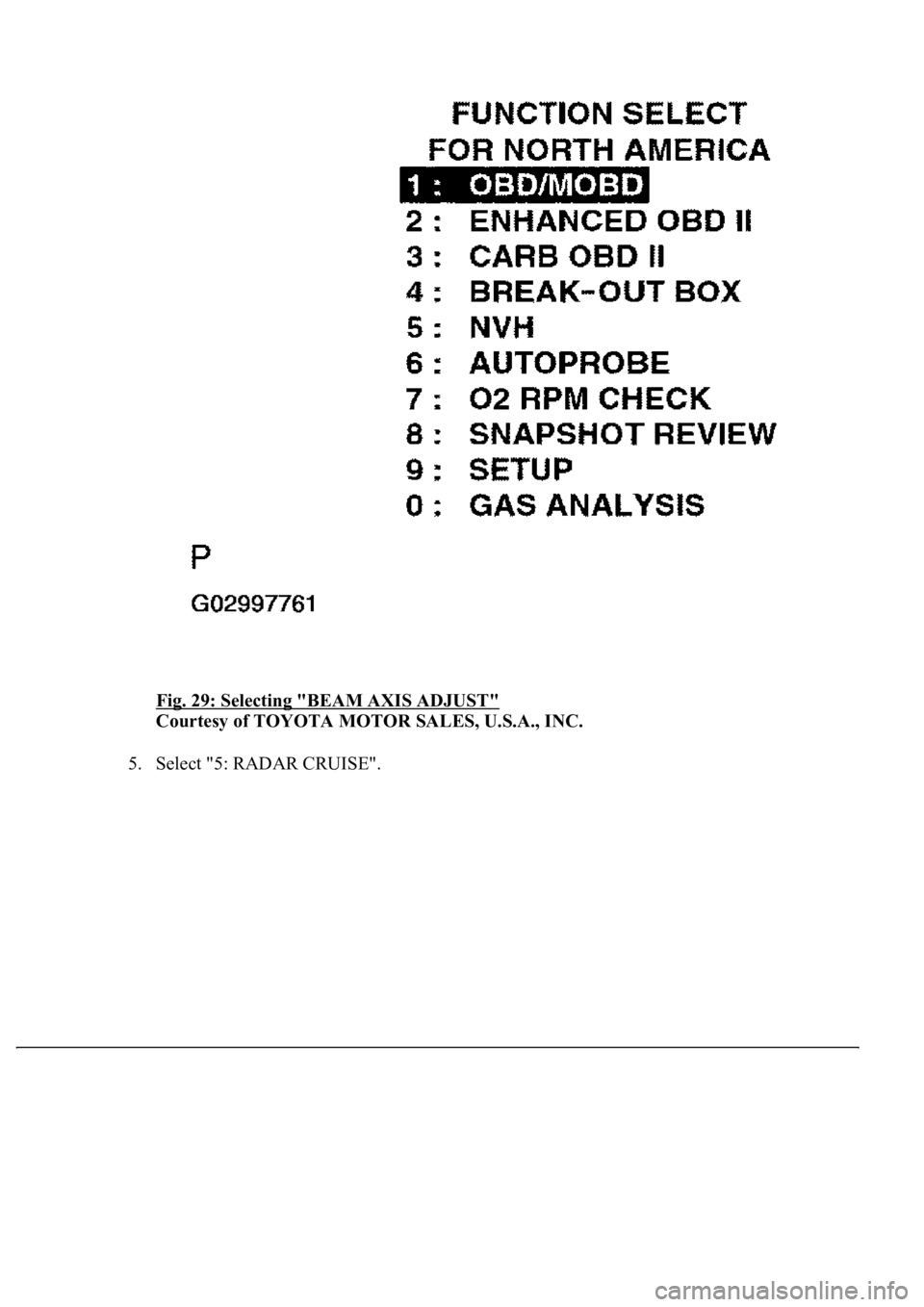

LEXUS LS430 2003 Factory Repair Manual Fig. 29: Selecting "BEAM AXIS ADJUST" Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 5. Select "5: RADAR CRUISE".

Page 1976 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 30: Selecting "5: RADAR CRUISE" Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 6. Press the "ENTER" key. 7. Select "6: BEAM AXIS ADJUST".
