Page 2393 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 86: Disconnecting Toe Control Link LH From Rear Axle Carrier Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 15.SEPARATE UPPER CONTROL ARM ASSY REAR LH a. Loosen the nut to the top line of the bo

Page 2394 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 87: Disconnecting Upper Control Arm LH From Rear Axle Carrier Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 16.SEPARATE SHOCK ABSORBER ASSY REAR LH a. Remove the nut and disconnect the shock ab

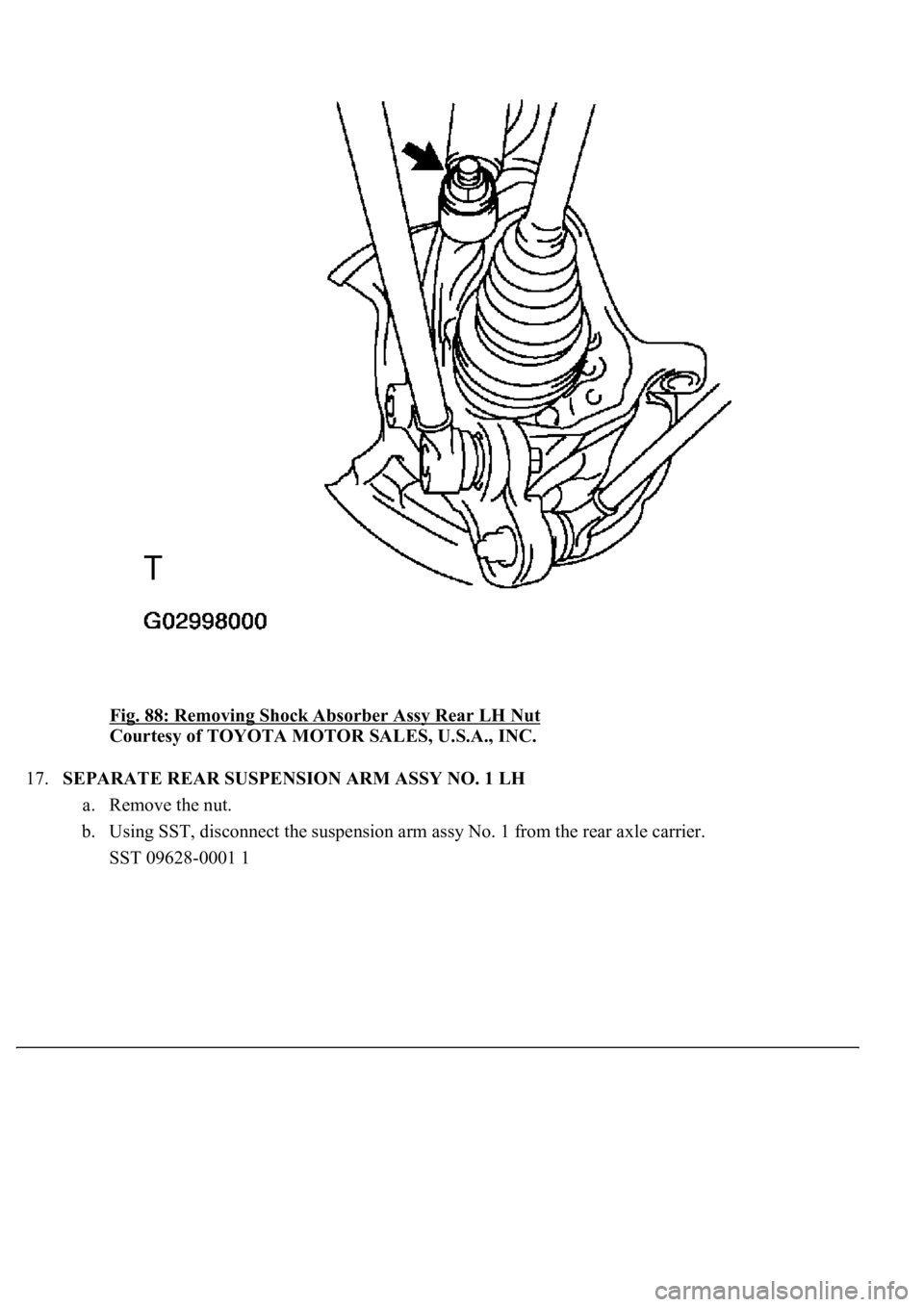

Page 2395 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 88: Removing Shock Absorber Assy Rear LH Nut Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 17.SEPARATE REAR SUSPENSION ARM ASSY NO. 1 LH a. Remove the nut. b. Using SST, disconnect the suspen

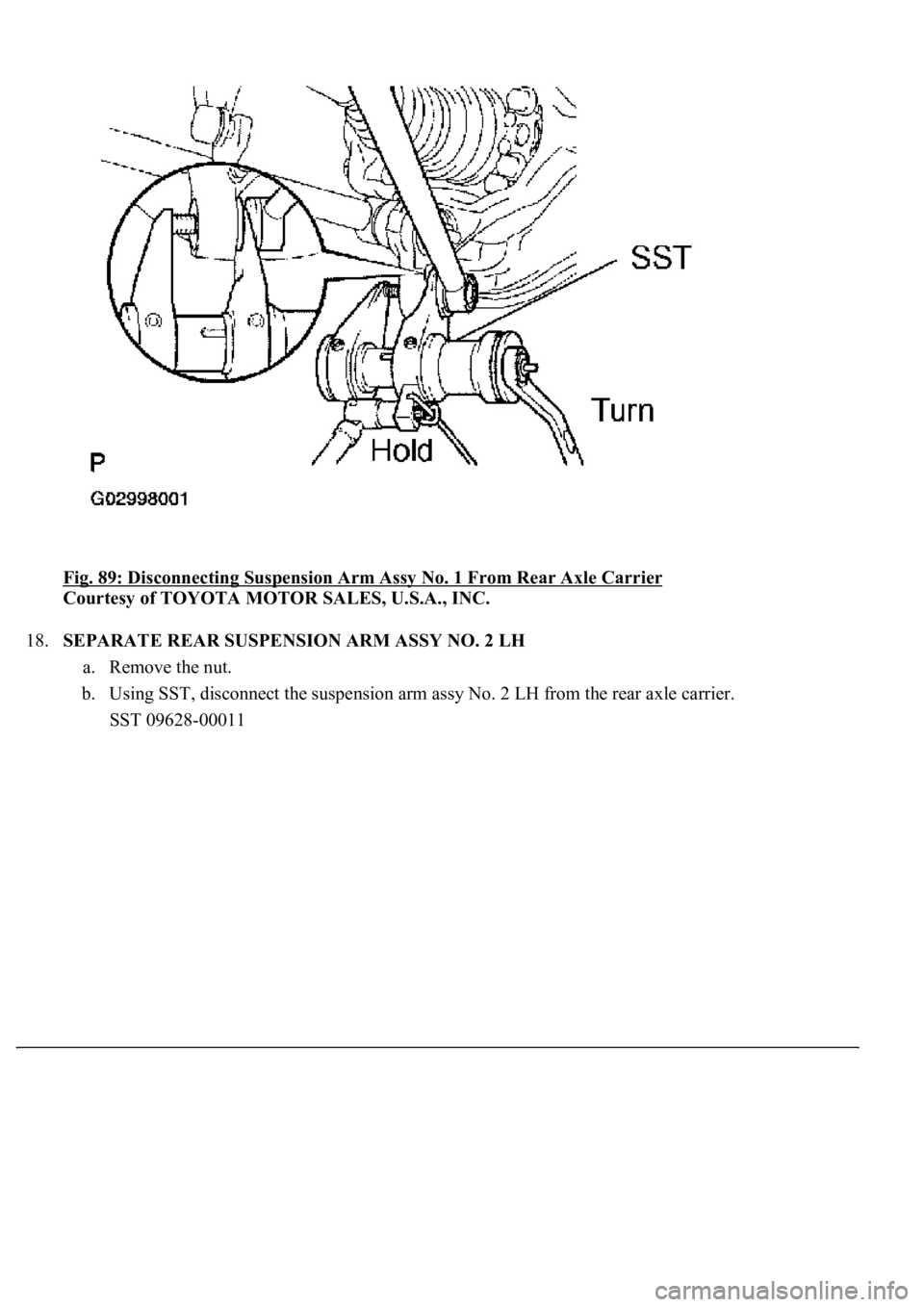

Page 2396 of 4500

LEXUS LS430 2003 Factory Repair Manual <0029004c004a00110003001b001c001d00030027004c00560046005200510051004800460057004c0051004a00030036005800560053004800510056004c0052005100030024005500500003002400560056005c0003003100520011000300140003002

Page 2397 of 4500

LEXUS LS430 2003 Factory Repair Manual <0029004c004a00110003001c0013001d00030027004c00560046005200510051004800460057004c0051004a00030036005800560053004800510056004c0052005100030024005500500003002400560056005c0003003100520011000300150003002

Page 2398 of 4500

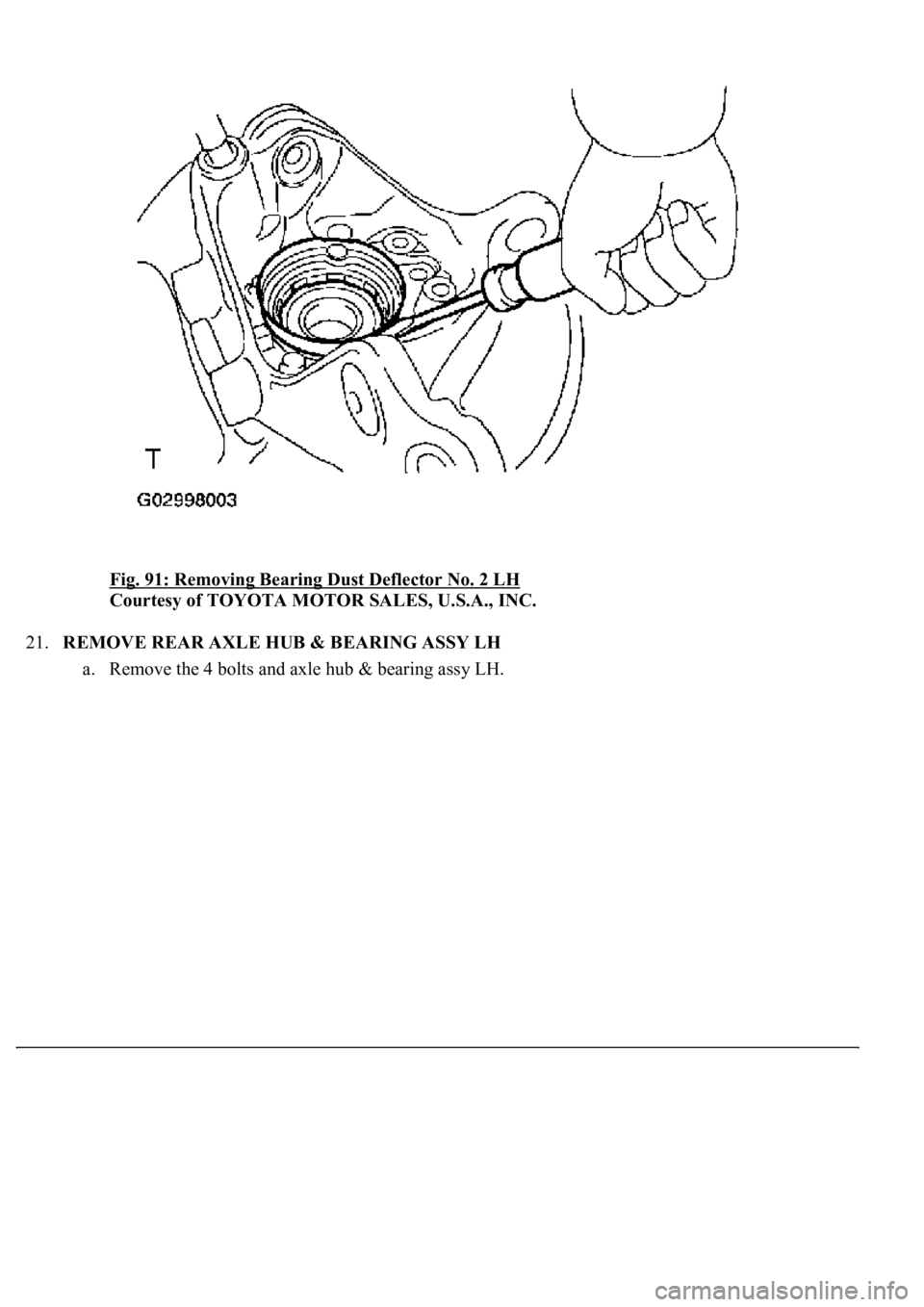

LEXUS LS430 2003 Factory Repair Manual Fig. 91: Removing Bearing Dust Deflector No. 2 LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 21.REMOVE REAR AXLE HUB & BEARING ASSY LH a. Remove the 4 bolts and axle hub & bearing assy LH.

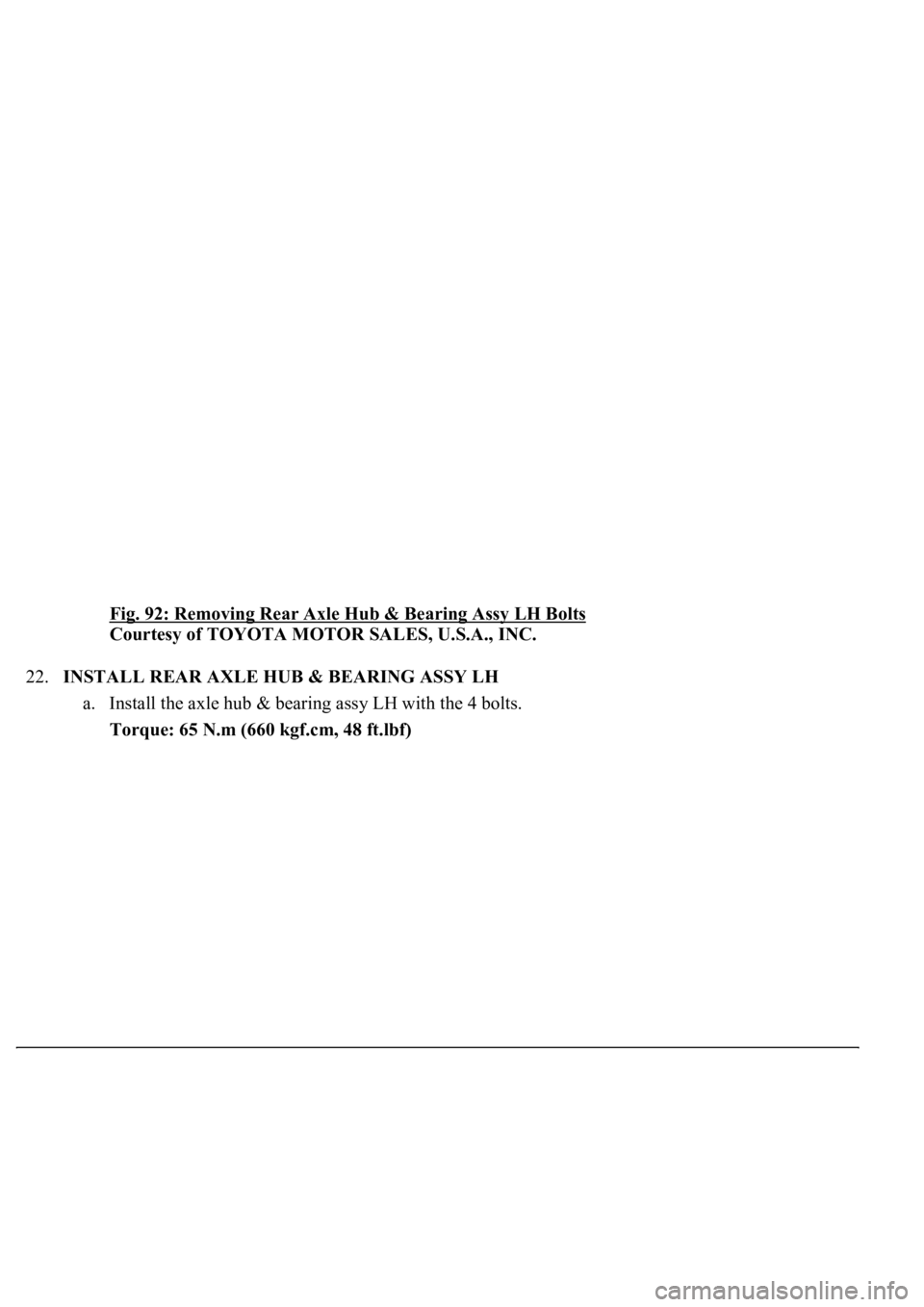

Page 2399 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 92: Removing Rear Axle Hub & Bearing Assy LH Bolts Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 22.INSTALL REAR AXLE HUB & BEARING ASSY LH a. Install the axle hub & bearing assy LH with the 4

Page 2400 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 93: Installing Rear Axle Hub & Bearing Assy LH Bolts Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 23.INSTALL REAR WHEEL BEARING DUST DEFLECTOR NO. 2 LH a. Using SST and a hammer, install the b
