Page 3617 of 4500

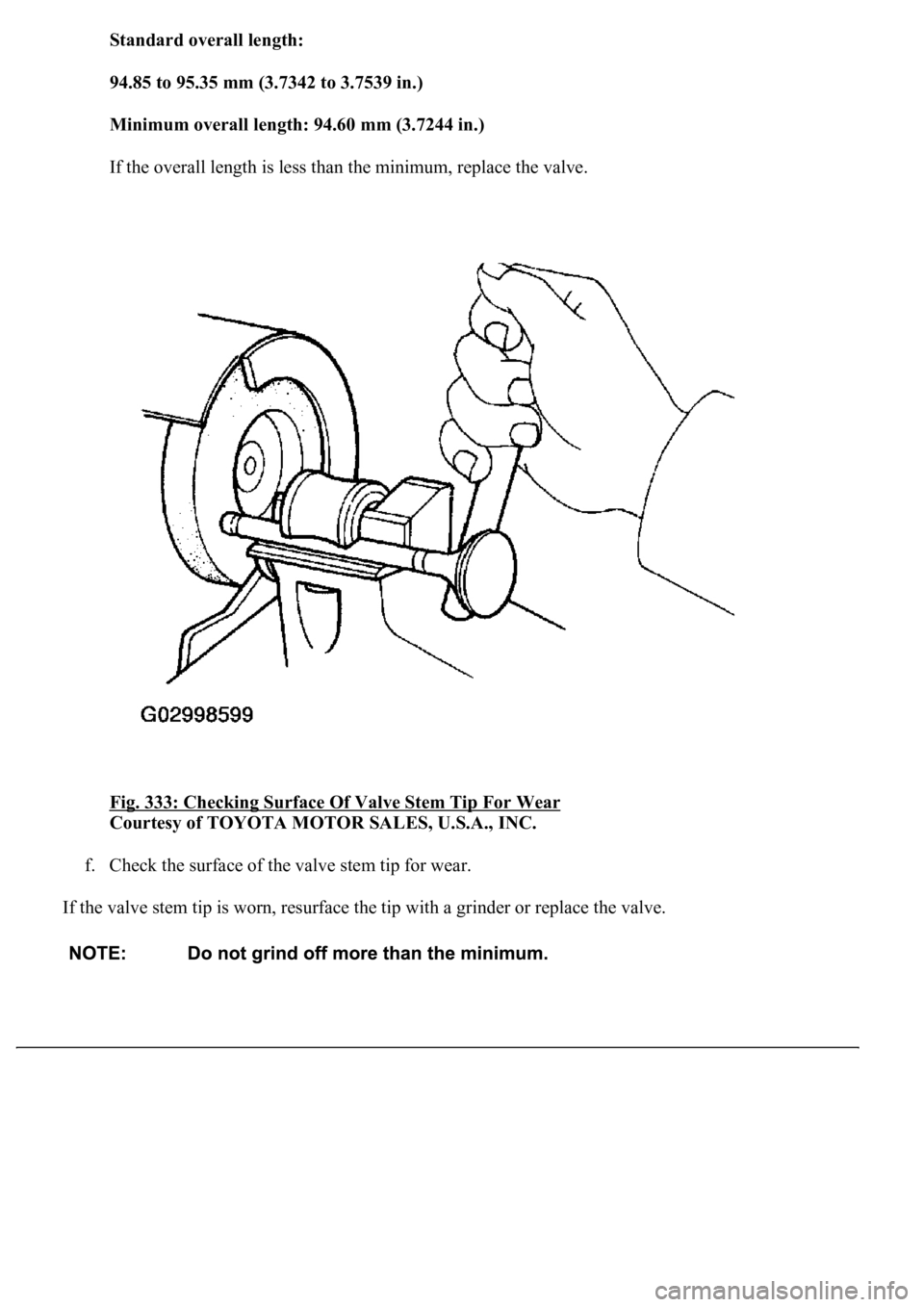

LEXUS LS430 2003 Factory Repair Manual Standard overall length: 94.85 to 95.35 mm (3.7342 to 3.7539 in.) Minimum overall length: 94.60 mm (3.7244 in.) If the overall length is less than the minimum, replace the valve. Fig. 333: Chec

Page 3618 of 4500

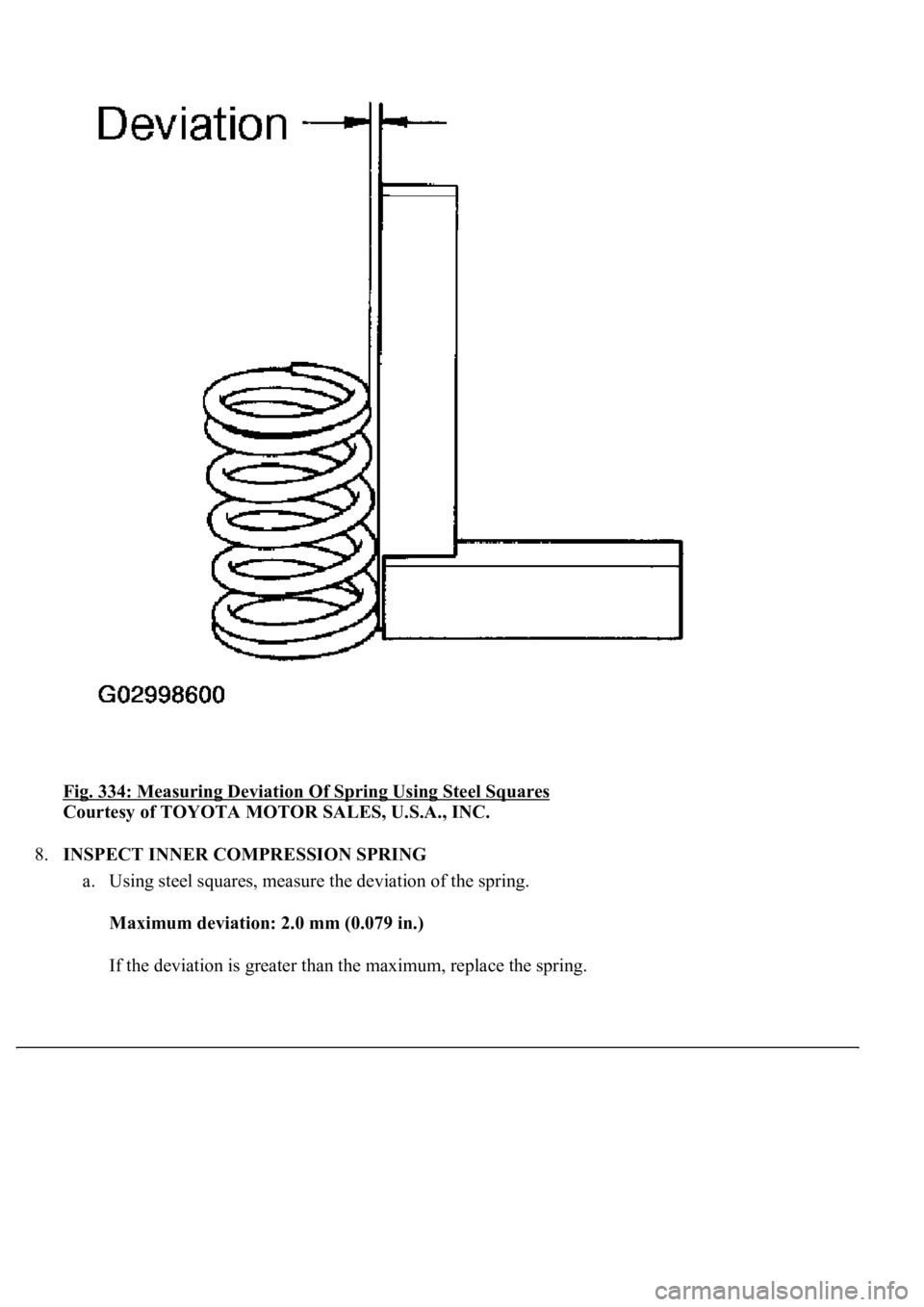

LEXUS LS430 2003 Factory Repair Manual Fig. 334: Measuring Deviation Of Spring Using Steel Squares Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 8.INSPECT INNER COMPRESSION SPRING a. Using steel squares, measure the deviation of the spri

Page 3619 of 4500

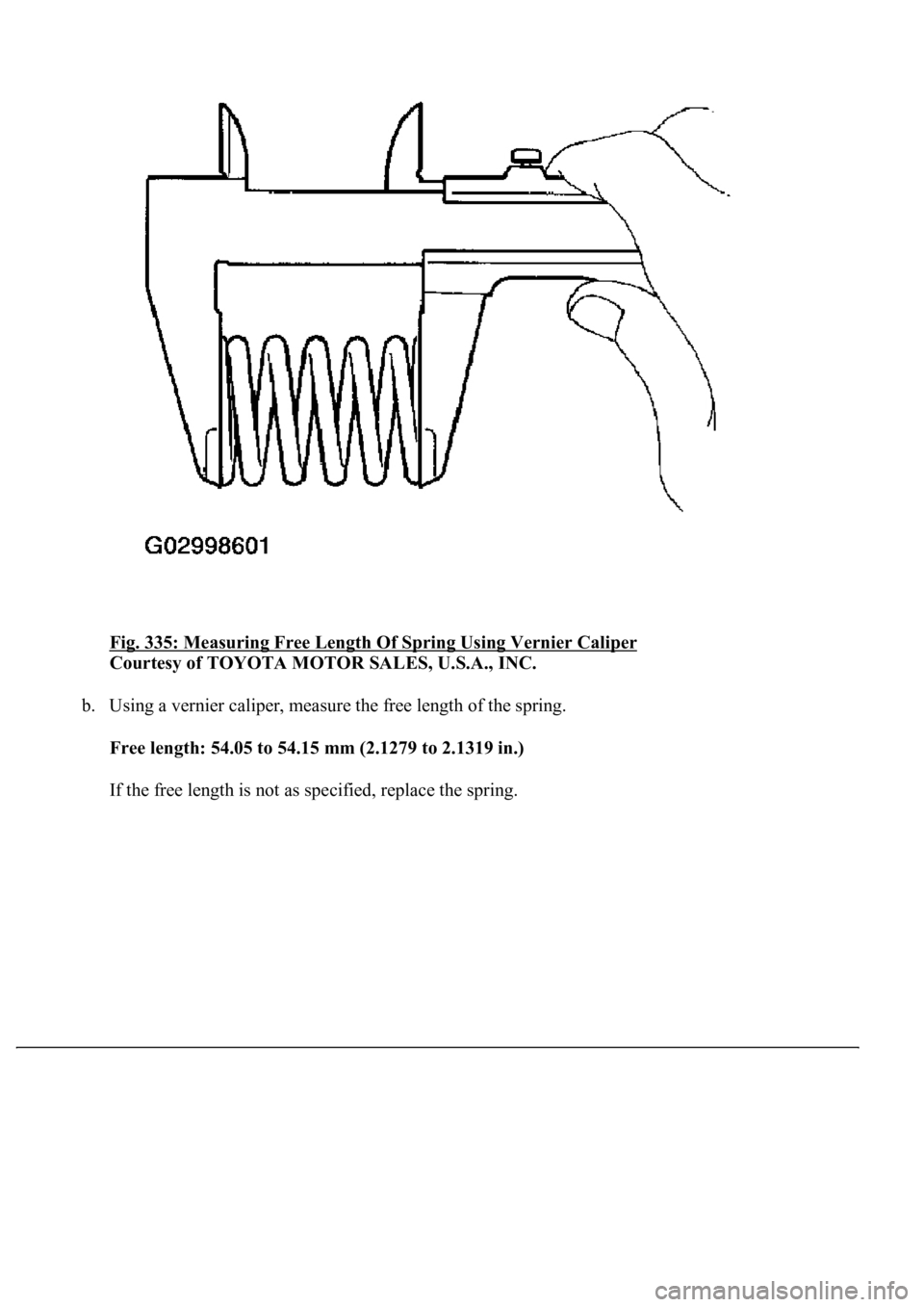

LEXUS LS430 2003 Factory Repair Manual Fig. 335: Measuring Free Length Of Spring Using Vernier Caliper Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Using a vernier caliper, measure the free length of the spring. Free length: 54.05 to

Page 3620 of 4500

LEXUS LS430 2003 Factory Repair Manual

Page 3621 of 4500

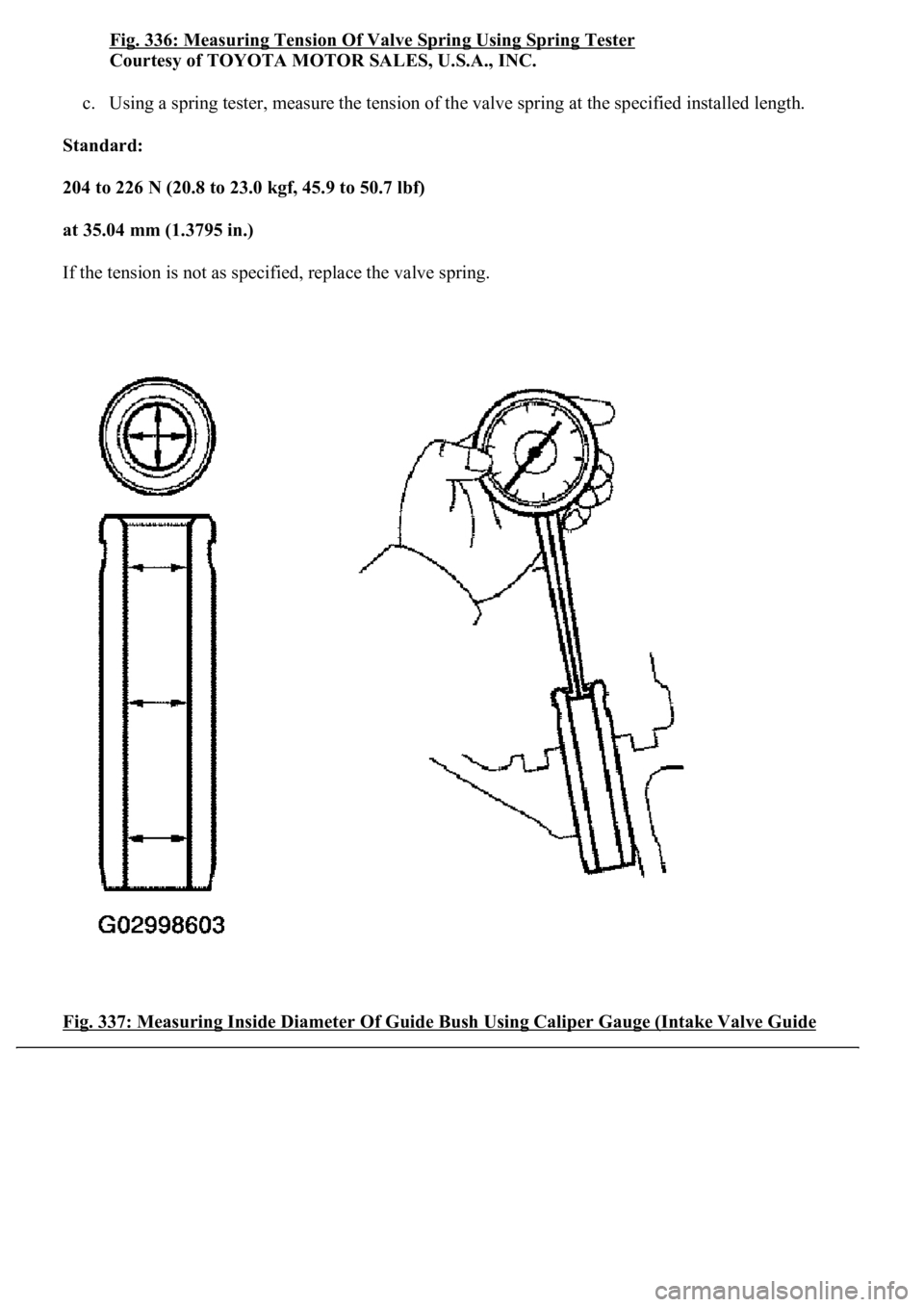

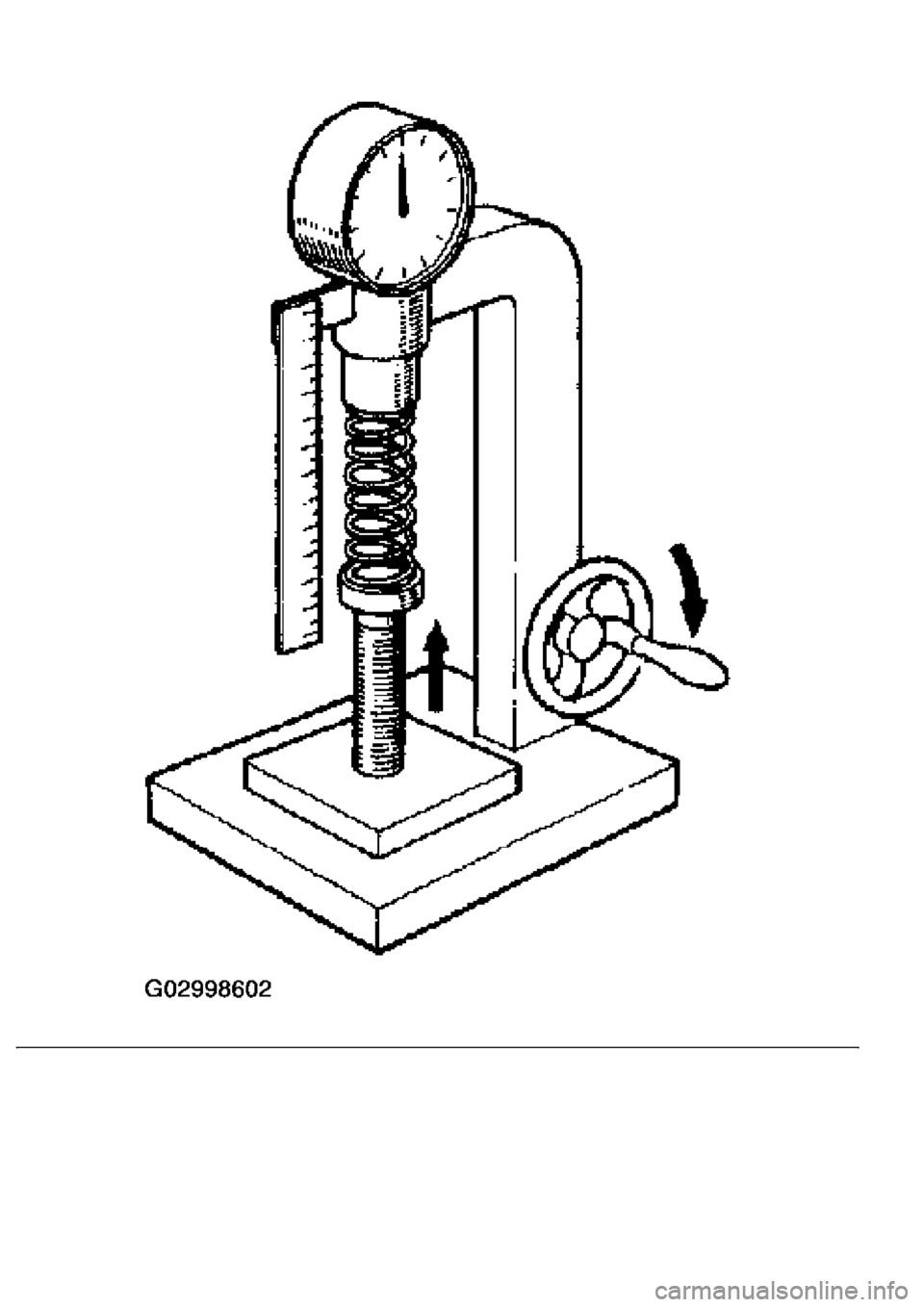

LEXUS LS430 2003 Factory Repair Manual Fig. 336: Measuring Tension Of Valve Spring Using Spring Tester Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Using a spring tester, measure the tension of the valve spring at the specified instal

Page 3622 of 4500

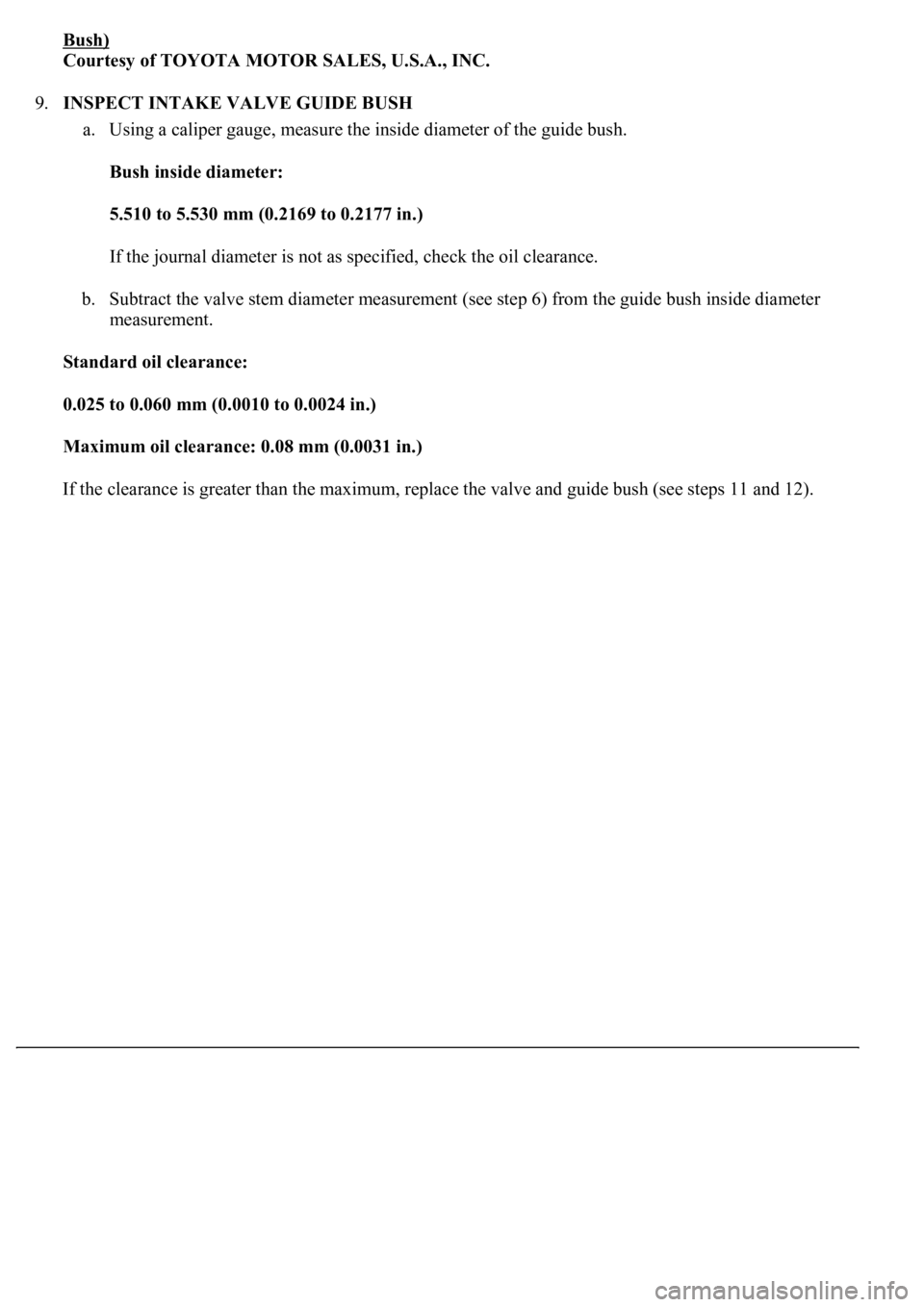

LEXUS LS430 2003 Factory Repair Manual Bush) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 9.INSPECT INTAKE VALVE GUIDE BUSH a. Using a caliper gauge, measure the inside diameter of the guide bush. Bush inside diameter: 5.510 to 5.530

Page 3623 of 4500

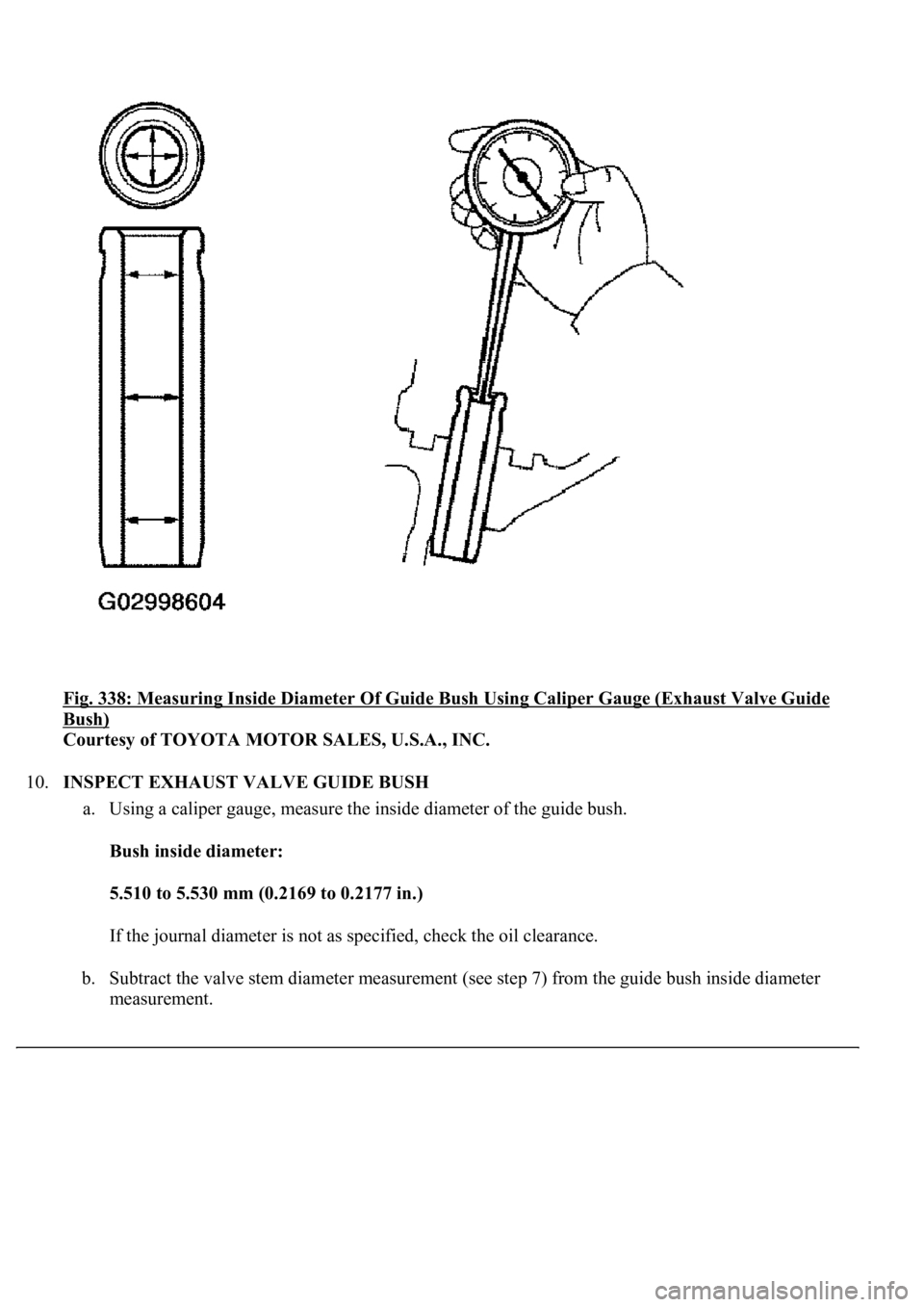

LEXUS LS430 2003 Factory Repair Manual Fig. 338: Measuring Inside Diameter Of Guide Bush Using Caliper Gauge (Exhaust Valve Guide Bush) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 10.INSPECT EXHAUST VALVE GUIDE BUSH a. Using a caliper

Page 3624 of 4500

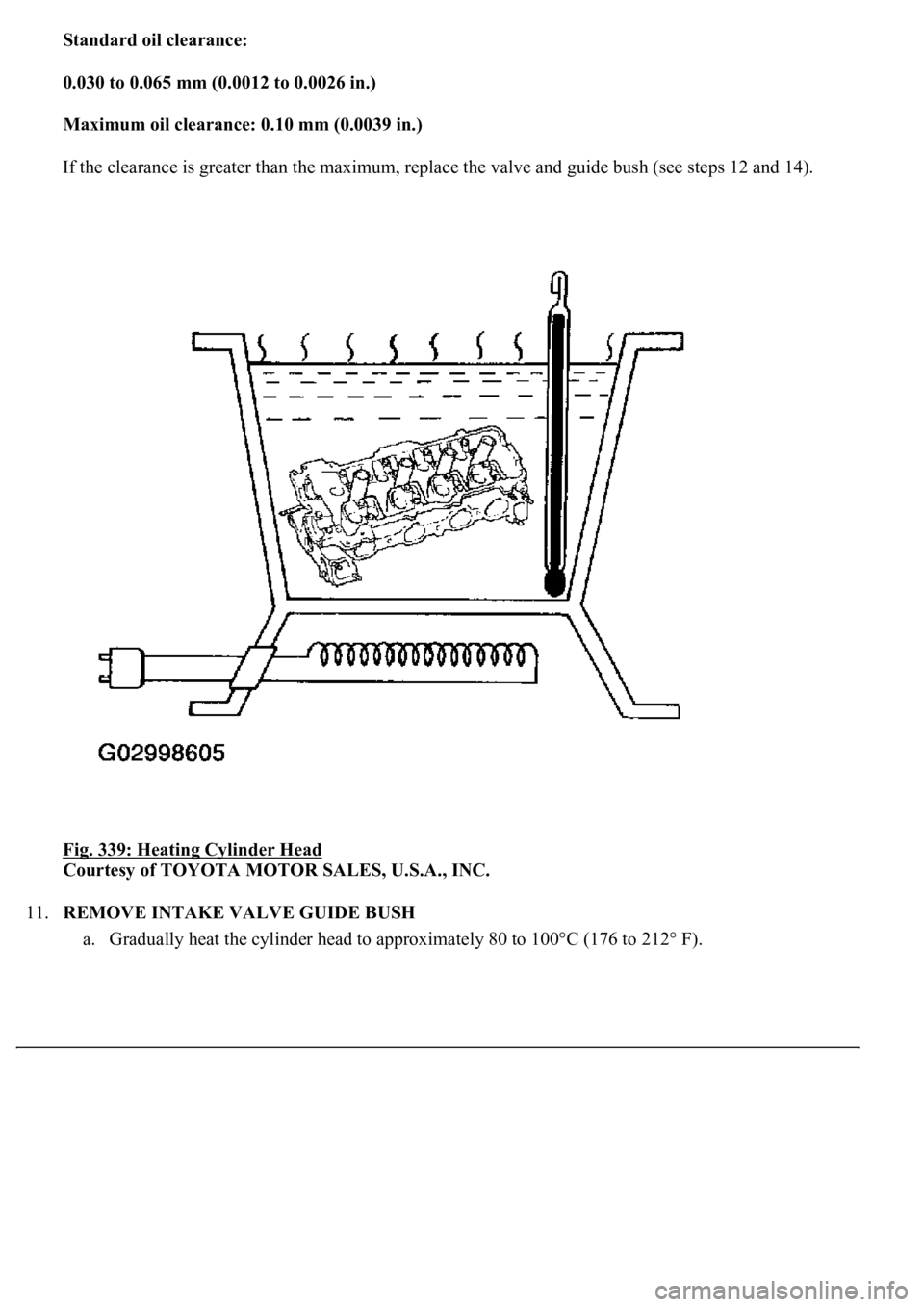

LEXUS LS430 2003 Factory Repair Manual Standard oil clearance: 0.030 to 0.065 mm (0.0012 to 0.0026 in.) Maximum oil clearance: 0.10 mm (0.0039 in.) If the clearance is greater than the maximum, replace the valve and guide bush (see s
