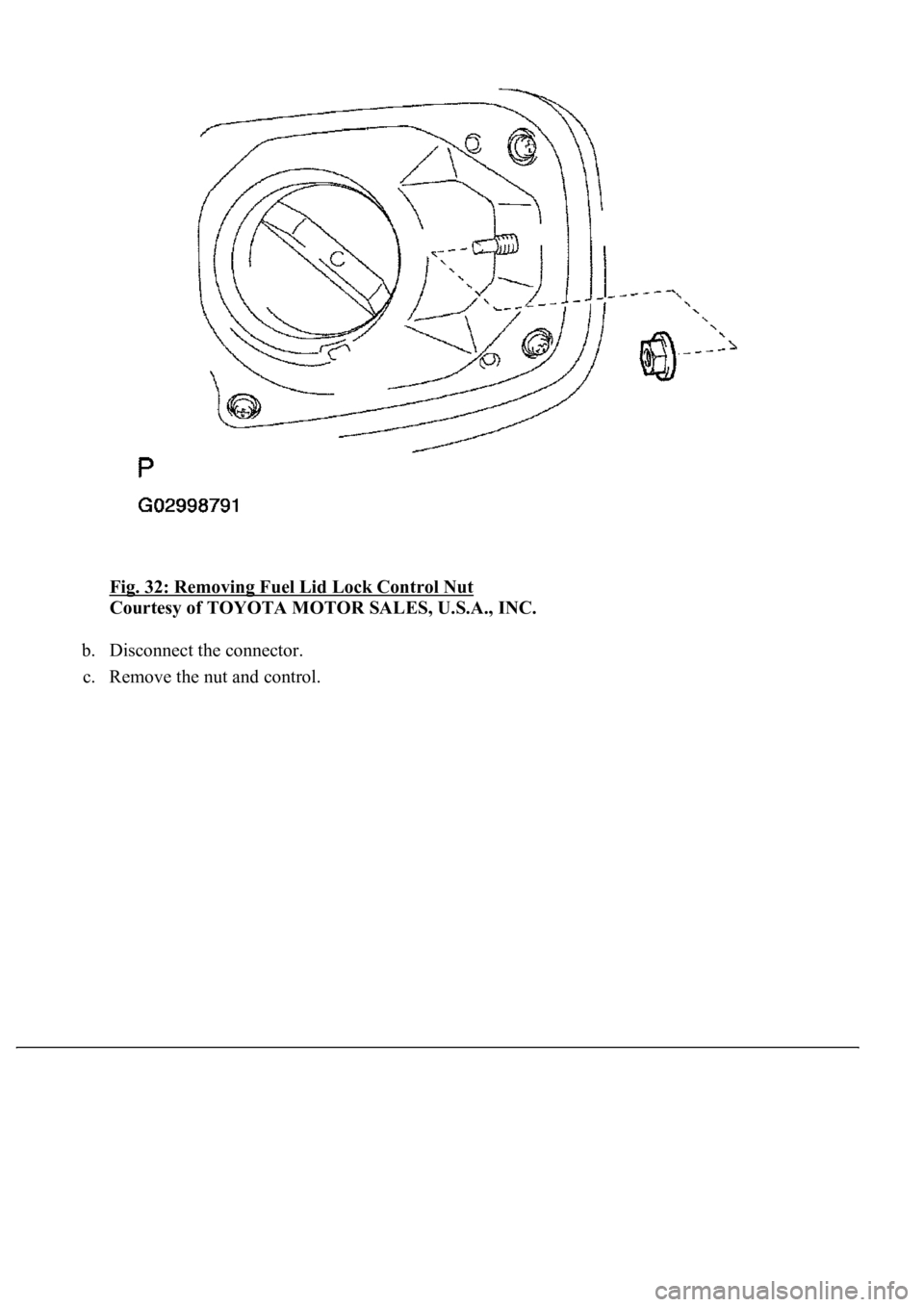

LEXUS LS430 2003 Factory Repair Manual Fig. 32: Removing Fuel Lid Lock Control Nut Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Disconnect the connector. c. Remove the nut and control.

Page 3818 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 33: Removing Nut And Control Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 6.INSTALL FUEL LID LOCK CONTROL ASSY a. Install the control with the nut. Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

Page 3819 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 34: Installing Control With Nut Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Connect the connector. c. Tighten the nut. Torque: 11.5 N.m (117 kgf.cm, 8 ft.lbf)

Page 3820 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 35: Tightening Fuel Lid Lock Control Nut Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. COMPONENTS

Page 3821 of 4500

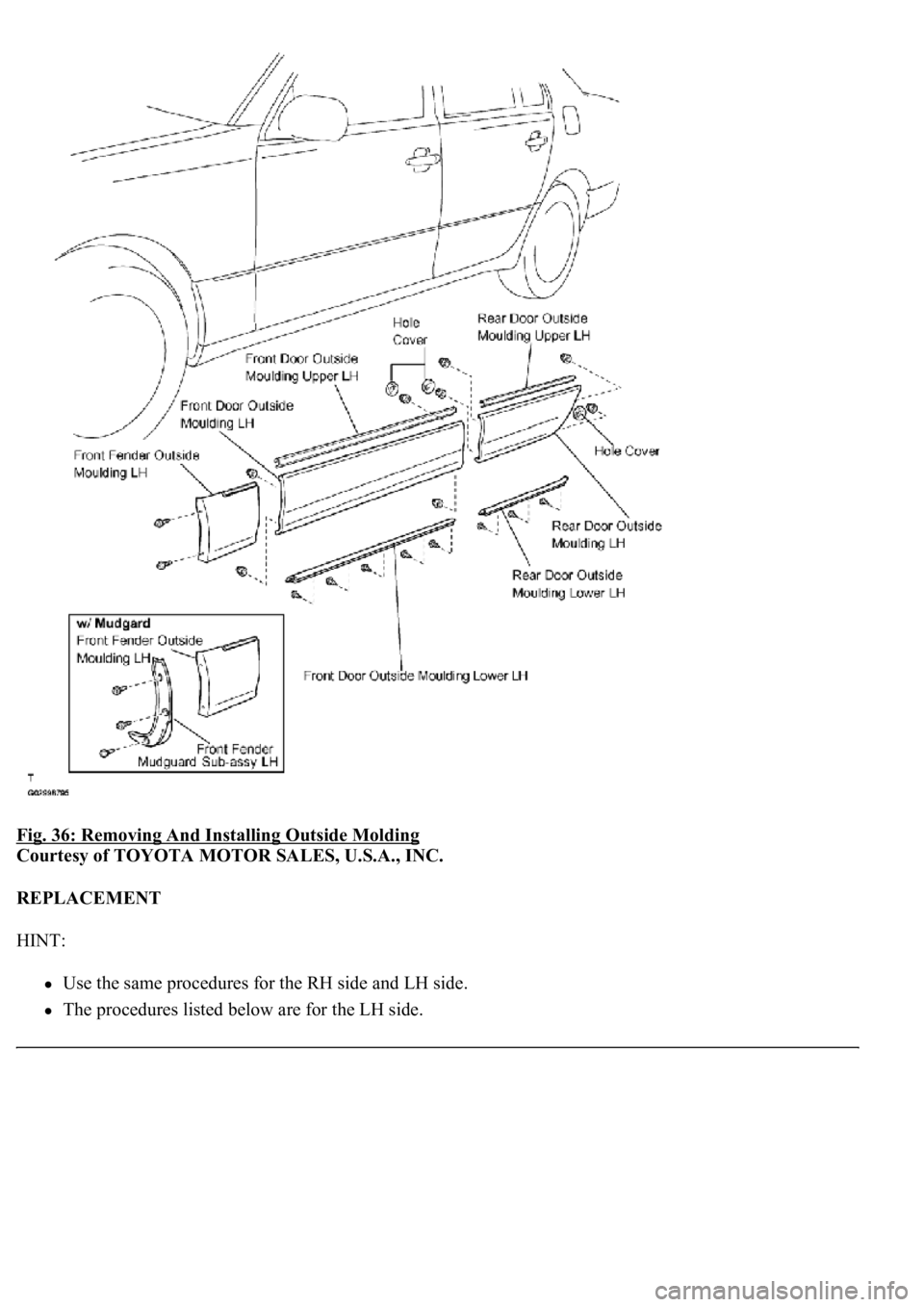

LEXUS LS430 2003 Factory Repair Manual Fig. 36: Removing And Installing Outside Molding Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. REPLACEMENT HINT: Use the same procedures for the RH side and LH side. The procedures listed below a

Page 3822 of 4500

LEXUS LS430 2003 Factory Repair Manual When replacing the molding, heat the body and molding using a heat light. Heating temperature: HEATING TEMPERATURE CHART 1.REMOVE FRONT FENDER MUDGUARD SUB-ASSY LH (W/ MUDGUARD) a. Using a hexag

Page 3823 of 4500

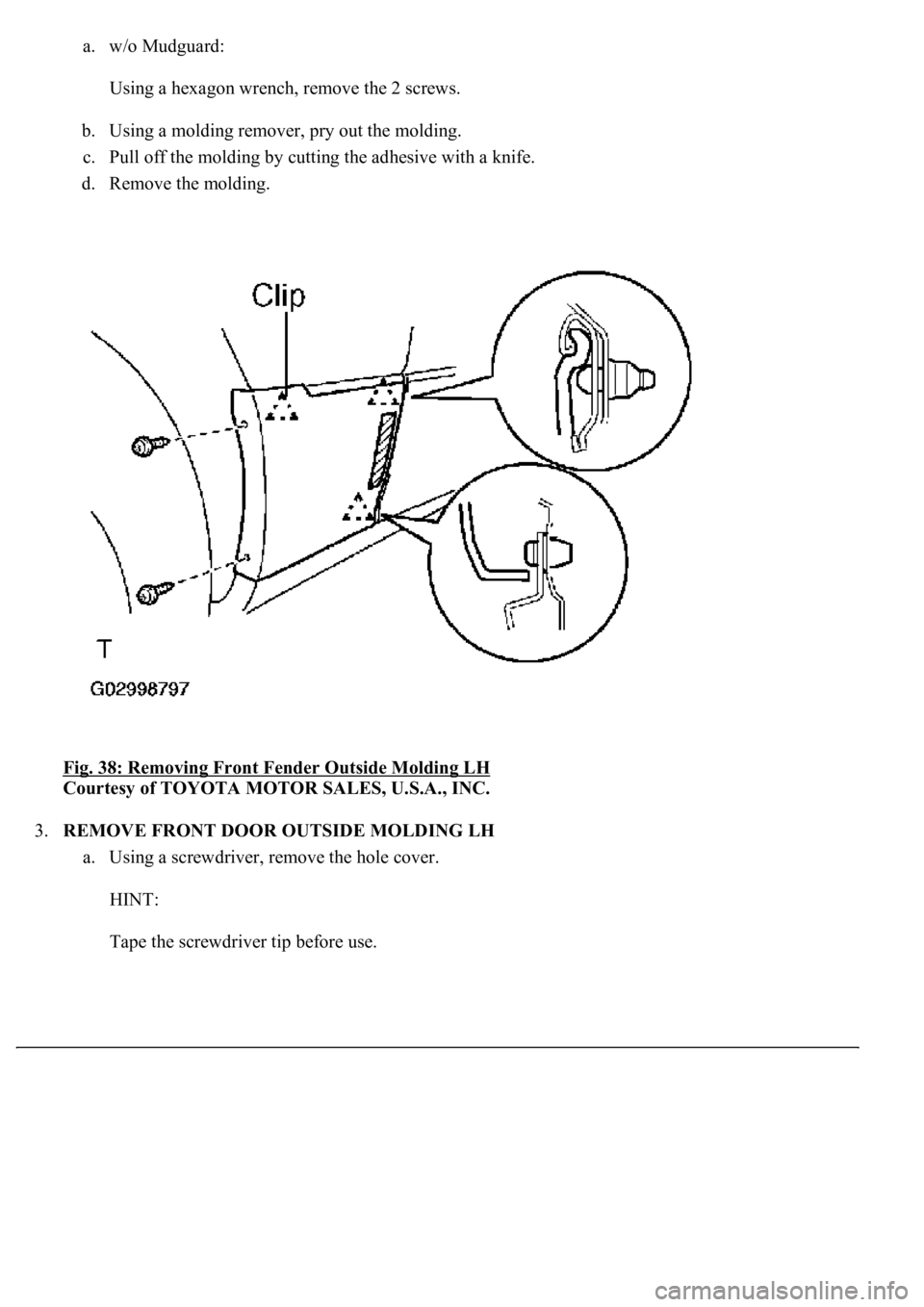

LEXUS LS430 2003 Factory Repair Manual a. w/o Mudguard: Using a hexagon wrench, remove the 2 screws. b. Using a molding remover, pry out the molding. c. Pull off the molding by cutting the adhesive with a knife. d. Remove the molding

Page 3824 of 4500

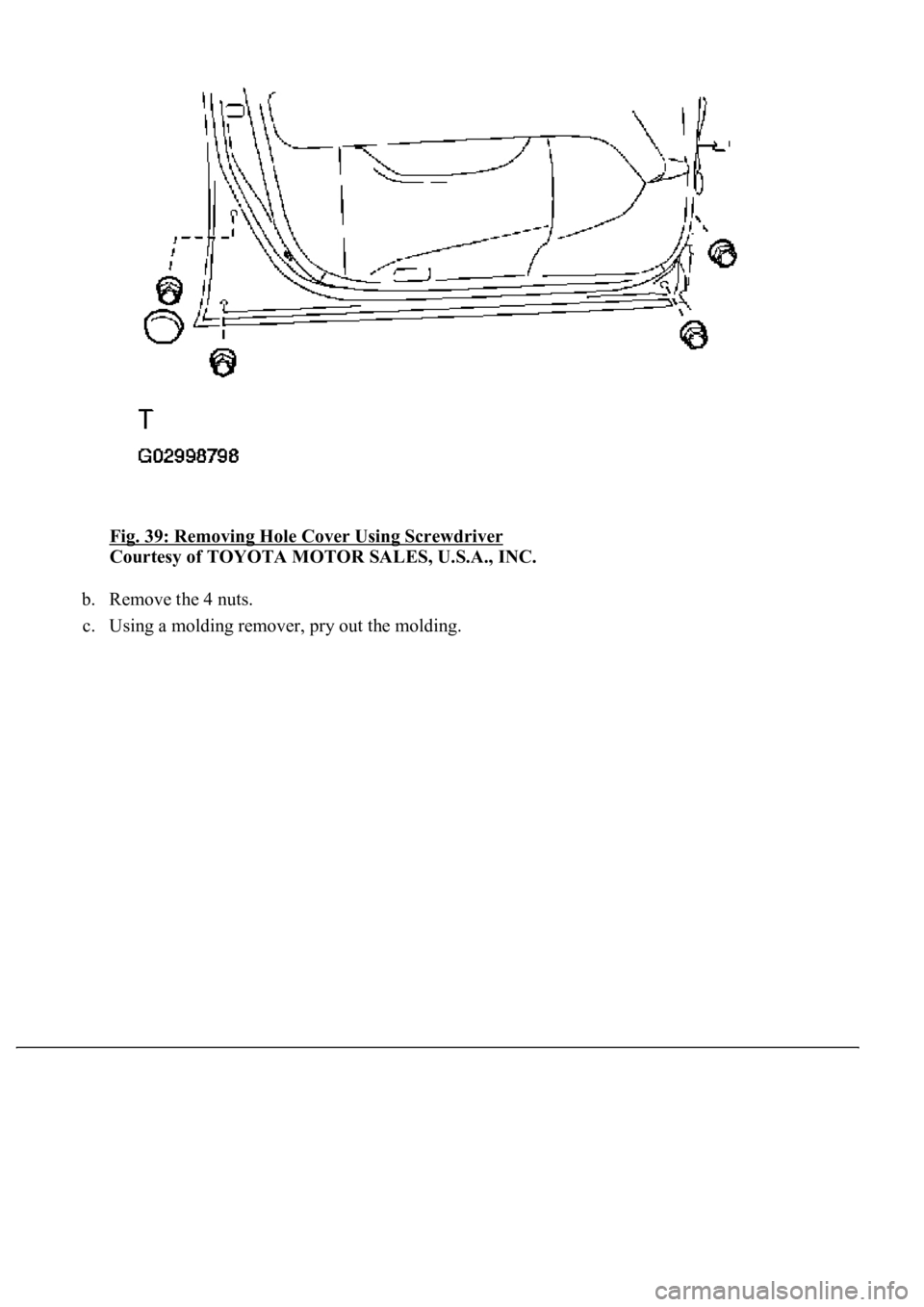

LEXUS LS430 2003 Factory Repair Manual Fig. 39: Removing Hole Cover Using Screwdriver Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Remove the 4 nuts. c. Usin g a molding remover, pry out the molding.
