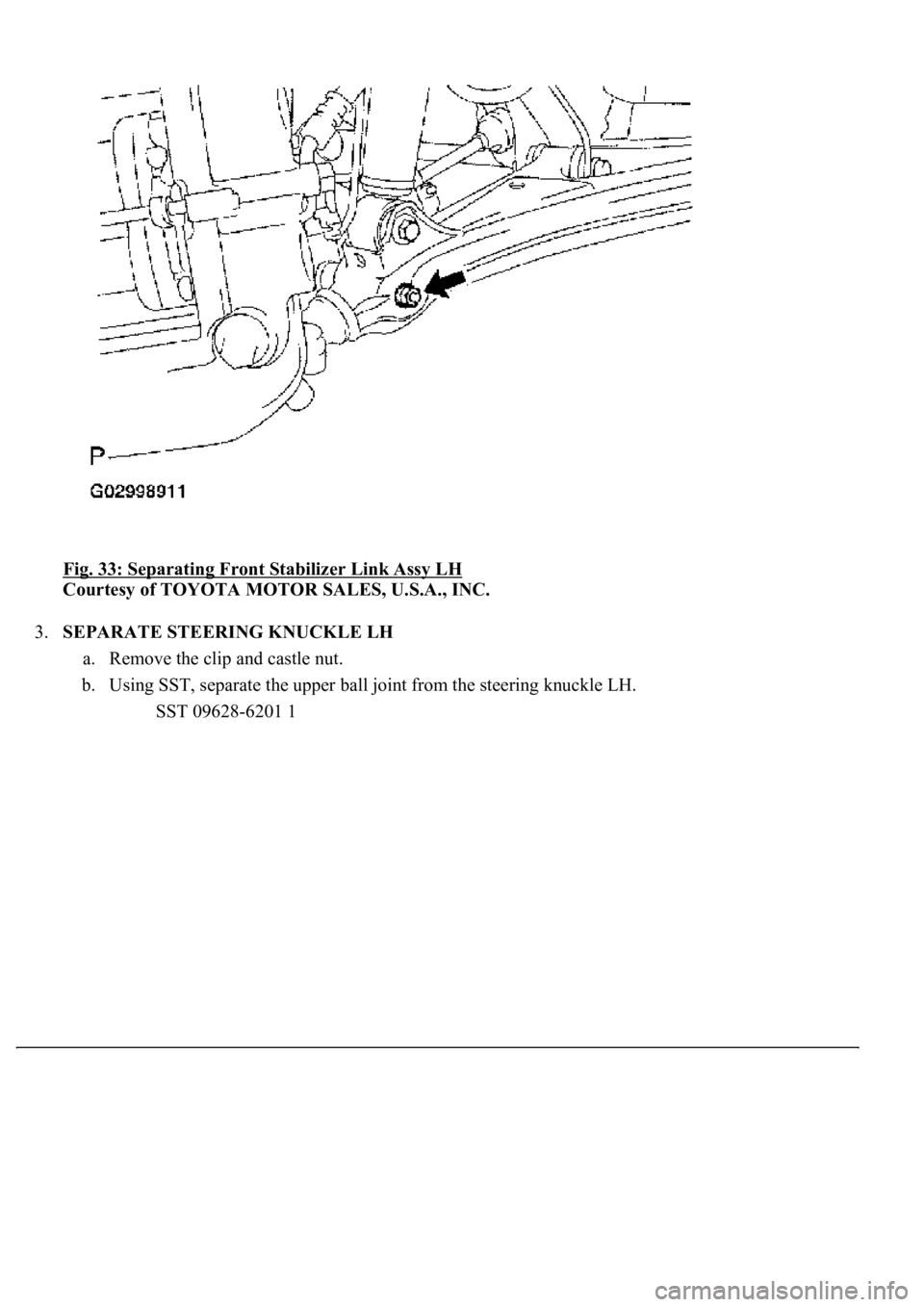

LEXUS LS430 2003 Factory Repair Manual Fig. 33: Separating Front Stabilizer Link Assy LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 3.SEPARATE STEERING KNUCKLE LH a. Remove the clip and castle nut. b. Using SST, separate the upper b

Page 4026 of 4500

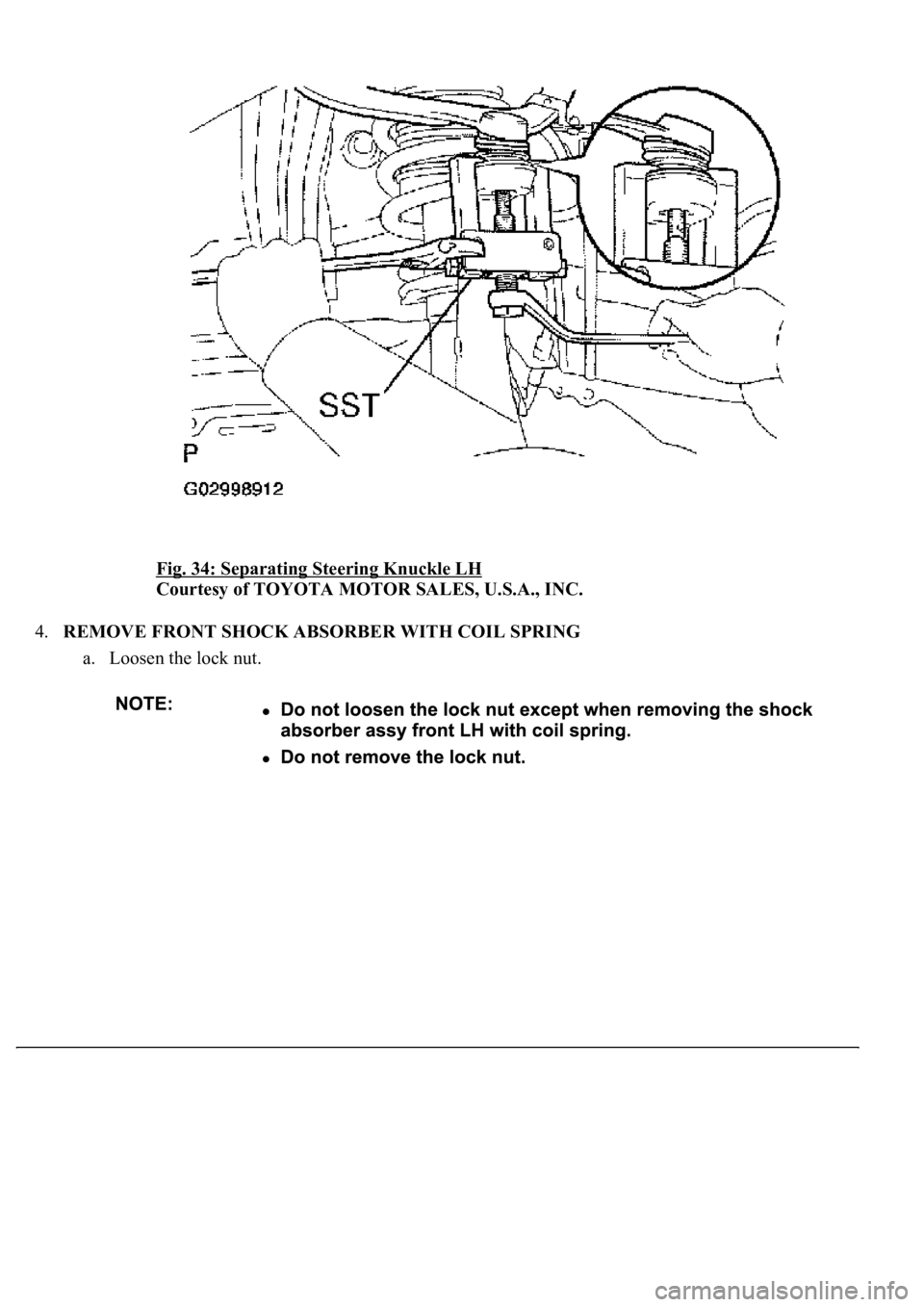

LEXUS LS430 2003 Factory Repair Manual Fig. 34: Separating Steering Knuckle LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 4.REMOVE FRONT SHOCK ABSORBER WITH COIL SPRING a. Loosen the lock nut.

Page 4027 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 35: Loosening Lock Nut Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Remove the front shock absorber with coil spring lower side nut.

Page 4028 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 36: Removing Front Shock Absorber With Coil Spring Lower Side Nut Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Remove the 3 nuts on the upper side of the front shock absorber with coil sprin

Page 4029 of 4500

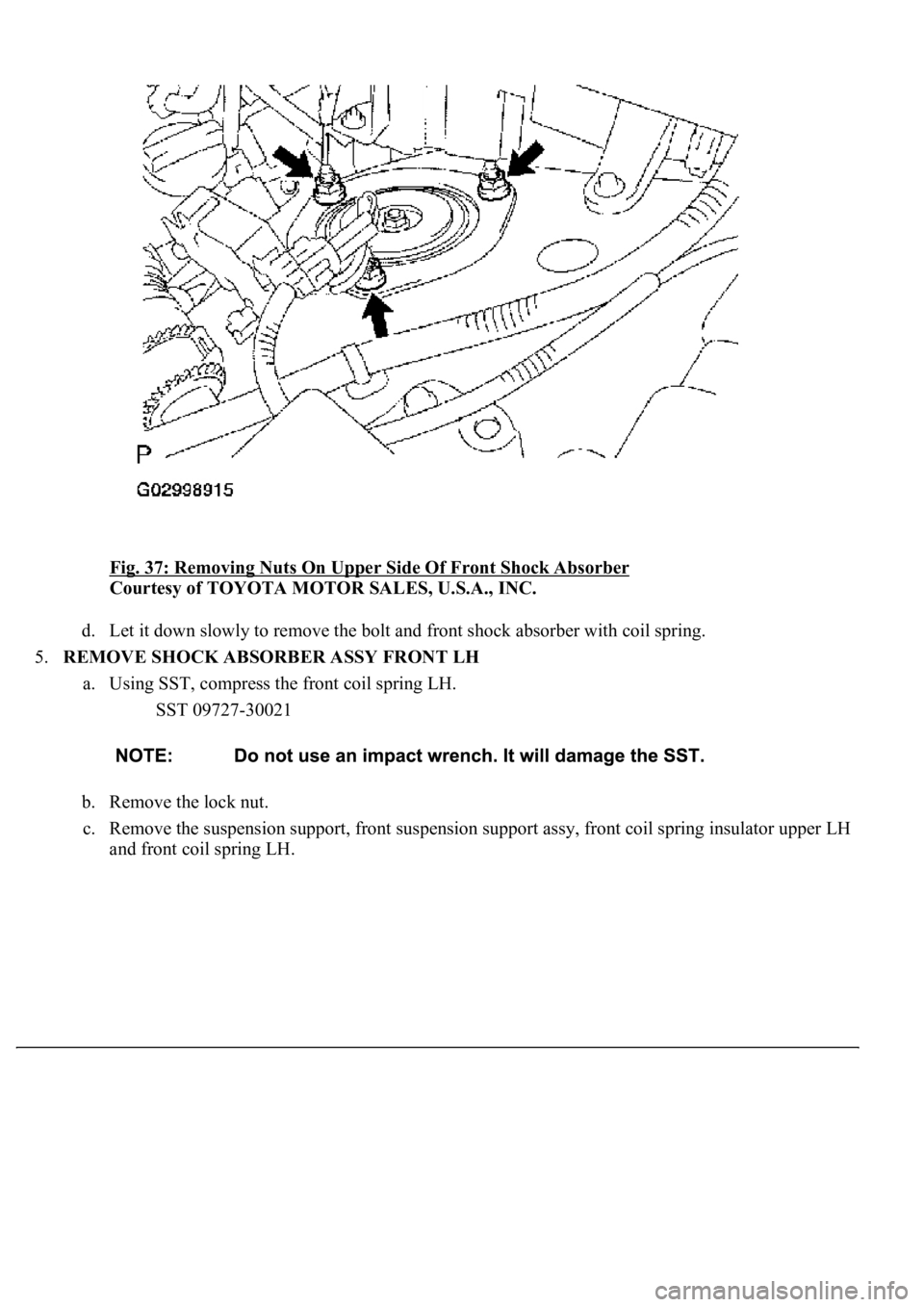

LEXUS LS430 2003 Factory Repair Manual Fig. 37: Removing Nuts On Upper Side Of Front Shock Absorber Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. d. Let it down slowly to remove the bolt and front shock absorber with coil spring. 5.REMO

Page 4030 of 4500

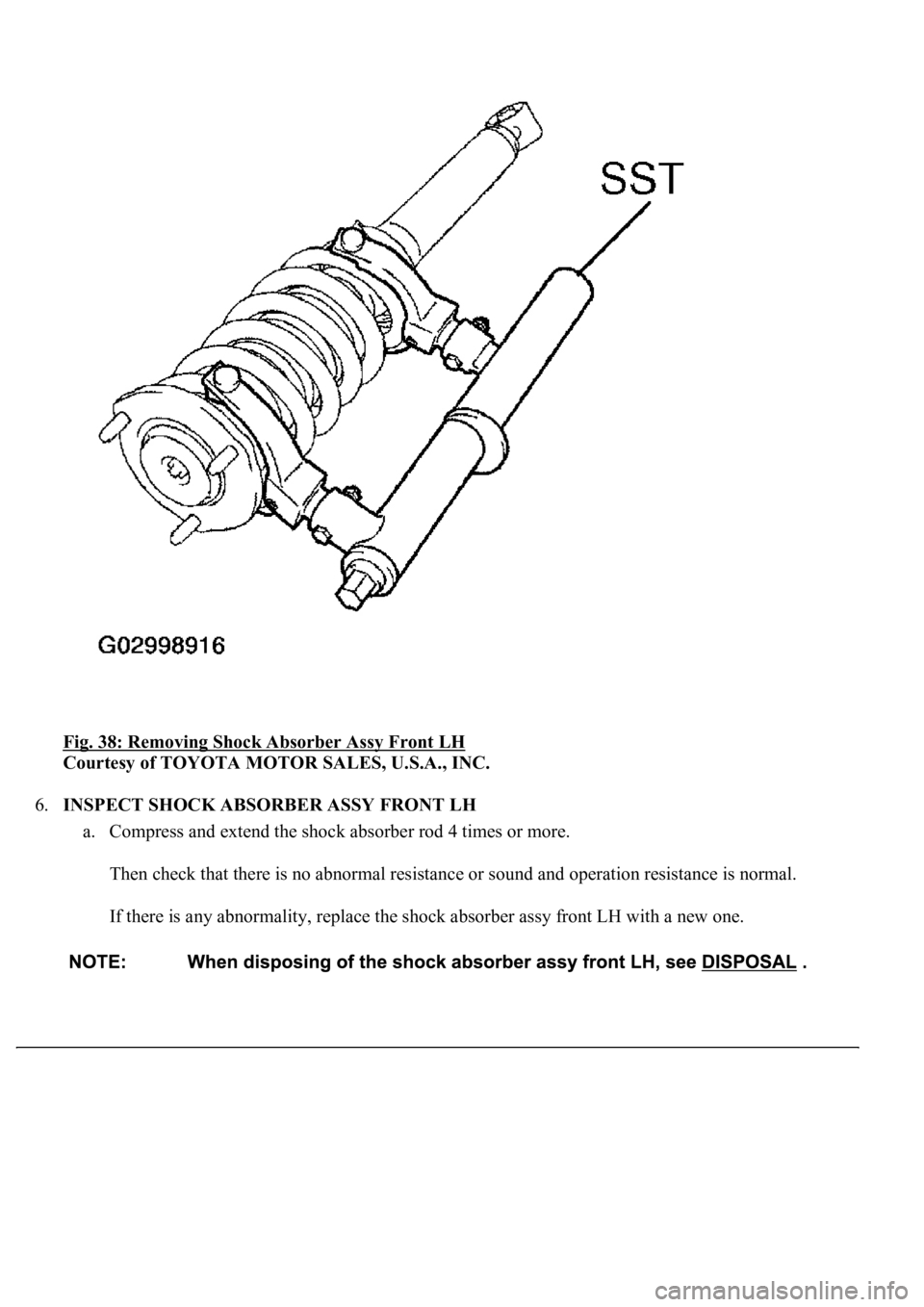

LEXUS LS430 2003 Factory Repair Manual Fig. 38: Removing Shock Absorber Assy Front LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 6.INSPECT SHOCK ABSORBER ASSY FRONT LH a. Compress and extend the shock absorber rod 4 times or more. Th

Page 4031 of 4500

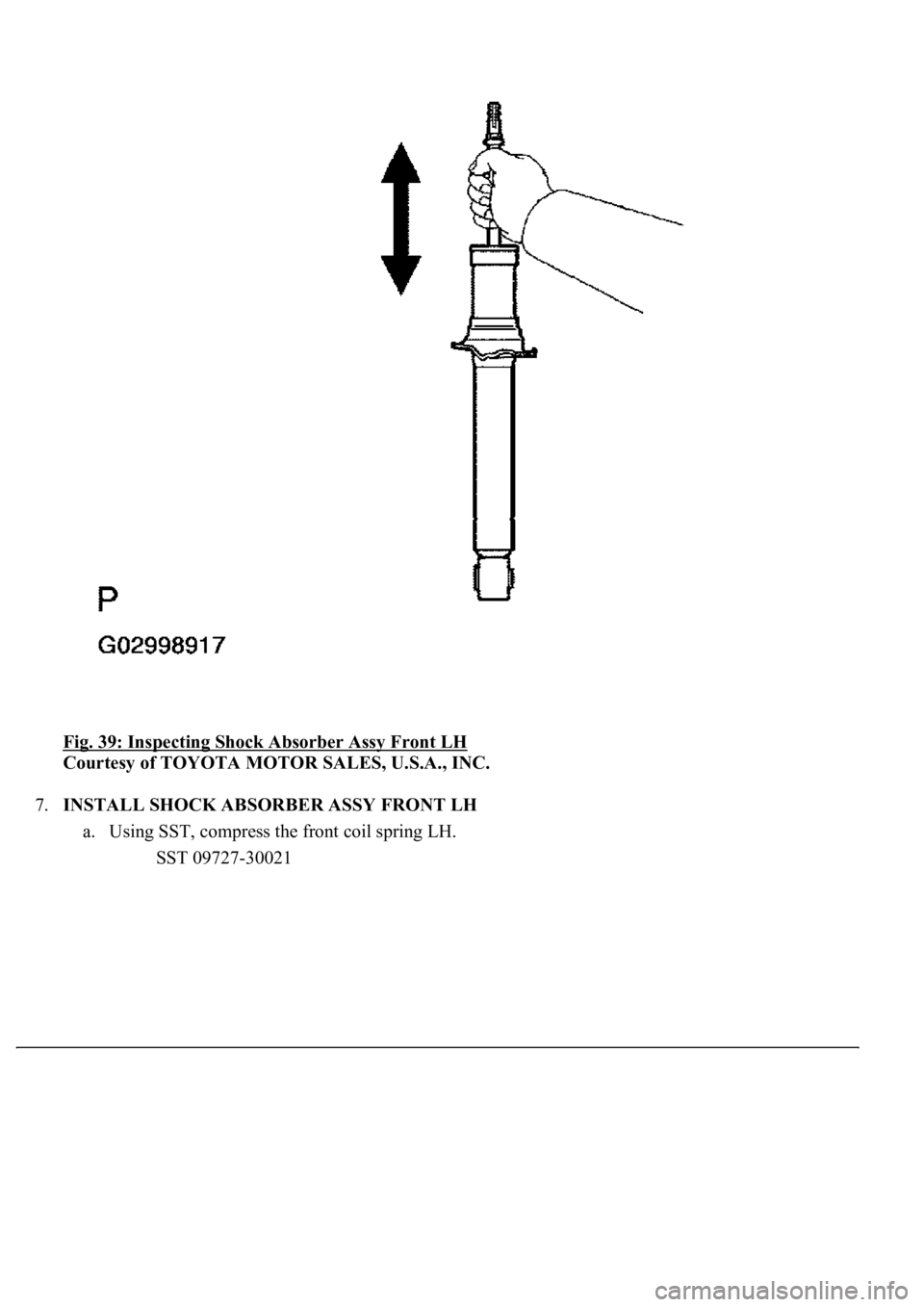

LEXUS LS430 2003 Factory Repair Manual Fig. 39: Inspecting Shock Absorber Assy Front LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 7.INSTALL SHOCK ABSORBER ASSY FRONT LH a. Using SST, compress the front coil spring LH. SST 09727-3002

Page 4032 of 4500

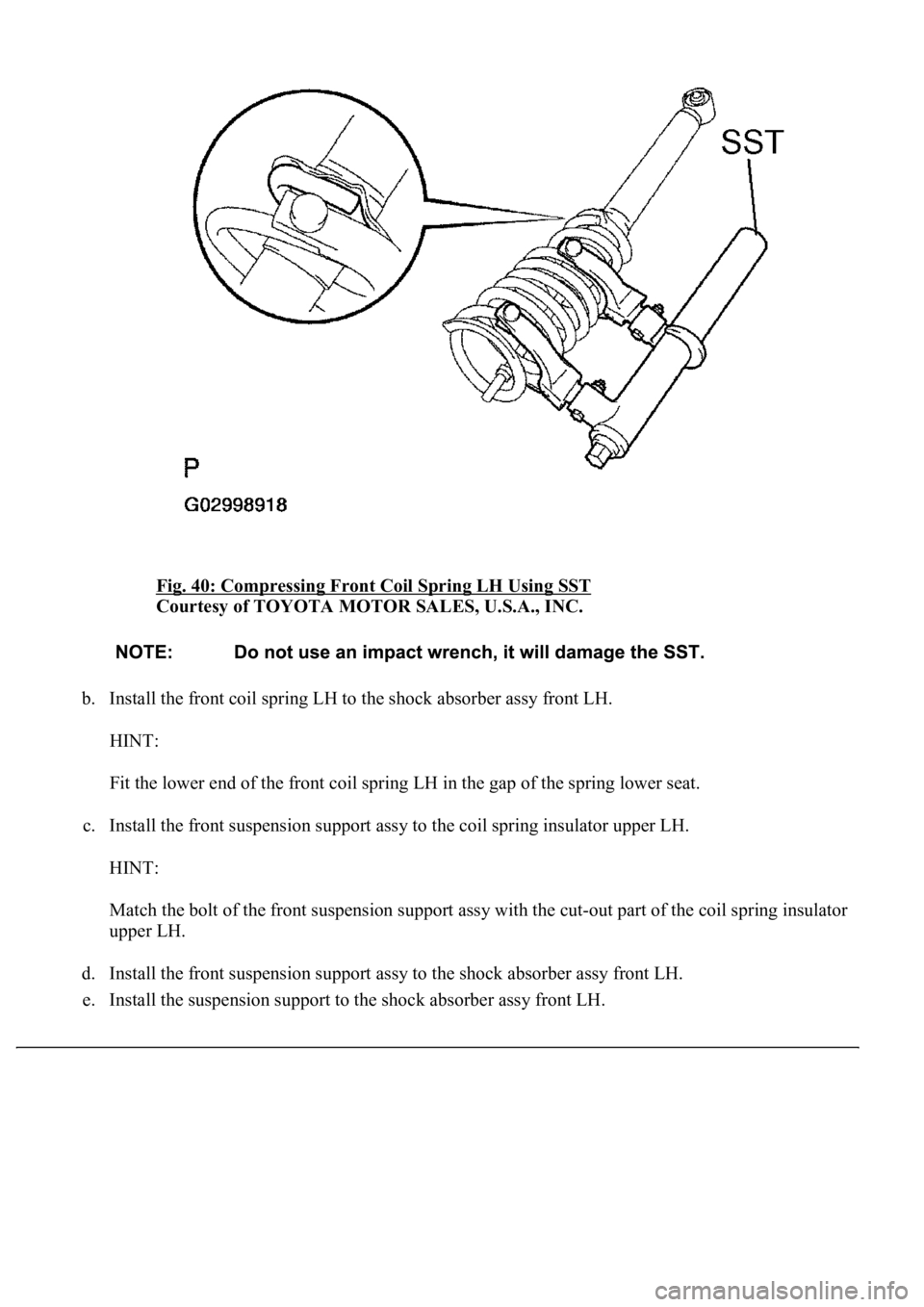

LEXUS LS430 2003 Factory Repair Manual Fig. 40: Compressing Front Coil Spring LH Using SST Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Install the front coil spring LH to the shock absorber assy front LH. HINT: Fit the lower end of
