Page 4577 of 5267

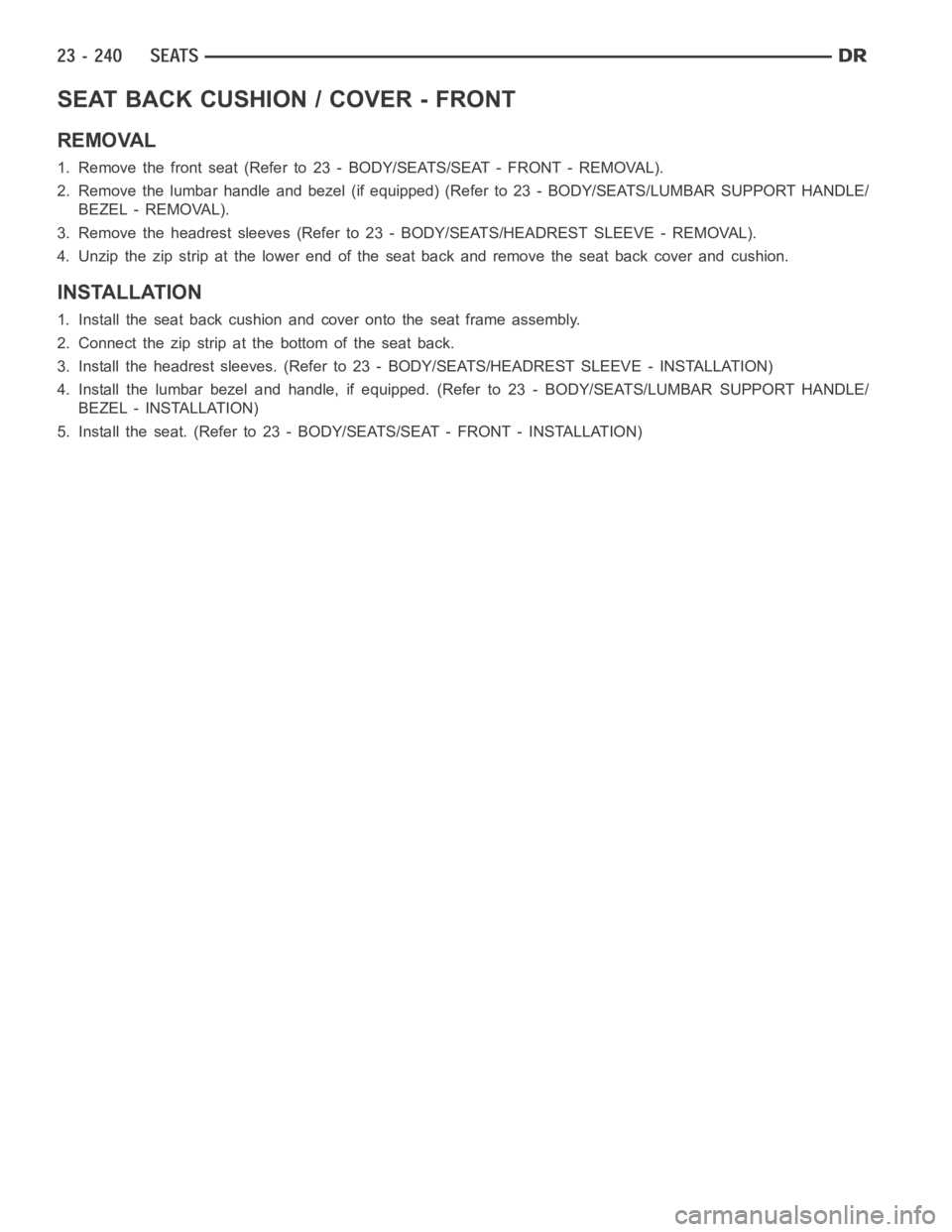

DODGE RAM SRT-10 2006 Service Repair Manual SEAT BACK CUSHION / COVER - FRONT REMOVAL 1. Remove the front seat (Refer to 23 - BODY/SEATS/SEAT - FRONT - REMOVAL). 2. Remove the lumbar handle and bezel (if equipped) (Refer to 23 - BODY/SEATS/LUMB

Page 4578 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual LUMBAR SUPPORT HANDLE/BEZEL REMOVAL CAUTION: Care must be taken not to damage the handle or bezel surface when removing. 1. Using a trim stick (special tool #C-4755) or equiv- alent, pry the manual lu

Page 4579 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 2. Snap the manual lumbar knob onto the shaft of the drive mechanism into the bezel surround.

Page 4580 of 5267

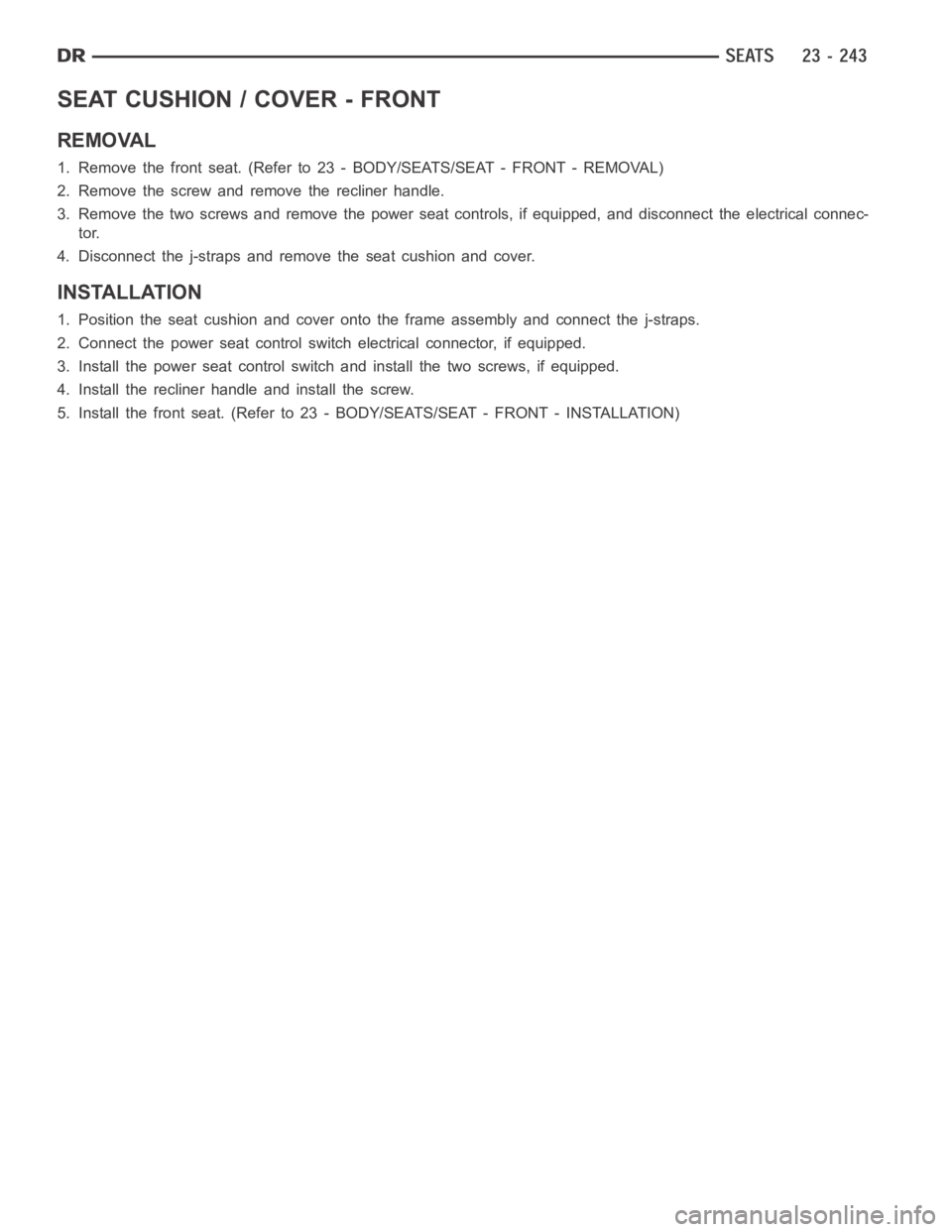

DODGE RAM SRT-10 2006 Service Repair Manual SEAT CUSHION / COVER - FRONT REMOVAL 1. Remove the front seat. (Refer to 23 -BODY/SEATS/SEAT - FRONT - REMOVAL) 2. Remove the screw and remove the recliner handle. 3. Remove the two screws and remove

Page 4581 of 5267

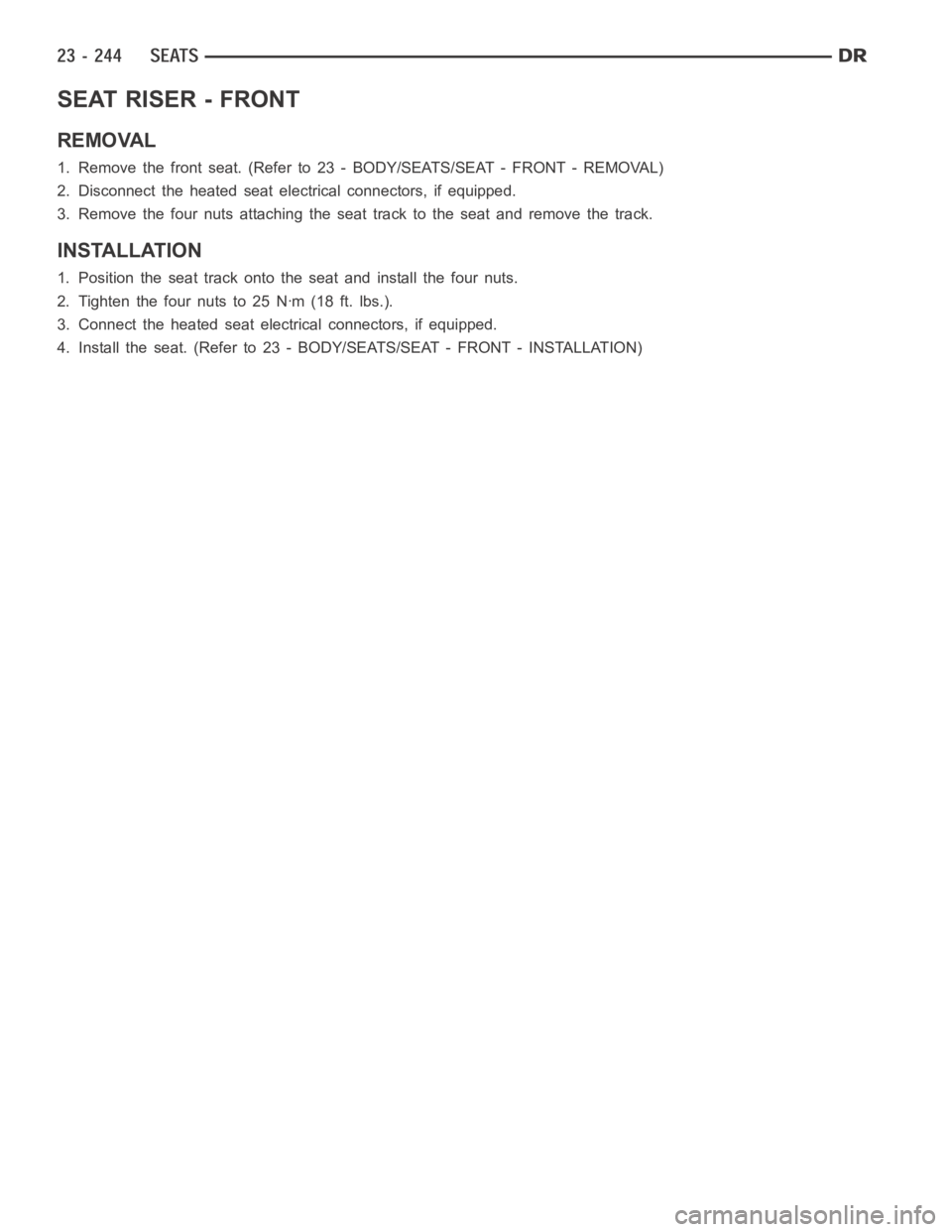

DODGE RAM SRT-10 2006 Service Repair Manual SEAT RISER - FRONT REMOVAL 1. Remove the front seat. (Refer to 23 -BODY/SEATS/SEAT - FRONT - REMOVAL) 2. Disconnect the heated seat electrical connectors, if equipped. 3. Remove the four nuts attachin

Page 4582 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual SEAT - REAR REMOVAL 1. Remove the load floor (Refer to 23 - BODY/INTE- RIOR/LOAD FLOOR - REMOVAL). 2. Fold the rear seat cushions up and remove the rear bolts (1, 3, and 5). 3. Lift each seat assembly

Page 4583 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual INSTALLATION 1. Install the seats into the vehicle and engage the seat back frame hooks (1 and 3) with the footmans loops (2 and 4) in the cab back panel. 2. Install the rear seat bolts (1, 3, and 5)

Page 4584 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual SEAT BACK - REAR REMOVAL 1. Remove the rear seat (Refer to 23 - BODY/SEATS/ SEAT - REAR - REMOVAL). 2. Remove the seat back bolts (1) and remove the seat back (4). INSTALLATION 1. Install the seat bac
