Page 2713 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual COUNTERSHAFT BEARINGS PRELOAD 1. Install countershaft with original shim into adapter. 2. Install case and bolt together using all bolts. 3. Rotate countershaft to seat bearings. 4. Screw Stud 8161 in

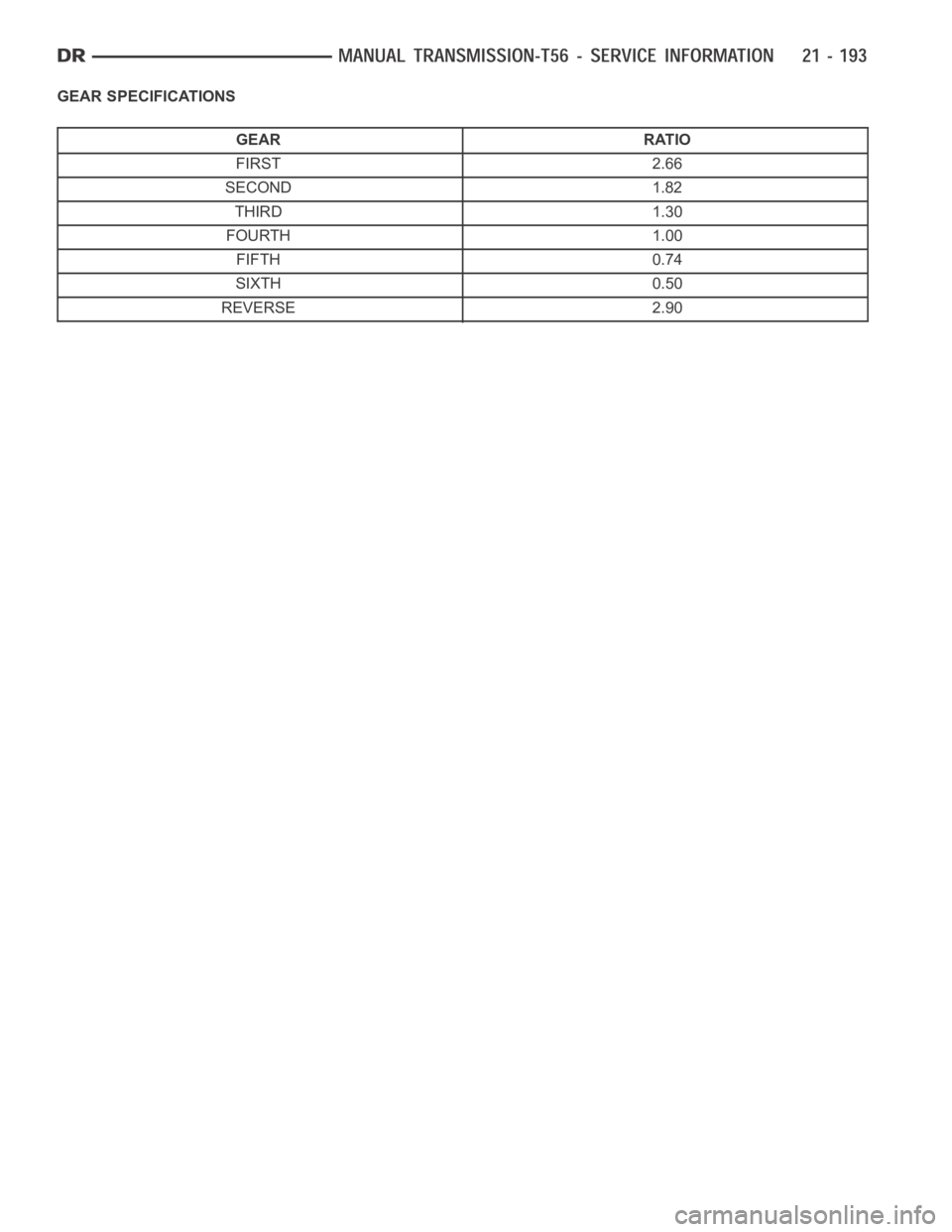

Page 2714 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual GEAR SPECIFICATIONS GEAR RATIO FIRST 2.66 SECOND 1.82 THIRD 1.30 FOURTH 1.00 FIFTH 0.74 SIXTH 0.50 REVERSE 2.90

Page 2715 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual SPECIAL TOOLS DIAL INDICATOR C-3339 SLIDE HAMMER C-3752 HANDLE C-4171 INSTALLER MB-991317 BEARING INSTALLER MB998909 BEARING INSTALLER 6052 RACE REMOVER 7794-A

Page 2716 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual STUD 8161 INPUT SHAFT SEAL INSTALLER 9366 BUSHING REMOVER 9367 BUSHING INSTALLER 9368 CASE CUP REMOVER 9369 OUTPUT SHAFT SEAL INSTALLER 9372 CASE CUP INSTALLER 9373 GEAR SPLITTER 9375

Page 2717 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 3-4 GEAR PRESS TUBE 9376 THIRD GEAR PRESS ADAPTER 9377 5-6 GEAR REMOVER BOLTS 9378 5-6 GEAR REMOVER 9379 INPUT SHAFT CUP INSTALLER 9380 BRIDGE 9382 BEARING SPLITTER 9384 BENCH FIXTURE 9385

Page 2718 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual BEARING SPLITTER 9386 TRANSMISSION FIXTURE 9387 BEARING SPLITTER 9388 5-6 GEAR INSTALLER 9391 BEARING CUP INSTALLER 9392 BEARING INSTALLER 9394 BEARING REMOVER 9395

Page 2719 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual SEAL-EXTENSION HOUSING REMOVAL NOTE: If extension housing slip yoke bushing is worn the housing must be replaced, 1. Remove propeller shaft. 2. Remove seal with a seal pick (1). 3. Clean and inspect e

Page 2720 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual SHAFT-INPUT REMOVAL NOTE: If input shaft is damaged behind the seal, the transmission must be disassembled and inspected. 1. Remove transmission from the vehicle. 2. Measure output shaft end play and
