Page 1377 of 5267

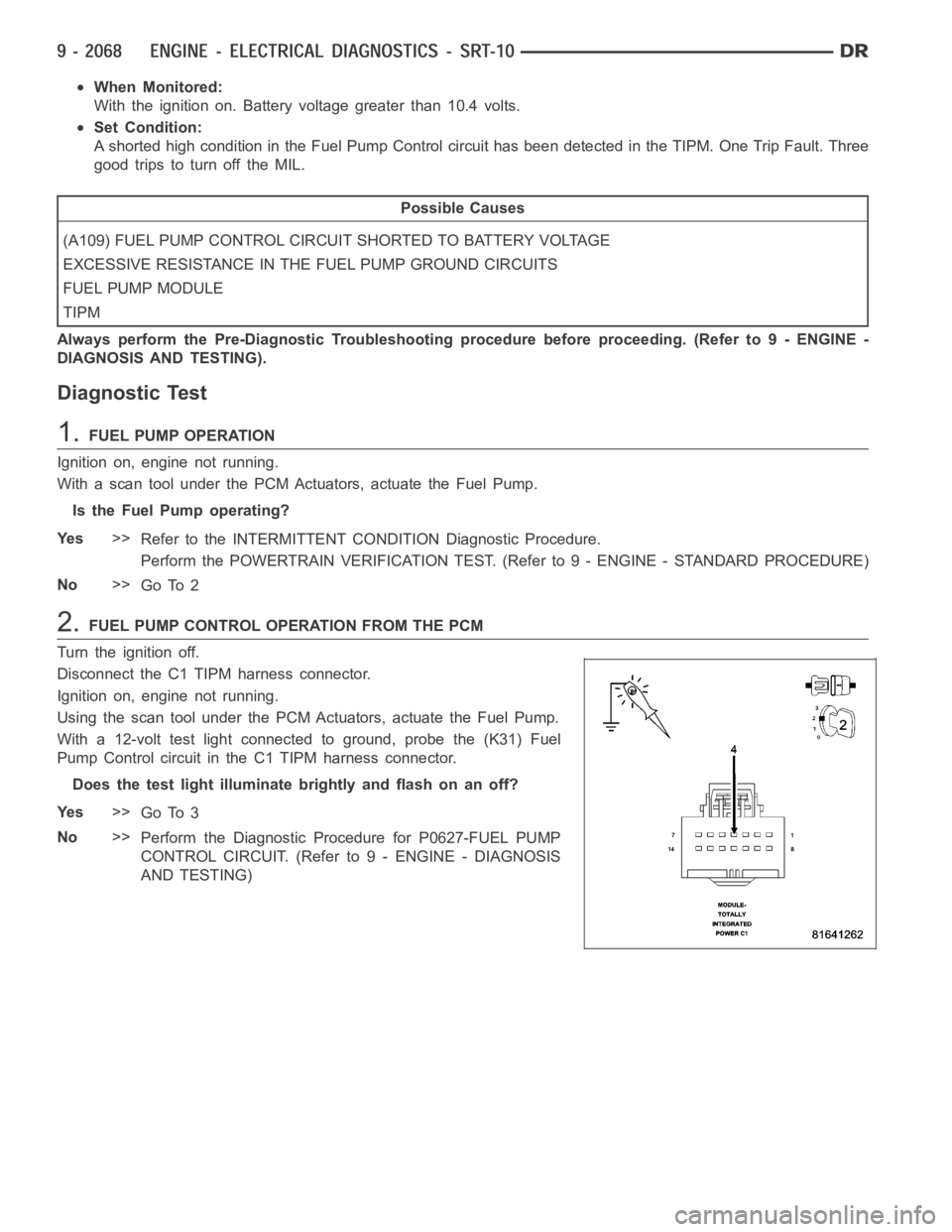

DODGE RAM SRT-10 2006 Service Repair Manual When Monitored: With the ignition on. Battery voltage greater than 10.4 volts. Set Condition: A shorted high condition in the Fuel Pump Control circuit has been detectedin the TIPM. One Trip Fault. Th

Page 1378 of 5267

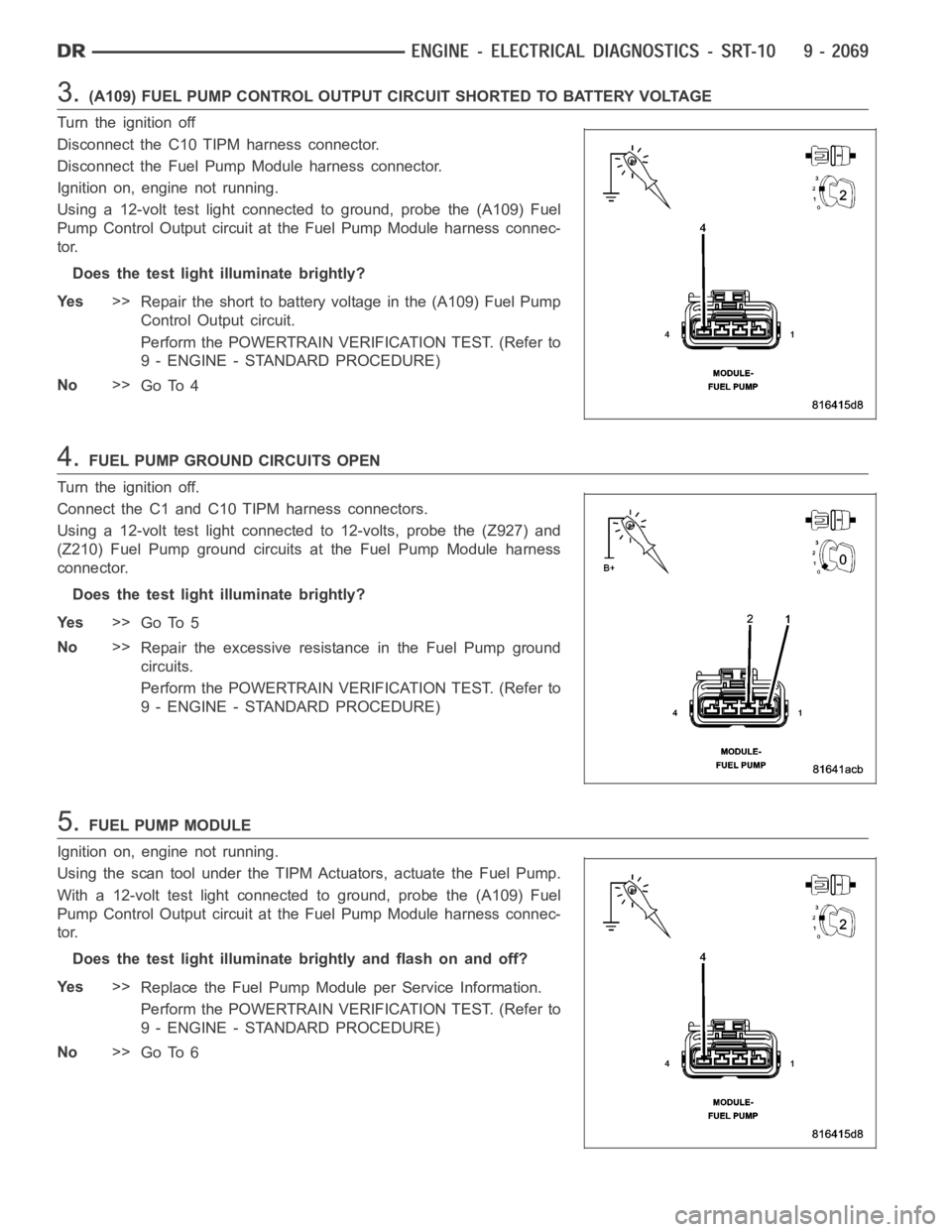

DODGE RAM SRT-10 2006 Service Repair Manual 3.(A109) FUEL PUMP CONTROL OUTPUT CIRCUIT SHORTED TO BATTERY VOLTAGE Turn the ignition off Disconnect the C10 TIPM harness connector. Disconnect the Fuel Pump Module harness connector. Ignition on, en

Page 1379 of 5267

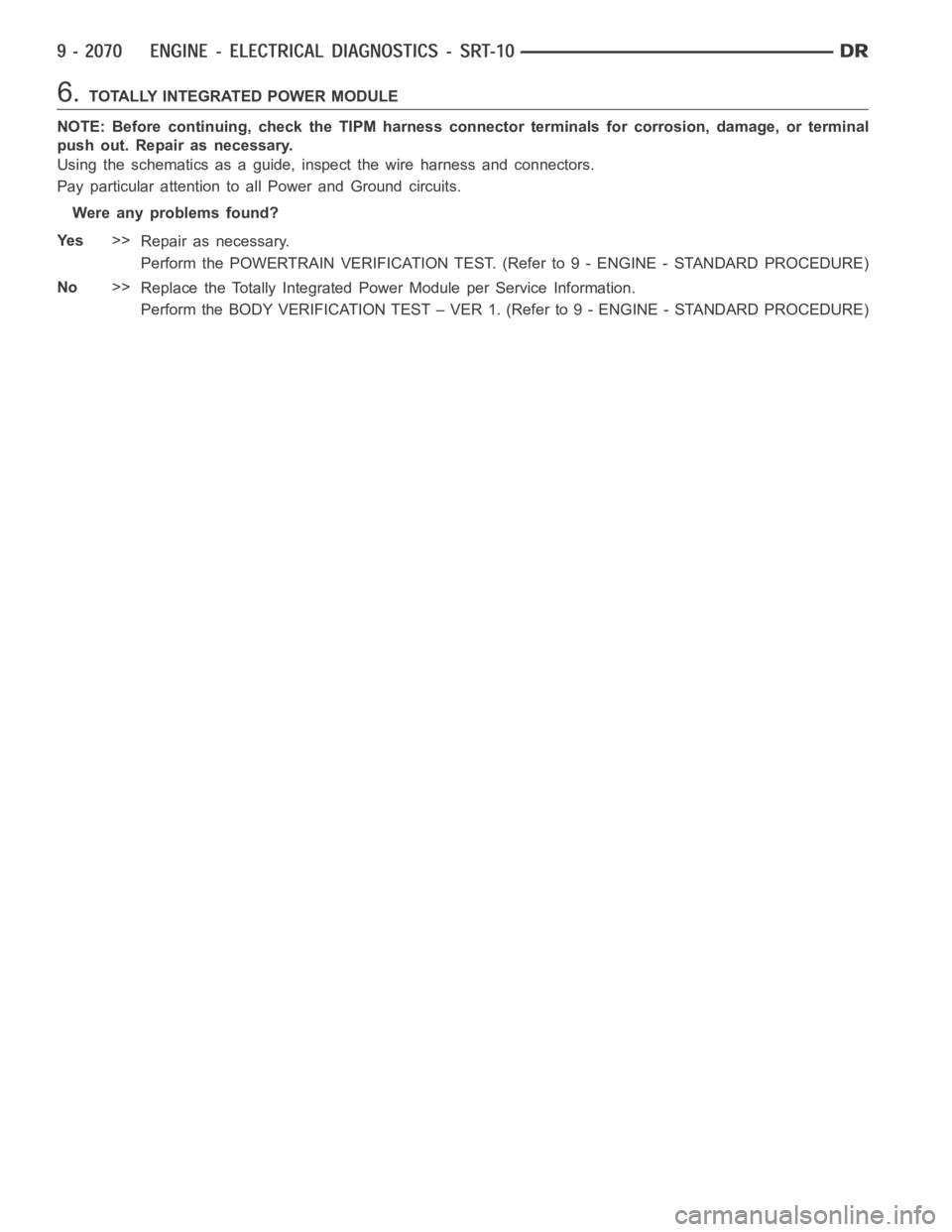

DODGE RAM SRT-10 2006 Service Repair Manual 6.TOTALLY INTEGRATED POWER MODULE NOTE: Before continuing, check the TIPM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary. Using the schematics as a guide,

Page 1380 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P127E-FUEL PUMP CONTROL CIRCUIT 2 OPEN (TIPM) For a complete wiring diagramRefer to Section 8W.

Page 1381 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual When Monitored: With the ignition on. Battery voltage greater than 10.4 volts. TIPM requesting Fuel Pump operation. Set Condition: An open condition has been detected in the Fuel Pump Control circuit

Page 1382 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 3.(A109) FUEL PUMP CONTROL OUTPUT CIRCUIT OPEN Turn the ignition off Disconnect the C10 TIPM harness connector. Disconnect the Fuel Pump Module harness connector. Measure the resistance of the (A109)

Page 1383 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 5.TOTALLY INTEGRATED POWER MODULE NOTE: Before continuing, check the TIPM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary. Using the schematics as a guide,

Page 1384 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P0127F-FUEL PUMP CONTROL CIRCUIT 2 OVERCURRENT (TIPM) For a complete wiring diagramRefer to Section 8W.
