Page 777 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P1272-A/C CLUTCH CONTROL CIRCUIT 2 LOW For a complete wiring diagramRefer to Section 8W.

Page 778 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual When Monitored: With the ignition on. Battery voltage greater than 10 volts. A/C Switch on. Set Condition: A shorted condition is detected in the A/C clutch relay control circuit. One Trip Fault. Thre

Page 779 of 5267

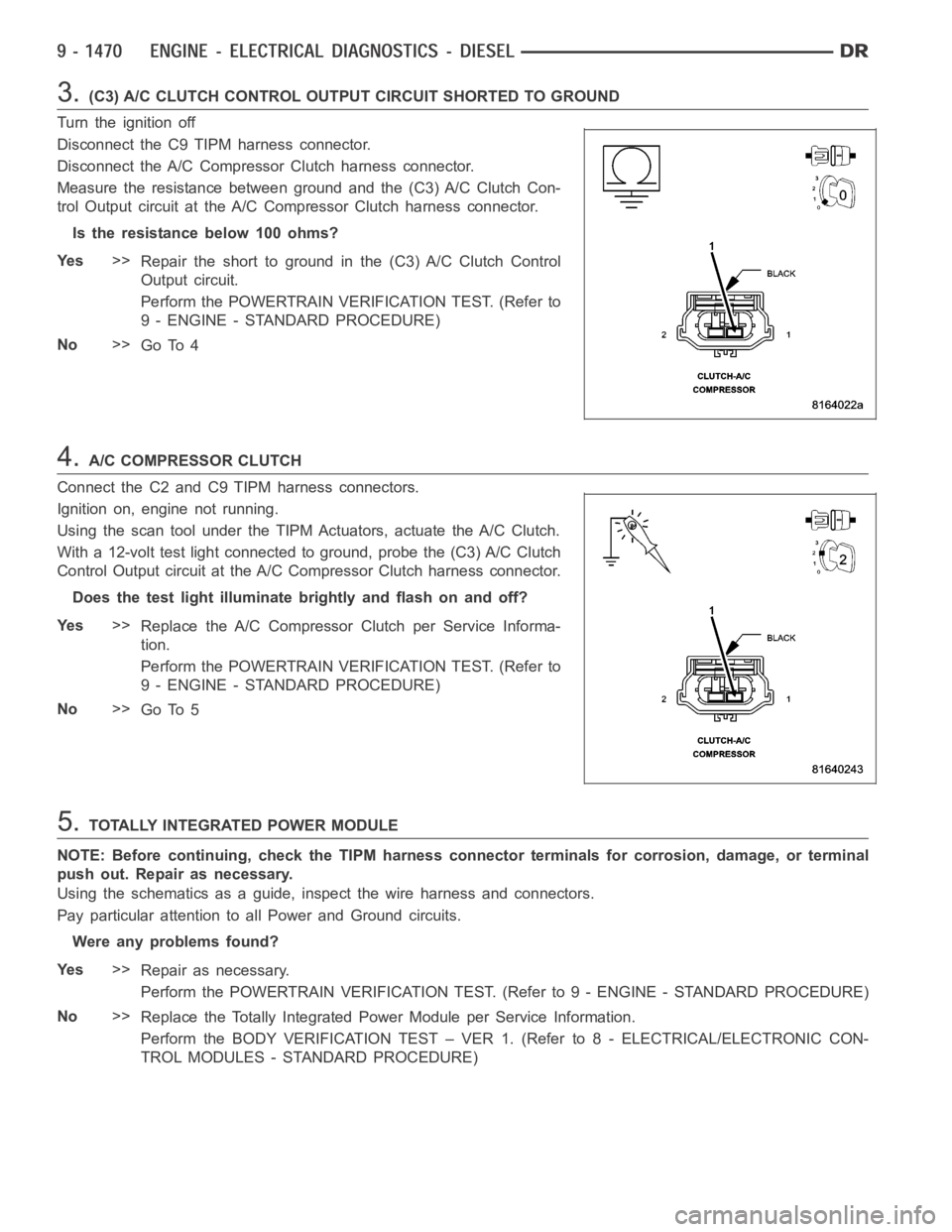

DODGE RAM SRT-10 2006 Service Repair Manual 3.(C3) A/C CLUTCH CONTROL OUTPUT CIRCUIT SHORTED TO GROUND Turn the ignition off Disconnect the C9 TIPM harness connector. Disconnect the A/C Compressor Clutch harness connector. Measure the resistanc

Page 780 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P1273-A/C CLUTCH CONTROL CIRCUIT 2 HIGH For a complete wiring diagramRefer to Section 8W.

Page 781 of 5267

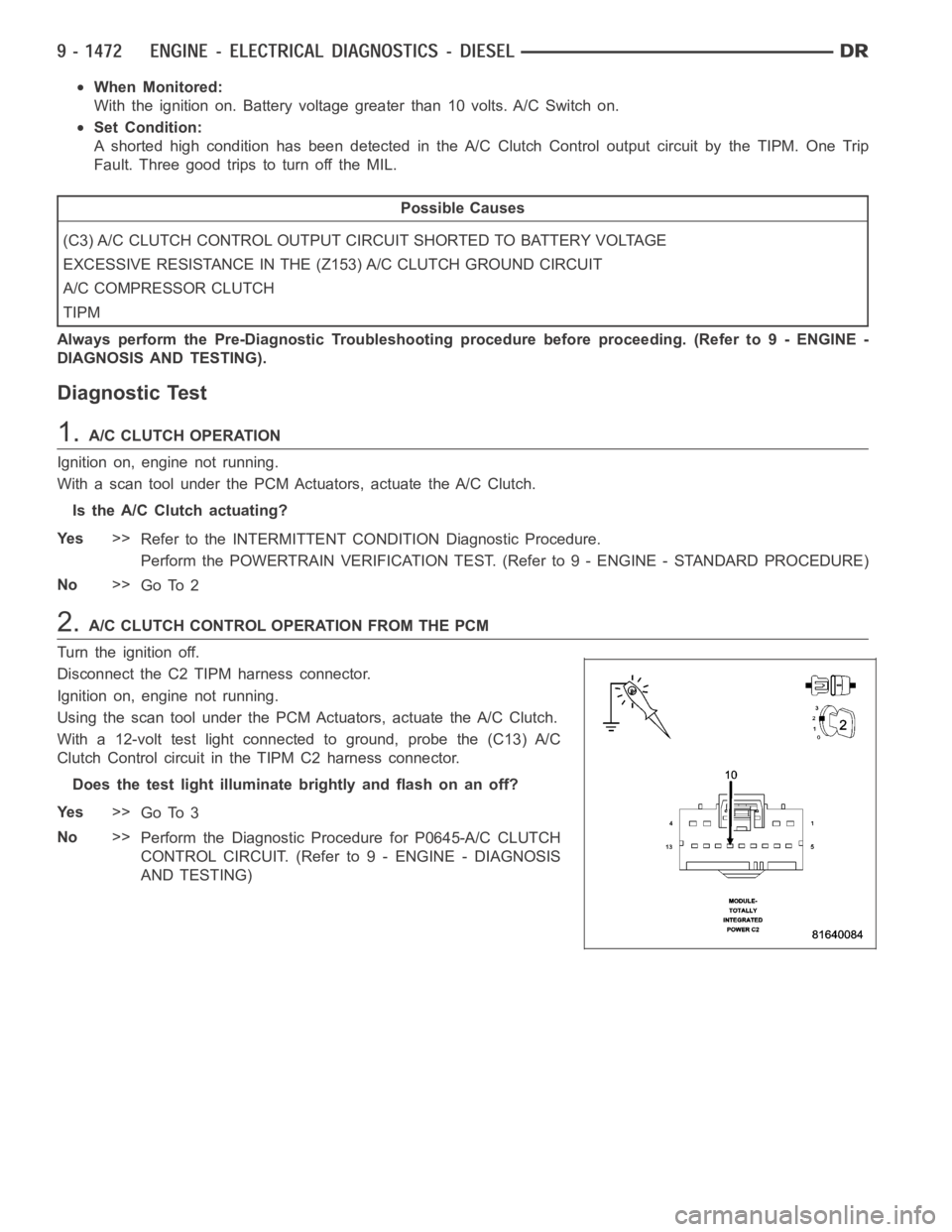

DODGE RAM SRT-10 2006 Service Repair Manual When Monitored: With the ignition on. Battery voltage greater than 10 volts. A/C Switch on. Set Condition: A shorted high condition has been detected in the A/C Clutch Control outputcircuit by the TIP

Page 782 of 5267

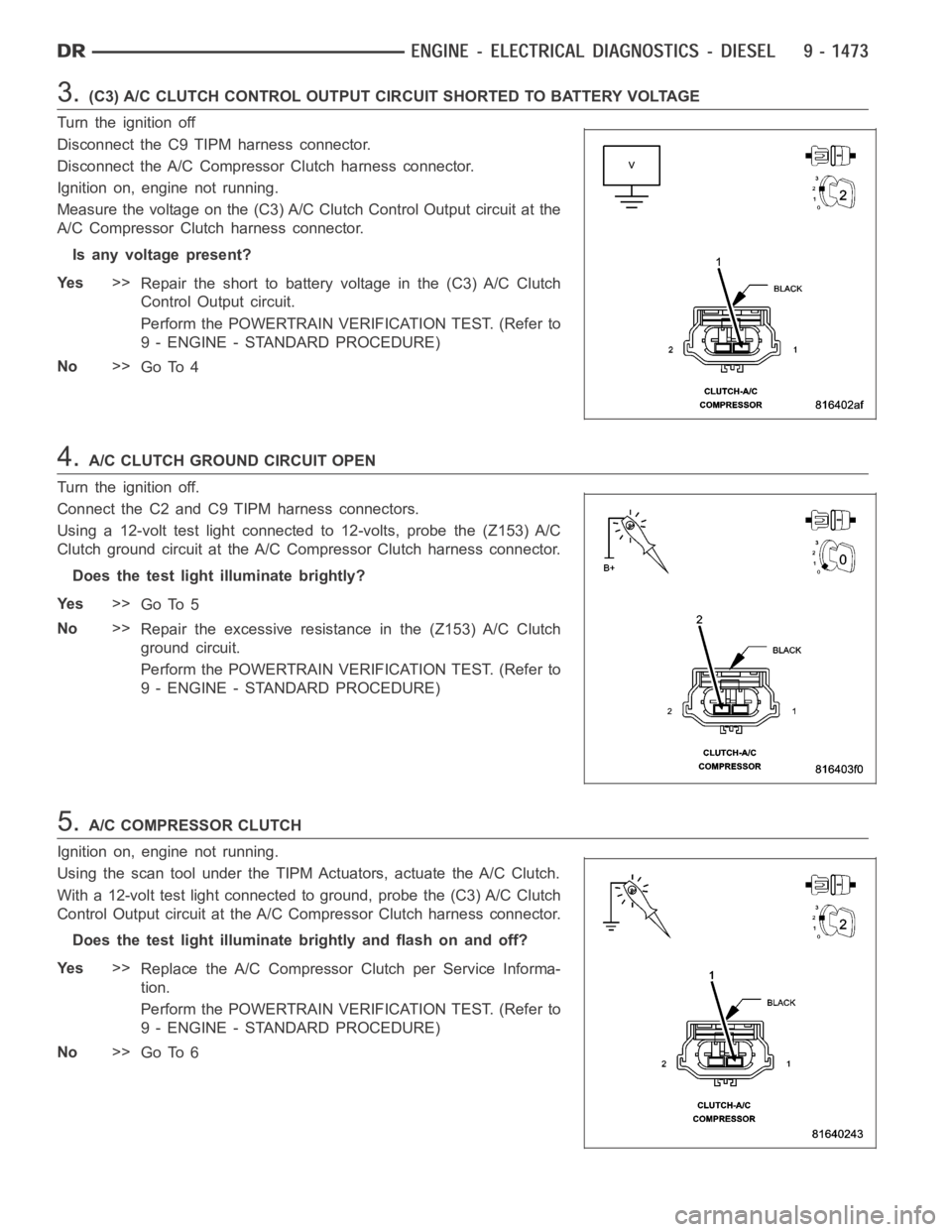

DODGE RAM SRT-10 2006 Service Repair Manual 3.(C3) A/C CLUTCH CONTROL OUTPUT CIRCUIT SHORTED TO BATTERY VOLTAGE Turn the ignition off Disconnect the C9 TIPM harness connector. Disconnect the A/C Compressor Clutch harness connector. Ignition on,

Page 783 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 6.TOTALLY INTEGRATED POWER MODULE NOTE: Before continuing, check the TIPM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary. Using the schematics as a guide,

Page 784 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P1274-A/C CLUTCH CONTROL CIRCUIT 2 OPEN For a complete wiring diagramRefer to Section 8W.
